Anti-SMCHD1 antibody [EPR27952-42] - BSA and Azide free
- Recombinant
- Advanced Validation
- RabMAb
- What is this?
Be the first to review this product! Submit a review
|
(0 Publication)
Rabbit Recombinant Monoclonal SMCHD1 antibody. Carrier free. Suitable for WB, IP, ChIC/CUT&RUN-seq and reacts with Human, Mouse samples.
View Alternative Names
KIAA0650, SMCHD1, Structural maintenance of chromosomes flexible hinge domain-containing protein 1, SMC hinge domain-containing protein 1
- IP
Supplier Data

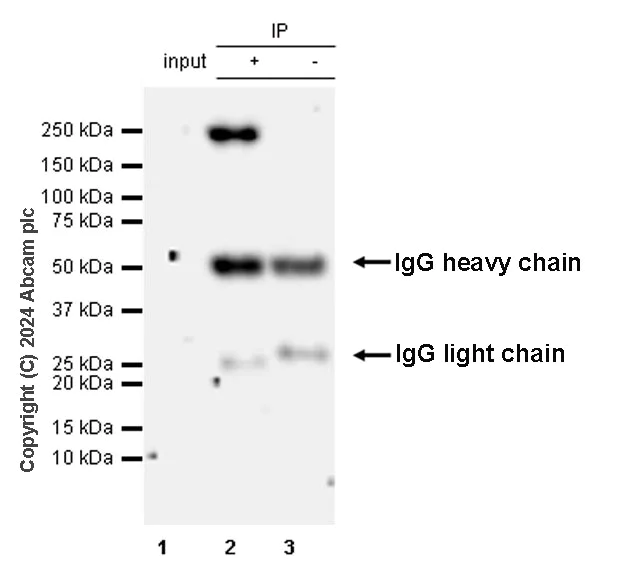

Immunoprecipitation - Anti-SMCHD1 antibody [EPR27952-42] - BSA and Azide free (AB317812)
This data was developed using ab317811, the same antibody clone in a different buffer formulation.
SMCHD1 was immunoprecipitated from 0.35 mg HCT 116 (human colorectal carcinoma epithelial cell) whole cell lysate with ab317811 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab317811 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(ab131366) was used at 1/5000 dilution.
Lane 1 : HCT 116 (human colorectal carcinoma epithelial cell) whole cell lysate
Lane 2 : ab317811 IP in HCT 116 (human colorectal carcinoma epithelial cell) whole cell lysate
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab317811 in HCT 116 whole cell lysate
All lanes:
Immunoprecipitation - Anti-SMCHD1 antibody [EPR27952-42] (<a href='/en-us/products/primary-antibodies/smchd1-antibody-epr27952-42-ab317811'>ab317811</a>) at 1/30 dilution
All lanes:
HCT 116 (human colorectal carcinoma epithelial cell) whole cell lysate with NFDM/TBST
Secondary
All lanes:
Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (<a href='/en-us/products/reagents/veriblot-for-ip-detection-reagent-hrp-ab131366'>ab131366</a>) at 1/5000 dilution
false
Exposure time: 180s
- IP
Lab

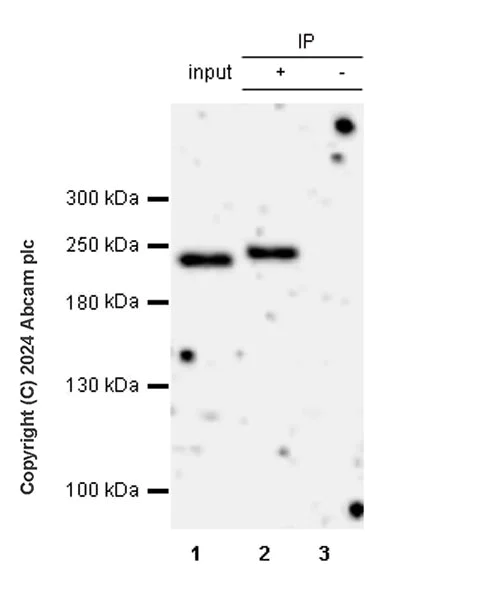

Immunoprecipitation - Anti-SMCHD1 antibody [EPR27952-42] - BSA and Azide free (AB317812)
This data was developed using ab317811, the same antibody clone in a different buffer formulation.
SMCHD1 was immunoprecipitated from 0.35 mg EL4 (mouse lymphoma T lymphocyte) whole cell lysate with ab317811 at 1/30 dilution (2µg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab317811 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(ab131366) was used at 1/5000 dilution.
Blocking and dilution buffer and concentration : 5% NFDM/TBST.
All lanes:
Immunoprecipitation - Anti-SMCHD1 antibody [EPR27952-42] (<a href='/en-us/products/primary-antibodies/smchd1-antibody-epr27952-42-ab317811'>ab317811</a>) at 1/1000 dilution
Lane 1:
EL4 (mouse lymphoma T lymphocyte) whole cell lysate (Input) at 10 µg
Lane 2:
EL4 (mouse lymphoma T lymphocyte) whole cell lysate
Lane 3:
Rabbit monoclonal IgG (<a href='/en-us/products/primary-antibodies/rabbit-igg-monoclonal-epr25a-isotype-control-ab172730'>ab172730</a>) instead of <a href='/en-us/products/primary-antibodies/smchd1-antibody-epr27952-42-ab317811'>ab317811</a> in EL4 whole cell lysate
Secondary
All lanes:
Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (<a href='/en-us/products/reagents/veriblot-for-ip-detection-reagent-hrp-ab131366'>ab131366</a>) at 1/5000 dilution
Observed band size: 226 kDa
false
Exposure time: 180s
- WB
Lab

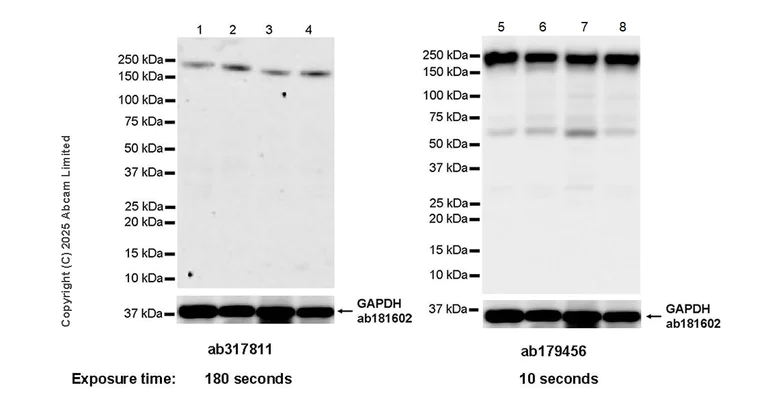

Western blot - Anti-SMCHD1 antibody [EPR27952-42] - BSA and Azide free (AB317812)
This data was developed using ab317811, the same antibody clone in a different buffer formulation.
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.
Exposure time : Lane 1-4 : 180 seconds; Lane 5-8 : 10 seconds
In Western blot analysis, ab317811 exhibited lower sensitivity compared to ab179456, for which reason we recommend the latter as a superior alternative.
Protocol optimizations including used gels with concentration of 6% and a two hours electrical transfer are suggested if ab109746 must be used.
Lanes 1 - 4:
Western blot - Anti-SMCHD1 antibody [EPR27952-42] (<a href='/en-us/products/primary-antibodies/smchd1-antibody-epr27952-42-ab317811'>ab317811</a>) at 1/1000 dilution
Lanes 5 - 8:
Western blot - Anti-SMCHD1 antibody [EPR12340-29] (<a href='/en-us/products/primary-antibodies/smchd1-antibody-epr12340-29-ab179456'>ab179456</a>) at 1/1000 dilution
Lanes 1 and 5:
HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg
Lanes 2 and 6:
HCT 116 (human colorectal carcinoma epithelial cell) whole cell lysate at 20 µg
Lanes 3 and 7:
U-2 OS (human bone osteosarcoma epithelial cell) whole cell lysate at 20 µg
Lanes 4 and 8:
SH-SY5Y (human neuroblastoma epithelial cell) whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution
Observed band size: 226 kDa
false
Exposure time: 180s
- WB
Lab
Western blot - Anti-SMCHD1 antibody [EPR27952-42] - BSA and Azide free (AB317812)
This data was developed using ab317811, the same antibody clone in a different buffer formulation.
Low expression : MCF7.
In Western blot, Anti-Vinculin antibody [EPR8185] (ab129002) staining at 1/10000 dilution.
This Western blot was performed using 6% gels, followed by a two-hour electrical transfer, which showed significantly stronger signals.
All lanes:
Western blot - Anti-SMCHD1 antibody [EPR27952-42] (<a href='/en-us/products/primary-antibodies/smchd1-antibody-epr27952-42-ab317811'>ab317811</a>) at 1/1000 dilution
Lane 1:
HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg
Lane 2:
HCT 116 (human colorectal carcinoma epithelial cell) whole cell lysate at 20 µg
Lane 3:
U-2 OS (human bone osteosarcoma epithelial cell) whole cell lysate at 20 µg
Lane 4:
SH-SY5Y (human neuroblastoma epithelial cell) whole cell lysate at 20 µg
Lane 5:
MCF7 (human breast adenocarcinoma epithelial cell) whole cell lysate at 20 µg
Lane 6:
HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate at 20 µg
Lane 7:
SK-OV-3 (human ovarian cancer epithelial cell) whole cell lysate at 20 µg
Lane 8:
C2C12 (mouse myoblast) whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution
Observed band size: 226 kDa
false
Exposure time: 180s
- ChIC/CUT&RUN-seq
Supplier Data

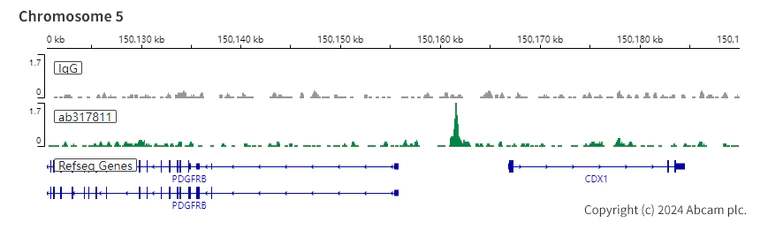

ChIC/CUT&RUN sequencing - Anti-SMCHD1 antibody [EPR27952-42] - BSA and Azide free (AB317812)
This data was developed using ab317811, the same antibody clone in a different buffer formulation.
ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 105 HCT 116 (human colorectal carcinoma epithelial cell) cells and 5 µg of ab317811 [EPR27952-42]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.
- ChIC/CUT&RUN-seq
Supplier Data

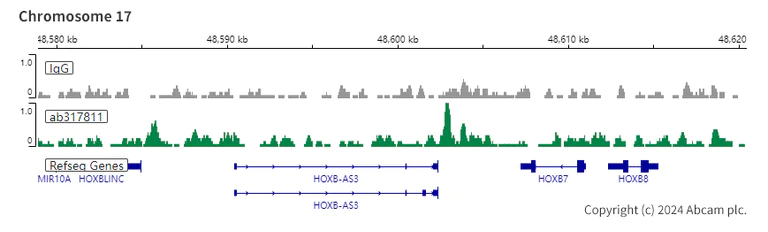

ChIC/CUT&RUN sequencing - Anti-SMCHD1 antibody [EPR27952-42] - BSA and Azide free (AB317812)
This data was developed using ab317811, the same antibody clone in a different buffer formulation.
ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 105 HCT 116 (human colorectal carcinoma epithelial cell) cells and 5 µg of ab317811 [EPR27952-42]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.
- ChIC/CUT&RUN-seq
Supplier Data
ChIC/CUT&RUN sequencing - Anti-SMCHD1 antibody [EPR27952-42] - BSA and Azide free (AB317812)
This data was developed using ab317811, the same antibody clone in a different buffer formulation.
ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 105 HCT 116 (human colorectal carcinoma epithelial cell) cells and 5 µg of ab317811 [EPR27952-42]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.
- WB
Lab

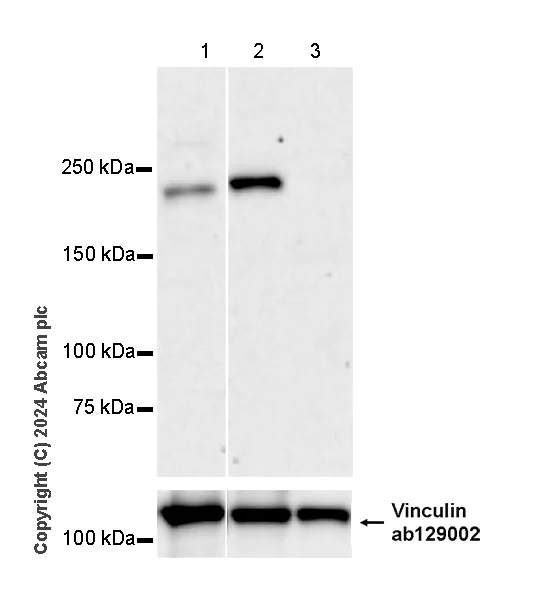

Western blot - Anti-SMCHD1 antibody [EPR27952-42] - BSA and Azide free (AB317812)
This data was developed using ab317811, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer : 5% NFDM/TBST
Low expression : liver.
This Western blot was performed using 6% gels, followed by a two-hour electrical transfer, which showed significantly stronger signals.
In Western blot, Anti-Vinculin antibody [EPR8185] (ab129002) staining at 1/10000 dilution.
All lanes:
Western blot - Anti-SMCHD1 antibody [EPR27952-42] (<a href='/en-us/products/primary-antibodies/smchd1-antibody-epr27952-42-ab317811'>ab317811</a>) at 1/1000 dilution
Lane 1:
Mouse spleen tissue lysate at 50 µg
Lane 2:
Mouse testis tissue lysate at 50 µg
Lane 3:
Mouse liver tissue lysate at 50 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution
Observed band size: 226 kDa
false
Exposure time: 180s
- WB
Lab

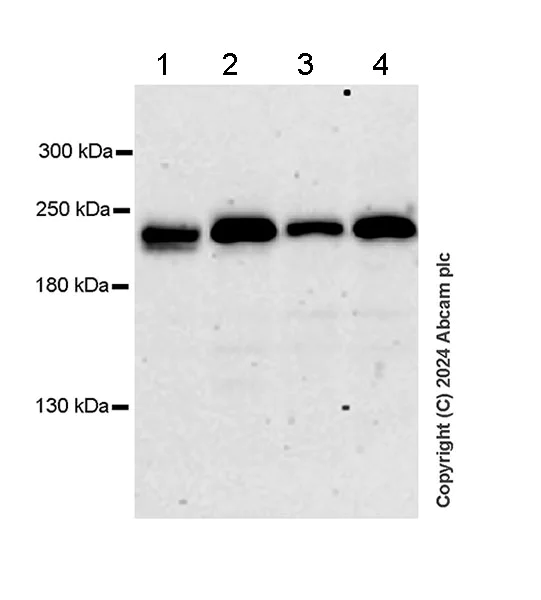

Western blot - Anti-SMCHD1 antibody [EPR27952-42] - BSA and Azide free (AB317812)
This data was developed using ab317811, the same antibody clone in a different buffer formulation.
This Western blot was performed using 6% gels, followed by a two-hour electrical transfer, which showed significantly stronger signals.
All lanes:
Western blot - Anti-SMCHD1 antibody [EPR27952-42] (<a href='/en-us/products/primary-antibodies/smchd1-antibody-epr27952-42-ab317811'>ab317811</a>) at 1/1000 dilution
Lane 1:
4T1 (mouse mammary gland carcinoma epithelial cell) whole cell lysate at 50 µg
Lane 2:
EL4 (mouse lymphoma T lymphocyte) whole cell lysate at 50 µg
Lane 3:
F9 (mouse embryonal carcinoma epithelial cell) whole cell lysate at 50 µg
Lane 4:
Neuro-2a (mouse neuroblastoma neuroblast) whole cell lysate at 50 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution
Observed band size: 226 kDa
false
Exposure time: 180s
- WB
Supplier Data

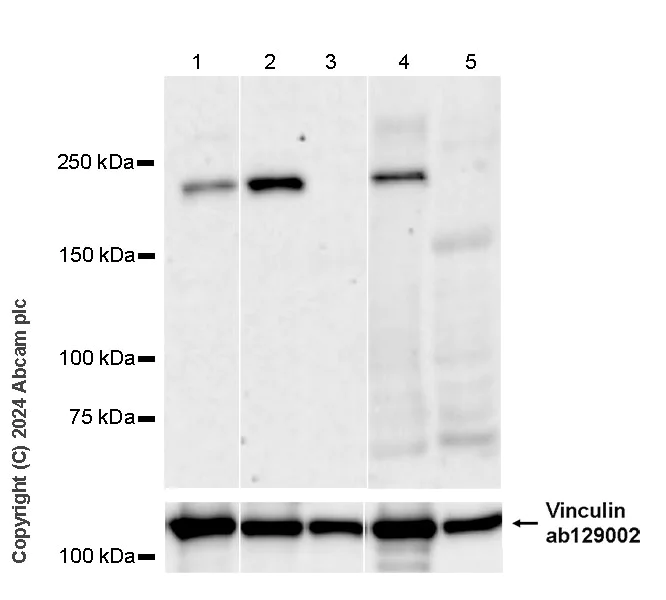

Western blot - Anti-SMCHD1 antibody [EPR27952-42] - BSA and Azide free (AB317812)
This data was developed using ab317811, the same antibody clone in a different buffer formulation.
Low expression : liver.
The lanes 4-5 of this blot was developed using a high sensitivity ECL substrate.
The identity of the lower MW bands in lanes 4-5 are unknown.
In Western blot, Anti-Vinculin antibody [EPR8185] (ab129002) staining at 1/10000 dilution.
Exposure time : Lanes 1-3 : 180 seconds; Lanes 4-5 : 103 seconds.
Lane 1:
Mouse spleen tissue lysate
Lane 2:
Mouse testis tissue lysate
Lane 3:
Mouse liver tissue lysate
Lane 4:
Rat spleen tissue lysate
Lane 5:
Rat liver tissue lysate
false
- WB
Supplier Data

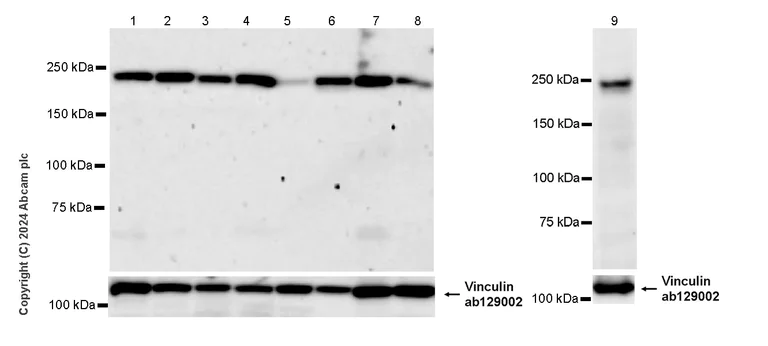

Western blot - Anti-SMCHD1 antibody [EPR27952-42] - BSA and Azide free (AB317812)
This data was developed using ab317811, the same antibody clone in a different buffer formulation.
Low expression : MCF7.
The lane 9 of this blot was developed using a high sensitivity ECL substrate.
In Western blot, Anti-Vinculin antibody [EPR8185] (ab129002) staining at 1/10000 dilution.
Exposure time : Lanes 1-8 : 180 seconds; Lane 9 : 59 seconds.
Lane 1:
HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate
Lane 2:
HCT 116 (human colorectal carcinoma epithelial cell) whole cell lysate
Lane 3:
U-2 OS (human bone osteosarcoma epithelial cell) whole cell lysate
Lane 4:
SH-SY5Y (human neuroblastoma epithelial cell) whole cell lysate
Lane 5:
MCF7 (human breast adenocarcinoma epithelial cell) whole cell lysate
Lane 6:
HepG2 (human hepatocellar carcinoma epithelial cell) whole cell lysate 20
Lane 7:
SK-OV-3 (human ovarian cancer epithelial cell) whole cell lysate
Lane 8:
C2C12 (mouse myoblast) whole cell lysate
Lane 9:
PC-12 (rat adrenal gland pheochromocytoma cell) whole cell lysate
false
Related conjugates and formulations (1)
-
Anti-SMCHD1 antibody [EPR27952-42]
Reactivity data
Product details
ab317812 is the carrier-free version of ab317811.
Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.
Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.
Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.
Properties and storage information
Form
Purification technique
Storage buffer
Shipped at conditions
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Supplementary information
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
SMCHD1 modulates gene expression by modifying the chromatin landscape. It is not only involved in chromatin remodeling but also interacts as a part of a larger protein complex that affects transcriptional silencing. By mediating gene silencing SMCHD1 is important for processes such as X-chromosome inactivation in females and the silencing of certain imprinted genes which require precise regulation and inheritance patterns.
Pathways
SMCHD1 plays a role in the epigenetic regulatory pathway influencing genomic imprinting and X-chromosome inactivation. It works alongside proteins such as EZH2 from the Polycomb Repressive Complex 2 (PRC2) and HP1 proteins demonstrating its integration in chromatin organization and gene expression control. Studies show that SMCHD1 has a relationship with pathways directed by these proteins highlighting its collaborative regulation of chromatin architecture.
