Anti-SMURF1 antibody [1D7]

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SMURF1 antibody [1D7] (AB57573)

SMURF1 antibody (ab57573) used in immunohistochemistry at 2ug/ml on formalin fixed and paraffin embedded human stomach.

This image was generated using the ascites version of the product.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-SMURF1 antibody [1D7] (AB57573)

ICC/IF image of ab57573 stained HeLa cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab57573, 5μg/ml) overnight at +4°C. The secondary antibody (green) was Alexa Fluor® 488 goat anti-mouse IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43μM.

This image was generated using the ascites version of the product.

• Flow Cyt

Unknown

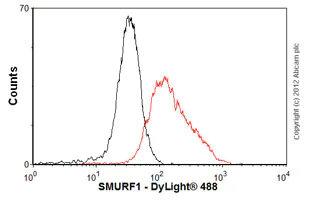

Flow Cytometry - Anti-SMURF1 antibody [1D7] (AB57573)

Overlay histogram showing MCF7 cells stained with ab57573 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab57573, 1μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was DyLight^® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG2a [ICIGG2A] (ab91361, 1μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed.
This image was generated using the ascites version of the product.

• WB

Unknown

Western blot - Anti-SMURF1 antibody [1D7] (AB57573)

SMURF1 antibody (ab57573) at 1ug/lane + HeLa cell lysate at 25ug/lane.

This image was generated using the ascites version of the product.

All lanes:

Western blot - Anti-SMURF1 antibody [1D7] (ab57573)

Predicted band size: 86 kDa
