Anti-SOD2/MnSOD antibody [EPR2560Y] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SOD2/MnSOD antibody [EPR2560Y] - BSA and Azide free (AB227846)

This IHC data was generated using the same anti-SOD2 antibody clone, EPR2560Y, in a different buffer formulation (cat# ab68155).

ab68155 at 1 : 100 dilution staining Superoxide Dismutase 2 in human liver tissue sections.

Perform heat mediated antigen retrieval with EDTA buffer pH 9 before commencing with IHC staining protocol.

• WB

Unknown

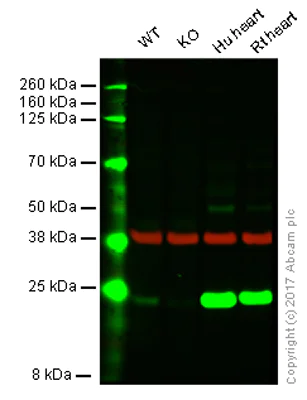

Western blot - Anti-SOD2/MnSOD antibody [EPR2560Y] - BSA and Azide free (AB227846)

This WB data was generated using the same anti-SOD2 antibody clone, EPR2560Y, in a different buffer formulation (Cat# ab68155).

Lanes 1 - 4 : Merged signal (red and green). Green - ab68155 observed at 29 kDa. Red - loading control, ab8245, observed at 37 kDa.

ab68155 was shown to specifically react with SOD2 when SOD2 knockout samples were used. Wild-type and SOD2 knockout samples were subjected to SDS-PAGE. ab68155 and ab8245 (loading control to GAPDH) were diluted at 1/1000 and 1/10 000 respectively and incubated overnight at 4°C. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed ab216776 secondary antibodies at 1/10000 dilution for 1 h at room temperature before imaging.

All lanes:

Western blot - Anti-SOD2/MnSOD antibody [EPR2560Y] (<a href='/en-us/products/primary-antibodies/sod2-mnsod-antibody-epr2560y-ab68155'>ab68155</a>) at 1/1000 dilution

Lane 1:

Wild-type HAP1 cell lysate at 20 µg

Lane 2:

SOD2 knockout HAP1 cell lysate at 20 µg

Lane 3:

Human heart tissue lysate at 20 µg

Lane 4:

Rat heart tissue lysate at 20 µg

Predicted band size: 24 kDa

false

• WB

Lab

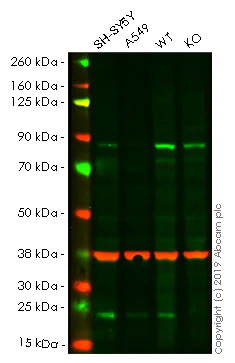

Western blot - Anti-SOD2/MnSOD antibody [EPR2560Y] - BSA and Azide free (AB227846)

This data was developed using the same antibody clone in a different buffer formulation (ab68155).

Lanes 1 - 4 : Merged signal (red and green). Green - ab68155 observed at 22 kDa. Red - loading control, ab8245 observed at 37 kDa.

ab68155 was shown to react with SOD2/MnSOD in wild-type HEK-293T. Loss of signal was observed when knockout cell line ab255434 (knockout cell lysate ab263835) was used. Wild-type and SOD2/MnSOD knockout samples were subjected to SDS-PAGE. ab68155 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-SOD2/MnSOD antibody [EPR2560Y] (<a href='/en-us/products/primary-antibodies/sod2-mnsod-antibody-epr2560y-ab68155'>ab68155</a>) at 1/1000 dilution

Lane 1:

SHSY5Y cell lysate at 20 µg

Lane 2:

A549 cell lysate at 20 µg

Lane 2:

Western blot - Human SOD2 (MnSOD) knockout HEK-293T cell line (<a href='/en-us/products/cell-lines/human-sod2-mnsod-knockout-hek-293t-cell-line-ab255434'>ab255434</a>)

Lane 3:

Wild-type HEK-293T cell lysate at 20 µg

Lane 4:

SOD2 knockout HEK-293T cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/20000 dilution

Predicted band size: 24 kDa

Observed band size: 29 kDa,37 kDa
