Anti-Somatostatin Receptor 5 antibody [UMB4]

3 product images

•

  Kaemmerer, D. et al BMC Cancer. 2017 Dec 28;17(1):896. doi: 10.1186/s12885-017-3911-3 Reproduced under the Creative Commons license https://creativecommons.org/licenses/by/4.0/

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Somatostatin Receptor 5 antibody [UMB4] (ab109495)

  Somatostatin receptor 2 (SSTR2), somatostatin receptor 5 (SSTR5) and CXCR4 expression in the hepatoblastoma cell line HepG2 and in the hepatoma cell lines Hep3B and HuH-7 in comparison to the small cell lung cancer cell line NCI-H69 and the neuroendocrine tumor cell line BON-1. Immunohistochemistry (red-brown color), counterstaining with hematoxylin; scale bar: 20 μm. Representative photomicrographs of three independent batches are shown.


  HepG2, Hep3B, HuH-7, NCI-H-69, and BON-1 cells (DSMZ, Braunschweig, Germany) were grown in 75 cm² culture flasks to a confluency of 80%. Cells were washed once with phosphate-buffered saline and transferred into 10% buffered formalin (J.T.Baker, Deventer, The Netherlands) for 2 h. After centrifugation for 10 min at 3500 x g, the supernatant was removed, and 1 ml human pool plasma was added to the cell samples. After brief vortexing, 100 μl human fibrinogen (50–70% protein; ≥80% clottable) was added to each sample, and the samples were vortexed again. The resulting clots were placed for another 24 h in 10% buffered formalin and embedded in paraffin blocks.

  (After Kaemmerer, D. et al, BMC cancer, 2017 Dec 28;17(1):896. doi: 10.1186/s12885-017-3911-3). PMID: 29282035

  Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/)

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Somatostatin Receptor 5 antibody [UMB4] (ab109495)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human pancreas tissue sections labeling Somatostatin Receptor 5 with Purified ab109495 at 1:50 dilution (16.3 µg/ml). Heat mediated antigen retrieval was performed with Tris/EDTA buffer (pH 9.0, epitope retrieval solution 2) for 10mins.. Performed on a Leica Biosystems BOND ® RX instrument.was used as the secondary antibody.Negative control:PBS instead of the primary antibody.Hematoxylin was used as a counterstain.

•

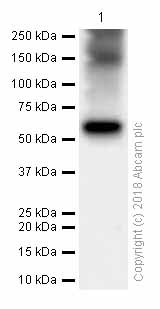

  Western blot - Anti-Somatostatin Receptor 5 antibody [UMB4] (ab109495)

  Blocking and diluting buffer: 5% NFDM/TBST

  All lanes: Western blot - Anti-Somatostatin Receptor 5 antibody [UMB4] (ab109495) at 0.08 µg/mL

  All lanes: 293T (Human embryonic kidney epithelial cell) transfected with human SSTR5 expression vector, whole cell lysate at 15 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Predicted band size: 39 kDa
