Anti-SOX1 antibody [EPR4766] - BSA and Azide free

• Flow Cyt (Intra)

Lab

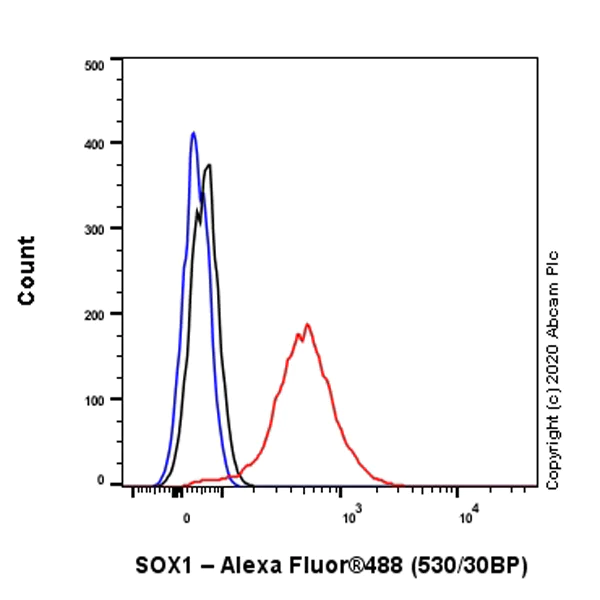

Flow Cytometry (Intracellular) - Anti-SOX1 antibody [EPR4766] - BSA and Azide free (AB227118)

This data was developed using ab227118, the same antibody clone in a different buffer formulation.
Flow Cytometry analysis of NCCIT (Human pluripotent embryonic carcinoma epithelial cell) cells labelling SOX1 with Purified ab227118 at 1 : 100 dilution (10 μg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) secondary antibody was used at 1 : 2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabelled control - Cell without incubation with primary antibody and secondary antibody (Blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-SOX1 antibody [EPR4766] - BSA and Azide free (AB227118)

This data was developed using ab227118, the same antibody clone in a different buffer formulation.
Immunocytochemistry analysis of NCCIT (Human pluripotent embryonic carcinoma epithelial cell) cells labeling SOX1 with Purified ab227118 at 1 : 500 dilution (2 μg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1 : 200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) was used as the secondary antibody at 1 : 1000 (2 μg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

• WB

Unknown

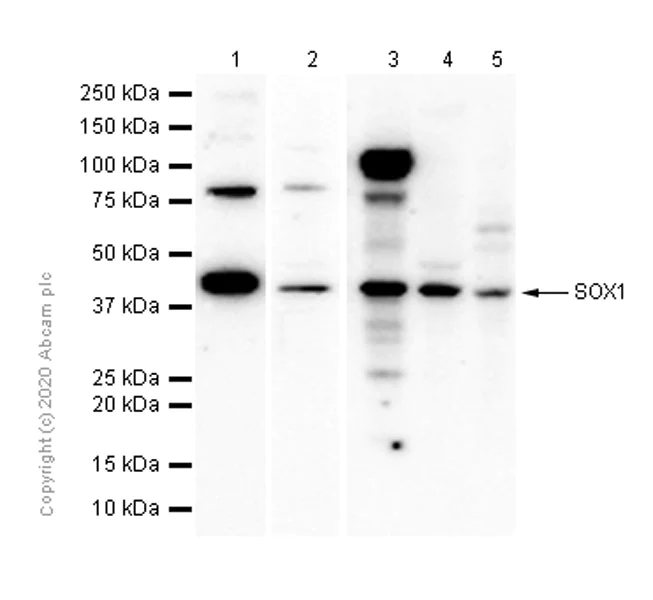

Western blot - Anti-SOX1 antibody [EPR4766] - BSA and Azide free (AB227118)

All lanes:

Western blot - Anti-SOX1 antibody [EPR4766] (<a href='/en-us/products/primary-antibodies/sox1-antibody-epr4766-ab109290'>ab109290</a>) at 1/1000 dilution

Lane 1:

NCCIT (Human pluripotent embryonic carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

Mouse brain lysate at 20 µg

Lane 3:

Neuro-2a (Mouse neuroblastoma neuroblast) whole cell lysate at 20 µg

Lane 4:

Rat cerebral cortex lysate at 20 µg

Lane 5:

C6 (Rat glial tumor glial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Predicted band size: 39 kDa
