Anti-SOX4 antibody [EPR28132-51] - BSA and Azide free

• WB

Supplier Data

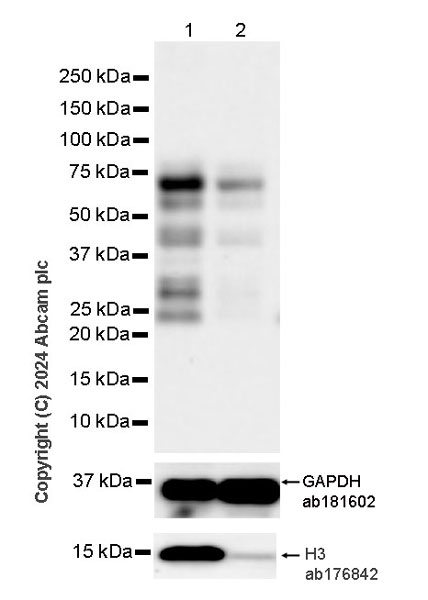

Western blot - Anti-SOX4 antibody [EPR28132-51] - BSA and Azide free (AB316851)

This data was developed using ab316850, the same antibody clone in a different buffer formulation.

The molecular weight observed is consistent with what has been described in the literature (PMID : 38240850).

The identity of the lower MW bands are unknown.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (ab176842) staining at 1/100000 dilution.

All lanes:

Western blot - Anti-SOX4 antibody [EPR28132-51] (<a href='/en-us/products/primary-antibodies/sox4-antibody-epr28132-51-ab316850'>ab316850</a>) at 1/1000 dilution

Lane 1:

DLD-1 (human colorectal adenocarcinoma epithelial cell) nuclear fraction at 20 µg

Lane 2:

DLD-1 cytoplasmic fraction at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 70 kDa,36 kDa,15 kDa

false

Exposure time: 59s

• WB

Supplier Data

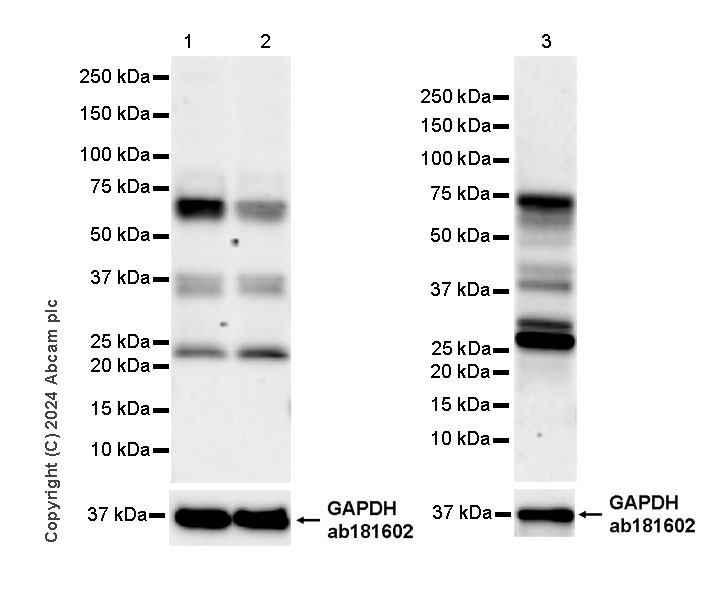

Western blot - Anti-SOX4 antibody [EPR28132-51] - BSA and Azide free (AB316851)

This data was developed using ab316850, the same antibody clone in a different buffer formulation.

The molecular weight observed is consistent with what has been described in the literature (PMID : 38240850).

The lysates were freshly made and used for Western Blotting immediately to minimize protein degradation.

The identity of the lower MW bands at approximately 25kDa and 37 kDa are unknown.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

Exposure time : Lanes 1-2 : 70 seconds; Lane 3 : 136 seconds

All lanes:

Western blot - Anti-SOX4 antibody [EPR28132-51] (<a href='/en-us/products/primary-antibodies/sox4-antibody-epr28132-51-ab316850'>ab316850</a>) at 1/1000 dilution

Lane 1:

Jurkat (human t cell leukemia t lymphocyte from peripheral blood) transfected with scrambled siRNA control whole cell lysate at 20 µg

Lane 2:

Jurkat transfected with siRNA specifically targeting SOX4 whole cell lysate at 20 µg

Lane 3:

A431 (human epidermoid carcinoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 70 kDa,36 kDa

false

• Dot

Supplier Data

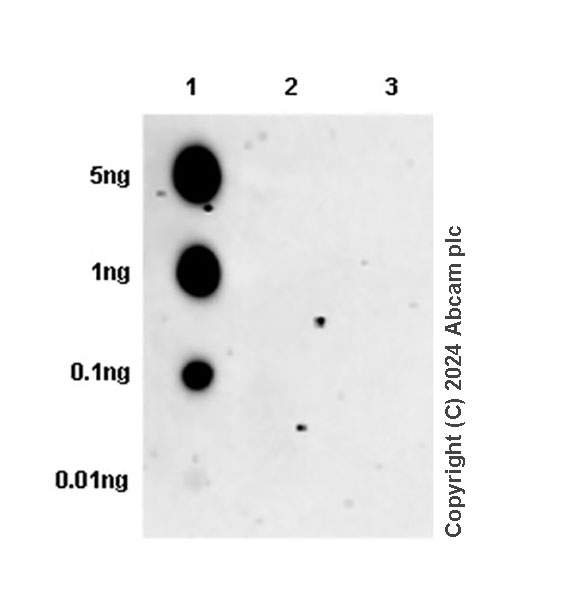

Dot Blot - Anti-SOX4 antibody [EPR28132-51] - BSA and Azide free (AB316851)

This data was developed using ab316850, the same antibody clone in a different buffer formulation.

Dot blot analysis of SOX4 using ab316850 at 1 : 1000 (0.511 ug/ml) followed by a Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) at 1 : 100,000 dilution.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

This antibody does not cross-react with human SOX5 and SOX6.

All lanes:

Dot Blot - Anti-SOX4 antibody [EPR28132-51] (<a href='/en-us/products/primary-antibodies/sox4-antibody-epr28132-51-ab316850'>ab316850</a>) at 1/1000 dilution

Lane 1:

His-tagged human SOX4 recombinant protein fragment

Lane 2:

His-tagged human SOX5 recombinant protein fragment

Lane 3:

His-tagged human SOX6 recombinant protein fragment

Secondary

All lanes:

Dot Blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

false

Exposure time: 180s
