Anti-SOX6 antibody [EPR24986-148]

16 product images

•

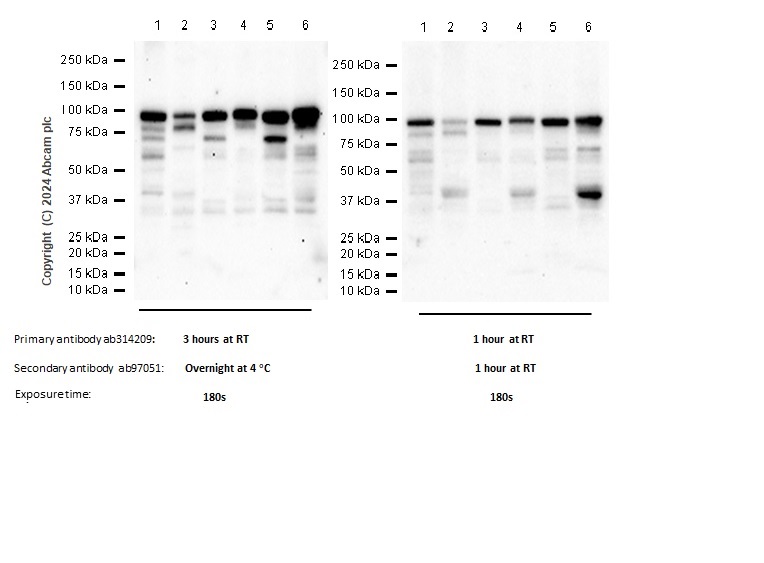

  Western blot - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  To get a satisfying result, incubate the membrane with primary antibody for 3 hours at room temperature and then secondary antibody Goat Anti-Rabbit IgG H&L (HRP) ab97051 at the dilution of 1:20,000 overnight. Acquiring WB image with ECL substrate of high sensitivity or using lower antibody dilution will also be helpful.

  All lanes: Western blot - Anti-SOX6 antibody [EPR24986-148] (ab314209) at 1/1000 dilution

  Lane 1: Mouse testis tissue lysate at 20 µg

  Lane 2: Mouse skeletal muscle tissue lysate at 20 µg

  Lane 3: Rat testis tissue lysate at 20 µg

  Lane 4: Rat skeletal muscle tissue lysate at 20 µg

  Lane 5: Rat testis tissue lysate at 40 µg

  Lane 6: Rat skeletal muscle tissue lysate at 40 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Predicted band size: 92 kDa

  Observed band size: 90 kDa

  Exposure time: 180s

•

  Immunohistochemistry (Frozen sections) - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen mouse lung (fresh) tissue labeling SOX6 with ab314209 at 1/50 (10.14 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/mL) dilution (Green). Negative control: confocal image showing no staining on mouse lung. The nuclear counterstain was DAPI (Blue). The section was incubated with ab314209 for 60 mins at room temperature. The section was then mounted using Fluoromount®. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). The nuclear counterstain was DAPI (Blue).
  Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/mL) dilution.

•

  Immunohistochemistry (Frozen sections) - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen mouse cortex (fresh) tissue labeling SOX6 with ab314209 at 1/50 (10.14 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/mL) dilution (Green). Confocal image showing positive staining on mouse cortex. The nuclear counterstain was DAPI (Blue). The section was incubated with ab314209 for 60 mins at room temperature. The section was then mounted using Fluoromount®. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). The nuclear counterstain was DAPI (Blue).
  Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/mL) dilution.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Immunohistochemical analysis of paraffin-embedded rat lung tissue labeling SOX6 with ab314209 at 1/100 (5.07 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Negative control: no staining on rat lung. The section was incubated with ab314209 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Immunohistochemical analysis of paraffin-embedded mouse lung tissue labeling SOX6 with ab314209 at 1/100 (5.07 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Negative control: no staining on mouse lung. The section was incubated with ab314209 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Immunohistochemical analysis of paraffin-embedded human lung tissue labeling SOX6 with ab314209 at 1/100 (5.07 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Negative control: no staining on human lung. The section was incubated with ab314209 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Immunohistochemical analysis of paraffin-embedded Panel A HEK-293T cells transfected with a mouse SOX6 expression vector containing a his tag. Panel B HEK-293T cells transfected with a mouse SOX5 expression vector containing a his tag. Panel C HEK-293T cells transfected with empty vector containing a his tag. Tissue labeling SOX6 with ab314209 at 1/2000 (0.254 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on (A) HEK-293T transfected with a mouse SOX6 expression vector, very weak staining on (B) HEK-293T transfected with a mouse SOX5 expression vector, no staining on (C) HEK-293T transfected with empty vector. The section was incubated with ab314209 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Immunohistochemical analysis of paraffin-embedded rat testis tissue labeling SOX6 with ab314209 at 1/100 (5.07 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on rat testis. The section was incubated with ab314209 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Immunohistochemical analysis of paraffin-embedded mouse glioblastoma tissue labeling SOX6 with ab314209 at 1/100 (5.07 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on mouse glioblastoma. The section was incubated with ab314209 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Immunohistochemical analysis of paraffin-embedded mouse cerebral cortex tissue labeling SOX6 with ab314209 at 1/100 (5.07 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on mouse cerebral cortex. The section was incubated with ab314209 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Immunohistochemical analysis of paraffin-embedded mouse testis tissue labeling SOX6 with ab314209 at 1/100 (5.07 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on mouse testis. The section was incubated with ab314209 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Immunohistochemical analysis of paraffin-embedded human astrocytoma tissue labeling SOX6 with ab314209 at 1/100 (5.07 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on human astrocytoma. The section was incubated with ab314209 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Immunohistochemical analysis of paraffin-embedded human testis tissue labeling SOX6 with ab314209 at 1/100 (5.07 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on human testis. The section was incubated with ab314209 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

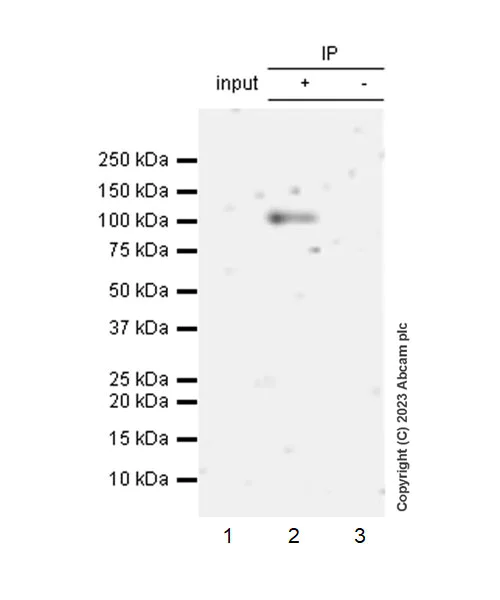

  Immunoprecipitation - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  SOX6 was immunoprecipitated from 0.35 mg Mouse testis tissue lysate with ab314209 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab314209 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
  Lane 1: Mouse testis tissue lysate
  Lane 2: ab314209 IP in Mouse testis tissue lysate
  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab314209 in mouse testis tissue lysate
  Blocking and dilution buffer and concentration: 5% NFDM/TBST.

  All lanes: Immunoprecipitation - Anti-SOX6 antibody [EPR24986-148] (ab314209) at 1/30 dilution

  All lanes: Mouse testis tissue lysate

  Secondary

  All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution

  Exposure time: 180s

•

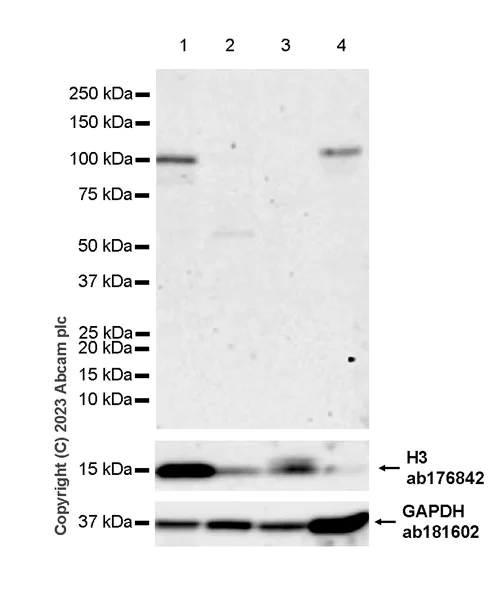

  Western blot - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST
  Negative control: lung (PMID: 7567444).
  In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.
  In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade ab176842) staining at 1/100000 dilution.

  All lanes: Western blot - Anti-SOX6 antibody [EPR24986-148] (ab314209) at 1/1000 dilution

  Lane 1: Rat testis nuclear fraction at 20 µg

  Lane 2: Rat testis cytoplasmic fraction at 20 µg

  Lane 3: Rat lung tissue lysate at 20 µg

  Lane 4: Rat skeletal muscle tissue lysate at 20 µg

  Secondary

  All lanes: Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

  Observed band size: 110 kDa

  Exposure time: 180s

•

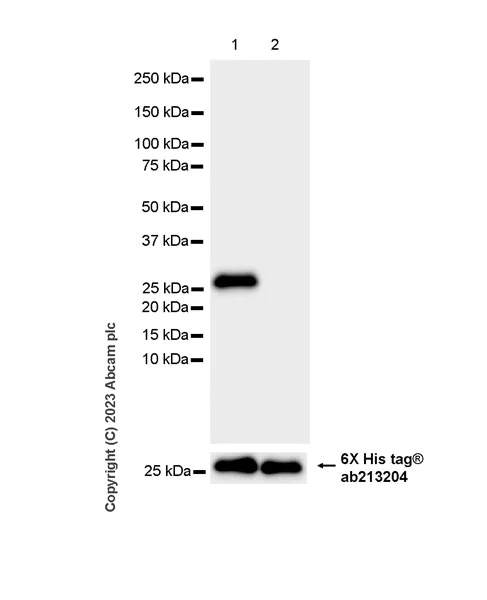

  Western blot - Anti-SOX6 antibody [EPR24986-148] (ab314209)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST
  This antibody does not cross-react with mouse SOX5.
  In Western blot, Anti-6X His tag antibody [EPR20547]-CHIP Grade (Anti-6X His tag® antibody [EPR20547] - ChIP Grade ab213204) staining at 1/5000 dilution.

  All lanes: Western blot - Anti-SOX6 antibody [EPR24986-148] (ab314209) at 1/1000 dilution

  Lane 1: His-tagged mouse SOX6 fragment at 10 ng

  Lane 2: His-tagged mouse SOX5 fragment at 10 ng

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Observed band size: 29 kDa

  Exposure time: 15s
