Anti-SP1 antibody [EPR22648-50] - BSA and Azide free

10 product images

•

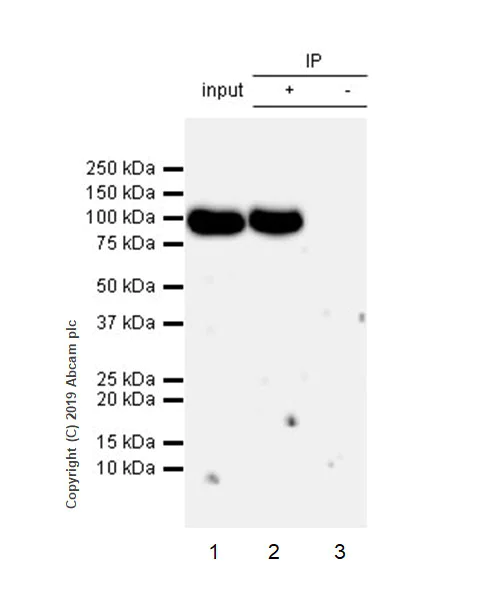

  Immunoprecipitation - Anti-SP1 antibody [EPR22648-50] - BSA and Azide free (ab255289)

  SP1 was immunoprecipitated from 0.35 mg HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate using Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 at 1/30 dilution. Western blot was performed on the immunoprecipitate using Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) was used as the secondary antibody at 1/5000 dilution.


  Lane 1: HeLa whole cell lysate 10 μg (input).
  Lane 2: Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 IP in HeLa whole cell lysate.
  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 in HeLa whole cell lysate.

  Blocking and dilution buffer and concentration: 5% NFDM/TBST.

  Exposure time: 3 minutes.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778).

  All lanes: Immunoprecipitation - Anti-SP1 antibody [EPR22648-50] - ChIP Grade (Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778)

  Predicted band size: 81 kDa

•

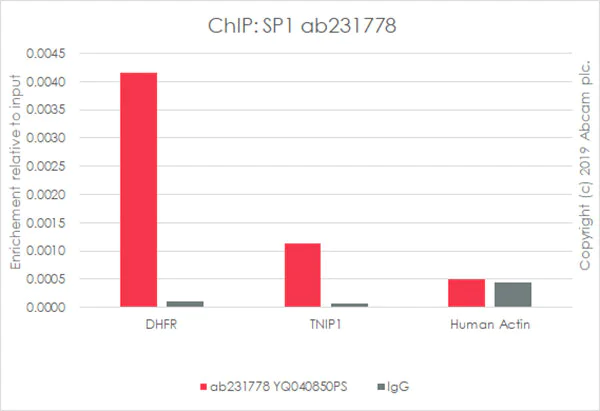

  ChIP - Anti-SP1 antibody [EPR22648-50] - BSA and Azide free (ab255289)

  Chromatin was prepared from HeLa cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10min.


  The ChIP was performed with 25 μg of chromatin, 5 μg of Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 (red), and 20 μl of Protein A/G sepharose beads. 5 μg of rabbit normal IgG was added to the beads control (gray). The immunoprecipitated DNA was quantified by real time PCR (sybr green approach).

  Primers and probes are located in the first kb of the transcribed region.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778).

•

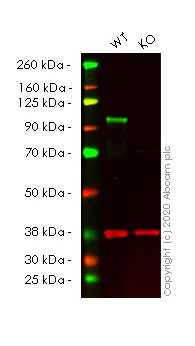

  Western blot - Anti-SP1 antibody [EPR22648-50] - BSA and Azide free (ab255289)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778).


  Lanes 1-2: Merged signal (red and green). Green - Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 observed at 100 kDa. Red - loading control Anti-GAPDH antibody [6C5] - Loading Control ab8245 observed at 37 kDa.

  Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 Anti-SP1 antibody [EPR22648-50] was shown to specifically react with SP1 in wild-type HeLa cells. Loss of signal was observed when knockout cell line Human SP1 knockout HeLa cell line ab265519 (knockout cell lysate Human SP1 knockout HeLa cell lysate ab257698) was used. Wild-type and SP1 knockout samples were subjected to SDS-PAGE. Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) were incubated overnight at 4°C at 1 in 1000 and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-SP1 antibody [EPR22648-50] - ChIP Grade (Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778) at 1/1000 dilution

  Lane 1: Wild-type HeLa cell lysate at 20 µg

  Lane 2: SP1 knockout HeLa cell lysate at 20 µg

  Lane 2: Western blot - Human SP1 knockout HeLa cell line (Human SP1 knockout HeLa cell line ab265519)

  Performed under reducing conditions.

  Predicted band size: 81 kDa

  Observed band size: 100 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SP1 antibody [EPR22648-50] - BSA and Azide free (ab255289)

  Immunohistochemical analysis of paraffin-embedded human gastric carcinoma tissue labeling SP1 using Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 at 1/500 dilution, followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Counterstained with hematoxylin.


  Nuclear staining on tumor cells of human gastric carcinoma (PMID: 14695137). The section was incubated with Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778).

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SP1 antibody [EPR22648-50] - BSA and Azide free (ab255289)

  Immunohistochemical analysis of paraffin-embedded human breast carcinoma tissue labeling SP1 using Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 at 1/500 dilution, followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Counterstained with hematoxylin.


  Nuclear staining on tumor cells of human breast carcinoma (PMID: 14695137). The section was incubated with Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument.

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778).

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  Immunocytochemistry/ Immunofluorescence - Anti-SP1 antibody [EPR22648-50] - BSA and Azide free (ab255289)

  Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labeling SP1 (green) with Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 at 1/100 dilution, followed by an AlexaFluor^®488 Goat anti-Rabbit secondary (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/1000 dilution. Confocal image showing nuclear staining in HeLa cell line. The nuclear counterstain is DAPI (Blue). Tubulin was stained using an Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594)(Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889) at 1/200 dilution (Red).


  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is a AlexaFluor^®488 Goat anti-Rabbit secondary (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077).

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778).

•

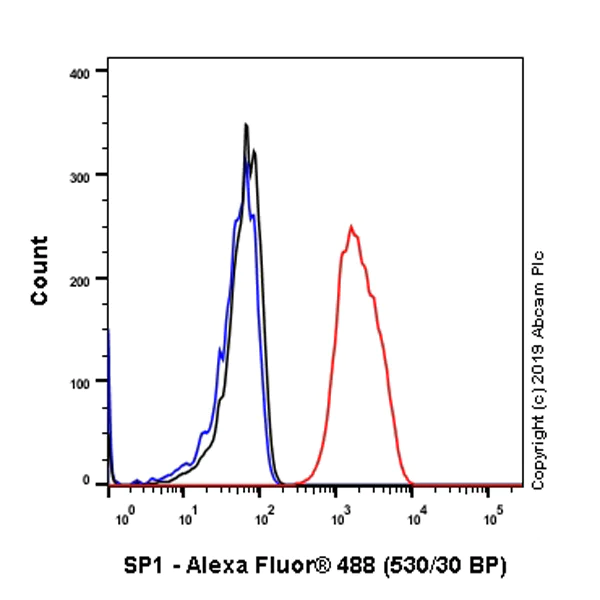

  Flow Cytometry (Intracellular) - Anti-SP1 antibody [EPR22648-50] - BSA and Azide free (ab255289)

  Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling SP1 using Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 at 1/60 dilution (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730, Black) isotype control and a unlabeled control (cells without incubation with primary antibody and secondary antibody) (Blue). The secondary antibody was a Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at a 1/2000 dilution.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778).

•

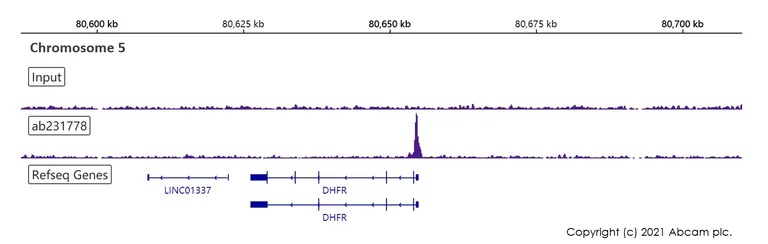

  ChIP-sequencing - Anti-SP1 antibody [EPR22648-50] - BSA and Azide free (ab255289)

  Chromatin was prepared from HeLa cells. Cells were fixed with 1% formaldehyde for 10 minutes. ChIP was performed with 30 μg of chromatin and 4 μg of Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778. ChIP DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 30 million reads. ChIP-Seq validation performed with ChIP-Kit Transcription Factors ChIP-Seq (ChIP Kit (Transcription factors, ChIP-seq) ab270813).
  Additional screenshots of mapped reads can be downloaded here.

•

  ChIP-sequencing - Anti-SP1 antibody [EPR22648-50] - BSA and Azide free (ab255289)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778).
  Chromatin was prepared from HeLa cells. Cells were fixed with 1% formaldehyde for 10 minutes. ChIP was performed with 30 μg of chromatin and 4 μg of Anti-SP1 antibody [EPR22648-50] - ChIP Grade (Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778). ChIP DNA was sequenced on the Illumina NextSeq 500 to a depth of 30 million reads. ChIP-Seq validation performed by Active Motif, Carlsbad, CA.
  Additional screenshots of mapped reads can be downloaded here.

•

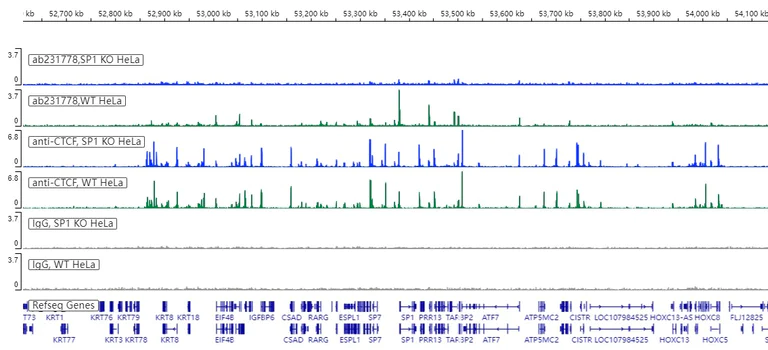

  ChIC/CUT&RUN sequencing - Anti-SP1 antibody [EPR22648-50] - BSA and Azide free (ab255289)

  ChIC/CUT&RUN was performed using a pAG-MNAse at a final concentration of 700 ng/mL. 2.5X10^5 of Human wild-type HeLa cell line (ab255928) or Human SP1 knockout HeLa cell line (Human SP1 knockout HeLa cell line ab265519) were used along with 5µg of Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778 [EPR22648-50]. Assay Quality Control was conducted using 5µg Anti-CTCF (Anti-CTCF antibody [EPR18253] - ChIP Grade ab188408) on the same cell lines. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads.  The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown.

  Additional screenshots of mapped reads can be found in the Protocol booklet in the Support and downloads section.

  The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.

  This data was developed using the same antibody clone in a different buffer formulation (Anti-SP1 antibody [EPR22648-50] - ChIP Grade ab231778).
