Anti-Sp7 / Osterix antibody [EPR21034]

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Sp7 / Osterix antibody [EPR21034] (AB209484)

Immunohistochemical analysis of paraffin-embedded human chondrosarcoma tissue labeling Sp7 / Osterix with ab209484 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Nuclear staining on tumor cells of human chondrosarcoma is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Sp7 / Osterix antibody [EPR21034] (AB209484)

Immunohistochemical analysis of formalin fixed paraffin embedded human chondrosarcoma labelling Sp7/Osterix with ab209484 at a concentration of 0.1µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was performed with DISCOVERY cell conditioning solution (CC1) 100°C, pH8.5 for 32mins.

ab209484 anti-Sp7/Osterix antibody [EPR21034] was incubated for 16mins at 37°C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual)

• IP

Supplier Data

Immunoprecipitation - Anti-Sp7 / Osterix antibody [EPR21034] (AB209484)

Sp7 / Osterix was immunoprecipitated from 0.35mg of Saos-2 (human osteosarcoma cell line) whole cell lysate with ab209484 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab209484 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : Saos-2 whole cell lysate 10ug (Input).

Lane 2 : ab209484 IP in Saos-2 whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab190908 in Saos-2 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST. Exposure time : 8 seconds.

All lanes:

Immunoprecipitation - Anti-Sp7 / Osterix antibody [EPR21034] (ab209484)

Predicted band size: 45 kDa,47 kDa

Observed band size: 45 kDa,47 kDa

false

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Sp7 / Osterix antibody [EPR21034] (AB209484)

IHC image of SP7/Osterix staining in a section of formalin-fixed paraffin-embedded normal mouse E15 embryo performed on a Leica BOND® system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab22552, 1μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Sp7 / Osterix antibody [EPR21034] (AB209484)

Immunohistochemical analysis of paraffin-embedded rat E14.5 rib tissue labeling Sp7 / Osterix with ab209484 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Nuclear staining on osteoblasts and chondrocytes of rat E14.5 rib (PMID : 17579353; PMID : 25977369) is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Sp7 / Osterix antibody [EPR21034] (AB209484)

IHC image of SP7/Osterix staining in a section of formalin-fixed paraffin-embedded normal rat E15 embryo performed on a Leica BOND® system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab22552, 1μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Sp7 / Osterix antibody [EPR21034] (AB209484)

Immunohistochemical analysis of paraffin-embedded mouse E14.5 rib tissue labeling Sp7 / Osterix with ab209484 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) Ready to use. Nuclear staining on osteoblasts and chondrocytes of mouse E14.5 rib (PMID : 17579353; PMID : 25977369) is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) Ready to use.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-Fr

Supplier Data

Immunohistochemistry (Frozen sections) - Anti-Sp7 / Osterix antibody [EPR21034] (AB209484)

Immunohistochemical analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized mouse E14.5 developing humerus tissue labeling Sp7 / Osterix with ab209484 at 1/500 dilution, followed by AlexaFluor^® 488 Goat anti-Rabbit (ab150077) at 1/1000 dilution. Positive staining on the mouse embryo E14.5 developing humerus (PMID : 27134141) is observed. Counter stained with DAPI.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is AlexaFluor^® 488 Goat anti-Rabbit (ab150077) at 1/1000 dilution.

• WB

Supplier Data

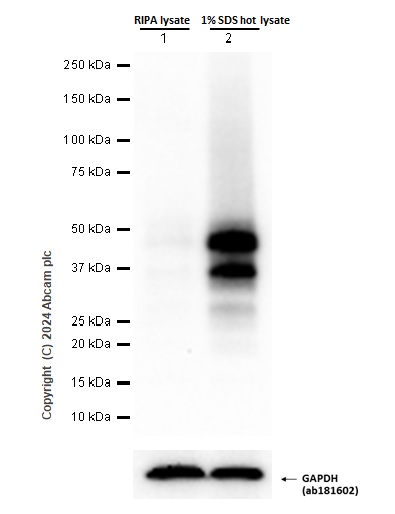

Western blot - Anti-Sp7 / Osterix antibody [EPR21034] (AB209484)

Blocking and dilution buffer concentration : 5% NFDM/TBST.

We recommend using 1% SDS hot method to prepare lysate to improve signal intensity. Please refer to the Protocol booklet under the Product Protocol section.

All lanes:

Western blot - Anti-Sp7 / Osterix antibody [EPR21034] (ab209484) at 1/1000 dilution

Lane 1:

Saos-2 (human osteosarcoma cell line) whole cell lysate, prepared by RIPA method at 20 µg

Lane 2:

Saos-2 (human osteosarcoma cell line) whole cell lysate, prepared by 1% SDS hot method at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 45 kDa

Observed band size: 45 kDa,47 kDa

false

Exposure time: 20s

• WB

Supplier Data

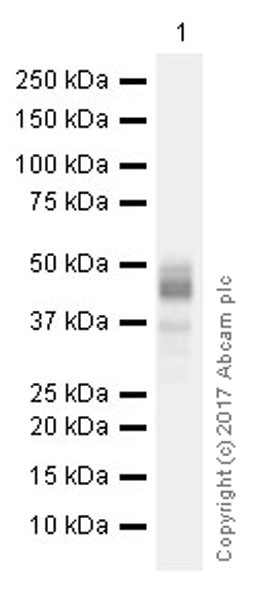

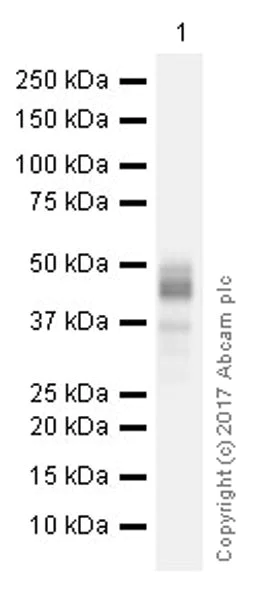

Western blot - Anti-Sp7 / Osterix antibody [EPR21034] (AB209484)

Blocking/Dilution buffer : 5% NFDM/TBST.

Human Sp7 / Osterix has two isoforms (45 and 47 kDa). The 45kDa isoform is predominant (UniProt ID : Q8TDD2). In Saos-2 cells, we observed a faint, extra band at around 37kDa.

All lanes:

Western blot - Anti-Sp7 / Osterix antibody [EPR21034] (ab209484) at 1/1000 dilution

All lanes:

Saos-2 (human osteosarcoma cell line) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 45 kDa

Observed band size: 45 kDa,47 kDa

true
