Anti-SQSTM1 / p62 antibody [2C11] - BSA and Azide free

7 product images

•

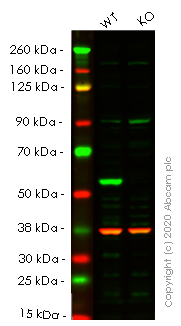

  Western blot - Anti-SQSTM1 / p62 antibody [2C11] - BSA and Azide free (ab56416)

  Lanes 1- 2: Merged signal (red and green). Green - ab56416 observed at 62 kDa. Red - Anti-GAPDH antibody[EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) observed at 37 kDa.


  ab56416 was shown to react with SQSTM1/p62 in wild-type HEK293T cells in western blot. Loss of signal was observed when knockout cell line Human SQSTM1 (p62) knockout HEK-293T cell line ab255343 (knockout cell lysate Human SQSTM1 (p62) knockout HEK-293T cell lysate ab263770) was used. Wild-type HEK293T and SQSTM1 knockout HEK293T cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab56416 and Anti-GAPDH antibody[EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^®800CW) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 800CW) preadsorbed ab216772) and Goat Anti-Rabbit IgG H&L (IRDye^®680RD) preadsorbed (Goat Anti-Rabbit IgG H&L (IRDye® 680RD) preadsorbed ab216777) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-SQSTM1 / p62 antibody [2C11] - BSA and Azide free (ab56416) at 1/1000 dilution

  Lane 1: Wild-type HEK293T cell lysate at 20 µg

  Lane 2: SQSTM1 knockout HEK293T cell lysate at 20 µg

  Lane 2: Western blot - Human SQSTM1 (p62) knockout HEK-293T cell line (Human SQSTM1 (p62) knockout HEK-293T cell line ab255343)

  Performed under reducing conditions.

  Predicted band size: 47 kDa

  Observed band size: 62 kDa

•

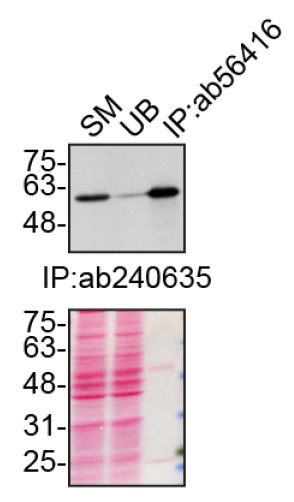

  Immunoprecipitation - Anti-SQSTM1 / p62 antibody [2C11] - BSA and Azide free (ab56416)

  Immunoprecipitation of SQSTM1 in U-2 OS cells. Lysates were prepared and immunoprecipitation was performed using 1.0 μg of ab56416 pre-coupled to prot.G-Sepharose beads. Samples were washed and processed for western blot with Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker ab207305 at 1/10,000. SM=10% starting material; UB=10% unbound fraction; IP=immunoprecipitate. These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

  All lanes: Immunoprecipitation - Anti-SQSTM1 / p62 antibody [2C11] - BSA and Azide free (ab56416)

  Predicted band size: 47 kDa

•

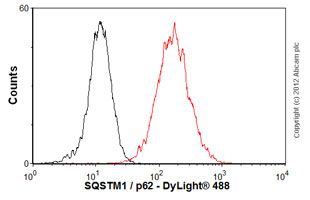

  Flow Cytometry - Anti-SQSTM1 / p62 antibody [2C11] - BSA and Azide free (ab56416)

  Overlay histogram showing HeLa cells stained with ab56416 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab56416, 0.5μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG2a [ICIGG2A] (Mouse IgG2a, Kappa Monoclonal [B12/8] - Isotype Control ab91361, 1μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed.



  This image was generated using the ascites version of the product.

•

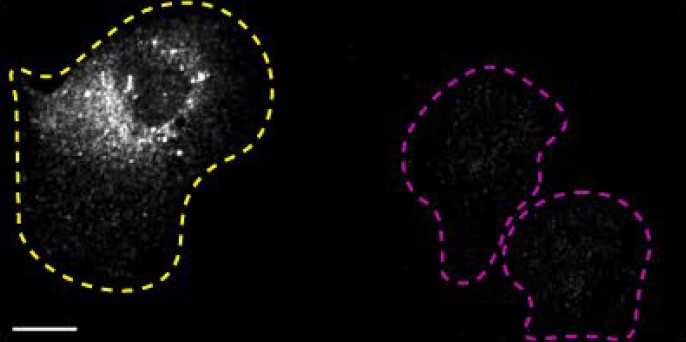

  Immunocytochemistry/ Immunofluorescence - Anti-SQSTM1 / p62 antibody [2C11] - BSA and Azide free (ab56416)

  ab56416 was shown to react with SQSTM1 in wild-type U-2 OS cells in Immunocytochemistry with loss of signal observed in a SQSTM1 knockout cell line. Wild-type and knockout cells were mixed and pelleted at a 1:1 ratio on coverslips. The cells were fixed with 4% paraformaldehyde (15 min) then permeabilized with 0.1% Triton X-100 (10min) and then blocked with 1/10 000. The cells were then incubated with ab56416 at 1/1000 dilution overnight at 4°C followed by a further incubation at room temperature for 1h with a goat anti-mouse secondary antibody to (Alexa Fluor^® 555) at 0.5 μg/ml. Acquisition of the green (wild-type), red (antibody staining) and far-red (knockout) channels was performed. Representative grayscale images of the red channel are shown. Wild-type and knockout cells are outlined with yellow and magenta dashed line, respectively. Schematic representation of the mosaic strategy used is shown on the bottom-right panel. Image was acquired with a Zeiss(LSM-880). These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.ing knock out cell lines.

•

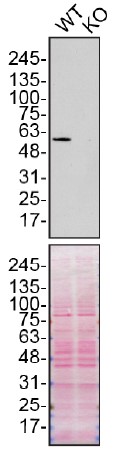

  Western blot - Anti-SQSTM1 / p62 antibody [2C11] - BSA and Azide free (ab56416)

  ab56416 was shown to react with SQSTM1 in wild-type U-2 OS cells in Western blot with loss of signal observed in a SQSTM1 knockout cell line. Wild-type U-2 OS and SQSTM1 knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 5% milk in TBST for 1 hr before incubation with ab56416 overnight at 4 °C at a 1/1000 dilution. Blots were incubated with goat anti-mouse HRP secondary antibodies at 0.3ug/mL before imaging. This data was kindly provided by the YCharOS Inc., an open science company with the mission of characterizing every commercially available antibody reagent. Abcam are working with YCharOS to support their mission of antibody characterisation using knockout cell lines.

  All lanes: Western blot - Anti-SQSTM1 / p62 antibody [2C11] - BSA and Azide free (ab56416) at 1/1000 dilution

  Lane 1: Wild-type U-2 OS cell lysate at 20 µg

  Lane 2: SQSTM1 knockout U-2 OS cell lysate at 20 µg

  Performed under reducing conditions.

  Predicted band size: 47 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-SQSTM1 / p62 antibody [2C11] - BSA and Azide free (ab56416)

  Monoclonal antibody to SQSTM1 (ab56416) on HeLa cell, antibody concentration 10 ug/ml.


  This image was generated using the ascites version of the product.

•

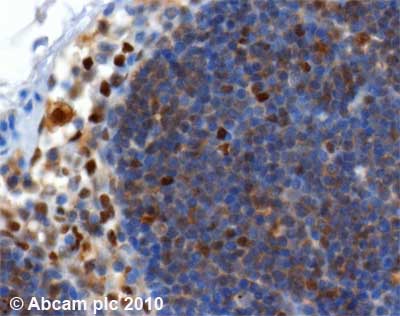

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SQSTM1 / p62 antibody [2C11] - BSA and Azide free (ab56416)

  ab56416 (1μg/ml) staining SQSTM1 in human lymph node using an automated system (DAKO Autostainer Plus). Using this protocol there is strong nuclear and cytoplasmic staining.
  Sections were rehydrated and antigen retrieved with the Dako 3 in 1 AR buffer citrate pH 6.0 in a DAKO PT link. Slides were peroxidase blocked in 3% H2O2 in methanol for 10 mins. They were then blocked with Dako Protein block for 10 minutes (containing casein 0.25% in PBS) then incubated with primary antibody for 20 min and detected with Dako Envision Flex amplification kit for 30 minutes. Colorimetric detection was completed with Diaminobenzidine for 5 minutes. Slides were counterstained with Haematoxylin and coverslipped under DePeX. Please note that, for manual staining, optimization of primary antibody concentration and incubation time is recommended. Signal amplification may be required.


  This image was generated using the ascites version of the product.
