Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker

16 product images

•

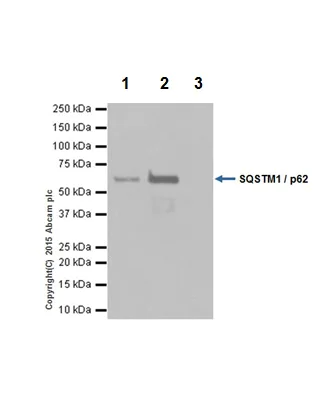

  Immunoprecipitation - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 was immunoprecipitated from 1mg of HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysate with ab207305 at 1/40 dilution.
  Western blot was performed from the immunoprecipitate using ab207305 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/10000 dilution.
  Lane 1: HeLa whole cell lysate 10ug (Input).
  Lane 2: ab207305 IP in HeLa whole cell lysate.
  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab207305 in HeLa whole cell lysate.
  Blocking and dilution buffer and concentration: 5% NFDM/TBST.
  Exposure time: 1 second.

  All lanes: Immunoprecipitation - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  Predicted band size: 47 kDa

•

  Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Western blot staining using rabbit Anti-SQSTM1 / p62 antibody

  Lane 1: Wild-type HAP1 cell lysate (20 μg)
  Lane 2: SQSTM1/p62 knockout HAP1 cell lysate (20 μg)
  Lane 3: HeLa cell lysate (20 μg)
  Lane 4: HepG2 cell lysate (20 μg)
  Lanes 1 - 4: Merged signal (red and green).


  Green - target observed at 55 kDa. Red - loading control, Anti-GAPDH antibody [6C5] - Loading Control ab8245, observed at 37 kDa.

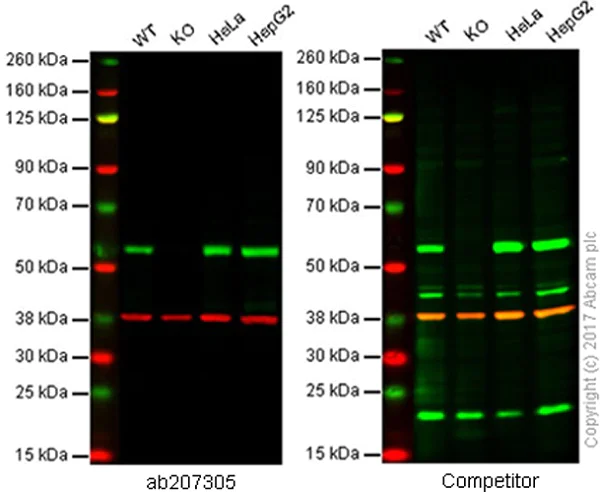

  This western blot image is a comparison between ab207305 and a competitor's discontinued goat polyclonal antibody.

  All lanes: Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  Predicted band size: 47 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-SQSTM1 / p62 antibody

  ab207305 was shown to react with SQSTM1 in wild-type U-2 OS cells in Immunocytochemistry with loss of signal observed in a SQSTM1 knockout cell line. Wild-type and knockout cells were mixed and pelleted at a 1:1 ratio on coverslips. The cells were fixed with 4% paraformaldehyde (15 min) then permeabilized with 0.1% Triton X-100 (10min) and then blocked with 1/5000. The cells were then incubated with ab207305 at 1/200 dilution overnight at 4°C followed by a further incubation at room temperature for 1h with a goat anti-rabbit secondary antibody to (Alexa Fluor^® 555) at 0.5 μg/ml. Acquisition of the green (wild-type), red (antibody staining) and far-red (knockout) channels was performed. Representative grayscale images of the red channel are shown. Wild-type and knockout cells are outlined with yellow and magenta dashed line, respectively. Schematic representation of the mosaic strategy used is shown on the bottom-right panel. Image was acquired with a Zeiss(LSM-880). These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

•

  Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Western blot staining using rabbit Anti-SQSTM1 / p62 antibody

  Lanes 1-4: Merged signal (red and green). Green - ab207305 observed at 55 kDa. Red - loading control Anti-GAPDH antibody [6C5] - Loading Control ab8245 observed at 36 kDa.


  ab207305 Anti-SQSTM1 / p62 antibody [EPR18351] was shown to specifically react with SQSTM1 / p62 in wild-type HCT116 cells. The band observed in CRISPR/Cas9 edited cell line Human SQSTM1 (p62) knockout HCT116 cell line ab266871 (CRISPR/Cas9 edited cell lysate Human SQSTM1 (p62) knockout HCT116 cell lysate ab257052) lane below 55 kDa may represent truncated forms and cleaved fragments. This has not been investigated further. Wild-type and SQSTM1 / p62 CRISPR/Cas9 edited samples were subjected to SDS-PAGE. ab207305 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  Lane 1: Wild-type HCT116 cell lysate at 20 µg

  Lane 2: SQSTM1 CRISPR/Cas9 edited HCT116 cell lysate at 20 µg

  Lane 2: Western blot - Human SQSTM1 (p62) knockout HCT116 cell line (Human SQSTM1 (p62) knockout HCT116 cell line ab266871)

  Lane 3: HepG2 cell lysate at 20 µg

  Lane 4: HeLa cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/10000 dilution

  Predicted band size: 47 kDa

  Observed band size: 55 kDa

•

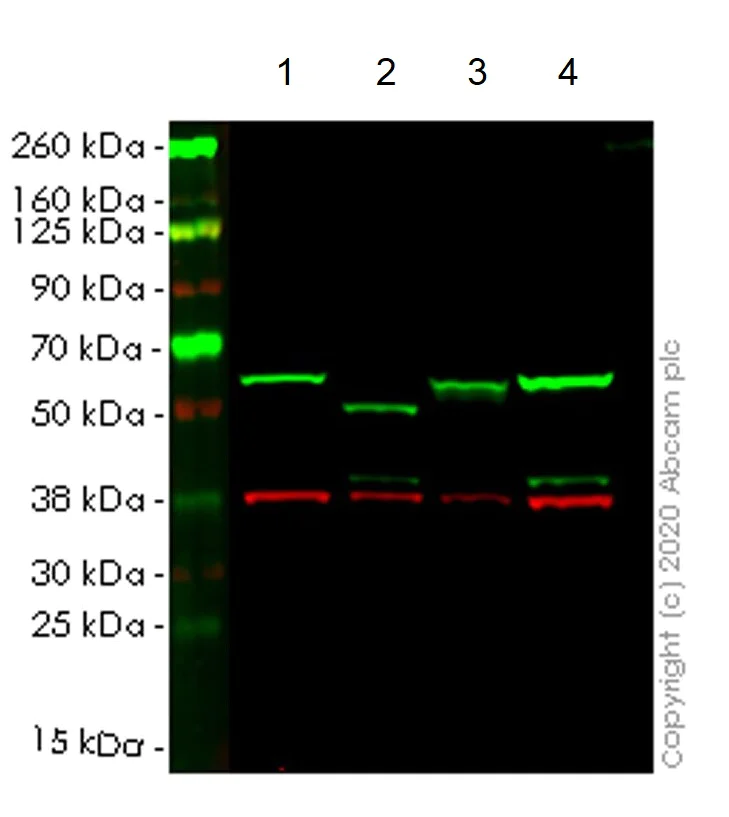

  Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Western blot staining using rabbit Anti-SQSTM1 / p62 antibody

  Lanes 1-4: Merged signal (red and green). Green - ab207305 observed at 55 kDa. Red - loading control Anti-GAPDH antibody [6C5] - Loading Control ab8245 observed at 36 kDa.

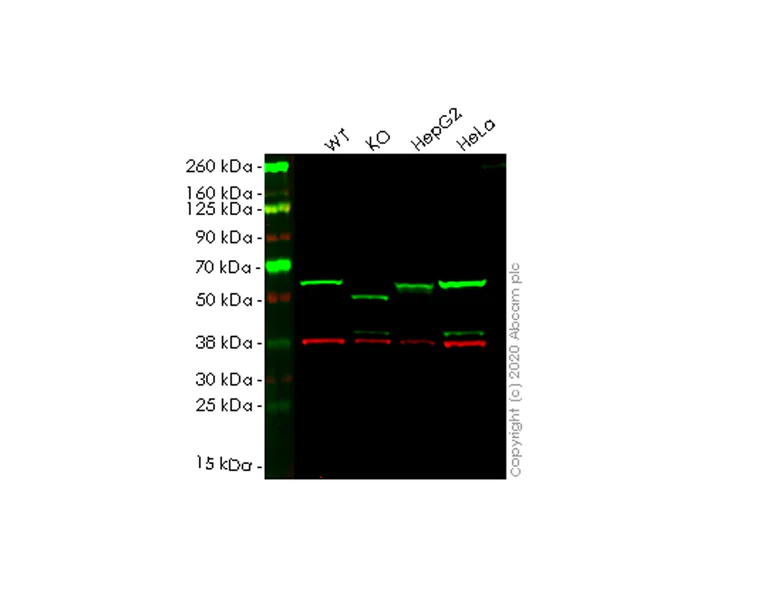

  ab207305 Anti-SQSTM1 / p62 antibody [EPR18351] was shown to specifically react with SQSTM1 / p62 in wild-type HCT116 cells. The band observed in knockout cell line Human SQSTM1 (p62) knockout HCT116 cell line ab266871 (knockout cell lysate Human SQSTM1 (p62) knockout HCT116 cell lysate ab257052) lane below 55 kDa may represent truncated forms and cleaved fragments. This has not been investigated further. Wild-type and SQSTM1 / p62 knockout samples were subjected to SDS-PAGE. ab207305 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  Lane 1: Wild-type HCT116 cell lysate at 20 µg

  Lane 2: SQSTM1 knockout HCT116 cell lysate at 20 µg

  Lane 3: HepG2 cell lysate at 20 µg

  Lane 4: HeLa cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/10000 dilution

  Predicted band size: 47 kDa

  Observed band size: 55 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-SQSTM1 / p62 antibody

  ab207305 staining SQSTM1 in wild-type HAP1 cells and knockout cells, untreated and chloroquine-treated (Chloroquine diphosphate, apoptosis and autophagy inhibitor ab142116, 50μM, 24 hours). The cells were fixed with 4% formaldehyde (10min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab207305 at 1μg/ml and Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 at 1/250 dilution (shown in pseudocolour red) overnight at +4°C, followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 2 μg/ml (shown in green). Nuclear DNA was labelled in blue with DAPI.


  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

•

  Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Western blot staining using rabbit Anti-SQSTM1 / p62 antibody

  ab207305 was shown to react with SQSTM1 in wild-type U-2 OS cells in Western blot with loss of signal observed in a SQSTM1 knockout cell line. Wild-type U-2 OS and SQSTM1 knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 5% milk in TBST for 1 hr before incubation with ab207305 overnight at 4 °C at a 1/1000 dilution. Blots were incubated with goat anti-rabbit HRP secondary antibodies at 0.2ug/mL before imaging. These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

  All lanes: Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305) at 1/1000 dilution

  Lane 1: Wild-type U-2 OS cell lysate at 20 µg

  Lane 2: SQSTM1 knockout U-2 OS cell lysate at 20 µg

  Performed under reducing conditions.

  Predicted band size: 47 kDa

•

  Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Western blot staining using rabbit Anti-SQSTM1 / p62 antibody

  Lane 1: Wild-type HAP1 cell lysate (20 μg)
  Lane 2: SQSTM1/p62 knockout HAP1 cell lysate (20 μg)
  Lane 3: HeLa cell lysate (20 μg)
  Lane 4: HepG2 cell lysate (20 μg)
  Lanes 1 - 4: Merged signal (red and green). Green - ab207305 observed at 55 kDa. Red - loading control, Anti-GAPDH antibody [6C5] - Loading Control ab8245, observed at 37 kDa.

  ab207305 was shown to specifically react with SQSTM1/p62 in wild-type HAP1 cells. No band was observed when SQSTM1/p62 knockout samples were used. Wild-type and SQSTM1/p62 knockout samples were subjected to SDS-PAGE, ab207305 and Anti-GAPDH antibody [6C5] - Loading Control ab8245 (loading control to GAPDH) were diluted 1/1000 and 1/10,000 respectively and incubated overnight at 4°C. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1/10,000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  Predicted band size: 47 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-SQSTM1 / p62 antibody

  Immunohistochemical analysis of paraffin-embedded human hepatocellular carcinoma tissue labeling SQSTM1 / p62 with ab207305 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution. Cytoplasm staining on human hepatocellular carcinoma is observed. Counter stained with Hematoxylin.


  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  Immunocytochemistry/ Immunofluorescence - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-SQSTM1 / p62 antibody

  ab207305 staining SQSTM1/p62 in HeLa cells +/- Chloroquine (50μM, 24 hours). The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab207305 at 1μg/ml and Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 594), at 1/250 dilution (shown in pseudocolor red) followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 2 μg/ml (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).


  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

•

  Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Western blot staining using rabbit Anti-SQSTM1 / p62 antibody

  Blocking/Dilution buffer: 5% NFDM/TBST.

  The MW observed is consistent with what has been described in the literature (PMID: PMC4344198).

  All lanes: Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305) at 1/1000 dilution

  Lane 1: Human liver lysate at 10 µg

  Lane 2: Human kidney lysate at 10 µg

  Secondary

  All lanes: Goat Anti-Rabbit IgG Peroxidase Conjugate, specific to the non-reduced form of IgG at 1/10000 dilution

  Predicted band size: 47 kDa

  Observed band size: 62 kDa

  Exposure time: 30s

•

  Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Western blot staining using rabbit Anti-SQSTM1 / p62 antibody

  Blocking/Dilution buffer: 5% NFDM/TBST.

  The MW observed is consistent with what has been described in the literature (PMID: PMC4344198).

  All lanes: Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305) at 1/5000 dilution

  Lane 1: HepG2 (Human liver hepatocellular carcinoma) whole cell lysate at 10 µg

  Lane 2: HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysate at 10 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Predicted band size: 47 kDa

  Observed band size: 62 kDa

  Exposure time: 30s

•

  Immunoprecipitation - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 was immunoprecipitated from 1mg of HepG2 (Human liver hepatocellular carcinoma) whole cell lysate with ab207305 at 1/40 dilution.
  Western blot was performed from the immunoprecipitate using ab207305 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/10000 dilution.
  Lane 1: HepG2 whole cell lysate 10ug (Input).
  Lane 2: ab207305 IP in HepG2 whole cell lysate.
  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab207305 in HepG2 whole cell lysate.
  Blocking and dilution buffer and concentration: 5% NFDM/TBST.
  Exposure time: 1 second.

  All lanes: Immunoprecipitation - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  Predicted band size: 32 kDa, 47 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-SQSTM1 / p62 antibody

  Immunohistochemical analysis of paraffin-embedded human lung cancer tissue labeling SQSTM1 / p62 with ab207305 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution. Cytoplasm and weakly nucleus staining on human lung cancer is observed. Counter stained with Hematoxylin.


  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-SQSTM1 / p62 antibody

  Immunohistochemical analysis of paraffin-embedded human liver tissue labeling SQSTM1 / p62 with ab207305 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution. Negative staining on Hhman normal liver tissue. Counter stained with Hematoxylin.


  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  Flow Cytometry (Intracellular) - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (ab207305)

  SQSTM1 / p62 Flow Cytometry (Intracellular) staining using rabbit Anti-SQSTM1 / p62 antibody

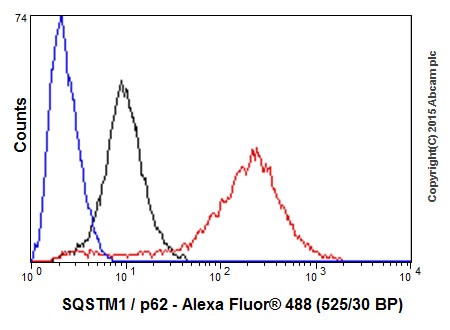

  Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed PC-3 (Human prostate adenocarcinoma cell line) cells labeling SQSTM1 / p62 with ab207305 at 1/100 dilution (red) compared with a rabbit monoclonal IgG isotype control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730; black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat Anti-Rabbit IgG (FITC) at 1/500 dilution was used as the secondary antibody.
