Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

Immunohistochemical analysis of paraffin-embedded human lung cancer tissue labeling SQSTM1 / p62 with ab207305 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Cytoplasm and weakly nucleus staining on human lung cancer is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab207305).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

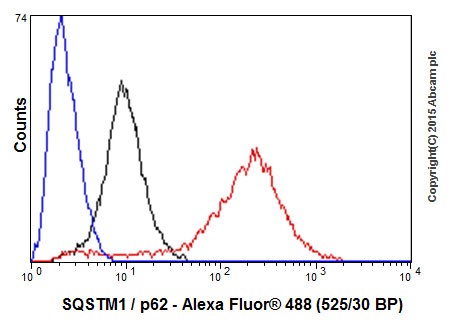

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed PC-3 (Human prostate adenocarcinoma cell line) cells labeling SQSTM1 / p62 with ab207305 at 1/100 dilution (red) compared with a rabbit monoclonal IgG isotype control (ab172730; black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat Anti-Rabbit IgG (FITC) at 1/500 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab207305).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

This ICC data was generated using the same anti-SQSTM1/p62 antibody clone, EPR18351, in a different buffer formulation (cat# ab207305).

ab207305 staining SQSTM1 in wild-type HAP1 cells and knockout cells, untreated and chloroquine-treated (50μM, 24 hours). The cells were fixed with 4% formaldehyde (10min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab207305 at 1μg/ml and ab195889 at 1/250 dilution (shown in pseudocolour red) overnight at +4°C, followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (ab150081) at 2 μg/ml (shown in green). Nuclear DNA was labelled in blue with DAPI.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

Clone EPR18351 (ab227992) has been successfully conjugated by Abcam. This image was generated using Anti-SQSTM1 / p62 antibody [EPR18351] (PE). Please refer to ab225454 for protocol details.

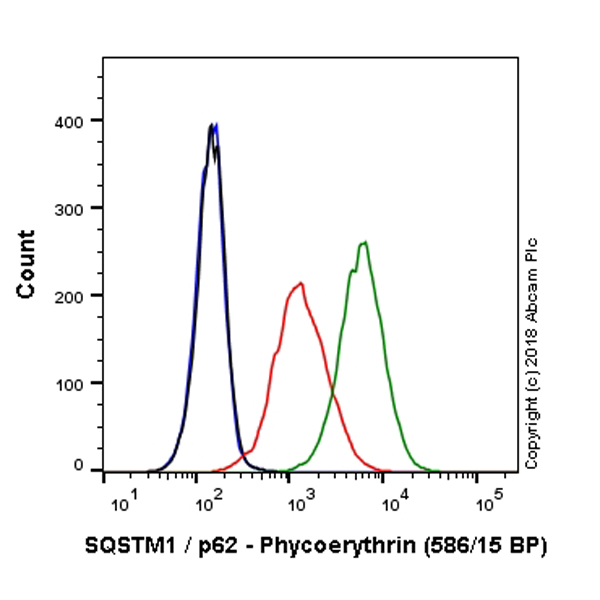

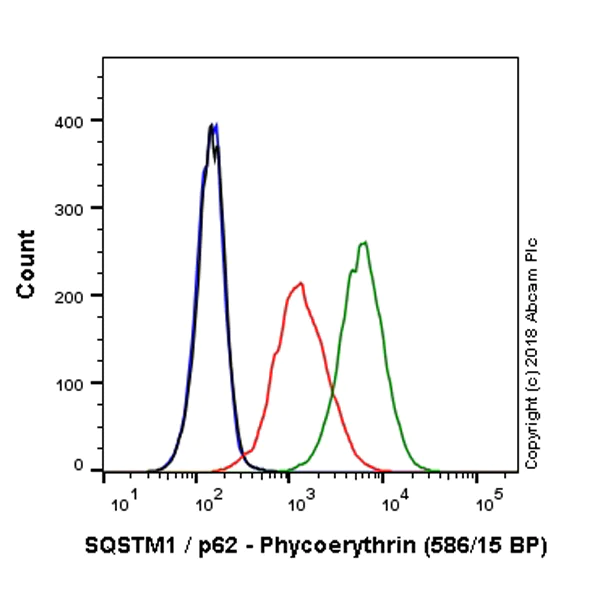

Overlay histogram showing HeLa cells untreated (red line) and HeLa cells treated with Chloroquine, 50μM, 24 hours, (green line) stained with ab225454. The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab225454, 1/5000 dilution) for 30 min at 22°C.

Isotype control antibody (black line) was Rabbit IgG (monoclonal) Phycoerythrin (ab209478) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 50 mW Yellow/Green laser (561nm) and 586/15 bandpass filter.

This antibody gave a positive signal in HeLa +/- Chloroquine cells fixed with 4% formaldehyde (10 min)/permeabilized with 0.1% PBS-Triton X-100 for 15 min used under the same conditions.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

Clone EPR18351 (ab227992) has been successfully conjugated by Abcam. This image was generated using Anti-SQSTM1 / p62 antibody [EPR18351] (Alexa Fluor® 647). Please refer to ab225453 for protocol details.

ab225453 staining SQSTM1 / p62 in wild-type HAP1 cells and knockout cells, untreated and chloroquine-treated (50μM, 24 hours). The cells were fixed with 4% formaldehyde (10min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab225453 at 5μg/ml (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 488), at 1/250 dilution (shown in green) overnight at +4°C. Nuclear DNA was labelled in blue with DAPI.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Collaborator

Immunocytochemistry/ Immunofluorescence - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

This data was developed using the same antibody clone in a different buffer formulation (ab207305). ab207305 was shown to react with SQSTM1 in wild-type U-2 OS cells in Immunocytochemistry with loss of signal observed in a SQSTM1 knockout cell line. Wild-type and knockout cells were mixed and pelleted at a 1 : 1 ratio on coverslips. The cells were fixed with 4% paraformaldehyde (15 min) then permeabilized with 0.1% Triton X-100 (10min) and then blocked with 1/5000. The cells were then incubated with ab207305 at 1/200 dilution overnight at 4°C followed by a further incubation at room temperature for 1h with a goat anti-rabbit secondary antibody to (Alexa Fluor^® 555) at 0.5 μg/ml. Acquisition of the green (wild-type), red (antibody staining) and far-red (knockout) channels was performed. Representative grayscale images of the red channel are shown. Wild-type and knockout cells are outlined with yellow and magenta dashed line, respectively. Schematic representation of the mosaic strategy used is shown on the bottom-right panel. Image was acquired with a Zeiss(LSM-880). These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

Immunohistochemical analysis of paraffin-embedded human liver tissue labeling SQSTM1 / p62 with ab207305 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Negative staining on Hhman normal liver tissue. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab207305).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

This IHC data was generated using the same anti-SQSTM1/p62 antibody clone, EPR18351, in a different buffer formulation (cat# ab207305).

Immunohistochemical analysis of paraffin-embedded human hepatocellular carcinoma tissue labeling SQSTM1 / p62 with ab207305 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Cytoplasm staining on human hepatocellular carcinoma is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

ab207305 staining SQSTM1/p62 in HeLa cells +/- Chloroquine (50μM, 24 hours). The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab207305 at 1μg/ml and ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor® 594), at 1/250 dilution (shown in pseudocolor red) followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (ab150081) at 2 μg/ml (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab207305).

• IP

Unknown

Immunoprecipitation - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

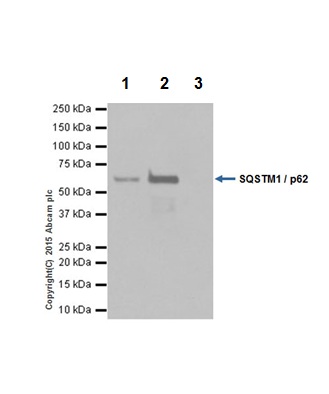

SQSTM1 / p62 was immunoprecipitated from 1mg of HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysate with ab207305 at 1/40 dilution.
Western blot was performed from the immunoprecipitate using ab207305 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.
Lane 1 : HeLa whole cell lysate 10ug (Input).
Lane 2 : ab207305 IP in HeLa whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab207305 in HeLa whole cell lysate.
Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 1 second.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab207305).

All lanes:

Immunoprecipitation - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (<a href='/en-us/products/primary-antibodies/sqstm1-p62-antibody-epr18351-autophagosome-marker-ab207305'>ab207305</a>)

Predicted band size: 47 kDa

false

• IP

Supplier Data

Immunoprecipitation - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

SQSTM1 / p62 was immunoprecipitated from 1mg of HepG2 (Human liver hepatocellular carcinoma) whole cell lysate with ab207305 at 1/40 dilution.
Western blot was performed from the immunoprecipitate using ab207305 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.
Lane 1 : HepG2 whole cell lysate 10ug (Input).
Lane 2 : ab207305 IP in HepG2 whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab207305 in HepG2 whole cell lysate.
Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 1 second.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab207305).

All lanes:

Immunoprecipitation - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (<a href='/en-us/products/primary-antibodies/sqstm1-p62-antibody-epr18351-autophagosome-marker-ab207305'>ab207305</a>)

Predicted band size: 32 kDa,47 kDa

false

• WB

Collaborator

Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

This data was developed using the same antibody in a different buffer formulation (ab207305).

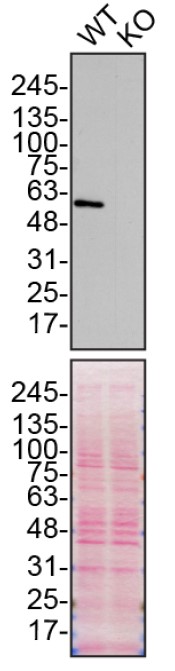

ab207305 was shown to react with SQSTM1 in wild-type U-2 OS cells in Western blot with loss of signal observed in a SQSTM1 knockout cell line. Wild-type U-2 OS and SQSTM1 knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 5% milk in TBST for 1 hr before incubation with ab207305 overnight at 4 °C at a 1/1000 dilution. Blots were incubated with goat anti-rabbit HRP secondary antibodies at 0.2ug/mL before imaging. These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

All lanes:

Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (<a href='/en-us/products/primary-antibodies/sqstm1-p62-antibody-epr18351-autophagosome-marker-ab207305'>ab207305</a>) at 1/1000 dilution

Lane 1:

Wild-type U-2 OS cell lysate at 20 µg

Lane 2:

SQSTM1 knockout U-2 OS cell lysate at 20 µg

Predicted band size: 47 kDa

false

• WB

Lab

Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - BSA and Azide free (AB227992)

This data was developed using ab207305, the same antibody clone in a different buffer formulation.

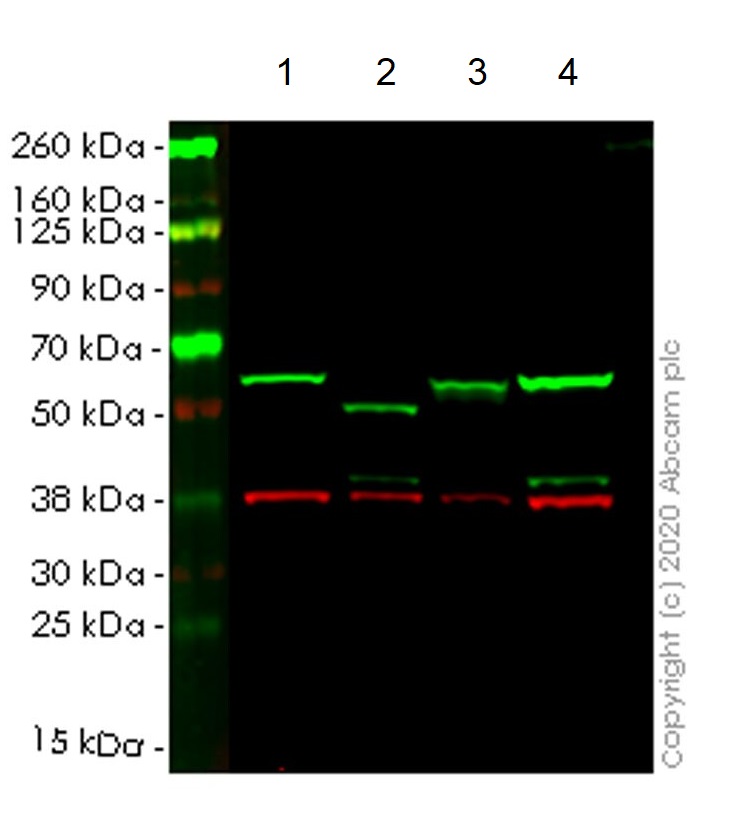

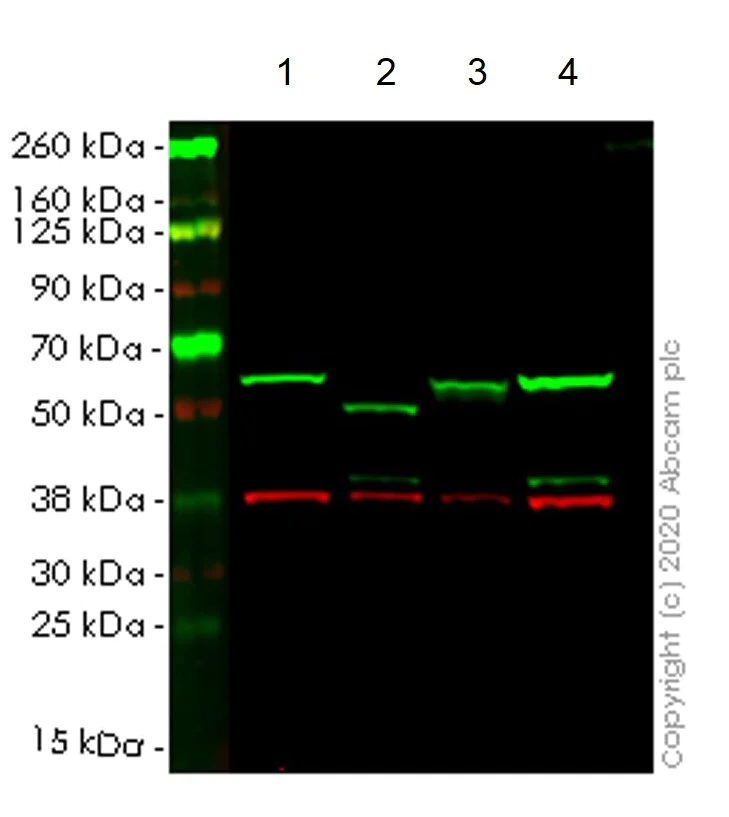

Lanes 1-4 : Merged signal (red and green). Green - ab207305 observed at 55 kDa. Red - loading control ab8245 observed at 36 kDa.

ab207305 Anti-SQSTM1 / p62 antibody [EPR18351] was shown to specifically react with SQSTM1 / p62 in wild-type HCT116 cells. The band observed in CRISPR/Cas9 edited cell line ab266871 (CRISPR/Cas9 edited cell lysate ab257052) lane below 55 kDa may represent truncated forms and cleaved fragments. This has not been investigated further. Wild-type and SQSTM1 / p62 CRISPR/Cas9 edited samples were subjected to SDS-PAGE. ab207305 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-SQSTM1 / p62 antibody [EPR18351] - Autophagosome Marker (<a href='/en-us/products/primary-antibodies/sqstm1-p62-antibody-epr18351-autophagosome-marker-ab207305'>ab207305</a>)

Lane 1:

Wild-type HCT116 cell lysate at 20 µg

Lane 2:

SQSTM1 CRISPR/Cas9 edited HCT116 cell lysate at 20 µg

Lane 2:

Western blot - Human SQSTM1 (p62) knockout HCT116 cell line (<a href='/en-us/products/cell-lines/human-sqstm1-p62-knockout-hct116-cell-line-ab266871'>ab266871</a>)

Lane 3:

HepG2 cell lysate at 20 µg

Lane 4:

HeLa cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/10000 dilution

Predicted band size: 47 kDa

Observed band size: 55 kDa

false
