Anti-SQSTM1 / p62 (phospho S349) antibody [EPR20451] - BSA and Azide free

• ICC/IF

Lab

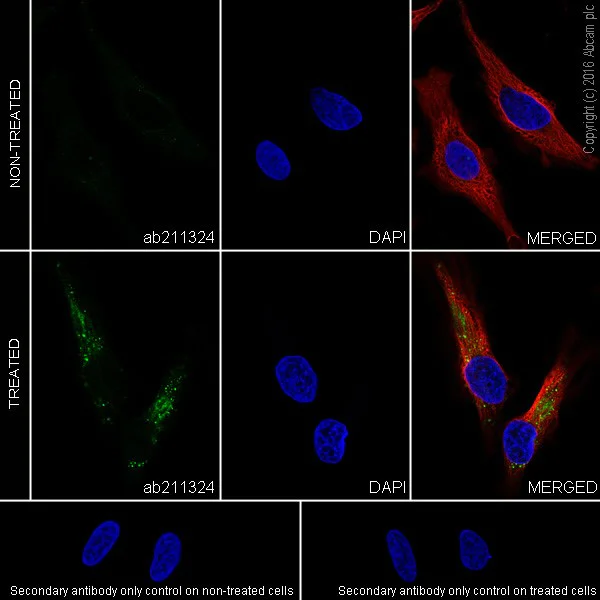

Immunocytochemistry/ Immunofluorescence - Anti-SQSTM1 / p62 (phospho S349) antibody [EPR20451] - BSA and Azide free (AB238445)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cell line from cervix adenocarcinoma) cells, treated with 2μM MG-132 for 18 hours or untreated, labeling SQSTM1 / p62 (phospho S349) with ab211324 at 1/100 dilution, followed by Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) secondary antibody at 1/200 dilution (green).

Confocal image showing cytoplasmic staining on HeLa cell line. The expression increased after treatment with 2μM MG-132 for 18 hours.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211324).

• Flow Cyt (Intra)

Lab

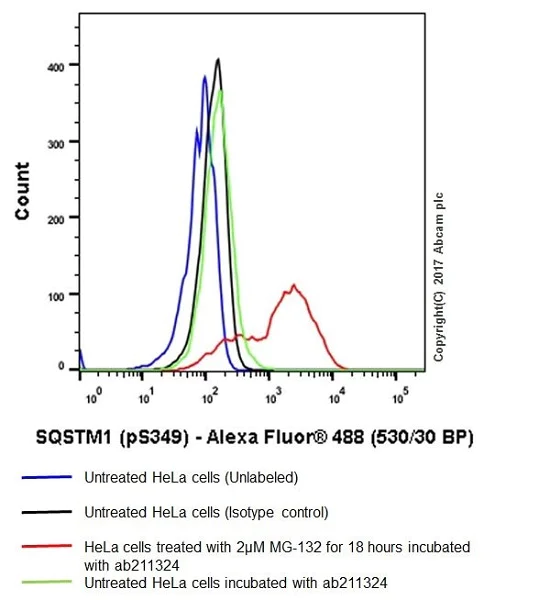

Flow Cytometry (Intracellular) - Anti-SQSTM1 / p62 (phospho S349) antibody [EPR20451] - BSA and Azide free (AB238445)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed HeLa (Human epithelial cell line from cervix adenocarcinoma) cells, treated with 2μM MG-132 for 18 hours (red) or untreated (green), labeling SQSTM1 / p62 (phospho S349) with ab211324 at 1/500 dilution compared with a rabbit monoclonal IgG isotype control (ab172730; black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (Alexa Fluor^® 488) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211324).

• IP

Lab

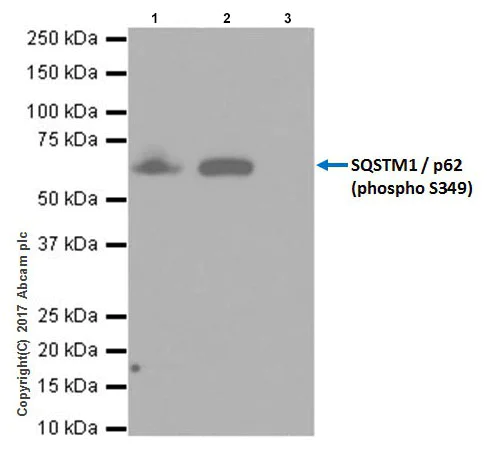

Immunoprecipitation - Anti-SQSTM1 / p62 (phospho S349) antibody [EPR20451] - BSA and Azide free (AB238445)

SQSTM1 / p62 (phospho S349) was immunoprecipitated from 0.35 mg of HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate treated with 2μM MG-132 for 18h with ab211324 at 1/30 dilution.

Western blot was performed from the immunoprecipitate using ab211324 at 1/1000 dilution.

VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : HeLa treated with 2μM MG-132 for 18h whole cell lysate, 10 μg (Input).

Lane 2 : ab211324 IP in HeLa treated with 2μM MG-132 for 18h whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab211324 in HeLa treated with 2μM MG-132 for 18h whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 10 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211324).

All lanes:

Immunoprecipitation - Anti-SQSTM1 / p62 (phospho S349) antibody [EPR20451] (<a href='/en-us/products/primary-antibodies/sqstm1-p62-phospho-s349-antibody-epr20451-ab211324'>ab211324</a>)

Predicted band size: 47 kDa

false

Exposure time: 10s

• WB

Collaborator

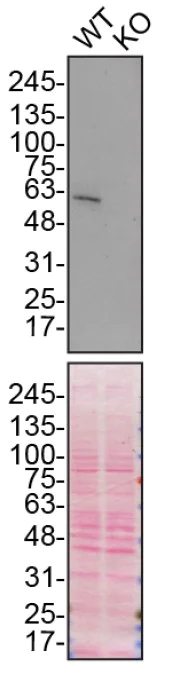

Western blot - Anti-SQSTM1 / p62 (phospho S349) antibody [EPR20451] - BSA and Azide free (AB238445)

This data was developed using the same antibody in a different buffer formulation (ab211324).

ab211324 was shown to react with SQSTM1 in wild-type U-2 OS cells in Western blot with loss of signal observed in a SQSTM1 knockout cell line. Wild-type U-2 OS and SQSTM1 knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 5% milk in TBST for 1 hr before incubation with ab211324 overnight at 4 °C at a 1/1000 dilution. Blots were incubated with goat anti-rabbit HRP secondary antibodies at 0.2ug/mL before imaging. These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

All lanes:

Western blot - Anti-SQSTM1 / p62 (phospho S349) antibody [EPR20451] (<a href='/en-us/products/primary-antibodies/sqstm1-p62-phospho-s349-antibody-epr20451-ab211324'>ab211324</a>) at 1/1000 dilution

Lane 1:

Wild-type U-2 OS cell lysate at 20 µg

Lane 2:

SQSTM1 knockout U-2 OS cell lysate at 20 µg

Predicted band size: 47 kDa

false
