Anti-STAT3 antibody [E121-21]

5 product images

•

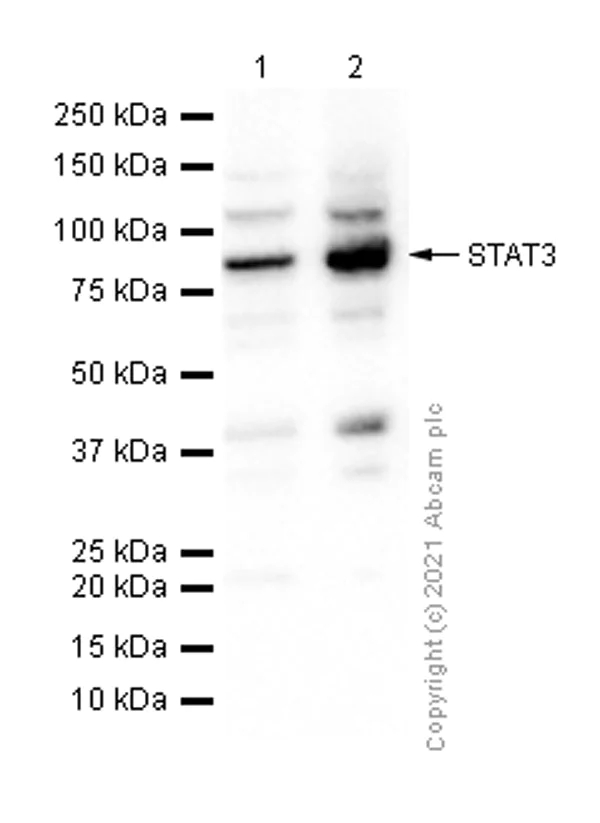

  Western blot - Anti-STAT3 antibody [E121-21] (ab32500)

  All lanes: Western blot - Anti-STAT3 antibody [E121-21] (ab32500) at 1/1000 dilution

  Lane 1: A431 (Human epidermoid carcinoma epithelial cell) whole cell lysate at 20 µg

  Lane 2: HaCaT (Human skin keratinocyte) whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Predicted band size: 88 kDa

•

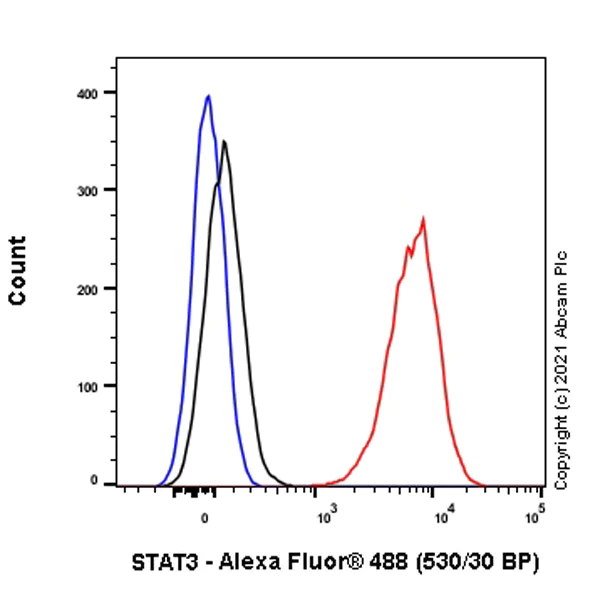

  Flow Cytometry (Intracellular) - Anti-STAT3 antibody [E121-21] (ab32500)

  Flow Cytometry analysis of A431 (Human epidermoid carcinoma epithelial cell) cells labelling STAT3 with Purified ab32500 at 1:20 dilution (5 μg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) secondary antibody was used at 1:2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabelled control - Cell without incubation with primary antibody and secondary antibody (Blue).

•

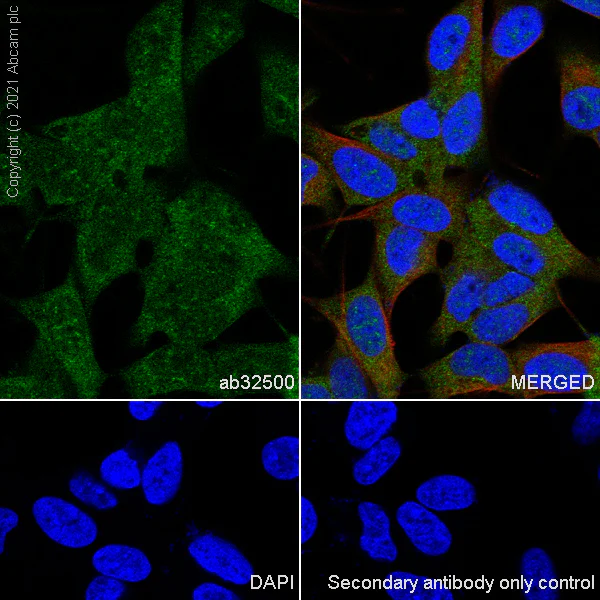

  Immunocytochemistry/ Immunofluorescence - Anti-STAT3 antibody [E121-21] (ab32500)

  Immunocytochemistry analysis of SH-SY5Y (Human neuroblastoma epithelial cell) cells labeling STAT3 with Purified ab32500 at 1:50 dilution (2.1 μg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1:200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1:1000 (2 μg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

•

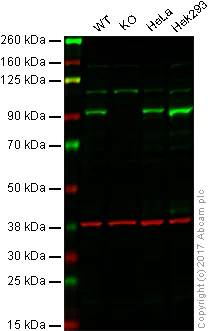

  Western blot - Anti-STAT3 antibody [E121-21] (ab32500)

  Lane 1: Wild type HAP1 whole cell lysate (20 μg)
  Lane 2: STAT3 knockout HAP1 whole cell lysate (20 μg)
  Lane 3: HeLa whole cell lysate (20 μg)
  Lane 4: HEK293 whole cell lysate (20 μg)


  Lanes 1 - 4: Merged signal (red and green). Green - ab32500 observed at 92 kDa. Red - loading control, Anti-GAPDH antibody [6C5] - Loading Control ab8245, observed at 37 kDa.

  ab32500 detected the expected band for STAT3 in wild-type cells along with additional cross-reactive bands. The band was not seen in STAT3 knockout HAP1 cells. Wild-type and STAT3 knockout samples were subjected to SDS-PAGE. ab32500 and Anti-GAPDH antibody [6C5] - Loading Control ab8245 (Mouse anti GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/10000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776 secondary antibodies at 1/10000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-STAT3 antibody [E121-21] (ab32500)

  Predicted band size: 88 kDa

•

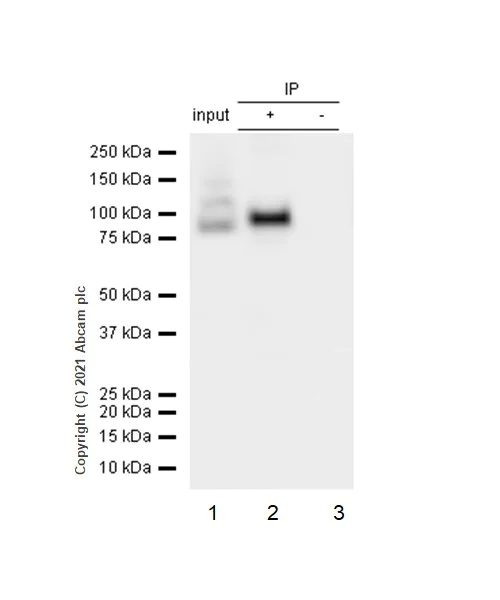

  Immunoprecipitation - Anti-STAT3 antibody [E121-21] (ab32500)

  ab32500 at 1/20 dilution (0.5 μg) immunoprecipitating STAT3 in HeLa whole cell lysate.

  Lane 1 (input): HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate 10μg
  Lane 2 (+): ab32500 & HeLa whole cell lysate
  Lane 3 (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab32500 in HeLa whole cell lysate


  For western blotting, ab32500 at 1/1000 and VeriBlot for IP secondary antibody (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.

  Blocking and diluting buffer: 5% NFDM /TBST.

  All lanes: Immunoprecipitation - Anti-STAT3 antibody [E121-21] (ab32500)

  Predicted band size: 88 kDa

  Observed band size: 92 kDa

  Exposure time: 1s
