Anti-STAT5a + STAT5b antibody [EPR16668]

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-STAT5a + STAT5b antibody [EPR16668] (AB200341)

Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling STAT5b with ab200341 at 1/100 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution.

Cytoplasm and nuclear staining on Human tonsil tissue is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Supplier Data

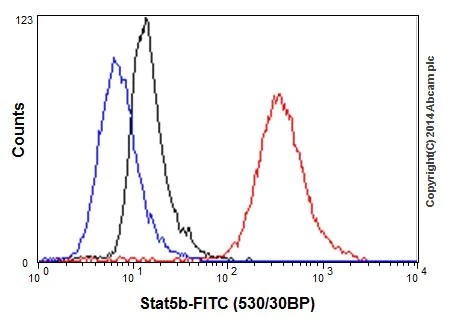

Flow Cytometry (Intracellular) - Anti-STAT5a + STAT5b antibody [EPR16668] (AB200341)

Intracellular flow cytometric analysis of 2% paraformaldehyde-fixed NIH/3T3 (Mouse embyro fibroblast cells) cells labeling STAT5b with ab200341 at 1/80 dilution (red) compared with a rabbit monoclonal IgG isotype control (ab172730;black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (FITC) at 1/150 dilution was used as the secondary antibody.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-STAT5a + STAT5b antibody [EPR16668] (AB200341)

Immunohistochemical analysis of paraffin-embedded Rat cardiac muscle tissue labeling STAT5b with ab200341 at 1/100 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution.

Cytoplasm and nuclear staining on rat cardiac muscle tissue is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-STAT5a + STAT5b antibody [EPR16668] (AB200341)

Immunofluorescent analysis of 4% paraformaldehyde-fixed 0.1% Triton X-100 permeabilized C6 (Rat glial tumor cells) cells labeling STAT5b with ab200341 at 1/500 dilution followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/500 dilution (green).

Nuclear and cytoplasm staining on C6 cell line is observed.

The nuclear counter stain is DAPI (blue).

Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).

The negative controls are as follows :
-ve control 1 : ab200341 at 1/500 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/500 dilution.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-STAT5a + STAT5b antibody [EPR16668] (AB200341)

Immunohistochemical analysis of paraffin-embedded Mouse liver tissue labeling STAT5b with ab200341 at 1/100 dilution followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution.

Cytoplasm and nuclear staining on mouse liver tissue is observed.

Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-STAT5a + STAT5b antibody [EPR16668] (AB200341)

Immunofluorescent analysis of 4% paraformaldehyde-fixed 0.1% Triton X-100 permeabilized RAW 264.7 (Mouse macrophage cells transformed with Abelson murine leukemia virus) cells labeling STAT5b with ab200341 at 1/500 dilution followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/500 dilution (green).

Nuclear and cytoplasm staining on RAW 264.7 cell line is observed.

The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).

The negative controls are as follows :
-ve control 1 : ab200341 at 1/500 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/500 dilution.

• WB

Supplier Data

Western blot - Anti-STAT5a + STAT5b antibody [EPR16668] (AB200341)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-STAT5a + STAT5b antibody [EPR16668] (ab200341) at 1/1000 dilution

Lane 1:

K562 (Human chronic myelogenous leukemia cells from bone marrow) whole cell lysate at 10 µg

Lane 2:

Jurkat (Human T cell leukemia cells from peripheral blood) whole cell lysate at 10 µg

Lane 3:

Daudi (Human Burkitt's lymphoma cell line) whole cell lysate at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 90 kDa

Observed band size: 90 kDa

false

Exposure time: 3min

• WB

Supplier Data

Western blot - Anti-STAT5a + STAT5b antibody [EPR16668] (AB200341)

Blocking/Dilution buffer : 5% NFDM/TBST.

ab200341 show cross reactivity with STAT5a. Full length human Stat5a recombinant protein contains aa1-794 with MYC/DDDDK tag.

All lanes:

Western blot - Anti-STAT5a + STAT5b antibody [EPR16668] (ab200341) at 1/200 dilution

All lanes:

Full length human Stat5a recombinant protein at 0.01 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 90 kDa

Observed band size: 90 kDa

false

Exposure time: 3min

• WB

Supplier Data

Western blot - Anti-STAT5a + STAT5b antibody [EPR16668] (AB200341)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-STAT5a + STAT5b antibody [EPR16668] (ab200341) at 1/1000 dilution

Lane 1:

C6 (Rat glial tumor cells) whole cell lysate at 10 µg

Lane 2:

PC-12 (Rat adrenal gland pheochromocytoma) whole cell lysate at 10 µg

Lane 3:

NIH/3T3 (Mouse embyro fibroblast cells) whole cell lysate at 10 µg

Lane 4:

Mouse heart lysate at 10 µg

Lane 5:

Rat heart lysate at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 90 kDa

Observed band size: 90 kDa

false

Exposure time: 3min

• WB

Supplier Data

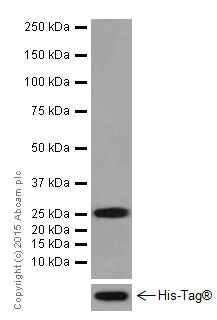

Western blot - Anti-STAT5a + STAT5b antibody [EPR16668] (AB200341)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-STAT5a + STAT5b antibody [EPR16668] (ab200341) at 1/10000 dilution

All lanes:

Recombinant protein fragment mouse Stat5b at 0.01 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 90 kDa

false

Exposure time: 3min
