Anti-STAT5a + STAT5b antibody [EPR16671-40] - BSA and Azide free

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-STAT5a + STAT5b antibody [EPR16671-40] - BSA and Azide free (AB215367)

This data was developed using ab194898, the same antibody clone in a different buffer formulation.

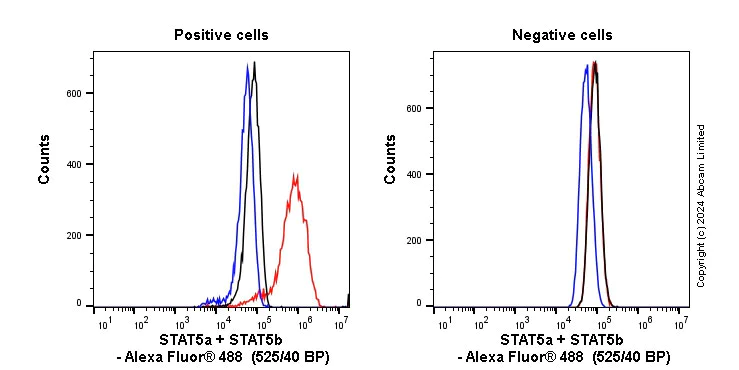

Flow cytometry overlay histogram showing left K-562 positive cells and right negative PC3 stained with ab194898 (red line). The cells were fixed with 4% formaldehyde (10 min) and then permeabilised with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction followed by the antibody (ab194898) (1x 10⁶in 100μl at 0.04μg/ml (1/12500)) for 30min at 22°C.

The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min at 22°C

Isotype control antibody (black line) was Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

This antibody gave a positive signal in K-562 Fixed with 80% methanol (5 min) / permeabilised with 0.1% PBS-Triton X-100 for 15 min under the same conditions.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-STAT5a + STAT5b antibody [EPR16671-40] - BSA and Azide free (AB215367)

This ICC/IF data was generated using the same anti-STAT5a/b antibody clone, EPR16671-40, in a different buffer formulation (cat# ab194898).

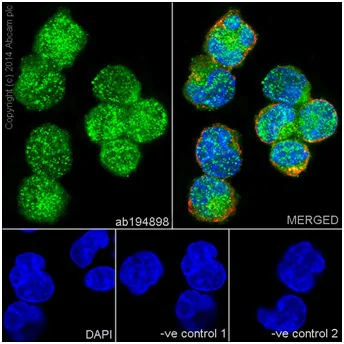

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized K562 (Human chronic myelogenous leukemia cells from bone marrow) cells labeling STAT5a + STAT5b with ab194898 at 1/250 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/400 dilution (green). Confocal image showing both cytoplasmic and nuclear staining on K562 cell line. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution and ab150120 (AlexaFluor^® 594 Goat anti-Mouse secondary) at 1/500 dilution (red).
The negative controls are as follows :
1. ab194898 at 1/250 dilution followed by ab150120 (Alexa Fluor^® 594 Goat anti-Mouse secondary) at 1/500 dilution.
2. ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution followed by ab150077 (Alexa Fluor^® 488 Goat Anti-Rabbit IgG H&L) at 1/400 dilution.

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-STAT5a + STAT5b antibody [EPR16671-40] - BSA and Azide free (AB215367)

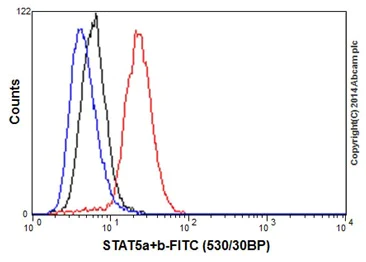

Intracellular flow cytometric analysis of 2% paraformaldehyde-fixed K562 (Human chronic myelogenous leukemia cells from bone marrow) cells labeling STAT5a + STAT5b with ab194898 at 1/80 dilution (red) compared with a rabbit monoclonal IgG isotype control (black) and a unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (FITC) at 1/150 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab194898).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-STAT5a + STAT5b antibody [EPR16671-40] - BSA and Azide free (AB215367)

Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling STAT5a + STAT5b using ab194898 at 1/2000 dilution. A Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 was used as secondary. Counter stained with Hematoxylin.
Inset image : negative control obtained using PBS instead of ab194898.
Nuclear and weak cytoplasmic staining on lymphocytes of human tonsil is observed.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab194898).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IP

Supplier Data

Immunoprecipitation - Anti-STAT5a + STAT5b antibody [EPR16671-40] - BSA and Azide free (AB215367)

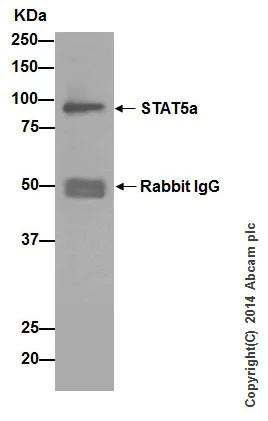

STAT5a + STAT5b were co-immunoprecipitated from 1mg of K562 (Human chronic myelogenous leukemia cells from bone marrow) cells with ab194898 at 1/100 dilution. Western blot was performed from the immunoprecipitate using ab32043 (Rabbit monoclonal [E289] to STAT5a) at 1/1000 dilution. Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated, was used as secondary antibody at 1/1000 dilution.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab194898).

All lanes:

Immunoprecipitation - Anti-STAT5a + STAT5b antibody [EPR16671-40] (<a href='/en-us/products/primary-antibodies/stat5a-stat5b-antibody-epr16671-40-ab194898'>ab194898</a>)

false

• IP

Supplier Data

Immunoprecipitation - Anti-STAT5a + STAT5b antibody [EPR16671-40] - BSA and Azide free (AB215367)

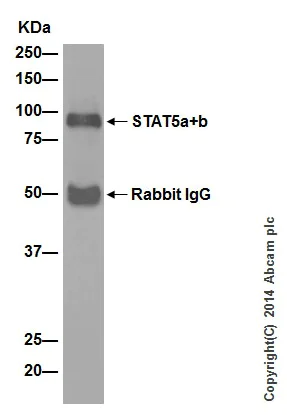

STAT5a and STAT5b were immunoprecipitated from 1mg of K562 (Human chronic myelogenous leukemia cells from bone marrow) cells with ab194898 at 1/100 dilution. Western blot was performed from the immunoprecipitate using ab194898 at 1/1000 dilution. Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated, was used as secondary antibody at 1/1000 dilution.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab194898).

All lanes:

Immunoprecipitation - Anti-STAT5a + STAT5b antibody [EPR16671-40] (<a href='/en-us/products/primary-antibodies/stat5a-stat5b-antibody-epr16671-40-ab194898'>ab194898</a>)

false

• IP

Supplier Data

Immunoprecipitation - Anti-STAT5a + STAT5b antibody [EPR16671-40] - BSA and Azide free (AB215367)

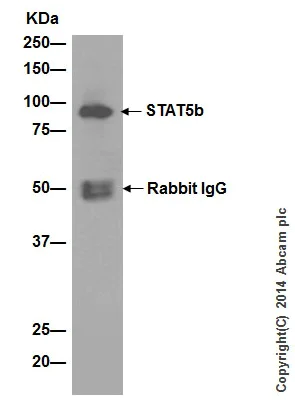

STAT5a + STAT5b were co-immunoprecipitated from 1mg of K562 (Human chronic myelogenous leukemia cells from bone marrow) cells with ab194898 at 1/100 dilution. Western blot was performed from the immunoprecipitate using ab178941 (Rabbit monoclonal [EPR16671] to STAT5b) at 1/1000 dilution. Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated, was used as secondary antibody at 1/1000 dilution.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab194898).

All lanes:

Immunoprecipitation - Anti-STAT5a + STAT5b antibody [EPR16671-40] (<a href='/en-us/products/primary-antibodies/stat5a-stat5b-antibody-epr16671-40-ab194898'>ab194898</a>)

false

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-STAT5a + STAT5b antibody [EPR16671-40] - BSA and Azide free (AB215367)

This IHC data was generated using the same anti-STAT5a/b antibody clone, EPR16671-40, in a different buffer formulation (cat# ab194898).

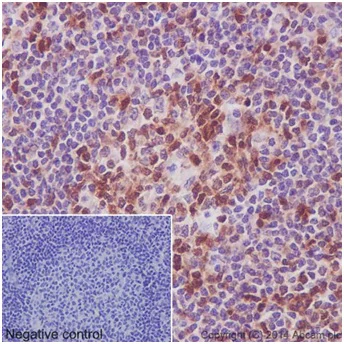

Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling STAT5a + STAT5b using ab194898 at 1/2000 dilution. A Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 was used as secondary. Counter stained with Hematoxylin.
Inset image : negative control obtained using PBS instead of ab194898.
Nuclear and weak cytoplasmic staining on lymphocytes of mouse spleen is observed.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-STAT5a + STAT5b antibody [EPR16671-40] - BSA and Azide free (AB215367)

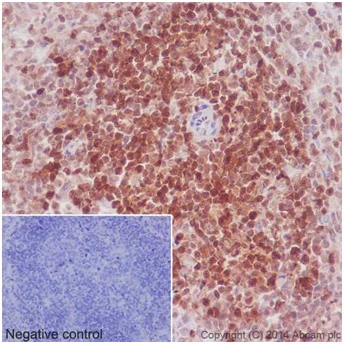

Immunohistochemical analysis of paraffin-embedded rat spleen tissue labeling STAT5a + STAT5b using ab194898 at 1/2000 dilution. A Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 was used as secondary. Counter stained with Hematoxylin.
Inset image : negative control obtained using PBS instead of ab194898.
Nuclear and weak cytoplasmic staining on lymphocytes of rat spleen is observed.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab194898).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
