Rabbit Recombinant Monoclonal STING phospho Y199 antibody. Suitable for WB, Dot and reacts with Transfected cell lysate - Human, Synthetic peptide samples.
pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
WB | Dot | ICC/IF | IHC-P | IP | |
---|---|---|---|---|---|
Human | Predicted | Predicted | Not recommended | Not recommended | Not recommended |
Mouse | Not recommended | Not recommended | Not recommended | Not recommended | Not recommended |
Rat | Not recommended | Not recommended | Not recommended | Not recommended | Not recommended |
Synthetic peptide | Not recommended | Tested | Not recommended | Not recommended | Not recommended |
Transfected cell lysate - Human | Tested | Not recommended | Not recommended | Not recommended | Not recommended |
Species | Dilution info | Notes |
---|---|---|
Species Transfected cell lysate - Human | Dilution info 1/1000 | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Human | Dilution info - | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Synthetic peptide, Mouse, Rat | Dilution info - | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Synthetic peptide | Dilution info 1/1000 | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Human | Dilution info - | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Transfected cell lysate - Human, Mouse, Rat | Dilution info - | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Mouse, Human, Transfected cell lysate - Human, Synthetic peptide, Rat | Dilution info - | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Human, Mouse, Rat, Transfected cell lysate - Human, Synthetic peptide | Dilution info - | Notes - |
Species | Dilution info | Notes |
---|---|---|
Species Human, Transfected cell lysate - Human, Synthetic peptide, Mouse, Rat | Dilution info - | Notes - |
Facilitator of innate immune signaling that acts as a sensor of cytosolic DNA from bacteria and viruses and promotes the production of type I interferon (IFN-alpha and IFN-beta) (PubMed:18724357, PubMed:18818105, PubMed:19433799, PubMed:19776740, PubMed:23027953, PubMed:23747010, PubMed:23910378, PubMed:27801882, PubMed:29973723, PubMed:30842659, PubMed:35045565, PubMed:35388221, PubMed:36808561, PubMed:37832545). Innate immune response is triggered in response to non-CpG double-stranded DNA from viruses and bacteria delivered to the cytoplasm (PubMed:26300263). Acts by binding cyclic dinucleotides: recognizes and binds cyclic di-GMP (c-di-GMP), a second messenger produced by bacteria, cyclic UMP-AMP (2',3'-cUAMP), and cyclic GMP-AMP (cGAMP), a messenger produced by CGAS in response to DNA virus in the cytosol (PubMed:21947006, PubMed:23258412, PubMed:23707065, PubMed:23722158, PubMed:23747010, PubMed:23910378, PubMed:26229117, PubMed:30842659, PubMed:35388221, PubMed:37379839). Upon binding to c-di-GMP, cUAMP or cGAMP, STING1 oligomerizes, translocates from the endoplasmic reticulum and is phosphorylated by TBK1 on the pLxIS motif, leading to recruitment and subsequent activation of the transcription factor IRF3 to induce expression of type I interferon and exert a potent anti-viral state (PubMed:22394562, PubMed:25636800, PubMed:29973723, PubMed:30842653, PubMed:35045565, PubMed:35388221). Exhibits 2',3' phosphodiester linkage-specific ligand recognition: can bind both 2'-3' linked cGAMP (2'-3'-cGAMP) and 3'-3' linked cGAMP but is preferentially activated by 2'-3' linked cGAMP (PubMed:23747010, PubMed:23910378, PubMed:26300263). The preference for 2'-3'-cGAMP, compared to other linkage isomers is probably due to the ligand itself, whichs adopts an organized free-ligand conformation that resembles the STING1-bound conformation and pays low energy costs in changing into the active conformation (PubMed:26150511). In addition to promote the production of type I interferons, plays a direct role in autophagy (PubMed:30568238, PubMed:30842662). Following cGAMP-binding, STING1 buds from the endoplasmic reticulum into COPII vesicles, which then form the endoplasmic reticulum-Golgi intermediate compartment (ERGIC) (PubMed:30842662). The ERGIC serves as the membrane source for WIPI2 recruitment and LC3 lipidation, leading to formation of autophagosomes that target cytosolic DNA or DNA viruses for degradation by the lysosome (PubMed:30842662). Promotes autophagy by acting as a proton channel that directs proton efflux from the Golgi to facilitate MAP1LC3B/LC3B lipidation (PubMed:37535724). The autophagy- and interferon-inducing activities can be uncoupled and autophagy induction is independent of TBK1 phosphorylation (PubMed:30568238, PubMed:30842662). Autophagy is also triggered upon infection by bacteria: following c-di-GMP-binding, which is produced by live Gram-positive bacteria, promotes reticulophagy (By similarity). May be involved in translocon function, the translocon possibly being able to influence the induction of type I interferons (PubMed:18724357). May be involved in transduction of apoptotic signals via its association with the major histocompatibility complex class II (MHC-II) (By similarity). (Microbial infection) Antiviral activity is antagonized by oncoproteins, such as papillomavirus (HPV) protein E7 and adenovirus early E1A protein (PubMed:26405230). Such oncoproteins prevent the ability to sense cytosolic DNA (PubMed:26405230).
ERIS, MITA, STING, TMEM173, Stimulator of interferon genes protein, hSTING, Endoplasmic reticulum interferon stimulator, Mediator of IRF3 activation, Transmembrane protein 173, hMITA
Rabbit Recombinant Monoclonal STING phospho Y199 antibody. Suitable for WB, Dot and reacts with Transfected cell lysate - Human, Synthetic peptide samples.
pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
This product is a recombinant monoclonal antibody, which offers several advantages including:
For more information, read more on recombinant antibodies.
The stimulator of interferon genes (STING) also known as TMEM173 or MPYS is a critical transmembrane protein with a molecular weight of approximately 42 kDa. It is primarily expressed in the endoplasmic reticulum of various cell types including immune cells where it plays a central role in sensing cytosolic DNA. STING binds to cyclic dinucleotides produced by the enzyme cGAS upon recognition of aberrant DNA in the cytosol. This binding initiates activation and translocation of STING to the Golgi apparatus facilitating further signaling events.
STING serves as a pivotal regulator in the innate immune response to viral and bacterial infections. It operates by forming a signaling complex with kinases and other effector proteins which subsequently leads to the activation of transcription factors such as IRF3 and NF-kB. These transcription factors then induce the expression of type I interferons and other cytokines important for mounting an effective antiviral response. The STING pathway therefore enhances the immune system's ability to detect and respond to pathogens.
The activity of STING is integral to the cGAS-STING pathway a significant cytosolic DNA-sensing pathway involved in innate immunity. Upon activation STING interacts with TBK1 a kinase that further phosphorylates IRF3 promoting its nuclear translocation and activation. Beyond this STING also intersects with pathways involving autophagy a cellular process necessary for clearing pathogens and damaged cellular components. Through these pathways STING critically contributes to upholding cellular homeostasis and immune defense.
The dysregulation of STING is linked to autoinflammatory diseases and certain cancers. Abnormal STING activation can lead to chronic inflammation a feature observed in diseases such as STING-associated vasculopathy with onset in infancy (SAVI). STING's role in cancer is also notable where its ability to activate immune cells can be harnessed in immunotherapy yet its chronic activation may promote tumorigenesis. In cancer STING often interacts with proteins like K-Ras influencing tumor growth and response to therapies.
We have tested this species and application combination and it works. It is covered by our product promise.
We have not tested this specific species and application combination in-house, but expect it will work. It is covered by our product promise.
This species and application combination has not been tested, but we predict it will work based on strong homology. However, this combination is not covered by our product promise.
We do not recommend this combination. It is not covered by our product promise.
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.
In Western blot, Anti-Myc-tag antibody staining at 1/10000 dilution.
In Western blot, Anti-DDDDK-tag staining at 1/5000 dilution.
All lanes: Western blot - Anti-STING (phospho Y199) antibody [EPR22728-11] (ab318181) at 1/1000 dilution
Lane 1: 293T (human embryonic kidney epithelial cell) cells transfected with a human wild-type STING1 expression vector containing a DDDDK-tag, whole cell lysate at 20 µg with NFDM/TBST
Lane 2: 293T cells transfected with a human STING1 (mutation Y199F) expression vector containing a DDDDK-tag, whole cell lysate at 20 µg with NFDM/TBST
Lane 3: 293T cells co-transfected with a human wild-type STING1 expression vector containing a DDDDK-tag and a human NTRK2 expression vector containing a Myc-tag, whole cell lysate at 20 µg with NFDM/TBST
Lane 4: 293T cells co-transfected with a human STING1 (mutation Y199F) expression vector containing a DDDDK-tag and a human NTRK2 expression vector containing a Myc-tag, whole cell lysate at 20 µg with NFDM/TBST
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/50000 dilution
Observed band size: 42 kDa, 36 kDa, 120 kDa
Exposure time: 92s

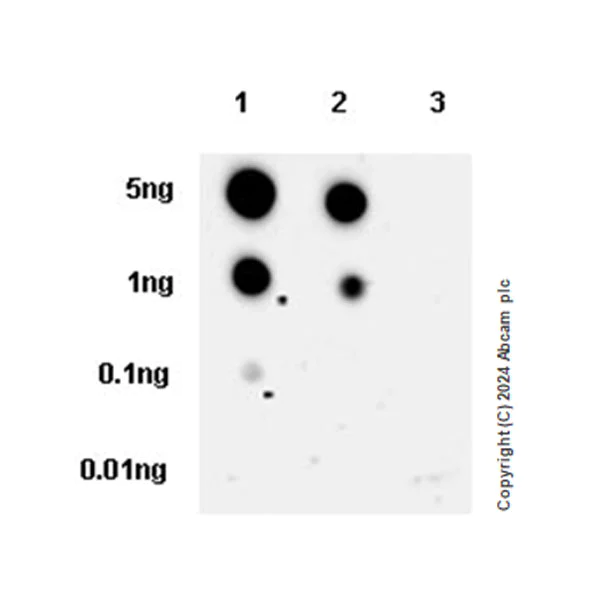

Dot blot analysis of STING (phospho Y199) using ab318181 at 1:1000 (0.586 ug/ml) followed by a Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1:100,000 dilution.
Lane 1: STING (phospho Y199) peptide a
Lane 2: STING (phospho Y199) peptide b
Lane 3: STING non-phospho peptide
Exposure time: 180 seconds.
Blocking and diluting buffer and concentration: 5% NFDM/TBST.
All lanes: Dot Blot - Anti-STING (phospho Y199) antibody [EPR22728-11] (ab318181) at 1/1000 dilution
Lane 1: STING (phospho Y199) peptide a
Lane 2: STING (phospho Y199) peptide b
Lane 3: STING non-phospho peptide
All lanes: Dot Blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Exposure time: 180s
