Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] - BSA and Azide free

9 product images

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] - BSA and Azide free (ab315976)

  This data was developed using Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975, the same antibody clone in a different buffer formulation.

  Immunohistochemical analysis of paraffin-embedded Rat cerebrum tissue labeling Streptococcus mutans Glucan-binding protein with Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 at 1/2000 (0.253 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Negative control: no staining on rat cerebrum.The section was incubated with Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 for 30 mins at room temperature.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] - BSA and Azide free (ab315976)

  This data was developed using Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975, the same antibody clone in a different buffer formulation.

  Immunohistochemical analysis of paraffin-embedded Mouse cerebrum tissue labeling Streptococcus mutans Glucan-binding protein with Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 at 1/2000 (0.253 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Negative control: no staining on mouse cerebrum.The section was incubated with Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 for 30 mins at room temperature.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] - BSA and Azide free (ab315976)

  This data was developed using Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975, the same antibody clone in a different buffer formulation.

  Immunohistochemical analysis of paraffin-embedded Human cerebrum tissue labeling Streptococcus mutans Glucan-binding protein with Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 at 1/2000 (0.253 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Negative control: no staining on human cerebrum.The section was incubated with Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 for 30 mins at room temperature.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] - BSA and Azide free (ab315976)

  This data was developed using Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975, the same antibody clone in a different buffer formulation.

  Immunohistochemical analysis of paraffin-embedded (A) HEK-293T (human embryonic kidney epithelial cell) transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag®. (B) HEK-293T transfected with empty vector containing a myc-His-tag®. tissue labeling Streptococcus mutans Glucan-binding protein with Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 at 1/2000 (0.253 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Positive staining on HEK-293T transfected with a Myc-His-tagged Streptococcus mutans Glucan-binding protein construct (image A). No staining on HEK-293T transfected with empty plasmid (image B). The section was incubated with Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 for 30 mins at room temperature.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

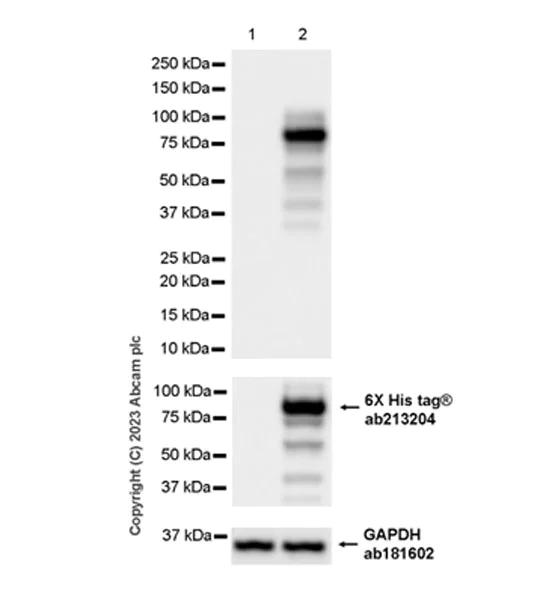

  Western blot - Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] - BSA and Azide free (ab315976)

  This data was developed using Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975, the same antibody clone in a different buffer formulation.

  In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.

  In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (Anti-6X His tag® antibody [EPR20547] - ChIP Grade ab213204) staining at 1/5000 dilution.

  All lanes: Western blot - Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] (Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975) at 1/1000 dilution

  Lane 1: 293T (human embryonic kidney epithelial cell) cells transfected with an empty vector containing a myc-His-tag®, whole cell lysate at 4 µg

  Lane 2: 293T cells transfected with a Streptococcus mutans Glucan-bindi protein expression vector containing a myc-His-tag®, whole cell lysate at 4 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Observed band size: 78 kDa, 36 kDa

  Exposure time: 8s

  In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.

  In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (Anti-6X His tag® antibody [EPR20547] - ChIP Grade ab213204) staining at 1/5000 dilution.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] - BSA and Azide free (ab315976)

  This data was developed using Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975, the same antibody clone in a different buffer formulation.

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized 293T (Human embryonic kidney epithelial cell) transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag® cells labelling Streptococcus mutans Glucan-binding protein with Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 at 1/250 (2.024 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/mL) dilution (Green).

  Confocal image showing positive staining in 293T transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag®.

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  Myc-Tag Mouse mAb (Alexa Fluor® 647) was used to counterstain at 1/100 (0.38ug/ml) dilution (Red). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/mL) dilution.

•

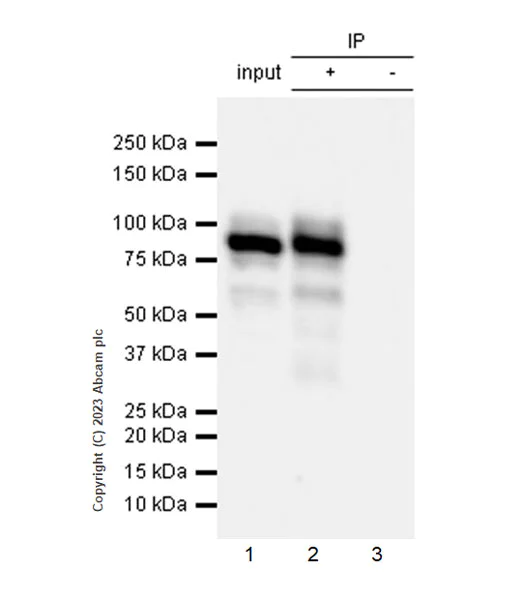

  Immunoprecipitation - Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] - BSA and Azide free (ab315976)

  This data was developed using Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975, the same antibody clone in a different buffer formulation.

  Streptococcus mutans Glucan-binding protein was immunoprecipitated from 0.35 mg 293T (human embryonic kidney epithelial cell) cells transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag®, whole cell lysate with Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.

  Lane 1: 293T (human embryonic kidney epithelial cell) cells transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag®, whole cell lysate

  Lane 2: Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 IP in 293T (human embryonic kidney epithelial cell) cells transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag®, whole cell lysate

  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 in 293T cells transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag®, whole cell lysate

  All lanes: Immunoprecipitation - Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] (Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975) at 1/30 dilution

  All lanes: 293T (human embryonic kidney epithelial cell) cells transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag®, whole cell lysate

  Secondary

  All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution

  Exposure time: 8s

  Streptococcus mutans Glucan-binding protein was immunoprecipitated from 0.35 mg 293T (human embryonic kidney epithelial cell) cells transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag®, whole cell lysate with Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.

  Lane 1: 293T (human embryonic kidney epithelial cell) cells transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag®, whole cell lysate

  Lane 2: Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 IP in 293T (human embryonic kidney epithelial cell) cells transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag®, whole cell lysate

  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 in 293T cells transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag®, whole cell lysate

•

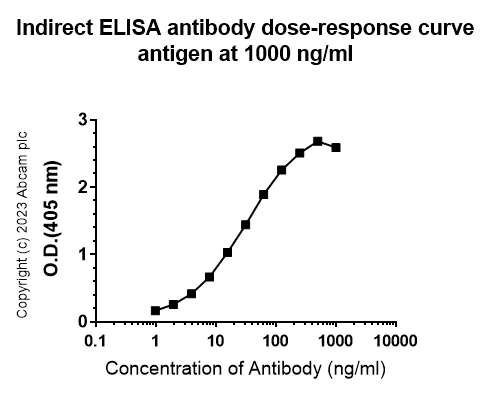

  Indirect ELISA - Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] - BSA and Azide free (ab315976)

  This data was developed using Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975, the same antibody clone in a different buffer formulation.

  Indirect ELISA analysis of Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 at 1000-0 ng/ml. The Secondary antibody used was Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Rabbit IgG (H+L) at 1:2500 dilution.

  Antigen: Streptococcus mutans Glucan-binding protein.

  Antigen concentration: 1000 ng/ml

•

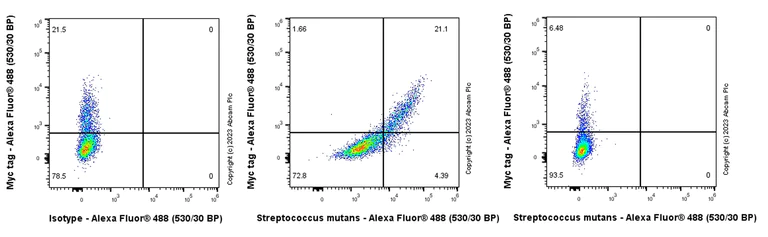

  Flow Cytometry (Intracellular) - Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] - BSA and Azide free (ab315976)

  This data was developed using Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975, the same antibody clone in a different buffer formulation.

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Isotype (Left) / 293T transfected with a Streptococcus mutans Glucan-binding protein expression vector containing a myc-His-tag® (Middle) / 293T transfected with an empty expression vector (Right) cells labelling Streptococcus mutans Glucan-binding protein with Anti-Streptococcus mutans Glucan-binding protein antibody [EPR28235-85] ab315975 at 1/500 dilution (0.1 ug)/Middle and Right compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control.

  Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.

  Cells are co-stained with Myc tag conjugated to Alexa Fluor®488.
