Anti-Sts1 antibody [EPR16980] - BSA and Azide free

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Sts1 antibody [EPR16980] - BSA and Azide free (AB251234)

This data was developed using ab197027, the same antibody clone in a different buffer formulation.

Intracellular Flow Cytometry analysis of Jurkat (human acute T cell leukemia) labelling Sts1 with purified ab197027 at 1/50 (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. Alexa Fluor^® 488 goat anti-rabbit IgG (1/2000) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG. Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.

• ICC/IF

Supplier Data

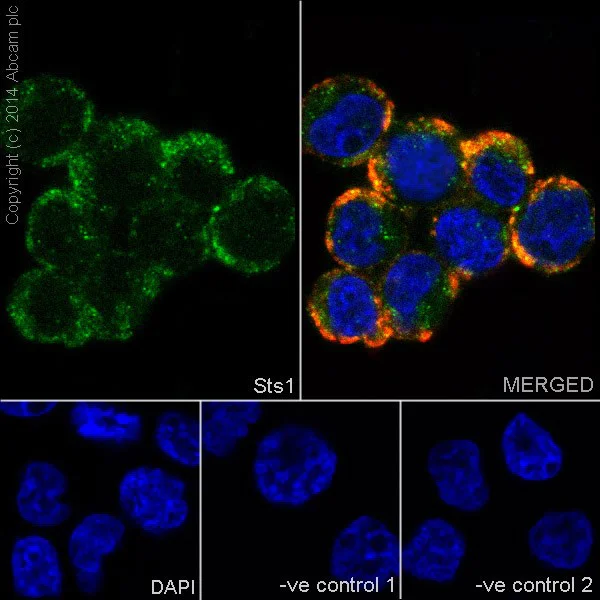

Immunocytochemistry/ Immunofluorescence - Anti-Sts1 antibody [EPR16980] - BSA and Azide free (AB251234)

This data was developed using ab197027, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized Jurkat (Human T cell leukemia cells from peripheral blood) cells labeling Sts1 with ab197027 at 1/280 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/500 dilution (green). Cytoplasm and weakly nuclear staining on Jurkat cell line is observed. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).
The negative controls are as follows;
-ve control 1 : ab197027 at 1/280 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/500 dilution.

• WB

Supplier Data

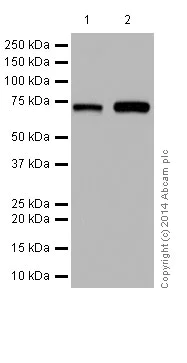

Western blot - Anti-Sts1 antibody [EPR16980] - BSA and Azide free (AB251234)

This data was developed using ab197027, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-Sts1 antibody [EPR16980] (<a href='/en-us/products/primary-antibodies/sts1-antibody-epr16980-ab197027'>ab197027</a>) at 1/2000 dilution

Lane 1:

HepG2 (Human liver hepatocellular carcinoma) whole cell lysate at 20 µg

Lane 2:

Jurkat (Human T cell leukemia cells from peripheral blood) whole cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 72 kDa

Observed band size: 73 kDa
