Anti-Sumo 1 antibody [Y299] - BSA and Azide free

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

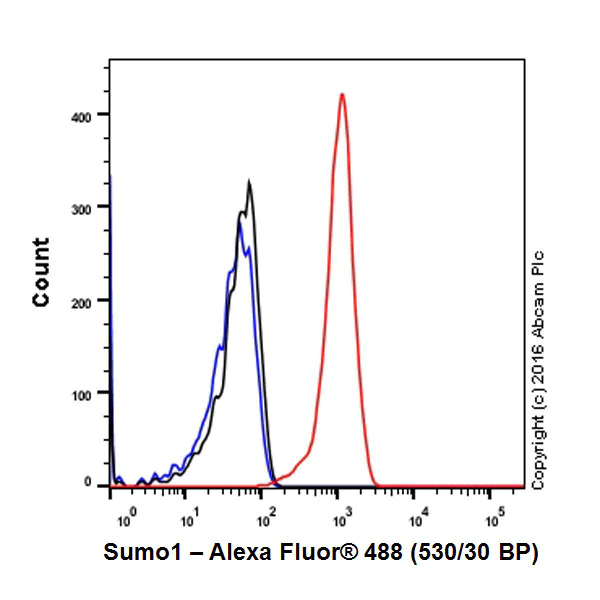

ab32058 staining Sumo 1 in HeLa (Human epithelial cell line from cervix adenocarcinoma) cells by intracellular flow cytometry. Cells were fixed with 4% paraformaldehyde and the sample was incubated with the primary antibody at a dilution of 1/20. A goat anti rabbit IgG (Alexa Fluor^® 488) at a dilution of 1/2000 was used as the secondary antibody.

Isoytype control : Rabbit monoclonal IgG (Black)

Unlabelled control : Cell without incubation with primary antibody and secondary antibody (Blue)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32058).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

ab32058 staining Sumo 1 in human bladder carcinoma tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with paraformaldehyde and antigen retrieval was by heat mediation in a EDTA buffer. Samples were incubated with primary antibody at a dilution of 1/250. A goat anti-rabbit IgG H&L (HRP) ab97051 was used as the secondary antibody at a dilution of 1/500.

Negative control 1 : PBS in place of primary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32058).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

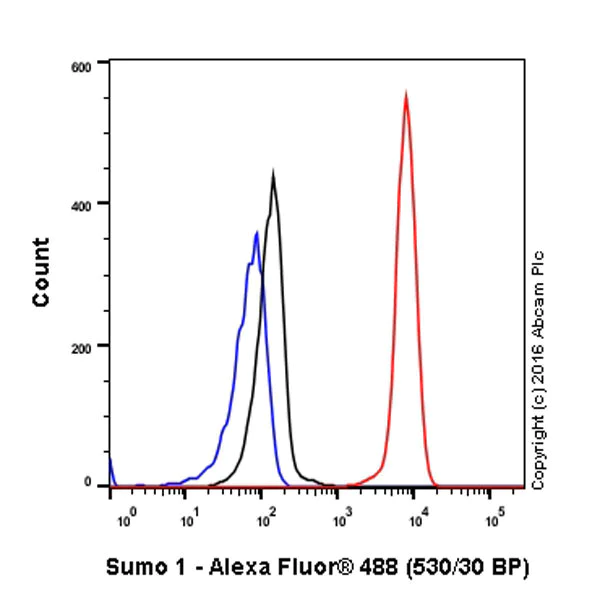

Intracellular Flow Cytometry analysis of HeLa (human cervix adenocarcinoma) cells labelling Sumo 1 with ab32058 at 1/20 (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. An Alexa Fluor^®488-conjugated goat anti-rabbit IgG (1/2000) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG. Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32058).

• ICC/IF

PubMed

Immunocytochemistry/ Immunofluorescence - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

Immunofluorescence analysis of ICP0-null mutant HSV-1 infected HepaRG cells, staining Sumo1 (green) with ab32058. An AlexaFluor®-conjugated goat anti-rabbit IgG was used as the seconday antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32058).

Image from Cuchet-Lourenço D et al. PLoS Pathog. 2011 Jul;7(7):e1002123. Epub 2011 Jul 14. Fig 9.; doi:10.1371/journal.ppat.1002123; July 14 2011 PLoS Pathog 7(7): e1002123.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

IHC of paraffin-embedded human lung carcinoma using anti-SUMO 1 (ab32058) diluted 1 : 250This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32058).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

Immunofluorescent staining of HeLa (Human epithelial cell line from cervix adenocarcinoma) cells using anti-SUMO 1 (ab32058) diluted 1/250.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32058).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

ab32058 staining Sumo 1 in HeLa (Human epithelial cell line from cervix adenocarcinoma) cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with 4% Paraformaldehyde and permeabilized with 0.1% Triton X-100. Samples were incubated with primary antibody at a dilution of 1/500. A goat anti rabbit IgG (Alexa Fluor® 488) (ab150077) was used as the secondary antibody at a dilution of 1/1000. ab195889 was used as a counterstain for primary antibody ab133645 at 1/200. DAPI was used as a nuclear counterstain and PBS as a negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32058).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

ab32058 staining Sumo 1 in human endometrium tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with paraformaldehyde and antigen retrieval was by heat mediation in a EDTA buffer. Samples were incubated with primary antibody at a dilution of 1/250. A goat anti-rabbit IgG H&L (HRP) ab97051 was used as the secondary antibody at a dilution of 1/500.

Negative control 1 : PBS in place of primary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32058).

• ChIP

Unknown

ChIP - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

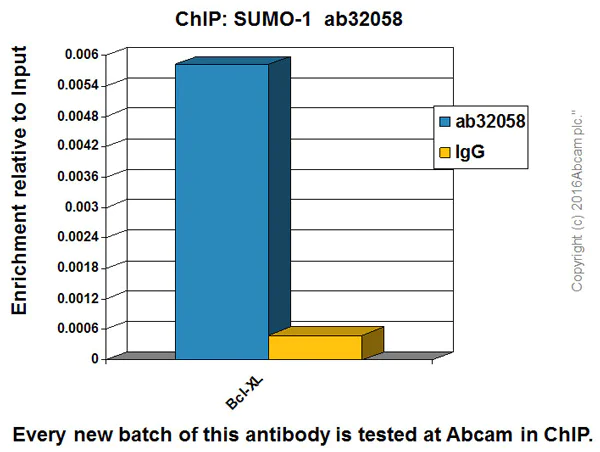

Chromatin was prepared from SK-OV-3 (Human ovarian cancer cell line) cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with 25μg of chromatin, 5μg of ab32058 (blue), and 20μl of Anti rabbit IgG sepharose beads. 5μg of rabbit normal IgG was added to the beads control (yellow). The immunoprecipitated DNA was quantified by real time PCR (Sybr green approach).

ChIP was performed according to the literature (PMID : 23770046).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32058).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

ab32058 staining Sumo 1 in rat stomach tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with paraformaldehyde and antigen retrieval was by heat mediation in a EDTA buffer. Samples were incubated with primary antibody at a dilution of 1/250. A goat anti-rabbit IgG H&L (HRP) ab97051 was used as the secondary antibody at a dilution of 1/500.

Negative control 1 : PBS in place of primary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32058).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

Clone Y299 (ab219724) has been successfully conjugated by Abcam. This image was generated using Anti-Sumo 1 antibody [Y299] (Alexa Fluor® 647). Please refer to ab196533 for protocol details.

ab196533 staining Sumo 1 in NIH3T3 cells. The cells were fixed with 4% formaldehyde (10 min), permeabilised in 0.1% Triton X-100 for 5 minutes and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated with ab196533 at 1/50 dilution (shown in red) and ab195887, Mouse monoclonal [DM1A] to alpha Tubulin (Alexa Fluor^® 594, shown in green) at 1/167 dilution overnight at +4°C. Nuclear DNA was labelled in blue with DAPI.

This product gave a positive signal in 100% methanol (5 min) fixed NIH3T3 cells under the same testing conditions.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

Clone Y299 (ab219724) has been successfully conjugated by Abcam. This image was generated using Anti-Sumo 1 antibody [Y299] (Alexa Fluor® 488). Please refer to ab196310 for protocol details.

ab196310 staining Sumo 1 in NIH3T3 cells. The cells were fixed with 4% formaldehyde (10 min), permeabilised in 0.1% Triton X-100 for 5 minutes and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated with ab196310 at 1/50 dilution (shown in green) and ab195889, Mouse monoclonal [DM1A] to alpha Tubulin (Alexa Fluor^® 594, shown in red) at 1/167 dilution overnight at +4°C. Nuclear DNA was labelled in blue with DAPI.

This product gave a positive signal in 100% methanol (5 min) fixed NIH3T3 cells under the same testing conditions.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

ab32058 staining Sumo 1 in mouse kidney tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with paraformaldehyde and antigen retrieval was by heat mediation in a EDTA buffer. Samples were incubated with primary antibody at a dilution of 1/250. A goat anti-rabbit IgG H&L (HRP) ab97051 was used as the secondary antibody at a dilution of 1/500.

Negative control 1 : PBS in place of primary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32058).

• IP

Unknown

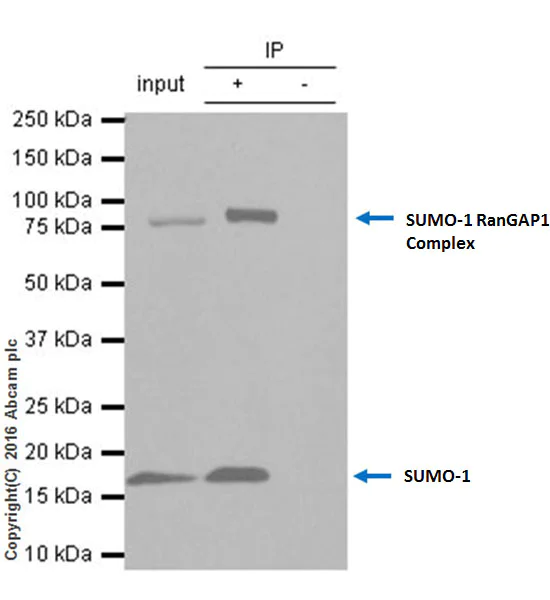

Immunoprecipitation - Anti-Sumo 1 antibody [Y299] - BSA and Azide free (AB219724)

ab32058 immunoprecipitating Sumo 1. 10μg of NIH/3T3 (Mouse embryonic fibroblast) cell lysate was incubated with primary antibody at a dilution of 1/20 and VeriBlot for IP Detection Reagent (HRP) (ab131366) at a dilution of 1/1000.

Lane 1 : NIH/3T3 whole cell lysate 10ug
Lane 2 : ab32058 IP in NIH/3T3 whole cell lysate
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab32058 in NIH/3T3 (Mouse embryonic fibroblast) whole cell lysate

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32058).

All lanes:

Immunoprecipitation - Anti-Sumo 1 antibody [Y299] - ChIP Grade (<a href='/en-us/products/primary-antibodies/sumo-1-antibody-y299-chip-grade-ab32058'>ab32058</a>)

Predicted band size: 11 kDa
