Anti-SUN2 antibody [EPR6557] - BSA and Azide free

8 product images

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SUN2 antibody [EPR6557] - BSA and Azide free (ab232365)

  Anti-SUN2 antibody [EPR6557] ab124916 staining SUN2 in mouse testis tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed and paraffin-embedded, antigen retrieval was by heat mediation in Tris/EDTA buffer pH9. Samples were incubated with primary antibody (1/500). An HRP-conjugated goat anti-rabbit IgG, Goat Anti-Rabbit IgG H&L (HRP) ab97051 (1/500) was used as the secondary antibody. Tissue counterstained with Hematoxylin. PBS was used in the negative control rather than the Primary antibody.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SUN2 antibody [EPR6557] ab124916).

•

  Flow Cytometry (Intracellular) - Anti-SUN2 antibody [EPR6557] - BSA and Azide free (ab232365)

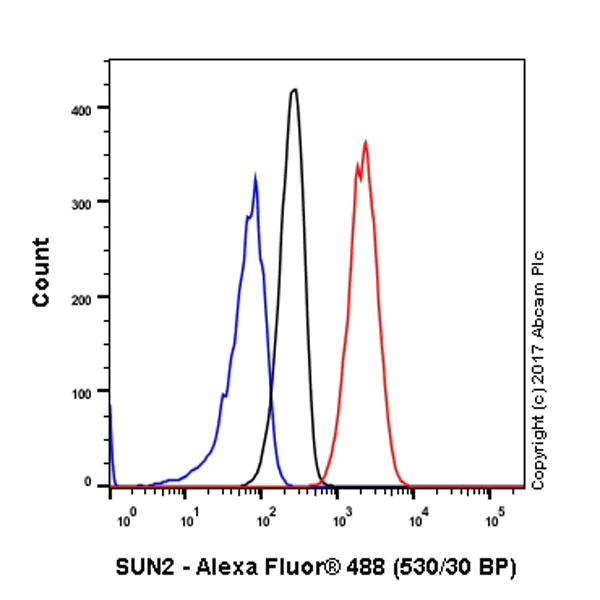

  Intracellular Flow Cytometry analysis of HeLa (human cervix adenocarcinoma) cells labeling SUN2 (red) with Anti-SUN2 antibody [EPR6557] ab124916 at a 1/30 dilution. Cells were fixed with 80% methanol and permeabilized with 0.1% Tween-20. A goat anti-rabbit IgG (Alexa Fluor^® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at a 1/2000 dilution. Black - Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730). Blue (unlabeled control) - Cells without incubation with the primary and secondary antibodies.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SUN2 antibody [EPR6557] ab124916).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SUN2 antibody [EPR6557] - BSA and Azide free (ab232365)

  Anti-SUN2 antibody [EPR6557] ab124916 staining SUN2 in Human colon tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed and paraffin-embedded, antigen retrieval was by heat mediation in Tris/EDTA buffer pH9. Samples were incubated with primary antibody (1/500). An HRP-conjugated Goat anti-rabbit IgG, Goat Anti-Rabbit IgG H&L (HRP) ab97051 (1/500), was used as the secondary antibody. Tissue counterstained with Hematoxylin. PBS was used in the negative control rather than the Primary antibody.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SUN2 antibody [EPR6557] ab124916).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SUN2 antibody [EPR6557] - BSA and Azide free (ab232365)

  Anti-SUN2 antibody [EPR6557] ab124916, unpurified, at a 1/250 dilution, staining SUN2 in paraffin embedded Human ovarian tissue by Immunohistochemistry.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SUN2 antibody [EPR6557] ab124916).

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SUN2 antibody [EPR6557] - BSA and Azide free (ab232365)

  Anti-SUN2 antibody [EPR6557] ab124916, unpurified, at a 1/250 dilution, staining SUN2 in paraffin embedded Human lung tissue by Immunohistochemistry.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SUN2 antibody [EPR6557] ab124916).

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  OI-RD Scanning - Anti-SUN2 antibody [EPR6557] - BSA and Azide free (ab232365)

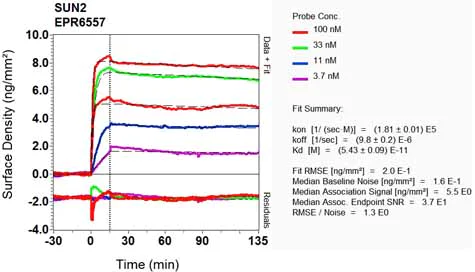

  We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody.
  Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.

•

  Immunocytochemistry/ Immunofluorescence - Anti-SUN2 antibody [EPR6557] - BSA and Azide free (ab232365)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SUN2 antibody [EPR6557] ab124916).

  Immunofluorescence staining of SUN2 using Anti-SUN2 antibody [EPR6557] ab124916 in HeLa cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% Triton-X-100 (in PBS) for 5 mins and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with Anti-SUN2 antibody [EPR6557] ab124916 at 1.0 μg/ml and Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291, Mouse monoclonal [DM1A] to alpha Tubulin, at 1/1000 dilution. Cells were then incubated with Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green) and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed at 1/1000 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).
  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunocytochemistry/ Immunofluorescence - Anti-SUN2 antibody [EPR6557] - BSA and Azide free (ab232365)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-SUN2 antibody [EPR6557] ab124916).

  Immunofluorescence staining of SUN2 using Anti-SUN2 antibody [EPR6557] ab124916 in HeLa cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton-X-100 (in PBS) for 5 mins and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with Anti-SUN2 antibody [EPR6557] ab124916 at 0.2 μg/ml and Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291, Mouse monoclonal [DM1A] to alpha Tubulin, at 1/1000 dilution. Cells were then incubated with Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution (shown in green) and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed at 1/1000 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).
  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.
