AB208938

Anti-Survivin antibody [EPR20448]

Name: Anti-Survivin antibody [EPR20448] (ab208938) | Abcam
Brand: Abcam Limited
SKU: AB208938
Rating: 5 (1 reviews)

RabMAb
Recombinant
20ul selling size
What is this?

(1 Review)

(2 Publications)

Rabbit Recombinant Monoclonal BIRC5 antibody. Suitable for IP, WB, ICC/IF, Flow Cyt (Intra) and reacts with Human samples. Cited in 2 publications.

View Alternative Names

API4, IAP4, BIRC5, Baculoviral IAP repeat-containing protein 5, Apoptosis inhibitor 4, Apoptosis inhibitor survivin

6 Images

Immunocytochemistry/ Immunofluorescence - Anti-Survivin antibody [EPR20448] (AB208938)

ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Survivin antibody [EPR20448] (AB208938)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (human epithelial cell line from cervix adenocarcinoma) cells labeling Survivin with ab208938 at 1/5000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing kinetochores and midbody (arrow) staining in the HeLa cell line. The nuclear counter stain is DAPI (blue).

Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) (ab195889) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) at 1/500 dilution.

Flow Cytometry (Intracellular) - Anti-Survivin antibody [EPR20448] (AB208938)

Flow Cyt (Intra)

Unknown

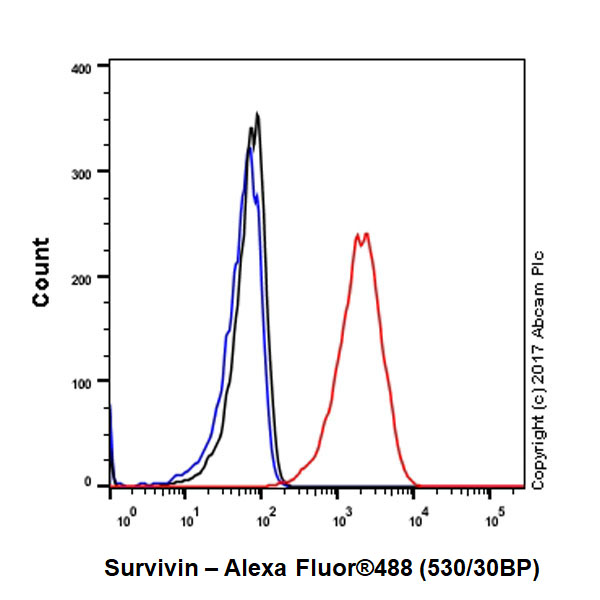

Flow Cytometry (Intracellular) - Anti-Survivin antibody [EPR20448] (AB208938)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized HeLa (human epithelial cell line from cervix adenocarcinoma) cell line labeling Survivin with ab208938 at 1/500 dilution (red) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) at 1/2000 dilution was used as the secondary antibody.

ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Survivin antibody [EPR20448] (AB208938)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized A549 (human lung carcinoma cell line) cells labeling Survivin with ab208938 at 1/5000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing midbody (arrow) staining in the A549 cell line. The nuclear counter stain is DAPI (blue).

Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) (ab195889) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) at 1/500 dilution.

Flow Cyt (Intra)

Unknown

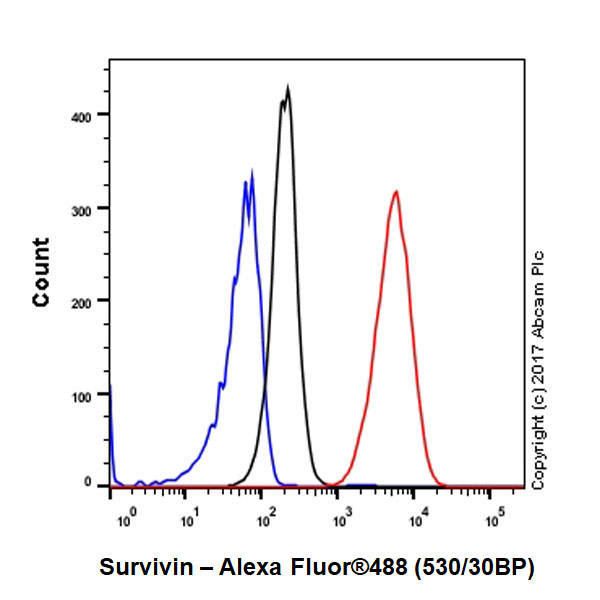

Flow Cytometry (Intracellular) - Anti-Survivin antibody [EPR20448] (AB208938)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized A549 (human lung carcinoma cell line) cell line labeling Survivin with ab208938 at 1/500 dilution (red) compared with a Rabbit IgG, monoclonal [EPR25A] - Isotype Control (ab172730) (black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (blue). Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) at 1/2000 dilution was used as the secondary antibody.

Unknown

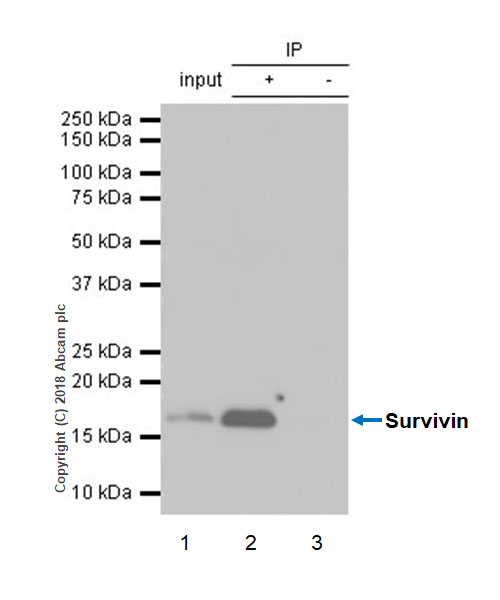

Immunoprecipitation - Anti-Survivin antibody [EPR20448] (AB208938)

Survivin was immunoprecipitated from 0.35mg of A549 (human lung carcinoma cell line) whole cell lysate with ab208938 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab208938 at 1/1,000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10,000 dilution.

Lane 1 : A549 whole cell lysate 10 μg (Input).

Lane 2 : ab208938 IP in A549 whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab208938 in A549 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 3 minutes.

All lanes:

Immunoprecipitation - Anti-Survivin antibody [EPR20448] (ab208938)

Predicted band size: 16 kDa

Observed band size: 16 kDa

false

Supplier Data

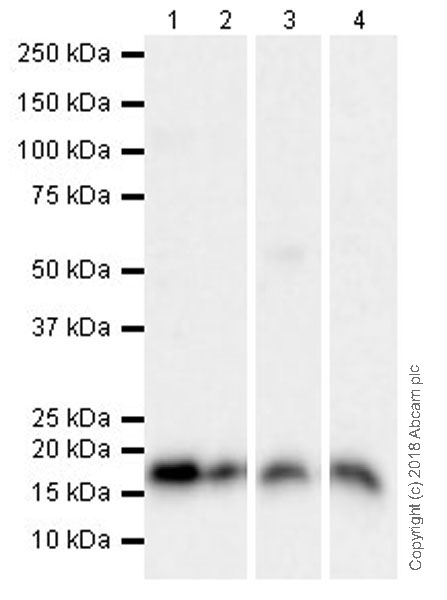

Western blot - Anti-Survivin antibody [EPR20448] (AB208938)

Blocking/Dilution : 5% NFDM/TBST

Exposure times : Lanes 1-2 : 70 seconds; Lane 3 : 48 seconds; Lane 4 : 3 minutes

All lanes:

Western blot - Anti-Survivin antibody [EPR20448] (ab208938) at 1/1000 dilution

Lane 1:

Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate at 20 µg

Lane 2:

HeLa (human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

Lane 3:

A549 (human lung carcinoma cell line) whole cell lysate at 20 µg

Lane 4:

Human ovary cancer whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Predicted band size: 16 kDa

Observed band size: 16 kDa

false

Carrier free

Anti-Survivin antibody [EPR20448] - BSA and Azide free
665 Alexa Fluor® 647

Alexa Fluor® 647 Anti-Survivin antibody [EPR20448]
519 Alexa Fluor® 488

Alexa Fluor® 488 Anti-Survivin antibody [EPR20448]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR20448

Isotype

IgG

Carrier free

Reacts with

Human

Applications

WB, ICC/IF, Flow Cyt (Intra), IP

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "1/30", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/5000", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/500", "FlowCytIntra-species-notes": "" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Survivin also known as 'BIRC5 protein' is a small protein with a molecular weight of approximately 16.5 kDa. It belongs to the Inhibitor of Apoptosis (IAP) family carrying out its functions through inhibiting caspases and averting apoptosis. Survivin is expressed highly in embryonic tissues and various cancers but its expression in adult differentiated tissues is low. This selective expression pattern makes Survivin an attractive target for cancer research and therapeutic development.

Biological function summary

Survivin aids cell division and regulates apoptosis. It plays a major role as a chromosomal passenger protein functioning in concert with other members of the chromosomal passenger complex including Aurora B kinase INCENP and Borealin. During mitosis Survivin helps ensure proper chromosome alignment segregation and cytokinesis. Its ability to inhibit apoptosis allows it to enhance cell survival contributing to tumor progression when deregulated.

Pathways

Survivin is part of the cell cycle regulation and apoptosis pathways. It plays an integral role in the mitotic spindle checkpoint working closely with Aurora B kinase to regulate mitosis. Additionally the protein interfaces with the extrinsic apoptosis pathway interacting with members like XIAP to prevent caspase activation and cell death. These interactions reveal Survivin's dual function in promoting mitosis and regulating apoptosis which is essential for maintaining cellular homeostasis.

Survivin is highly connected to cancer and neurodegenerative disorders. Its overexpression links with cancers such as colorectal cancer where it promotes malignancy through inhibiting apoptosis and ensuring unchecked cell division. In neurodegenerative disorders abnormal regulation of Survivin could lead to insufficient cellular survival contributing to diseases like Alzheimer's. The relationship between Survivin and XIAP in cancer highlights its potential as a therapeutic target aiming to induce apoptosis in cancer cells by overcoming Survivin-mediated resistance.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Multitasking protein that has dual roles in promoting cell proliferation and preventing apoptosis (PubMed : 20627126, PubMed : 21364656, PubMed : 25778398, PubMed : 28218735, PubMed : 9859993). Component of a chromosome passage protein complex (CPC) which is essential for chromosome alignment and segregation during mitosis and cytokinesis (PubMed : 16322459). Acts as an important regulator of the localization of this complex; directs CPC movement to different locations from the inner centromere during prometaphase to midbody during cytokinesis and participates in the organization of the center spindle by associating with polymerized microtubules (PubMed : 20826784). Involved in the recruitment of CPC to centromeres during early mitosis via association with histone H3 phosphorylated at 'Thr-3' (H3pT3) during mitosis (PubMed : 20929775). The complex with RAN plays a role in mitotic spindle formation by serving as a physical scaffold to help deliver the RAN effector molecule TPX2 to microtubules (PubMed : 18591255). May counteract a default induction of apoptosis in G2/M phase (PubMed : 9859993). The acetylated form represses STAT3 transactivation of target gene promoters (PubMed : 20826784). May play a role in neoplasia (PubMed : 10626797). Inhibitor of CASP3 and CASP7 (PubMed : 21536684). Essential for the maintenance of mitochondrial integrity and function (PubMed : 25778398). Isoform 2 and isoform 3 do not appear to play vital roles in mitosis (PubMed : 12773388, PubMed : 16291752). Isoform 3 shows a marked reduction in its anti-apoptotic effects when compared with the displayed wild-type isoform (PubMed : 10626797).

See full target information BIRC5

style

left-column

Publications (2)

Recent publications for all applications. Explore the full list and refine your search

International journal of molecular medicine 47: PubMed33846784

2021

Knockdown of lncRNA MIR4435‑2HG and ST8SIA1 expression inhibits the proliferation, invasion and migration of prostate cancer cells and by blocking the activation of the FAK/AKT/β‑catenin signaling pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Pengyi Xing,Ye Wang,Li Zhang,Chao Ma,Jianping Lu

International journal of oncology 54:905-915 PubMed30483763

2018

Fe3O4-solamargine induces apoptosis and inhibits metastasis of pancreatic cancer cells.

Applications

Unspecified application

Species

Unspecified reactive species

Xiaodong Xie,Xiuming Zhang,Jun Chen,Xun Tang,Meiqin Wang,Lei Zhang,Zhen Guo,Wenrong Shen

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
