Anti-Survivin antibody [RM1086] (ab316022)

Rabbit Recombinant Multiclonal BIRC5 antibody. Suitable for WB, ICC/IF, IP, IHC-P and reacts with Human, Mouse, Rat samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-Survivin antibody [RM1086] (AB316022), expandable thumbnail

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Multiclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	WB	ICC/IF	IP	IHC-P	Flow Cyt (Intra)
Human	Tested	Tested	Tested	Not recommended	Not recommended
Mouse	Tested	Expected	Tested	Tested	Not recommended
Rat	Tested	Expected	Tested	Tested	Not recommended

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/1000	Notes -
Species Mouse	Dilution info 1/1000	Notes -
Species Rat	Dilution info 1/1000	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/50	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/30	Notes -
Species Mouse	Dilution info 1/30	Notes -
Species Rat	Dilution info 1/30	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/100	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/100	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Mouse, Rat	Dilution info -	Notes -

Target data

See full target information BIRC5

Function

Multitasking protein that has dual roles in promoting cell proliferation and preventing apoptosis (PubMed:20627126, PubMed:21364656, PubMed:25778398, PubMed:28218735, PubMed:9859993). Component of a chromosome passage protein complex (CPC) which is essential for chromosome alignment and segregation during mitosis and cytokinesis (PubMed:16322459). Acts as an important regulator of the localization of this complex; directs CPC movement to different locations from the inner centromere during prometaphase to midbody during cytokinesis and participates in the organization of the center spindle by associating with polymerized microtubules (PubMed:20826784). Involved in the recruitment of CPC to centromeres during early mitosis via association with histone H3 phosphorylated at 'Thr-3' (H3pT3) during mitosis (PubMed:20929775). The complex with RAN plays a role in mitotic spindle formation by serving as a physical scaffold to help deliver the RAN effector molecule TPX2 to microtubules (PubMed:18591255). May counteract a default induction of apoptosis in G2/M phase (PubMed:9859993). The acetylated form represses STAT3 transactivation of target gene promoters (PubMed:20826784). May play a role in neoplasia (PubMed:10626797). Inhibitor of CASP3 and CASP7 (PubMed:21536684). Essential for the maintenance of mitochondrial integrity and function (PubMed:25778398). Isoform 2 and isoform 3 do not appear to play vital roles in mitosis (PubMed:12773388, PubMed:16291752). Isoform 3 shows a marked reduction in its anti-apoptotic effects when compared with the displayed wild-type isoform (PubMed:10626797).

Alternative names

API4, IAP4, BIRC5, Baculoviral IAP repeat-containing protein 5, Apoptosis inhibitor 4, Apoptosis inhibitor survivin

Recommended products

Rabbit Recombinant Multiclonal BIRC5 antibody. Suitable for WB, ICC/IF, IP, IHC-P and reacts with Human, Mouse, Rat samples.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Multiclonal
Immunogens: The exact immunogen used to generate this antibody is proprietary information.
Clone number: RM1086
Purification technique: Affinity purification Protein A
Specificity: Not suitable for human IHC-P.
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

What are recombinant multiclonals?
Recombinant multiclonals are a mixture of recombinant antibodies co-expressed from a library of heavy and light chains. They offer several advantages including:

- The sensitivity of polyclonal antibodies by recognising multiple epitopes
- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

View our range of recombinant multiclonal antibodies.

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

Survivin also known as 'BIRC5 protein' is a small protein with a molecular weight of approximately 16.5 kDa. It belongs to the Inhibitor of Apoptosis (IAP) family carrying out its functions through inhibiting caspases and averting apoptosis. Survivin is expressed highly in embryonic tissues and various cancers but its expression in adult differentiated tissues is low. This selective expression pattern makes Survivin an attractive target for cancer research and therapeutic development.

Biological function summary

Survivin aids cell division and regulates apoptosis. It plays a major role as a chromosomal passenger protein functioning in concert with other members of the chromosomal passenger complex including Aurora B kinase INCENP and Borealin. During mitosis Survivin helps ensure proper chromosome alignment segregation and cytokinesis. Its ability to inhibit apoptosis allows it to enhance cell survival contributing to tumor progression when deregulated.

Pathways

Survivin is part of the cell cycle regulation and apoptosis pathways. It plays an integral role in the mitotic spindle checkpoint working closely with Aurora B kinase to regulate mitosis. Additionally the protein interfaces with the extrinsic apoptosis pathway interacting with members like XIAP to prevent caspase activation and cell death. These interactions reveal Survivin's dual function in promoting mitosis and regulating apoptosis which is essential for maintaining cellular homeostasis.

Associated diseases and disorders

Survivin is highly connected to cancer and neurodegenerative disorders. Its overexpression links with cancers such as colorectal cancer where it promotes malignancy through inhibiting apoptosis and ensuring unchecked cell division. In neurodegenerative disorders abnormal regulation of Survivin could lead to insufficient cellular survival contributing to diseases like Alzheimer's. The relationship between Survivin and XIAP in cancer highlights its potential as a therapeutic target aiming to induce apoptosis in cancer cells by overcoming Survivin-mediated resistance.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

11 product images

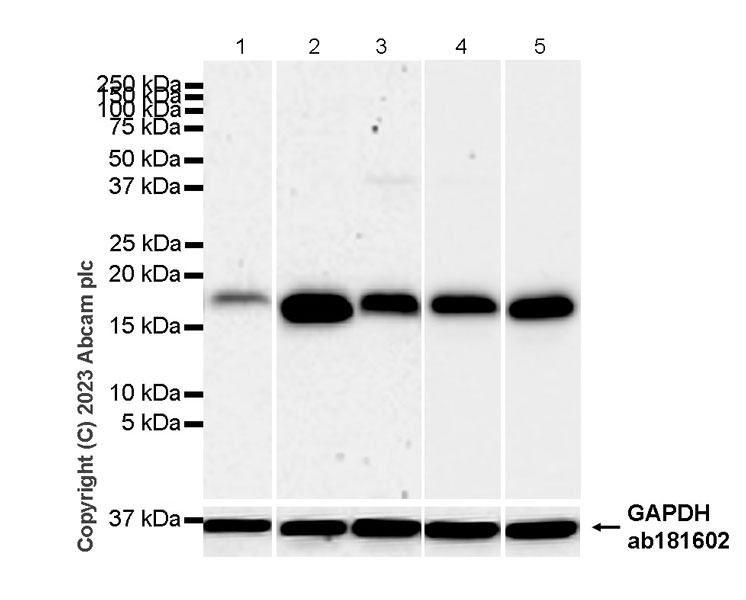

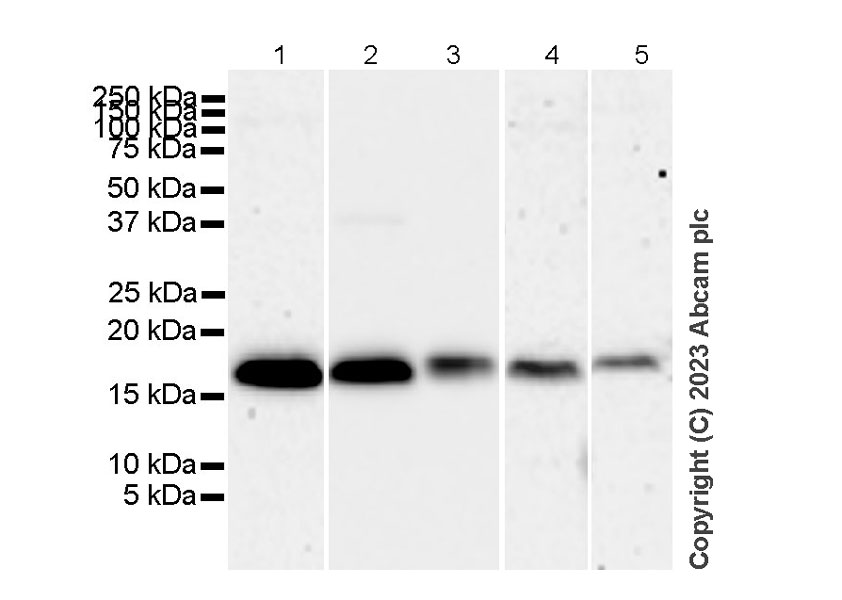

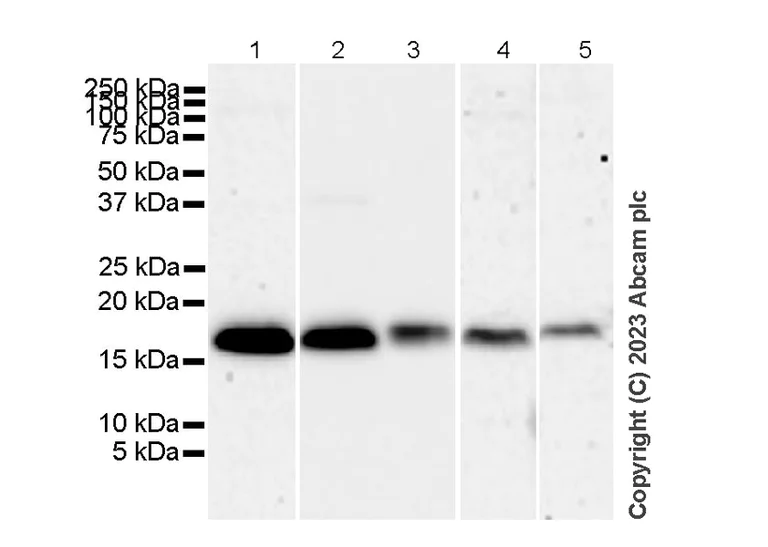

Western blot - Anti-Survivin antibody [RM1086] (ab316022)
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.
Exposure time: Lanes 1-3: 180 seconds?Lanes 4-5: 37 seconds
All lanes: Western blot - Anti-Survivin antibody [RM1086] (ab316022) at 1/1000 dilution
Lane 1: HepG2 (human hepatocellar carcinoma epithelial cell) whole cell lysate at 20 µg with 5% NFDM/TBST
Lane 2: Neuro-2a (mouse neuroblastoma neuroblast) whole cell lysate at 20 µg with 5% NFDM/TBST
Lane 3: C6 (rat glial tumor glial cell) whole cell lysate at 20 µg with 5% NFDM/TBST
Lane 4: RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg with 5% NFDM/TBST
Lane 5: F9 (mouse embryonal carcinoma epithelial cell) whole cell lysate at 20 µg with 5% NFDM/TBST
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Observed band size: 16 kDa, 36 kDa

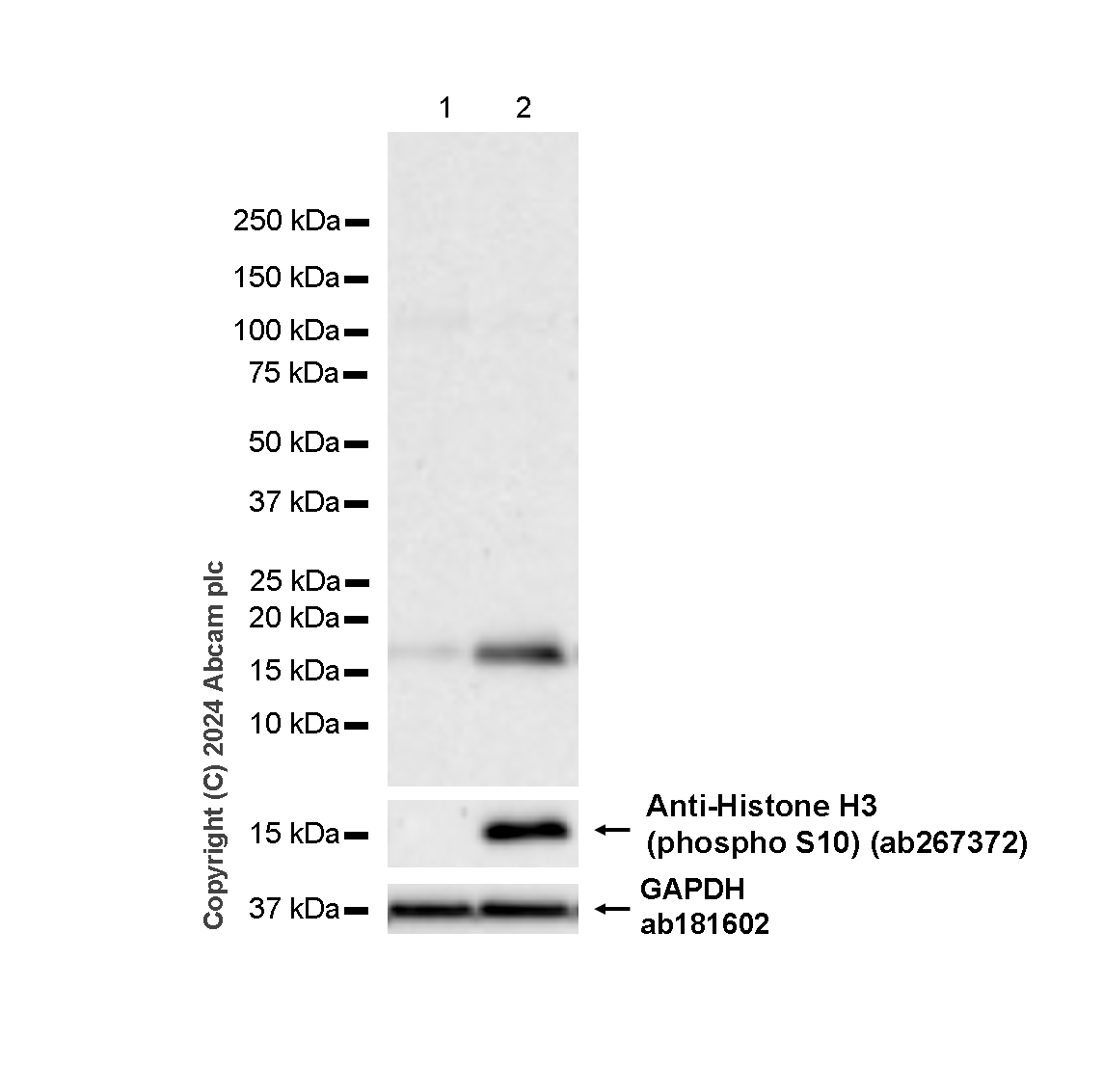

Western blot - Anti-Survivin antibody [RM1086] (ab316022)
The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID: 9859993).
Anti-Histone H3 (phospho S10) antibody [EPR24060-36] (Anti-Histone H3 (phospho S10) antibody [EPR24060-36] ab267372) at 1/1000 dilution was used as a control for nocodazole induced cell cycle arrest.
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.
All lanes: Western blot - Anti-Survivin antibody [RM1086] (ab316022) at 1/1000 dilution
Lane 1: Untreated HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg with 5% NFDM/TBST
Lane 2: HeLa treated with 400ng/ml nocodazole for 20 hours whole cell lysate at 20 µg with 5% NFDM/TBST
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Observed band size: 16 kDa, 36 kDa, 15 kDa
Exposure time: 180s
Western blot - Anti-Survivin antibody [RM1086] (ab316022)
Exposure time: Lanes 1 and 4: 180 seconds; Lanes 2-3 and 5: 37 seconds
All lanes: Western blot - Anti-Survivin antibody [RM1086] (ab316022) at 1/1000 dilution
Lane 1: Mouse testis tissue lysate at 20 µg with 5% NFDM/TBST
Lane 2: Mouse spleen tissue lysate at 20 µg with 5% NFDM/TBST
Lane 3: Rat testis tissue lysate at 20 µg with 5% NFDM/TBST
Lane 4: Rat spleen tissue lysate at 20 µg with 5% NFDM/TBST
Lane 5: Human testis lysate at 20 µg with 5% NFDM/TBST
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Observed band size: 16 kDa
Immunocytochemistry/ Immunofluorescence - Anti-Survivin antibody [RM1086] (ab316022)
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling Survivin with ab316022 at 1/50 (10.5 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/ml) dilution (Green).
Confocal image showing mainly nuclear staining in HeLa cells and showing kinetochores and midbody staining in Hela cells at M phase (shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue).

Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).
Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 (2.5ug/ml) dilution (Magenta). The Nuclear counterstain was DAPI (Blue).
Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/ml) dilution.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Survivin antibody [RM1086] (ab316022)
Immunohistochemical analysis of paraffin-embedded Rat testis tissue labeling Survivin with ab316022 at 1/100 (5.25 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Nuclear staining on rat testis.

The section was incubated with ab316022 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Survivin antibody [RM1086] (ab316022)
Immunohistochemical analysis of paraffin-embedded Rat spleen tissue labeling Survivin with ab316022 at 1/100 (5.25 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Nuclear staining on rat spleen.

The section was incubated with ab316022 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Survivin antibody [RM1086] (ab316022)
Immunohistochemical analysis of paraffin-embedded Mouse testis tissue labeling Survivin with ab316022 at 1/100 (5.25 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Nuclear staining on mouse testis.

The section was incubated with ab316022 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

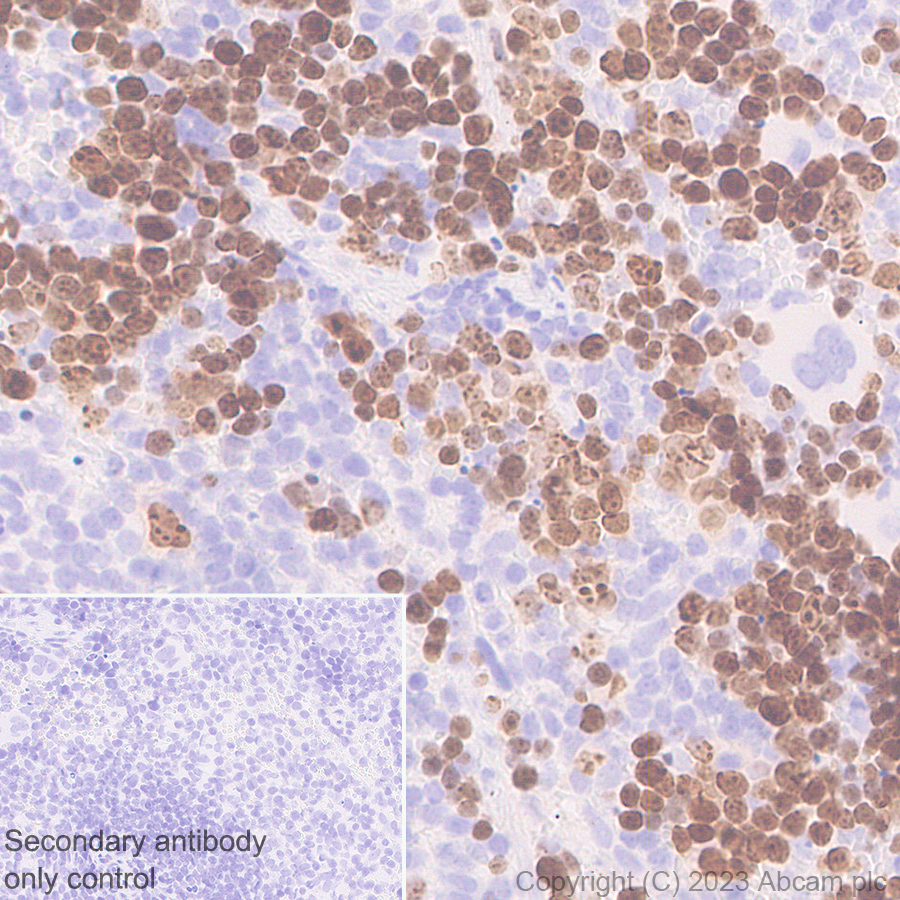

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Survivin antibody [RM1086] (ab316022)
Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labeling Survivin with ab316022 at 1/100 (5.25 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Nuclear staining on mouse spleen.

The section was incubated with ab316022 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

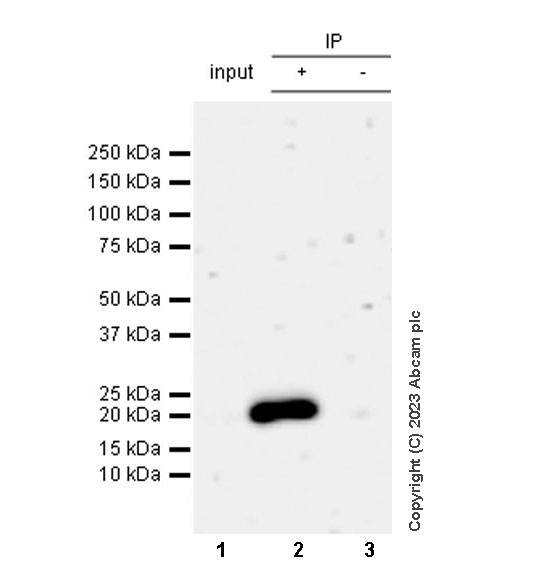

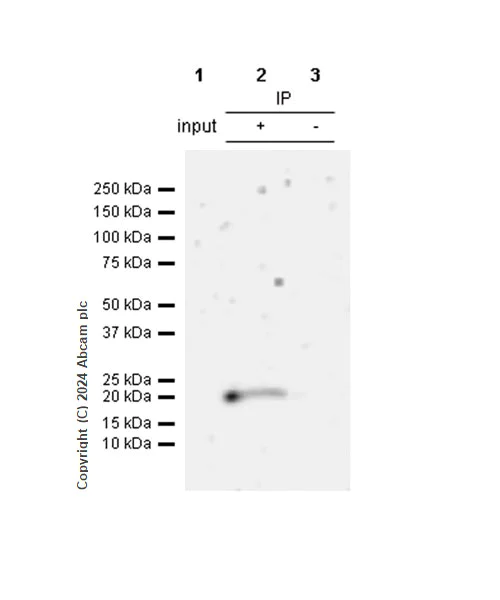

Immunoprecipitation - Anti-Survivin antibody [RM1086] (ab316022)
Survivin was immunoprecipitated from 0.35 mg C6 (rat glial tumor glial cell) whole cell lysate with ab316022 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab316022 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: C6 (rat glial tumor glial cell) whole cell lysate

Lane 2: ab316022 IP in C6 (rat glial tumor glial cell) whole cell lysate

Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab316022 in C6 whole cell lysate.
All lanes: Immunoprecipitation - Anti-Survivin antibody [RM1086] (ab316022) at 1/30 dilution
All lanes: C6 (rat glial tumor glial cell) whole cell lysate with 5% NFDM/TBST
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution
Exposure time: 180s

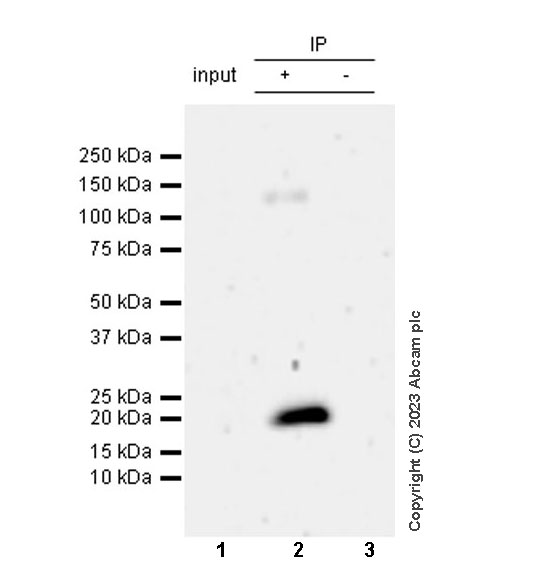

Immunoprecipitation - Anti-Survivin antibody [RM1086] (ab316022)
Survivin was immunoprecipitated from 0.35 mg RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate with ab316022 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab316022 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate

Lane 2: ab316022 IP in RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate

Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab316022 in RAW 264.7 whole cell lysate.
All lanes: Immunoprecipitation - Anti-Survivin antibody [RM1086] (ab316022) at 1/30 dilution
All lanes: RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate with 5% NFDM/TBST
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution
Exposure time: 180s
Immunoprecipitation - Anti-Survivin antibody [RM1086] (ab316022)
Survivin was immunoprecipitated from 0.35 mg HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate with ab316022 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab316022 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate

Lane 2: ab316022 IP in HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate

Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab316022 in HeLa whole cell lysate.
All lanes: Immunoprecipitation - Anti-Survivin antibody [RM1086] (ab316022) at 1/30 dilution
All lanes: HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate with 5% NFDM/TBST
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution
Exposure time: 180s
