Anti-Synaptophysin antibody [YE269] - BSA and Azide free

16 product images

•

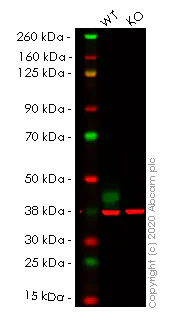

  Western blot - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Western blot staining using rabbit Anti-Synaptophysin antibody

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127).


  Lanes 1- 2: Merged signal (red and green). Green - Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 observed at 38 kDa. Red - Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) observed at 37 kDa.

  Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 was shown to react with Syp in wild-type HEK-293T cells in western blot. Loss of signal was observed when knockout cell line Human SYP (Synaptophysin) knockout HEK-293T cell line ab255356 (knockout cell lysate Human SYP (Synaptophysin) knockout HEK-293T cell lysate ab263862) was used. Wild-type HEK-293T and SYP knockout HEK-293T cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-Synaptophysin antibody [YE269] - Synaptic Marker (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127) at 1/1000 dilution

  Lane 1: Wild-type HEK-293T cell lysate at 20 µg

  Lane 2: SYP knockout HEK-293T cell lysate at 20 µg

  Lane 2: Western blot - Human SYP (Synaptophysin) knockout HEK-293T cell line (Human SYP (Synaptophysin) knockout HEK-293T cell line ab255356)

  Performed under reducing conditions.

  Predicted band size: 33 kDa

  Observed band size: 38 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-Synaptophysin antibody

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127).

  Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 staining Synaptophysin in primary mouse neurons/glia, DIV14 (prepared from E18 mouse hippocampal brain area, obtained from Transnetyx Tissue by BrainBits, LLC, cat.no. C57EHP) cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 at 0.1µg/ml and Anti-PSD95 antibody [K28/43] - Synaptic Marker ab192757, Mouse mono Anti-PSD95 antibody [K28/43] - Synaptic Marker. Cells were then incubated with Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor^® 488), pre-adsorbed at 1/1000 dilution (shown in green) and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, Goat polyclonal Secondary Antibody to Mouse IgG - H&L (Alexa Fluor^® 594), pre-adsorbed at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 100% methanol (5 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-Synaptophysin antibody

  Immunohistochemical staining of paraffin embedded rat cerebral cortex with purified Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 at a dilution of 1/400.

  A pre-diluted HRP polymer for rabbit/mouse IgG was used as the secondary antibody and the sample was counterstained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0.

  PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-Synaptophysin antibody

  This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127)

  Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 staining Synaptophysin in primary hippocampal rat neurons/glia, (obtained from Neuromics, cat. no. PC35101), DIV14. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 at 0.1?g/ml and Anti-PSD95 antibody [K28/43] - Synaptic Marker ab192757, Mouse mono Anti-PSD95 antibody [K28/43] - Synaptic Marker. Cells were then incubated with Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor^® 488), pre-adsorbed at 1/1000 dilution (shown in green) and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, Goat polyclonal Secondary Antibody to Mouse IgG - H&L (Alexa Fluor^® 594), pre-adsorbed at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue).

  Also suitable in cells fixed with 4% paraformaldehyde (10 min).

  Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

•

  Western blot - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Western blot staining using rabbit Anti-Synaptophysin antibody

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127).


  Lanes 1-3: Merged signal (red and green). Green - Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 observed at 38 kDa. Red - loading control, Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 observed at 50 kDa.

  Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 Anti-Synaptophysin antibody [YE269] was shown to specifically react with Synaptophysin in wild-type HEK293T cells. Loss of signal was observed when knockout cell line Human SYP (Synaptophysin) knockout HEK-293T cell line ab267272 (knockout cell lysate Human SYP (Synaptophysin) knockout HEK-293T cell lysate ab257060) was used. Wild-type and Synaptophysin knockout samples were subjected to SDS-PAGE. Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 and Anti-alpha Tubulin antibody [DM1A] - Loading Control (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti- Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti- Mouse IgG H&L (IRDye^® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 10000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-Synaptophysin antibody [YE269] - Synaptic Marker (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127) at 1/1000 dilution

  Lane 1: Wild-type HEK-293T cell lysate at 20 µg

  Lane 2: SYP knockout HEK-293T cell lysate at 20 µg

  Lane 2: Western blot - Human SYP (Synaptophysin) knockout HEK-293T cell line (Human SYP (Synaptophysin) knockout HEK-293T cell line ab267272)

  Lane 3: Human brain tissue lysate

  Performed under reducing conditions.

  Predicted band size: 33 kDa

  Observed band size: 38 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-Synaptophysin antibody

  Immunocytochemistry/ Immunofluorescence analysis of mouse primary neuron cells labeling Synaptophysin with purified Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 at 1/100 (2.7μg/mL). Cells were fixed in 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1/200 (2.5 μg/mL). Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1/1000 (2 μg/mL) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.
  Confocal scanning Z step was set as 0.3 μm followed by image processing with maximum Z projection.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-Synaptophysin antibody

  Clone YE269 (ab187259) has been successfully conjugated by Abcam. This image was generated using Anti-Synaptophysin antibody [YE269] (Alexa Fluor® 647). Please refer to Alexa Fluor® 647 Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab196166 for protocol details.

  Alexa Fluor® 647 Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab196166 staining Synaptophysin in PC12 cells. The cells were fixed with 100% methanol (5 min), permeabilised in 0.1% Triton X-100 for 5 minutes and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with Alexa Fluor® 647 Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab196166 at 1/100 dilution (shown in red) and Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195887, Mouse monoclonal [DM1A] to alpha Tubulin (Alexa Fluor^® 488, shown in green) at 1/167 dilution overnight at +4°C. Nuclear DNA was labelled in blue with DAPI.

  This product gave a positive signal in 5% formaldehyde (10 min) fixed PC12 cells under the same testing conditions.

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-Synaptophysin antibody

  Immunohistochemical staining of paraffin embedded human pancreas with purified Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 at a dilution of 1/400.

  A pre-diluted HRP polymer for rabbit/mouse IgG was used as the secondary antibody and the sample was counterstained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0.

  PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-Synaptophysin antibody

  Clone YE269 (ab187259) has been successfully conjugated by Abcam. This image was generated using Anti-Synaptophysin antibody [YE269] (Alexa Fluor® 488). Please refer to Alexa Fluor® 488 Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab196379 for protocol details.

  Alexa Fluor® 488 Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab196379 staining Synaptophysin in PC12 cells. The cells were fixed with 100% methanol (5 min), permeabilised in 0.1% Triton X-100 for 5 minutes and then blocked in 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated with Alexa Fluor® 488 Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab196379 at 1/100 dilution (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889, Mouse monoclonal [DM1A] to alpha Tubulin (Alexa Fluor^® 594, shown in red) at 1/167 dilution overnight at +4°C. Nuclear DNA was labelled in blue with DAPI.

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

•

  This image is courtesy of an anonymous customer review.

  Immunocytochemistry/ Immunofluorescence - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 staining synaptophysin in human iPS cell derived neurons by immunocytochemistry/immmunofluorescence.

  Samples were fixed with paraformaldehyde and blocked with 1% serum for 30 minutes at room temperature. Samples were incubated with primary antibody at 1/250 dilution for 1 hour. Donkey Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150061 was used as the secondary antibody at 1/250 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunocytochemistry/ Immunofluorescence staining using rabbit Anti-Synaptophysin antibody

  Immunofluorescent staining of PC-12 (rat adrenal gland pheochromocytoma cell line) cells (fixed in 4% PFA, permeabilized with 0.1% Triton X 100) using purified Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 at a dilution of 1/50.

  An Alexa Fluor^® 488 goat anti-rabbit antibody was used as the secondary at a dilution of 1/500 and the cells were counterstained with DAPI.

  The negative control is shown in the bottom right hand panel - for the negative control, Alex Fluor^® 594 goat anti-mouse was used at a dilution of 1/500.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-Synaptophysin antibody

  Immunohistochemical staining of paraffin embedded mouse cerebral cortex with purified Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 at a dilution of 1/400.

  A pre-diluted HRP polymer for rabbit/mouse IgG was used as the secondary antibody and the sample was counterstained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0.

  PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-Synaptophysin antibody

  Unpurified Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 showing positive staining in lung neuroendocrine tumor tissue.



  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127).

  Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining using rabbit Anti-Synaptophysin antibody

  This IHC data was generated using the same anti-Synaptophysin antibody clone, YE269, in a different buffer formulation (cat# Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127).


  Unpurified Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 showing positive staining in Medulloblastoma tissue.

  Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining of Human Pancreas tissue using rabbit Anti-Synaptophysin antibody

  This data was produced using the same antibody clone but in a different formulation containing PBS, sodium azide, glycerol and BSA (Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127).

  Immunohistochemical analysis of formalin fixed paraffin embedded human pancreas labelling synaptophysin with Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 at a concentration of 1 µg/ml. The immunostaining was performed on a Ventana DISCOVERY ULTRA (Roche Tissue Diagnostics) instrument with a OptiView DAB IHC Detection Kit. Heat mediated antigen retrieval was performed with DISCOVERY cell conditioning solution (CC1) 100°C, pH8.5 for 32mins.

  Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 Anti-Synaptophysin antibody [YE269] was incubated for 16mins at 37°C. Sections were counterstained with Hematoxylin II. Image inset shows absence of staining in secondary antibody only control.

  Customers are encouraged to optimise antigen retrieval conditions, antibody concentration, incubation times and temperature for best results in their own IHC assay workflow (automated and manual)

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Synaptophysin antibody [YE269] - BSA and Azide free (ab187259)

  Synaptophysin Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining of human Alzheimer's brain tissue using rabbit Anti-Synaptophysin antibody

  This data was developed using Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127, the same antibody clone in a different buffer formulation.

  Immunohistochemical analysis of paraffin-embedded human Alzheimer's brain tissue* labelling SYP with Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 at 1ug/ml followed by a ready to use LeicaDS9800 (Bond^™ Polymer Refine Detection).

  Positive staining in human Alzheimer's brain.

  The section was incubated with Anti-Synaptophysin antibody [YE269] - Synaptic Marker ab32127 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond^™ Polymer Refine Detection).

  Heat mediated antigen retrieval with sodium citrate buffer (pH 6.0 epitope retrieval solution1) for 20 mins.

  *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre.
