Anti-Syntaxin 2/STX2 antibody

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Syntaxin 2/STX2 antibody (AB12369)

ICC/IF image of ab12369 stained HeLa cells. The cells were 100% methanol fixed (5 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab12369, 5µg/ml) overnight at +4°C. The secondary antibody (green) was Alexa Fluor® 488 goat anti-rabbit IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.

• WB

Unknown

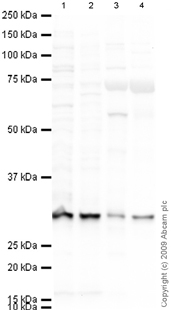

Western blot - Anti-Syntaxin 2/STX2 antibody (AB12369)

All lanes:

Western blot - Anti-Syntaxin 2/STX2 antibody (ab12369) at 1 µg/mL

Lane 1:

HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg

Lane 2:

A431 (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg

Lane 3:

Human kidney tissue lysate - total protein (<a href='/en-us/products/unavailable/human-kidney-tissue-lysate-total-protein-ab30203'>ab30203</a>) at 10 µg

Lane 4:

Human skin tissue lysate - total protein (<a href='/en-us/products/unavailable/human-skin-tissue-lysate-total-protein-ab30166'>ab30166</a>) at 10 µg

Secondary

All lanes:

Goat polyclonal to Rabbit IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilution

Predicted band size: 33 kDa

Observed band size: 33.3 kDa,74 kDa

true

Exposure time: 4min
