AB249579

Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free

Be the first to review this product! Submit a review

|

(1 Publication)

Rabbit Recombinant Monoclonal TAGLN/Transgelin antibody. Carrier free. Suitable for IHC-P, WB and reacts with Human, Rat samples. Cited in 1 publication.

View Alternative Names

SM22, WS3-10, TAGLN, Transgelin, 22 kDa actin-binding protein, Protein WS3-10, Smooth muscle protein 22-alpha, SM22-alpha

10 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)

This data was developed using ab170902, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human esophagus labelling TAGLN/Transgelin with ab170902 at 1/1000 dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on smooth muscle in human esophagus.
The section was incubated with ab170902 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND RX instrument.

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)

This data was developed using ab170902, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human smooth vessels tissue, labeling TAGLN/Transgelin using ab170902 at a 1/100 dilution.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)

This data was developed using ab170902, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human smooth muscle tissue, labeling TAGLN/Transgelin using ab170902 at a 1/100 dilution.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)

This data was developed using ab170902, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human stomach tissue, labeling TAGLN/Transgelin using ab170902 at a 1/100 dilution.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)

This data was developed using ab170902, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human skeletal mucle with ab170902 at 1/1000 dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Negative control : no staining on human skeletal muscle.

The section was incubated with ab170902 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND RX instrument.

Counterstained with Hematoxylin.

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)

This data was developed using ab170902, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human stomach labelling Human stomach with ab170902 at 1/1000 dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on smooth muscle in human stomach.
The section was incubated with ab170902 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND RX instrument.

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)

This data was developed using ab170902, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Rat colon labelling TAGLN/Transgelin with ab170902 at 1/1000 dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on smooth muscle in Rat colon.
The section was incubated with ab170902 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND RX instrument.

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)

This data was developed using ab170902, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Rat skeletal mucle with ab170902 at 1/1000 dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Negative control : no staining on Rat skeletal muscle.

The section was incubated with ab170902 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND RX instrument.

Counterstained with Hematoxylin.

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Western blot - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)
  • WB

Supplier Data

Western blot - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)

This data was developed using ab170902, the same antibody clone in a different buffer formulation.

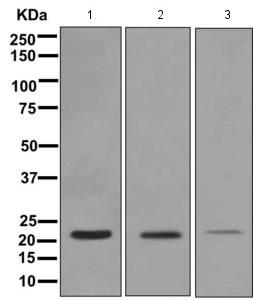

All lanes:

Western blot - Anti-TAGLN/Transgelin antibody [EPR11995(B)] (<a href='/en-us/products/primary-antibodies/tagln-transgelin-antibody-epr11995b-ab170902'>ab170902</a>) at 1/1000 dilution

Lane 1:

Human bladder lysate at 10 µg

Lane 2:

Human stomach lysate at 10 µg

Lane 3:

Human uterus lysate at 10 µg

Secondary

All lanes:

Goat anti-rabbit HRP at 1/2000 dilution

Predicted band size: 23 kDa

true

Western blot - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)
  • WB

Supplier Data

Western blot - Anti-TAGLN/Transgelin antibody [EPR11995(B)] - BSA and Azide free (AB249579)

This data was developed using ab170902, the same antibody clone in a different buffer formulation.

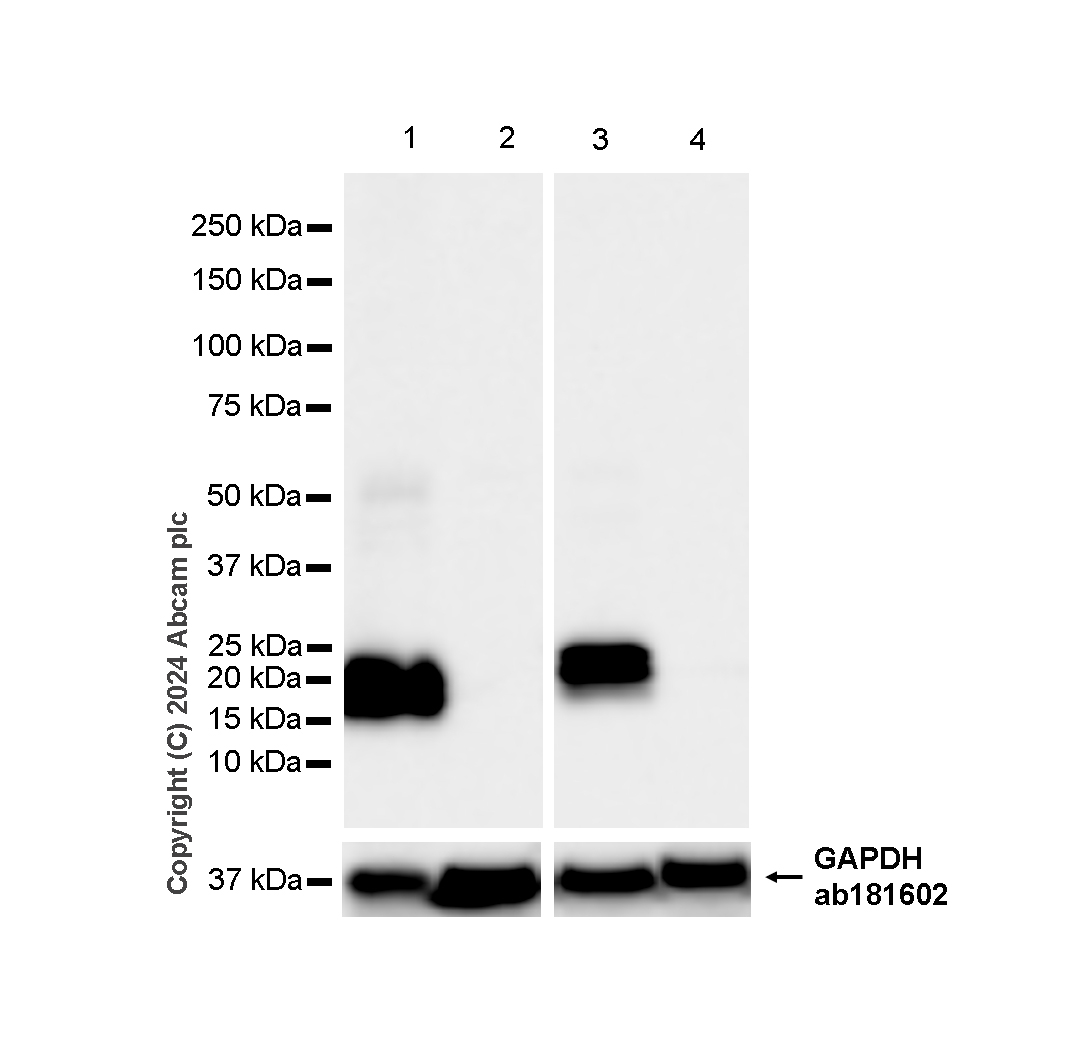

Blocking and dilution buffer : 5% NFDM/TBST

Negative control : skeletal muscle.

In Western blot, anti-GAPDH antibody (ab181602) loading control staining at 1/200000 dilution.

All lanes:

Western blot - Anti-TAGLN/Transgelin antibody [EPR11995(B)] (<a href='/en-us/products/primary-antibodies/tagln-transgelin-antibody-epr11995b-ab170902'>ab170902</a>) at 1/1000 dilution

Lane 1:

Human colon tissue lysate at 20 µg

Lane 2:

Human skeletal muscle tissue lysate at 20 µg

Lane 3:

Rat colon tissue lysate at 20 µg

Lane 4:

Rat skeletal muscle tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>)

Predicted band size: 23 kDa

Observed band size: 22 kDa

false

Exposure time: 6s

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR11995(B)

Isotype

IgG

Carrier free

Yes

Reacts with

Human, Rat

Applications

WB, IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Complementary Products

Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB7817

Anti-alpha smooth muscle Actin antibody [1A4]

KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-alpha smooth muscle Actin antibody [1A4] (AB7817)

  • 5
  • 105
Primary Antibodies

AB9485

Anti-GAPDH antibody - Loading Control

BOND RX™ Validated|Lab Essentials

Immunocytochemistry/ Immunofluorescence - Anti-GAPDH antibody - Loading Control (AB9485)

  • 5
  • 88
Primary Antibodies

AB46794

Anti-Calponin 1 antibody [EP798Y]

RabMAb|Recombinant|20ul selling size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Calponin 1 antibody [EP798Y] (AB46794)

  • 5
  • 20
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>" }, "Rat": { "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" } } }
style
left-column

Product details

ab249579 is the carrier-free version of ab170902.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

TAGLN also known as Transgelin or SM22-alpha is a protein with a molecular weight of approximately 22 kDa. Structurally it belongs to the calponin family and contains an ACT domain which is critical for its actin-binding ability. It is expressed abundantly in smooth muscle cells where it stabilizes cytoskeletal dynamics by interacting with actin filaments. TAGLN also shows expression in fibroblasts and myofibroblasts supporting structural integrity and cellular movement.
Biological function summary

The regulatory involvement of TAGLN in smooth muscle contraction influences cellular activities essential for vascular function. This protein modulates remodeling and differentiation within smooth muscle cells. It can associate with actin and calponin to form complexes that regulate the stability of cytoskeletal structures ensuring effective cellular responses to mechanical stimuli. By linking signal transduction to cytoskeletal mechanics TAGLN facilitates the maintenance of cell shape and tension.

Pathways

TAGLN plays a role in the regulation of the RhoA/Rho kinase pathway contributing to actin cytoskeleton organization and smooth muscle contraction. Additionally it is involved in the WNT signaling pathway influencing cell proliferation and differentiation. In these pathways TAGLN works with proteins like RhoA and beta-catenin to transmit signals from the extracellular environment to the nucleus impacting gene expression and cellular responses.

Disruptions in TAGLN expression associate with vascular diseases and certain cancers. Downregulation or altered expression patterns can lead to smooth muscle cell dysfunction contributing to atherosclerosis. Similarly TAGLN interacts with proteins such as fibronectin and MMP2 in cancer where its altered expression could promote metastasis and tumor progression. Understanding these connections highlights TAGLN's potential as a target for therapeutic interventions in these diseases.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Actin cross-linking/gelling protein (By similarity). Involved in calcium interactions and contractile properties of the cell that may contribute to replicative senescence.
See full target information TAGLN
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Bio-protocol 15:e5206 PubMed39959296

2025

Cell-Sonar, an Easy and Low-cost Method to Track a Target Protein by Expression Changes of Specific Protein Markers.

Applications

Unspecified application

Species

Unspecified reactive species

Sabrina Brockmöller,Lara Maria Molitor,Franz Worek,Simone Rothmiller
