Anti-TAK1 antibody [EPR5984] - BSA and Azide free

• ICC/IF

Lab

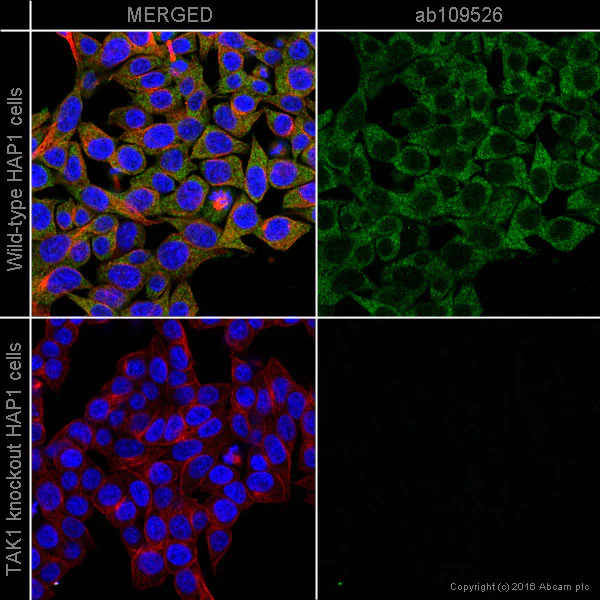

Immunocytochemistry/ Immunofluorescence - Anti-TAK1 antibody [EPR5984] - BSA and Azide free (AB222394)

ab109526 staining TAK1 in wild-type HAP1 cells (top panel) and TAK1 knockout HAP1 cells (bottom panel). The cells were fixed with 4% formaldehyde (10min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab109526 at 1/1000 dilution and ab195889 at 1/250 dilution (shown in pseudo colour red) overnight at +4°C, followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (ab150081) at 2 μg/ml (shown in green). Nuclear DNA was labelled in blue with DAPI.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• Flow Cyt (Intra)

Lab

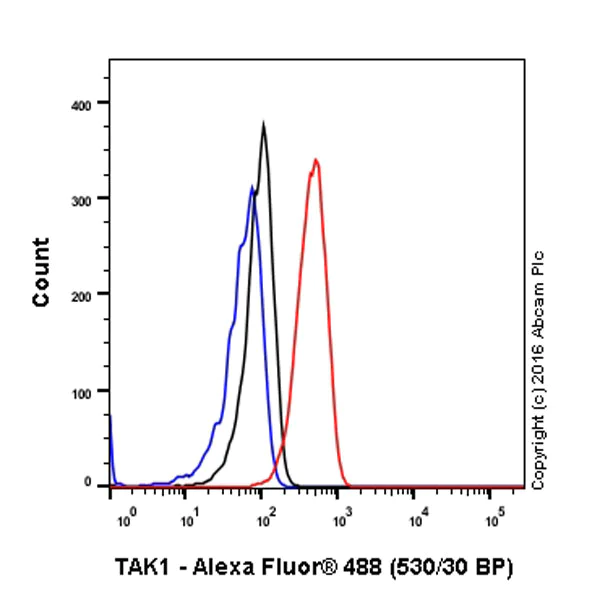

Flow Cytometry (Intracellular) - Anti-TAK1 antibody [EPR5984] - BSA and Azide free (AB222394)

Intracellular Flow Cytometry analysis of A431 (human epidermoid carcinoma) cells labeling TAK1 with unpurified ab109526 at 1/20 dilution (10ug/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488) (1/2000 dilution) was used as the secondary antibody. Rabbit monoclonal IgG (Black) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (Blue) was used as the unlabeled control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109526).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TAK1 antibody [EPR5984] - BSA and Azide free (AB222394)

ab109526, at a 1/50 dilution, staining TAK1 in Formalin/PFA-fixed paraffin-embedded Human brain tissue, by Immunohistochemistry.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109526).

Perform heat mediated antigen retrieval via the microwave method before commencing with IHC staining protocol.

• WB

Lab

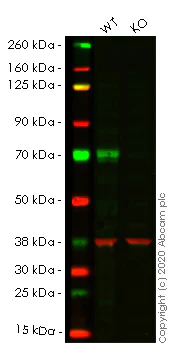

Western blot - Anti-TAK1 antibody [EPR5984] - BSA and Azide free (AB222394)

This data was developed using the same antibody clone in a different buffer formulation (ab109526).

Lanes 1- 2 : Merged signal (red and green). Green - ab109526 observed at 72 kDa. Red - Anti-GAPDH antibody [6C5] - Loading Control (ab8245) observed at 37 kDa.

ab109526 was shown to react with TAK1 in wild-type HEK-293T cells in western blot. Loss of signal was observed when knockout cell line ab266555 (knockout cell lysate ab256984) was used. Wild-type HEK-293T and MAP3K7 knockout HEK-293T cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab109526 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-TAK1 antibody [EPR5984] (<a href='/en-us/products/primary-antibodies/tak1-antibody-epr5984-ab109526'>ab109526</a>) at 1/1000 dilution

Lane 1:

Wild-type HEK-293T cell lysate at 20 µg

Lane 2:

MAP3K7 knockout HEK-293T cell lysate at 20 µg

Lane 2:

Western blot - Human MAP3K7 (TAK1) knockout HEK-293T cell line (<a href='/en-us/products/cell-lines/human-map3k7-tak1-knockout-hek-293t-cell-line-ab266555'>ab266555</a>)

Predicted band size: 35 kDa,36 kDa,43 kDa,47 kDa,60 kDa,67 kDa,74 kDa

Observed band size: 36 kDa,60 kDa,72 kDa,95 kDa

false

• WB

Lab

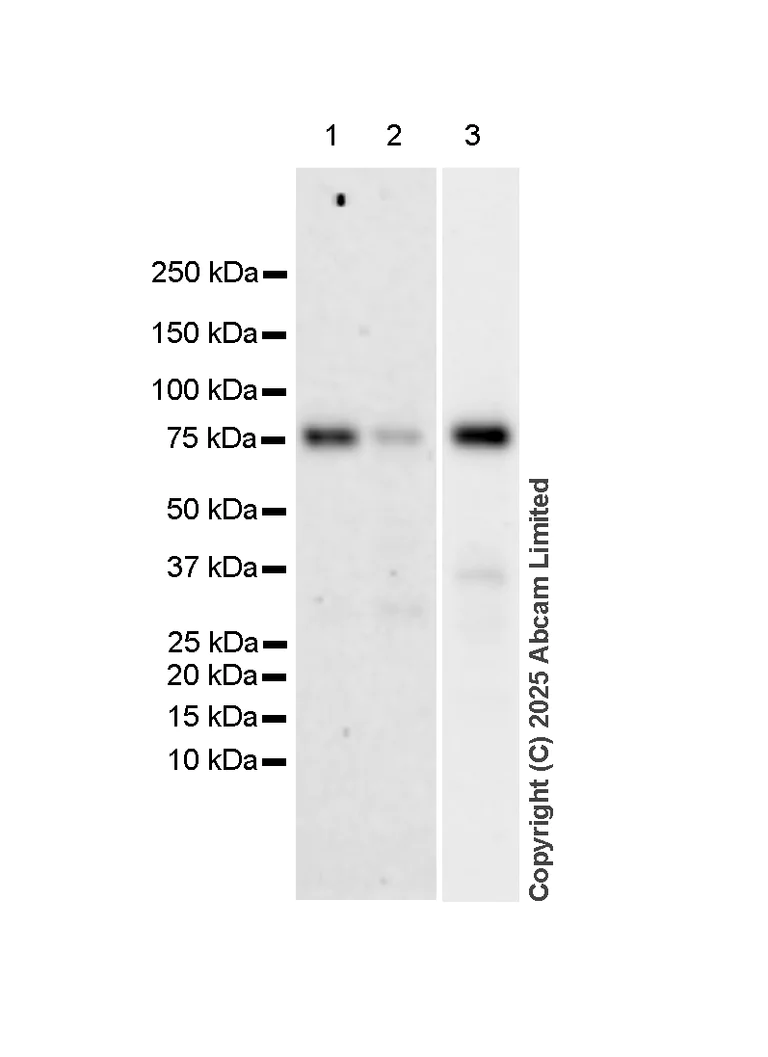

Western blot - Anti-TAK1 antibody [EPR5984] - BSA and Azide free (AB222394)

This data was developed using ab109526, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-TAK1 antibody [EPR5984] (<a href='/en-us/products/primary-antibodies/tak1-antibody-epr5984-ab109526'>ab109526</a>) at 1/1000 dilution

Lane 1:

Mouse brain tissue lysate at 20 µg

Lane 2:

Mouse heart tissue lysate at 20 µg

Lane 3:

Mouse spleen tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 75 kDa

false

Exposure time: 48s

• WB

Lab

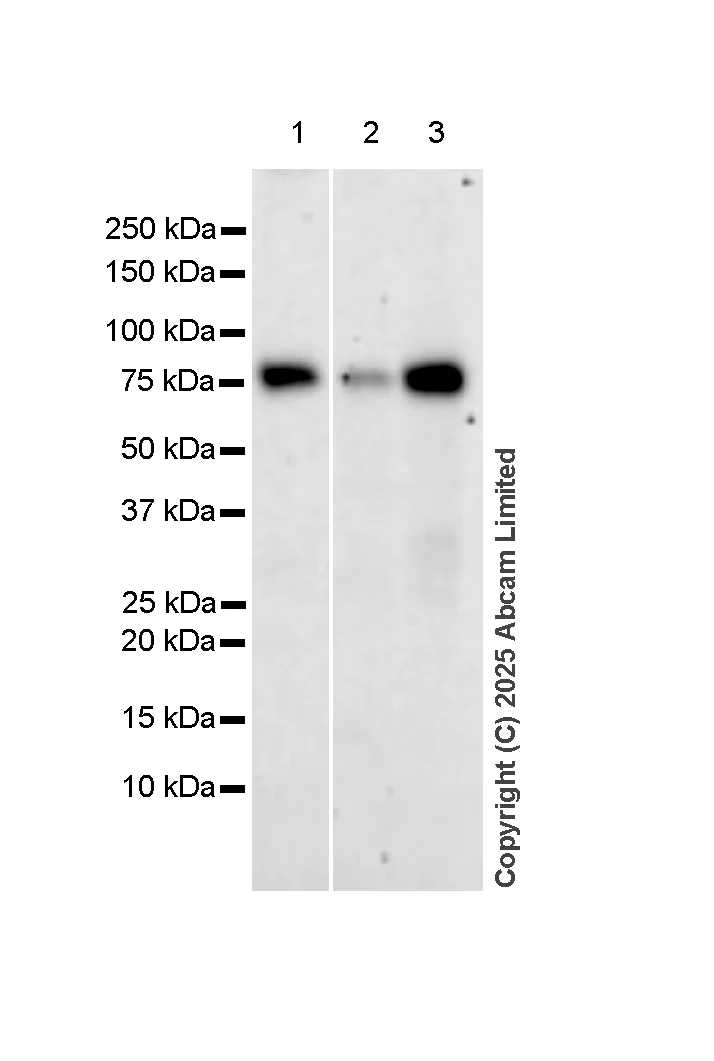

Western blot - Anti-TAK1 antibody [EPR5984] - BSA and Azide free (AB222394)

This data was developed using ab109526, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-TAK1 antibody [EPR5984] (<a href='/en-us/products/primary-antibodies/tak1-antibody-epr5984-ab109526'>ab109526</a>) at 1/1000 dilution

Lane 1:

Rat brain tissue lysate at 20 µg

Lane 2:

Rat kidney tissue lysate at 20 µg

Lane 3:

Rat spleen tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 75 kDa

false

Exposure time: 180s
