AB324110

Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal TAU antibody. Carrier free. Suitable for I-ELISA, IHC-P, WB and reacts with Recombinant fragment - Mouse, Synthetic peptide - Human, Human, Mouse samples.

View Alternative Names

MAPTL, MTBT1, TAU, MAPT, Microtubule-associated protein tau, Neurofibrillary tangle protein, Paired helical filament-tau, PHF-tau

10 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)

This data was developed using ab323709, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human Alzheimer's disease cerebrum tissue labeling Tau - C-terminal (4R-aa396) with ab323709 at 1/2000 (0.243 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on human Alzheimer's disease cerebrum. The section was incubated with ab323709 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)

This data was developed using ab323709, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human spleen tissue labeling Tau - C-terminal (4R-aa396) with ab323709 at 1/2000 (0.243 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Negative control : no staining on human spleen. The section was incubated with ab323709 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)

This data was developed using ab323709, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Human cerebrum tissue labeling Tau - C-terminal (4R-aa396) with ab323709 at 1/2000 (0.243 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on human cerebrum. The section was incubated with ab323709 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)

This data was developed using ab323709, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse Alzheimer's disease cerebrum tissue labeling Tau - C-terminal (4R-aa396) with ab323709 at 1/2000 (0.243 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on mouse Alzheimer's disease cerebrum. The section was incubated with ab323709 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)

This data was developed using ab323709, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labeling Tau - C-terminal (4R-aa396) with ab323709 at 1/2000 (0.243 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Negative control : no staining on mouse spleen (PMID : 24386422). The section was incubated with ab323709 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)

This data was developed using ab323709, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse cerebrum tissue labeling Tau - C-terminal (4R-aa396) with ab323709 at 1/2000 (0.243 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining on mouse cerebrum. The section was incubated with ab323709 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

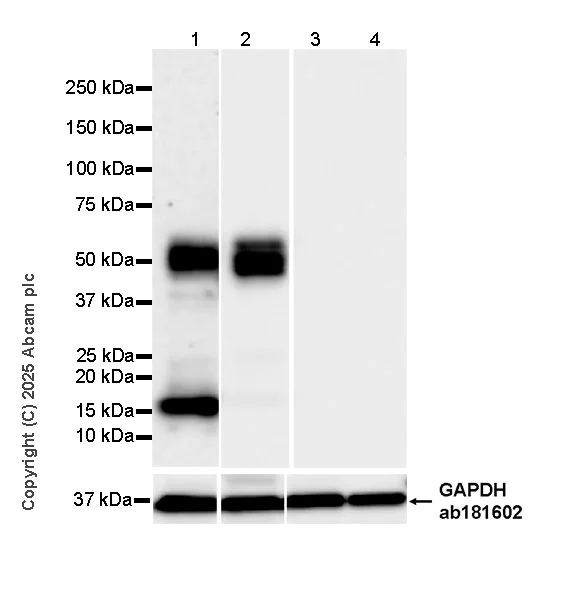

Western blot - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)
  • WB

Supplier Data

Western blot - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)

This data was developed using ab323709, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Negative control : liver spleen (PMID : 24386422 PMID : 8752131)

The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID : 24116116 PMID : 8752131 PMID : 24386422 PMID : 37443334).

The band around 15kDa in lane 1 might be cleavage fragment of Tau (PMID : 37905868).

In Western blot Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

Exposure time : Lane1 : 125 seconds; Lanes 2-4 : 6 seconds

All lanes:

Western blot - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] (<a href='/en-us/products/primary-antibodies/tau-c-terminal-4r-aa396-antibody-epr29542-63-ab323709'>ab323709</a>) at 1/1000 dilution

Lane 1:

Human Alzheimers brain tissue lysate at 20 µg

Lane 2:

Human hippocampus tissue lysate at 20 µg

Lane 3:

Human spleen tissue lysate at 20 µg

Lane 4:

Human liver tissue lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 33-62 kDa,36 kDa

false

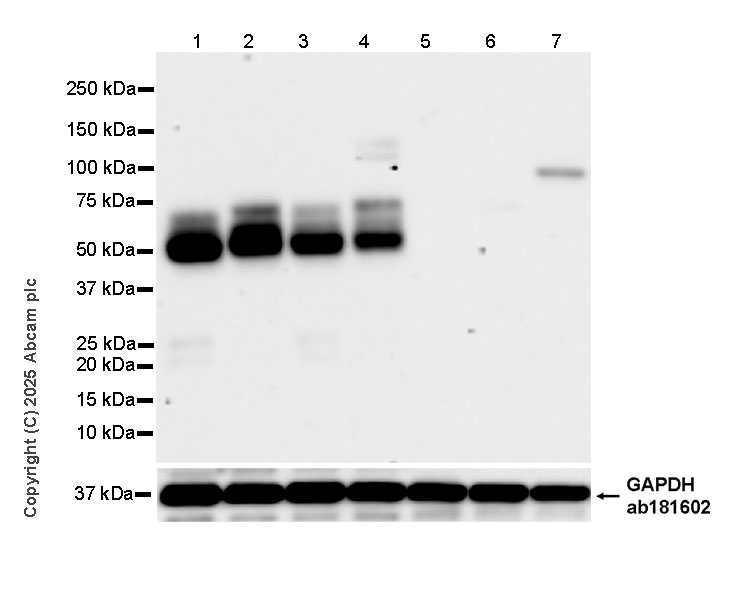

Western blot - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)
  • WB

Supplier Data

Western blot - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)

This data was developed using ab323709, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Negative control : liver spleen testis (PMID : 24386422 PMID : 8752131)

The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID : 24116116 PMID : 8752131 PMID : 24386422 PMID : 37443334).

The identity of the higher MW band at approximately 100 kDa in lane 7 is unknown.

In Western blot Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] (<a href='/en-us/products/primary-antibodies/tau-c-terminal-4r-aa396-antibody-epr29542-63-ab323709'>ab323709</a>) at 1/1000 dilution

Lane 1:

Mouse Alzheimers brain tissue lysate at 20 µg

Lane 2:

Mouse brain tissue lysate at 20 µg

Lane 3:

Mouse hippocampus tissue lysate at 20 µg

Lane 4:

Mouse cerebellum tissue lysate at 20 µg

Lane 5:

Mouse spleen tissue lysate at 20 µg

Lane 6:

Mouse liver tissue lysate at 20 µg

Lane 7:

Mouse testis tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 33-62 kDa,36 kDa

false

Exposure time: 37s

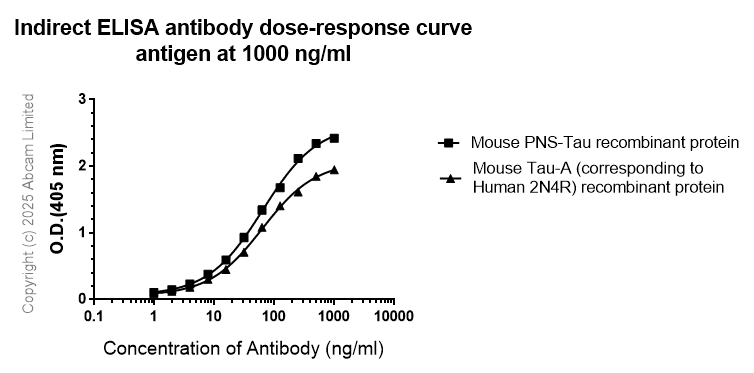

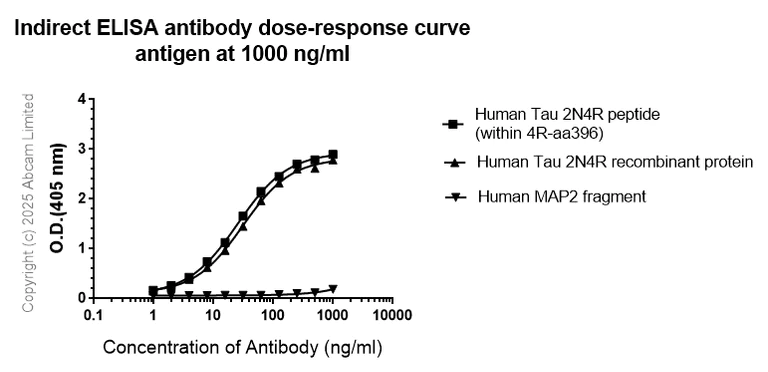

Indirect ELISA - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)
  • I-ELISA

Supplier Data

Indirect ELISA - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)

This data was developed using ab323709, the same antibody clone in a different buffer formulation.

Indirect ELISA analysis of ab323709 at 1000-0 ng/ml. The Secondary antibody used was Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Rabbit IgG (H+L) at 1 : 2500 dilution dilution.

Antigen : Human Tau 2N4R peptide (within 4R-aa396), Human Tau 2N4R recombinant protein, Human MAP2 fragment.

Antigen concentration : 1000 ng/ml

This antibody does not cross-react with human MAP2.

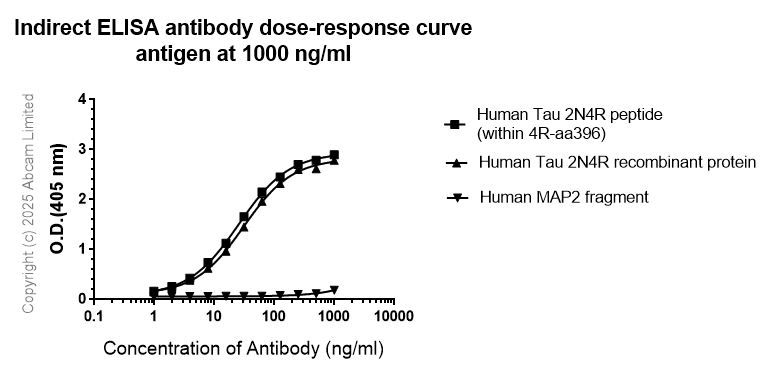

Indirect ELISA - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)
  • I-ELISA

Supplier Data

Indirect ELISA - Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63] - BSA and Azide free (AB324110)

This data was developed using ab323709, the same antibody clone in a different buffer formulation.

Indirect ELISA analysis of ab323709 at 1000-0 ng/ml. The Secondary antibody used was Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Rabbit IgG (H+L) at 1 : 2500 dilution dilution.

Antigen : Human Tau 2N4R peptide (within 4R-aa396), Human Tau 2N4R recombinant protein, Human MAP2 fragment.

Antigen concentration : 1000 ng/ml

This antibody does not cross-react with human MAP2.

  • Unconjugated

    Anti-Tau - C-terminal (4R-aa396) antibody [EPR29542-63]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR29542-63

Isotype

IgG

Carrier free

Yes

Reacts with

Human, Mouse

Applications

WB, IHC-P, I-ELISA

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Specificity

The antibody binds to a region between the 4R domain and aa396 of 2N4R Tau.

style
left-column

Complementary Products

Assay Kits

AB273617

Human Tau ELISA Kit

Recombinant|SimpleStep

ELISA - Human Tau ELISA Kit (AB273617)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IELISA" : {"fullname" : "Indirect ELISA", "shortname":"I-ELISA"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IELISA-species-checked": "guaranteed", "IELISA-species-dilution-info": "", "IELISA-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>" }, "Mouse": { "IELISA-species-checked": "guaranteed", "IELISA-species-dilution-info": "", "IELISA-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>" }, "Recombinant fragment - Mouse": { "IELISA-species-checked": "testedAndGuaranteed", "IELISA-species-dilution-info": "", "IELISA-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Synthetic peptide - Human": { "IELISA-species-checked": "testedAndGuaranteed", "IELISA-species-dilution-info": "", "IELISA-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "" } } }
style
left-column

Product details

ab324110 is the carrier free version of ab323709.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
style
left-column
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Promotes microtubule assembly and stability, and might be involved in the establishment and maintenance of neuronal polarity (PubMed : 21985311). The C-terminus binds axonal microtubules while the N-terminus binds neural plasma membrane components, suggesting that tau functions as a linker protein between both (PubMed : 21985311, PubMed : 32961270). Axonal polarity is predetermined by TAU/MAPT localization (in the neuronal cell) in the domain of the cell body defined by the centrosome. The short isoforms allow plasticity of the cytoskeleton whereas the longer isoforms may preferentially play a role in its stabilization.
See full target information MAPT
