Anti-TBR2 / Eomes antibody [EPR21950-241]

7 product images

•

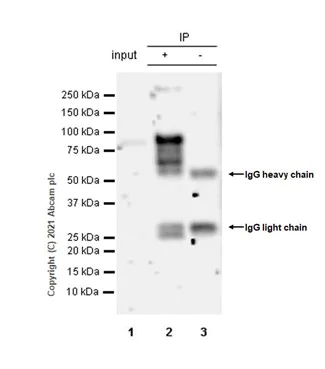

  Immunoprecipitation - Anti-TBR2 / Eomes antibody [EPR21950-241] (ab216870)

  TBR2 / Eomes was immunoprecipitated from 0.35mg Mouse E14 brain tissue lysate 10μg with ab216870 at 1/50 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab216870 1/1000 dilution (0.67 μg/ml). VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) was used as the secondary antibody at 1/5000 dilution.


  Lane 1: Mouse E14 brain tissue lysate 10 μg

  Lane 2: ab216870 IP in Mouse E14 brain tissue lysate

  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab216870 in Mouse E14 brain tissue lysate.

  Blocking and dilution buffer and concentration: 5% NFDM/TBST.

  Exposure time: 3 min

  The band is consistent with what has been described in the literature (PMID: 26749212).

  All lanes: Immunoprecipitation - Anti-TBR2 / Eomes antibody [EPR21950-241] (ab216870)

  Predicted band size: 72 kDa

  Observed band size: 85 kDa

•

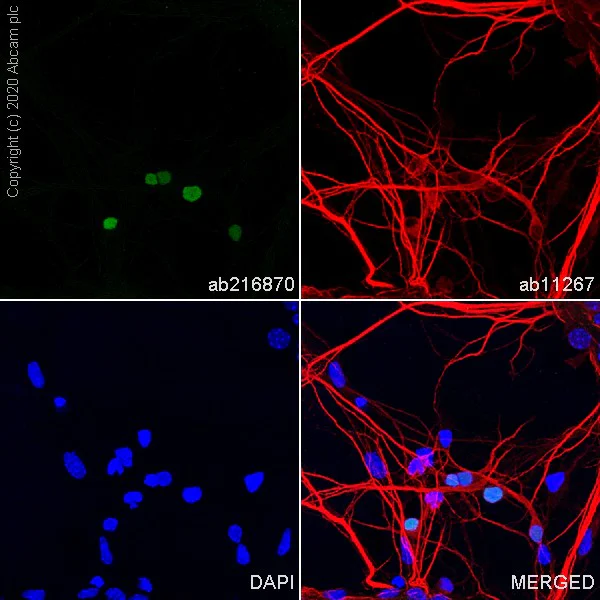

  Immunocytochemistry/ Immunofluorescence - Anti-TBR2 / Eomes antibody [EPR21950-241] (ab216870)

  Immunocytochemistry confocal image showing nuclear staining in mouse primary neuron cells. Anti-TBR2 is stained with ab216870 in a 1/100 dilution, and 2μg/ml AlexaFluor®488 Goat anti-Rabbit secondary (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077). Nuclear counterstaining is DAPI (blue).


  The negative control is Anti-MAP2 antibody [HM-2] ab11267 Anti-MAP2 mouse monoclonal antibody with Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 AlexaFluor®594 Goat anti-Mouse secondary.

•

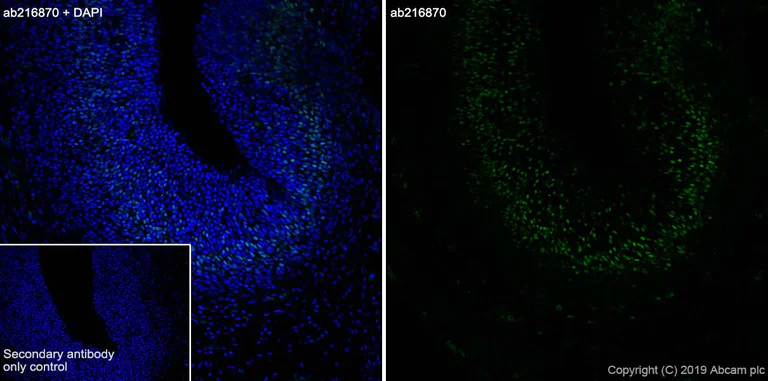

  Immunohistochemistry (Frozen sections) - Anti-TBR2 / Eomes antibody [EPR21950-241] (ab216870)

  Immunohistochemical analysis of 4% PFA fixed 0.2% Triton X-100 permeabilized frozen Rat E14.5 cerebrum tissue labeling EOMES with ab216870 at 1/100 (5.75 μg/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 AlexaFluor®488 Goat anti-Rabbit secondary at 1/1000 (2 μg/ml) dilution. The nuclear counterstain was DAPI (Blue). Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20). Positive staining in rat embryonic cerebrum (PMID: 24223221) is observed.


  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody was Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 AlexaFluor®488 Goat anti-Rabbit secondary at 1/1000 (2 μg/ml) dilution.

•

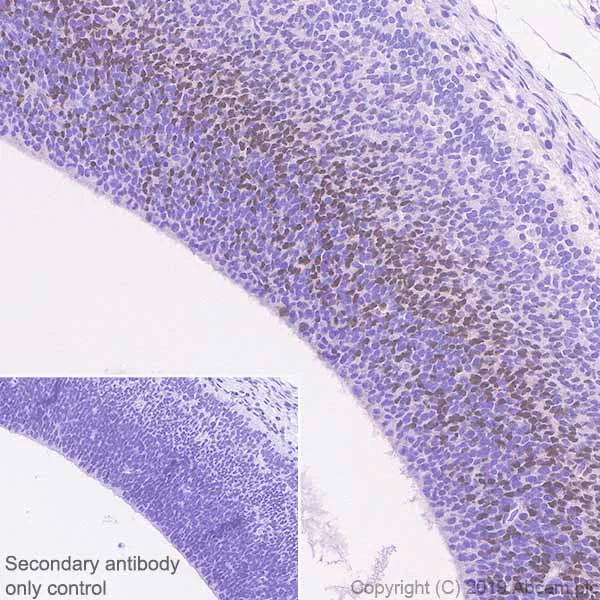

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TBR2 / Eomes antibody [EPR21950-241] (ab216870)

  Immunohistochemical analysis of paraffin-embedded E14.5 rat cerebral cortex tissue labeling EOMES with ab216870 at 1/1000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Nuclear staining on E14.5 rat cerebral cortex (PMID: 18725516) is observed. The section was incubated with ab216870 for 30 mins at RT. The immunostaining staining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.


  Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

•

  Immunohistochemistry (Frozen sections) - Anti-TBR2 / Eomes antibody [EPR21950-241] (ab216870)

  Immunohistochemical analysis of 4% paraformaldehyde-fixed 0.2% Triton X-100 permeabilized frozen Mouse E14.5 cerebrum tissue stained for EOMES using ab216870 at 1/100 dilution in immunohistochemical analysis. The secondary antibody was Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 AlexaFluor®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution. The nuclear counterstain was DAPI (Blue). Positive staining in mouse embryonic cerebrum (PMID: 24223221) is observed. Heat mediated antigen retrieval using sodium citrate buffer (10mM citrate pH 6.0 + 0.05% Tween-20).


  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody was Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 AlexaFluor®488 Goat anti-Rabbit secondary at 1/1000 (2 μg/ml) dilution.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TBR2 / Eomes antibody [EPR21950-241] (ab216870)

  Immunohistochemical analysis of paraffin-embedded E14.5 mouse cerebral cortex tissue labeling EOMES with ab216870 at 1/1000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Nuclear staining on E14.5 mouse cerebral cortex (PMID: 18725516) The section was incubated with ab216870 for 30 mins at RT. The immunostaining staining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

•

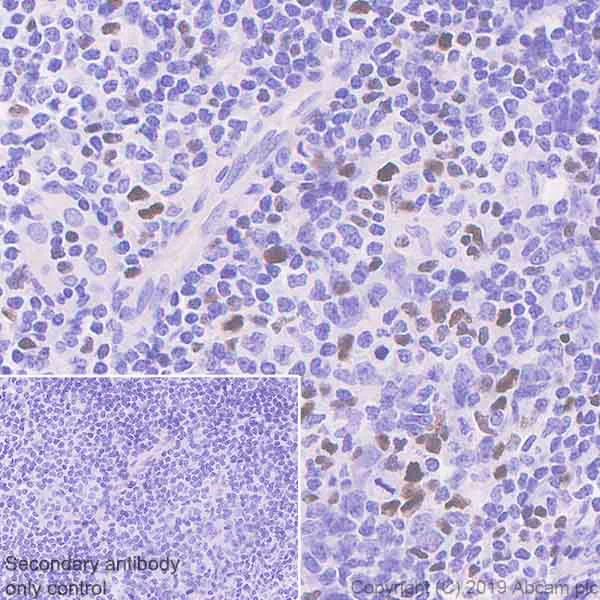

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TBR2 / Eomes antibody [EPR21950-241] (ab216870)

  Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling EOMES with ab216870 at 1/1000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Nuclear staining on human tonsil is observed. The section was incubated with ab216870 for 30 mins at RT. The immunostaining staining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.


  Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.
