Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)

Rabbit Recombinant Multiclonal TBR2 / Eomes antibody. Carrier free. Suitable for IHC-P, WB, IP, Flow Cyt (Intra), ICC/IF, IHC-Fr and reacts with Human, Mouse, Rat, Transfected cell lysate - Human samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (AB319167), expandable thumbnail

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Constituents: 100% PBS
Form: Liquid
Clonality: Multiclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	IHC-P	WB	IP	Flow Cyt (Intra)	ICC/IF	IHC-Fr
Human	Tested	Tested	Tested	Tested	Not recommended	Expected
Mouse	Tested	Tested	Tested	Tested	Tested	Tested
Rat	Tested	Not recommended	Expected	Expected	Expected	Tested
Transfected cell lysate - Human	Not recommended	Tested	Not recommended	Not recommended	Not recommended	Not recommended

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info -	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Mouse	Dilution info -	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info -	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species	Dilution info	Notes
Species Transfected cell lysate - Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Transfected cell lysate - Human, Human, Mouse	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Rat	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human, Mouse	Dilution info -	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Transfected cell lysate - Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human, Mouse	Dilution info -	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Transfected cell lysate - Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info -	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Transfected cell lysate - Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info -	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Human	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Transfected cell lysate - Human	Dilution info -	Notes -

Target data

See full target information EOMES

Function

Functions as a transcriptional activator playing a crucial role during development. Functions in trophoblast differentiation and later in gastrulation, regulating both mesoderm delamination and endoderm specification. Plays a role in brain development being required for the specification and the proliferation of the intermediate progenitor cells and their progeny in the cerebral cortex. Also involved in the differentiation of CD8+ T-cells during immune response regulating the expression of lytic effector genes.

Alternative names

TBR2, EOMES, Eomesodermin homolog, T-box brain protein 2, T-brain-2, TBR-2

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Constituents: 100% PBS
Form: Liquid
Clonality: Multiclonal
Immunogens: The exact immunogen used to generate this antibody is proprietary information.
Carrier free: Yes
Clone number: RM2055
Purification technique: Affinity purification Protein A
Specificity: Unsuitable for rat WB and human ICC.
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: +4°C

Notes

ab319167 is the carrier-free version of Anti-TBR2 / Eomes antibody [RM2055] ab319166.

This product is a recombinant multiclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

TBR2 also known as Eomes or Eomesodermin is a transcription factor with a molecular mass of approximately 72 kDa. It is a member of the T-box family and is expressed predominantly in the developing central nervous system especially in the intermediate progenitor cells in the subventricular zone of the cortex. TBR2 plays a significant role in neurogenesis by regulating the proliferation and differentiation of neuronal progenitor cells. This regulation ensures proper development of specific neural circuits critical for overall brain function.

Biological function summary

TBR2 is important in controlling the transition of neural progenitors during cortical development. It serves as an important marker for intermediate neuronal precursors highlighting its importance in the progression from radial glia to neurons. TBR2 does not function in a complex but works closely with the transcription factor Neurogenin 2 to control neuronal differentiation. Its activity determines the timing of neuronal differentiation making it indispensable for orderly cortical layer formation.

Pathways

TBR2 is involved in the Wnt signaling and Notch signaling pathways both key regulators of neurodevelopment. In the Wnt pathway TBR2 influences the balance between progenitor cell proliferation and differentiation by interacting with proteins such as Beta-catenin. In the Notch signaling pathway TBR2 modulates neural precursor cell fate decisions often in relation with proteins like DLL1. These pathways ensure proper brain structure and function by coordinating neural progenitor activity.

Associated diseases and disorders

TBR2 mutations or misregulation can lead to neurodevelopmental disorders such as microcephaly and intellectual disabilities. The protein's association with these conditions reflects its critical role in cortical development and neuronal differentiation. TBR2's dysregulation is often observed alongside the malfunction of its pathway partners like Beta-catenin in the development of such disorders illustrating the intricate interplay of genetic and molecular factors underlying these diseases.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

26 product images

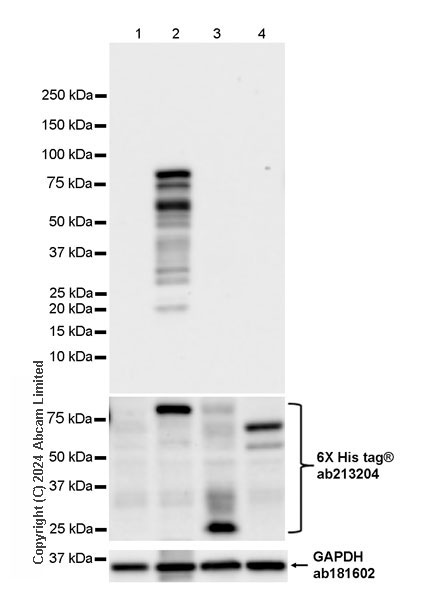

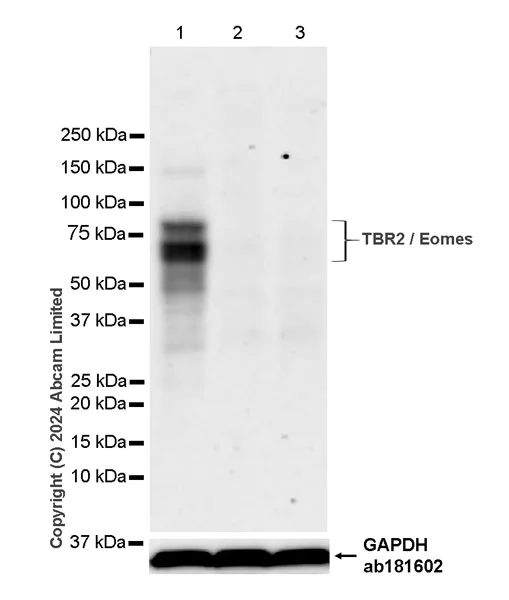

Western blot - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
This antibody does not cross-react with human TBR1 and TBX21.
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.
In Western blot, Anti-6X His tag® antibody [EPR20547] - ChIP Grade (Anti-6X His tag® antibody [EPR20547] - ChIP Grade ab213204) staining at 1/5000 dilution.
Blocking and dilution buffer and concentration: 5% NFDM/TBST
All lanes: Western blot - Anti-TBR2 / Eomes antibody [RM2055] (Anti-TBR2 / Eomes antibody [RM2055] ab319166) at 1/1000 dilution
Lane 1: 293T cells transfected with an empty vector containing a His-tag, whole cell lysate at 20 µg
Lane 2: 293T cells transfected with a human TBR2 expression vector containing a His-tag, whole cell lysate at 20 µg
Lane 3: 293T cells transfected with a human TBR1 expression vector containing a His-tag, whole cell lysate at 40 µg
Lane 4: 293T cells transfected with a human TBX21 expression vector containing a His-tag, whole cell lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Observed band size: 70-80 kDa, 36 kDa
Exposure time: 26s

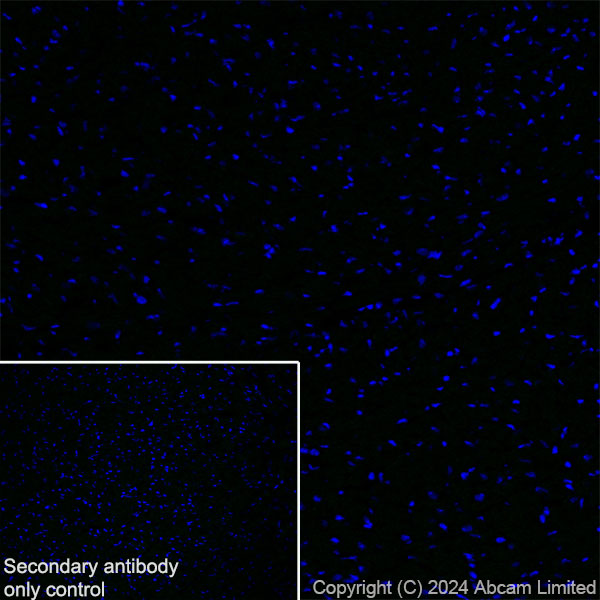

Immunohistochemistry (Frozen sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Rat heart (fresh frozen) tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/100 (4.97 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green).
MSD2027: confocal image showing no staining on rat heart. The nuclear counterstain was DAPI (Blue). The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution.

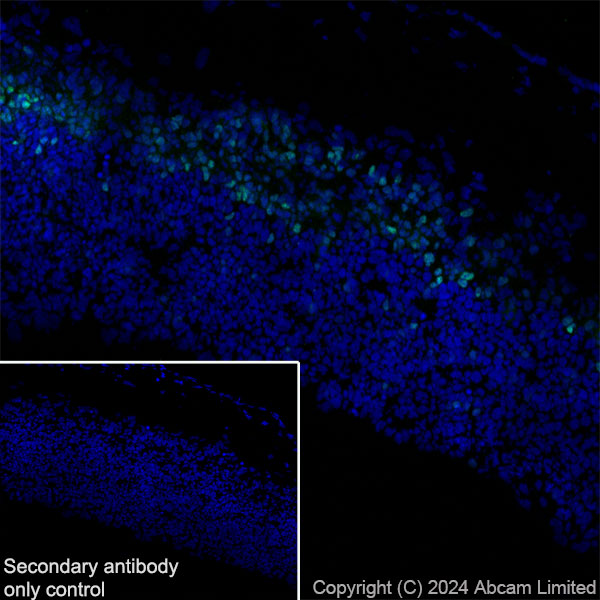

Immunohistochemistry (Frozen sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Rat E14.5 brain (fresh frozen) tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/100 (4.97 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green).
Confocal image showing positive staining on rat E14.5 brain. The nuclear counterstain was DAPI (Blue). The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution.
Immunohistochemistry (Frozen sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse heart (fresh frozen) tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/100 (4.97 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green).
MSD2027: confocal image showing no staining on mouse heart. The nuclear counterstain was DAPI (Blue). The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution.

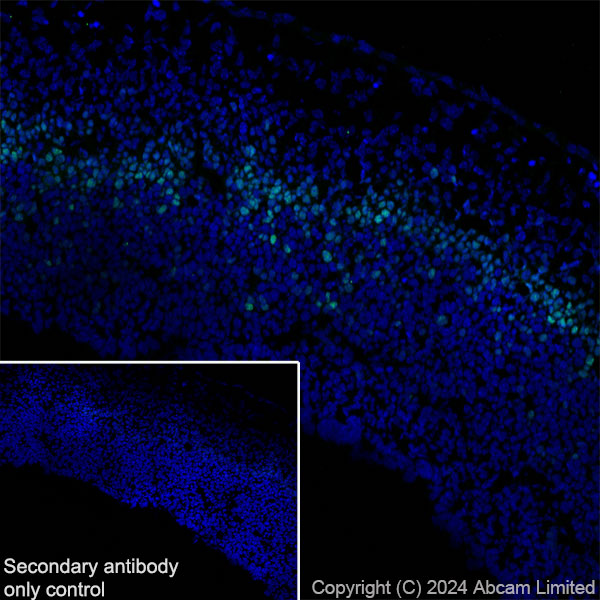

Immunohistochemistry (Frozen sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse E14.5 brain (fresh frozen) tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/100 (4.97 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green).
Confocal image showing positive staining on mouse E14.5 brain. The nuclear counterstain was DAPI (Blue). The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution.

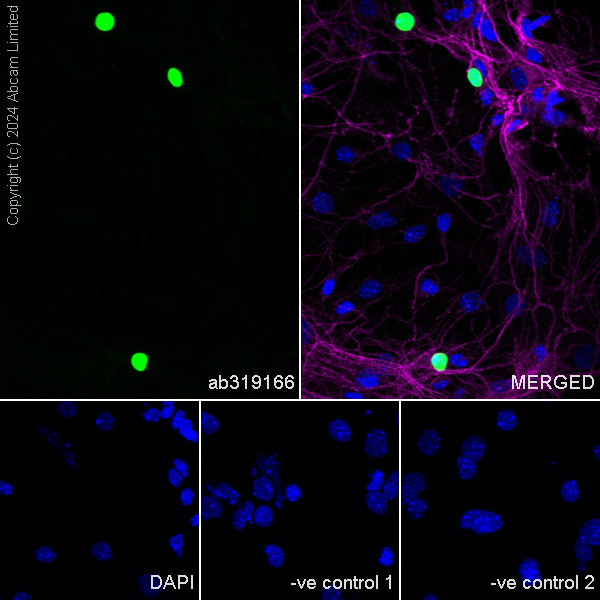

Immunocytochemistry/ Immunofluorescence - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized mouse primary neuron cells labelling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 (0.994 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green).
Confocal image showing nuclear staining in subsets of mouse primary neurons (shown in green). The counterstain was observed in magenta. Nuclear DNA was labeled with DAPI (shown in blue). Confocal scanning Z step was set as 0.3 um followed by image processing with maximum Z projection. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
Anti-MAP2 antibody [HM-2] ab11267 Anti-MAP2 mouse monoclonal antibody was used to counterstain tubulin at 1/500 4ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).
-ve control 1: Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) at 1/1000 dilution.
-ve control 2: Anti-MAP2 antibody [HM-2] ab11267 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Rat cardiac muscle tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 (0.994 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Low expression tissue: No staining in rat cardiac muscle.

The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
MSD279 antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Mouse cardiac muscle tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 (0.994 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Low expression tissue: No staining in mouse cardiac muscle.

The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
MSD279 antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Human cardiac muscle tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 (0.994 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Low expression tissue: No staining in human cardiac muscle.

The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
MSD279 antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Rat E14.5 brain tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 (0.994 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining in rat E14.5 brain.

The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
MSD279 antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

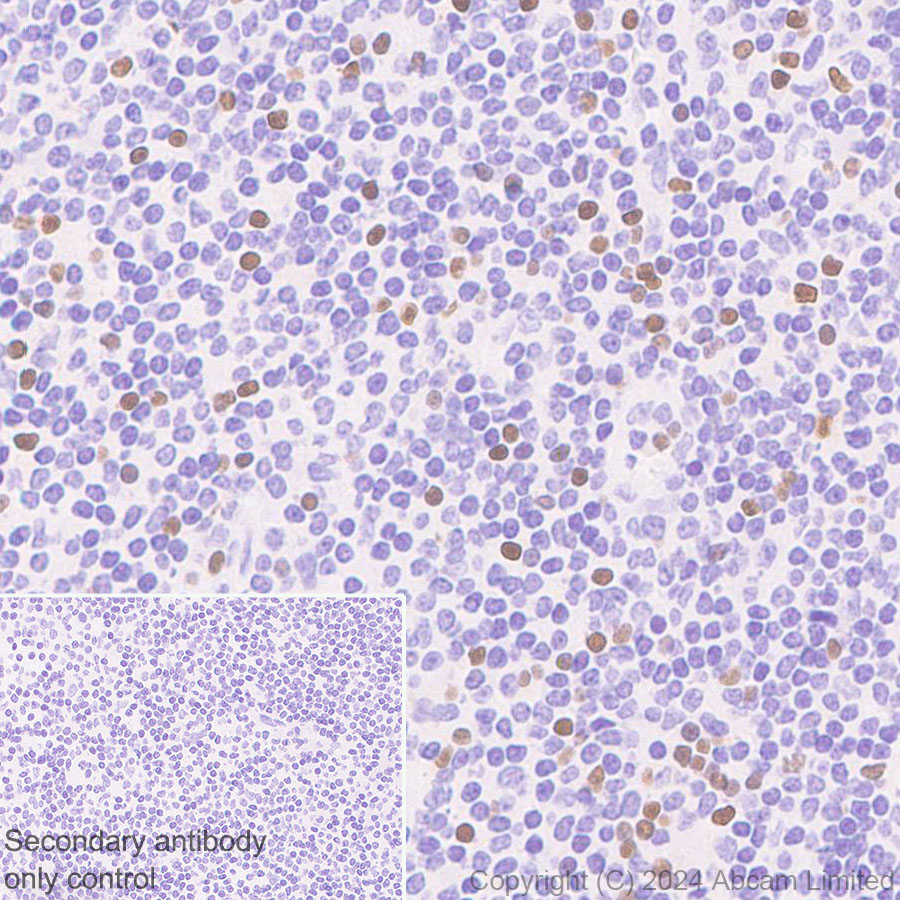

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Rat spleen tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 (0.994 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining in rat spleen.

The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
MSD279 antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Mouse E14.5 brain tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 (0.994 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining in mouse E14.5 brain.

The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
MSD279 antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 (0.994 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining in mouse spleen.

The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
MSD279 antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

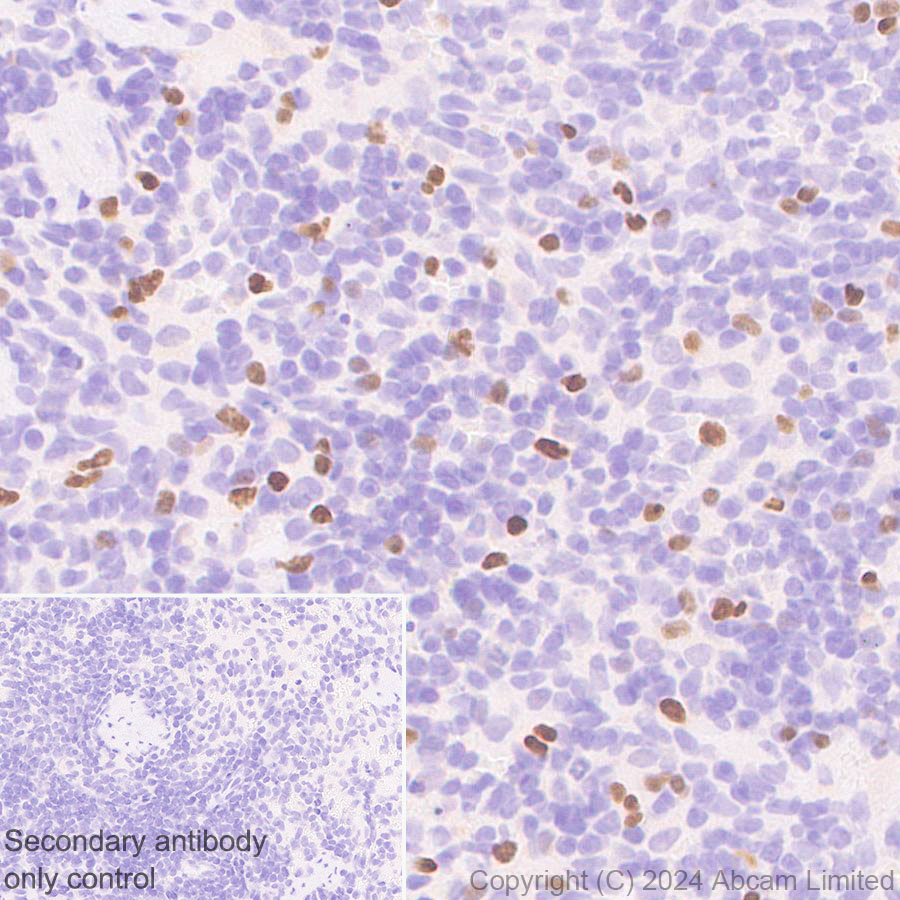

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Human hodgkin's lymphoma tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 (0.994 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining in human hodgkin's lymphoma.

The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
MSD279 antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

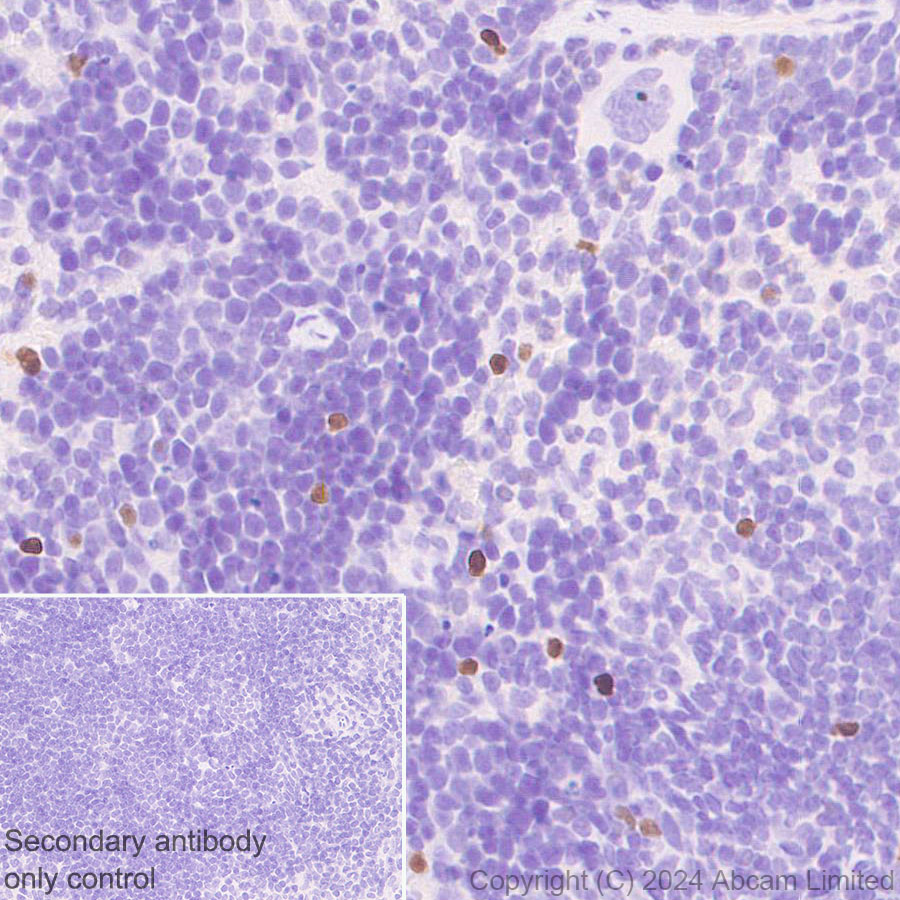

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 (0.994 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining in human tonsil.

The section was incubated with Anti-TBR2 / Eomes antibody [RM2055] ab319166 for 30 mins at room temperature.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
MSD279 antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

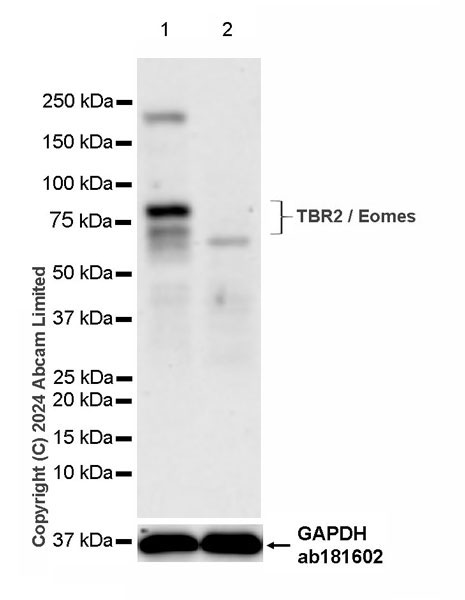

Western blot - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Low expression: heart.
The identity of the higher MW band at approximately 200 kDa (in lane 1) and the lower MW band at approximately 60 kDa (in lane 2) are unknown.
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.
Blocking and dilution buffer and concentration: 5% NFDM/TBST
All lanes: Western blot - Anti-TBR2 / Eomes antibody [RM2055] (Anti-TBR2 / Eomes antibody [RM2055] ab319166) at 1/1000 dilution
Lane 1: Mouse E17 brain tissue lysate at 50 µg
Lane 2: Mouse heart tissue lysate at 50 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Observed band size: 70-80 kDa, 36 kDa
Exposure time: 92s

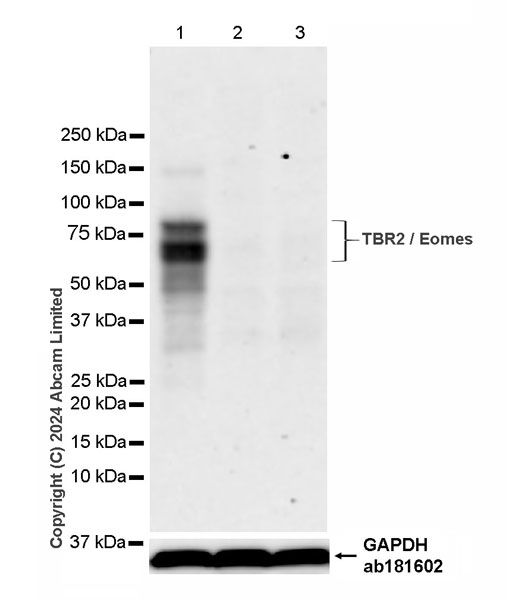

Western blot - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Negative control: HeLa, RPMI-8826.
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.
Blocking and dilution buffer and concentration: 5% NFDM/TBST
All lanes: Western blot - Anti-TBR2 / Eomes antibody [RM2055] (Anti-TBR2 / Eomes antibody [RM2055] ab319166) at 1/1000 dilution
Lane 1: No-GFP-CD16.NK-92 (CD16 ectopically expressed natural killer(NK-92®) cell with no GFP tag) whole cell lysate at 20 µg
Lane 2: HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg
Lane 3: RPMI-8226 (human plasmacytoma B Lymphocyte) whole cell lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Observed band size: 70-80 kDa, 36 kDa
Exposure time: 70s

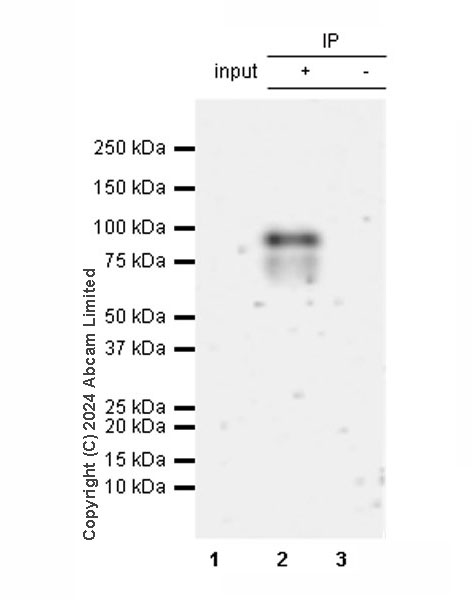

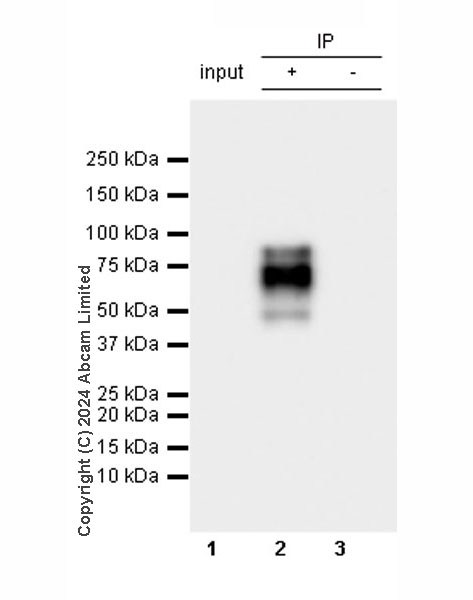

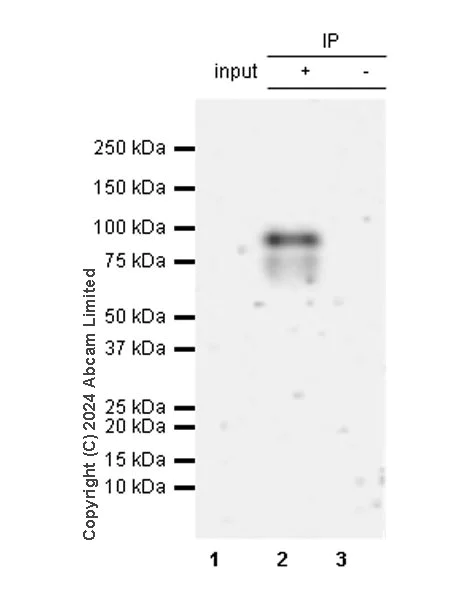

Immunoprecipitation - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
TBR2 / Eomes was immunoprecipitated from 0.35 mg Mouse E17 brain tissue lysate with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: Mouse E17 brain tissue lysate

Lane 2: Anti-TBR2 / Eomes antibody [RM2055] ab319166 IP in Mouse E17 brain tissue lysate

Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of Anti-TBR2 / Eomes antibody [RM2055] ab319166 in Mouse E17 brain tissue lysate
Blocking and dilution buffer and concentration: 5% NFDM/TBST
All lanes: Immunoprecipitation - Anti-TBR2 / Eomes antibody [RM2055] (Anti-TBR2 / Eomes antibody [RM2055] ab319166) at 1/30 dilution
All lanes: Mouse E17 brain tissue lysate
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution
Exposure time: 180s
Immunoprecipitation - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
TBR2 / Eomes was immunoprecipitated from 0.35 mg No-GFP-CD16.NK-92 (CD16 ectopically expressed natural killer(NK-92®) cell with no GFP tag) whole cell lysate with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: No-GFP-CD16.NK-92 (CD16 ectopically expressed natural killer(NK-92®) cell with no GFP tag) whole cell lysate

Lane 2: Anti-TBR2 / Eomes antibody [RM2055] ab319166 IP in No-GFP-CD16.NK-92 (CD16 ectopically expressed natural killer(NK-92®) cell with no GFP tag) whole cell lysate

Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of Anti-TBR2 / Eomes antibody [RM2055] ab319166 in No-GFP-CD16.NK-92 whole cell lysate
Blocking and dilution buffer and concentration: 5% NFDM/TBST
All lanes: Immunoprecipitation - Anti-TBR2 / Eomes antibody [RM2055] (Anti-TBR2 / Eomes antibody [RM2055] ab319166) at 1/30 dilution
All lanes: No-GFP-CD16.NK-92 (CD16 ectopically expressed natural killer(NK-92®) cell with no GFP tag) whole cell lysate
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution
Exposure time: 15s

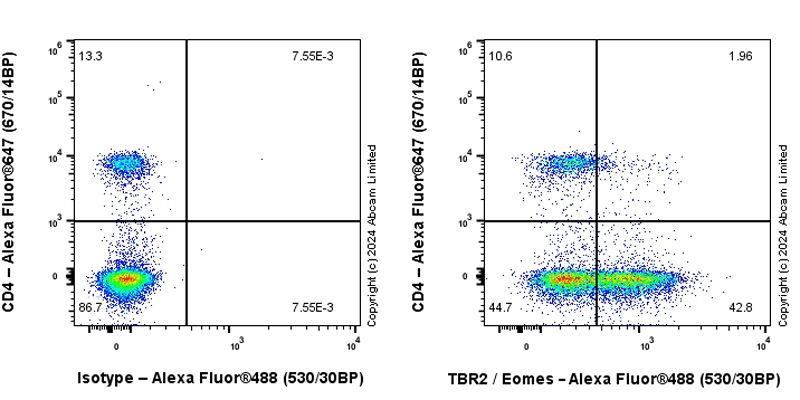

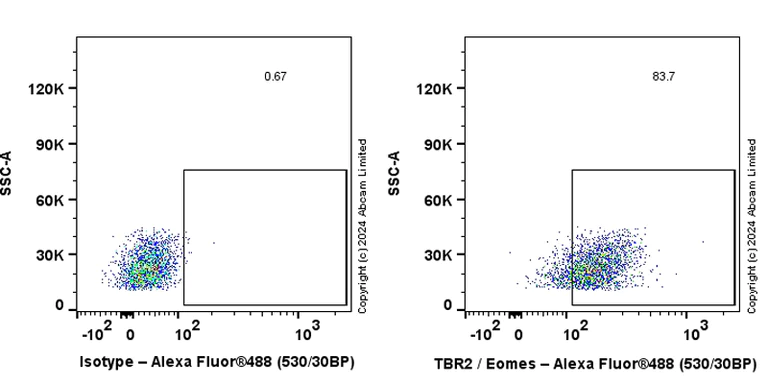

Flow Cytometry (Intracellular) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 4% paraformaldehyde fixed 0.1% Tween-20 permeabilized Human PBMC (human peripheral blood mononuclear cell) cells labelling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/5000 dilution (0.01ug) / Right (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.
Cells were co-stained with anti human CD4 conjugated to Alexa Fluor®647.

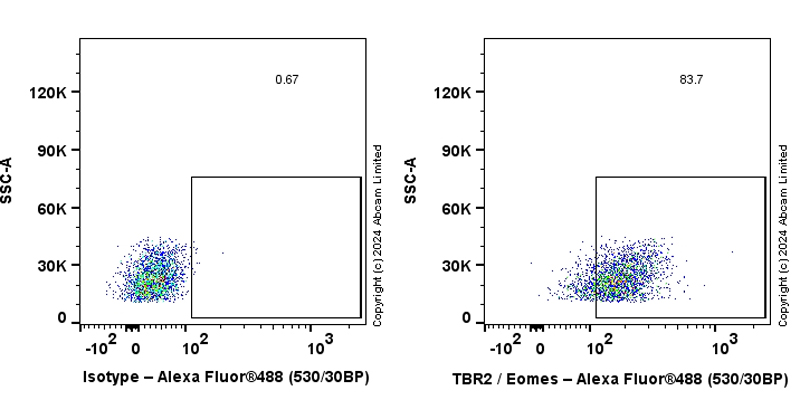

Flow Cytometry (Intracellular) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Mouse primary neuron cells labelling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/50 dilution (1ug) / Right (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.

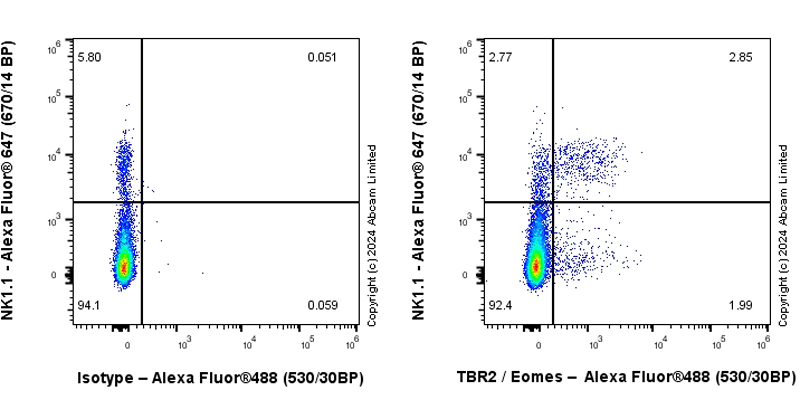

Flow Cytometry (Intracellular) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 4% paraformaldehyde fixed 0.1% Tween-20 permeabilized Mouse spleen cell cells labelling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 dilution (0.1ug) / right (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.
Cells were co-stained with anti mouse NK1.1 conjugated to Alexa Fluor®647.

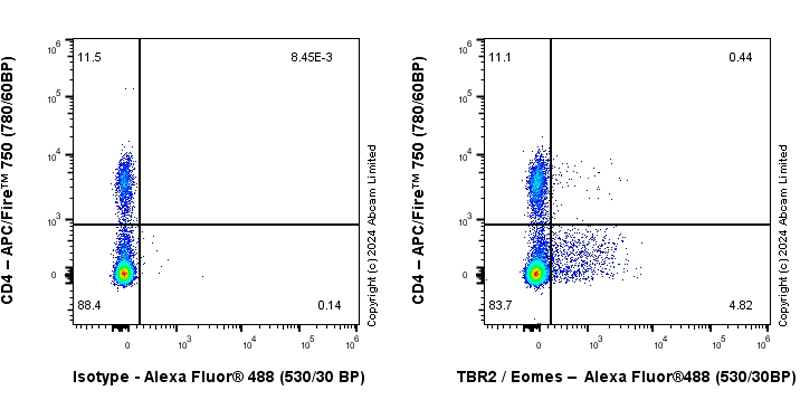

Flow Cytometry (Intracellular) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 4% paraformaldehyde fixed 0.1% Tween-20 permeabilized Mouse spleen cell cells labelling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 dilution (0.1ug) / right (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.
Cells were co-stained with anti mouse CD4 conjugated to APC/Fire™ 750.

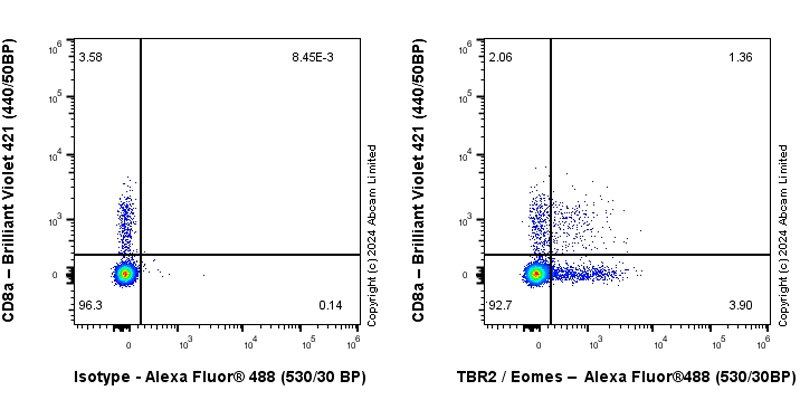

Flow Cytometry (Intracellular) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 4% paraformaldehyde fixed 0.1% Tween-20 permeabilized Mouse spleen cell cells labelling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 dilution (0.1ug) / right (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.
Cells were co-stained with anti mouse CD8a conjugated to Brilliant Violet 421.

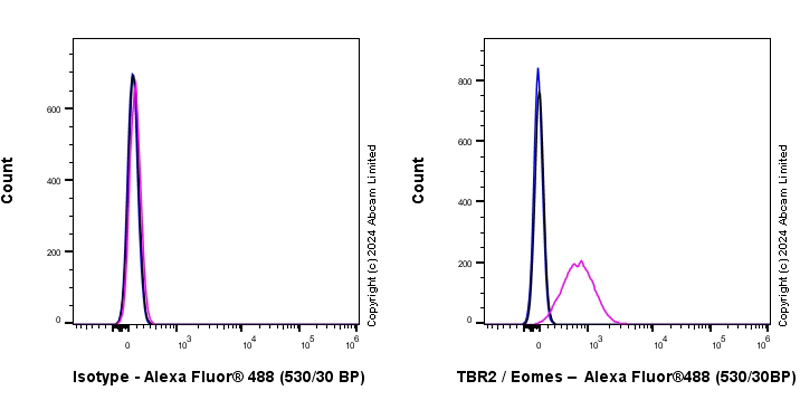

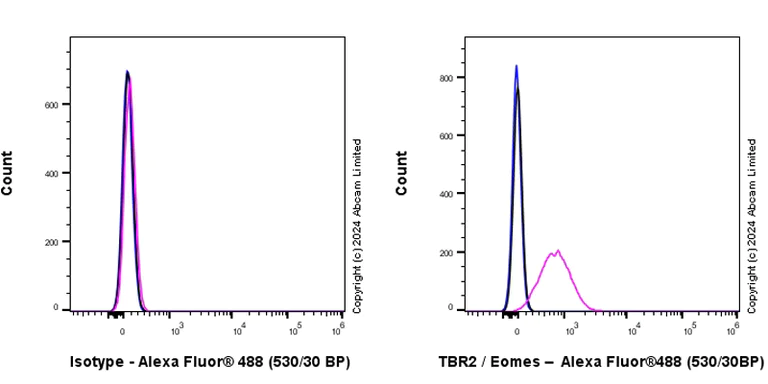

Flow Cytometry (Intracellular) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized No-GFP-CD16.NK-92 (CD16 ectopically expressed natural killer(NK-92®) cell with no GFP tag) (Right) / HeLa (human cervical adenocarcinoma epithelial cell) (Left) cells labelling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/500 dilution (0.1ug) / Magenta (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.
Negative control: HeLa.

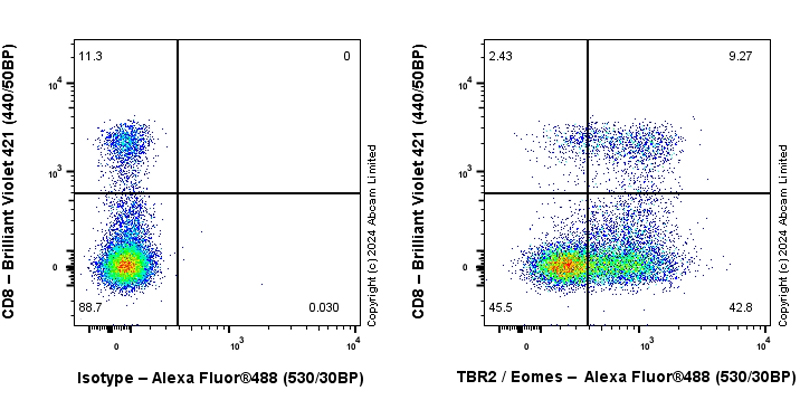

Flow Cytometry (Intracellular) - Anti-TBR2 / Eomes antibody [RM2055] - BSA and Azide free (ab319167)
This data was developed using Anti-TBR2 / Eomes antibody [RM2055] ab319166, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 4% paraformaldehyde fixed 0.1% Tween-20 permeabilized Human PBMC (human peripheral blood mononuclear cell) cells labelling TBR2 / Eomes with Anti-TBR2 / Eomes antibody [RM2055] ab319166 at 1/5000 dilution (0.01ug) / Right (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.
Cells were co-stained with anti human CD8 conjugated to Brilliant Violet 421.
