Anti-TCTP antibody

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-TCTP antibody (AB37506)

ICC/IF image of ab37506 stained human HeLa cells. The cells were MeOH fixed (5 min), permabilised in TBS-T (20 min) and incubated with the antibody (ab37506, 5μg/ml) for 1h at room temperature. 1%BSA / 10% normal serum / 0.3M glycine was used to quench autofluorescence and block non-specific protein-protein interactions. The secondary antibody (green) was Alexa Fluor® 488 goat anti-rabbit IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red). DAPI was used to stain the cell nuclei (blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-TCTP antibody (AB37506)

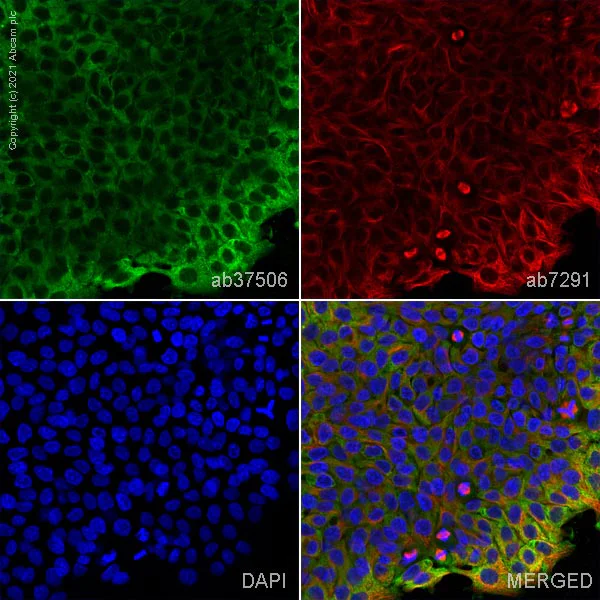

ab37506 staining TCTP in A431 cells. The cells were fixed with 100% methanol (5 min), permeabilized with 0.1% PBS-Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab37506 at 1µg/ml and ab7291, Mouse monoclonal [DM1A] to alpha Tubulin - Loading Control. Cells were then incubated with ab150081, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor^® 488), pre-adsorbed at 1/1000 dilution (shown in green) and ab150120, Goat polyclonal Secondary Antibody to Mouse IgG - H&L (Alexa Fluor^® 594), pre-adsorbed at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

• WB

Project2552****

Western blot - Anti-TCTP antibody (AB37506)

All lanes:

Western blot - Anti-TCTP antibody (ab37506) at 1 µg/mL

Lane 1:

Western blot - NIH/3T3 whole cell lysate (<a href='/en-us/products/cell-lysates/nih-3t3-whole-cell-lysate-ab7179'>ab7179</a>) at 10 µg

Lane 2:

MEF1 (Mouse embryonic fibroblast cell line) Whole Cell Lysate at 10 µg

Lane 3:

Western blot - Mouse pancreas tissue lysate - total protein (<a href='/en-us/products/tissue-lysates/mouse-pancreas-tissue-lysate-total-protein-ab29363'>ab29363</a>) at 10 µg

Lane 4:

Testis (Mouse) Tissue Lysate - normal tissue at 10 µg

Lane 5:

Spinal Cord (Mouse) Tissue Lysate at 10 µg

Lane 6:

Ovary (Mouse) Tissue Lysate - normal tissue at 10 µg

Lane 7:

PC12 (Rat adrenal pheochromocytoma cell line) Whole Cell Lysate at 10 µg

Lane 8:

Liver (Rat) Tissue Lysate at 10 µg

Secondary

All lanes:

IRDye 680 Conjugated Goat Anti-Rabbit IgG (H+L) at 1/10000 dilution

Predicted band size: 20 kDa

Observed band size: 22 kDa,52 kDa

false

• WB

Project2552****

Western blot - Anti-TCTP antibody (AB37506)

All lanes:

Western blot - Anti-TCTP antibody (ab37506) at 1/250 dilution

Lane 1:

HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg

Lane 2:

Western blot - Jurkat whole cell lysate (<a href='/en-us/products/cell-lysates/jurkat-whole-cell-lysate-ab7899'>ab7899</a>) at 10 µg

Lane 3:

Western blot - A-431 whole cell lysate (<a href='/en-us/products/cell-lysates/a-431-whole-cell-lysate-ab7909'>ab7909</a>) at 10 µg

Lane 4:

Western blot - HEK-293 whole cell lysate (<a href='/en-us/products/cell-lysates/hek-293-whole-cell-lysate-ab7902'>ab7902</a>) at 10 µg

Lane 5:

Hep G2 whole cell lysate (<a href='/en-us/products/unavailable/hep-g2-whole-cell-lysate-ab7900'>ab7900</a>) at 10 µg

Lane 6:

MCF-7 (Human breast adenocarcinoma cell line) Whole Cell Lysate at 10 µg

Lane 7:

U2OS (Human osteosarcoma cell line) Whole Cell Lysate at 10 µg

Secondary

All lanes:

IRDye 680 Conjugated Goat Anti-Rabbit IgG (H+L) at 1/15000 dilution

Predicted band size: 20 kDa

Observed band size: 22 kDa
