Rabbit Recombinant Monoclonal Thrombomodulin antibody. Suitable for IHC-P, IP, WB, ICC/IF, Flow Cyt (Intra) and reacts with Human samples. Cited in 13 publications.


Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (AB109189), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-Thrombomodulin antibody [EPR4051] (AB109189), expandable thumbnail
  • Immunoprecipitation - Anti-Thrombomodulin antibody [EPR4051] (AB109189), expandable thumbnail
  • Western blot - Anti-Thrombomodulin antibody [EPR4051] (AB109189), expandable thumbnail
  • Flow Cytometry (Intracellular) - Anti-Thrombomodulin antibody [EPR4051] (AB109189), expandable thumbnail

Publications

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PIPWBICC/IFFlow Cyt (Intra)
Human
Tested
Tested
Tested
Tested
Tested

Tested
Tested

Species

Human

Dilution info

1/100 - 1/1000

Notes

Perform heat-mediated antigen retrieval before commencing with IHC staining protocol.

Tested
Tested

Species

Human

Dilution info

1/10 - 1/100

Notes

-

Tested
Tested

Species

Human

Dilution info

1/1000 - 1/10000

Notes

-

Tested
Tested

Species

Human

Dilution info

1/100 - 1/300

Notes

-

Tested
Tested

Species

Human

Dilution info

-

Notes

Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody.

Associated Products

Select an associated product type

15 products for Alternative Product

1 product for Alternative Version

Target data

Function

Endothelial cell receptor that plays a critical role in regulating several physiological processes including hemostasis, coagulation, fibrinolysis, inflammation, and angiogenesis (PubMed:10761923). Acts as a cofactor for thrombin activation of protein C/PROC on the surface of vascular endothelial cells leading to initiation of the activated protein C anticoagulant pathway (PubMed:29323190, PubMed:33836597, PubMed:9395524). Also accelerates the activation of the plasma carboxypeptidase B2/CPB2, which catalyzes removal of C-terminal basic amino acids from its substrates including kinins or anaphylatoxins leading to fibrinolysis inhibition (PubMed:26663133). Plays critical protective roles in changing the cleavage specificity of protease-activated receptor 1/PAR1, inhibiting endothelial cell permeability and inflammation (By similarity). Suppresses inflammation distinctly from its anticoagulant cofactor activity by sequestering HMGB1 thereby preventing it from engaging cellular receptors such as RAGE and contributing to the inflammatory response (PubMed:15841214).

Alternative names

Recommended products

Rabbit Recombinant Monoclonal Thrombomodulin antibody. Suitable for IHC-P, IP, WB, ICC/IF, Flow Cyt (Intra) and reacts with Human samples. Cited in 13 publications.

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

EPR4051

Purification technique

Affinity purification Protein A

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Stable for 12 months at -20°C

Notes

Mouse, Rat: We have preliminary internal testing data to indicate this antibody may not react with these species. Please contact us for more information.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

Thrombomodulin also known as CD141 is a glycoprotein with a mass of approximately 74 kDa. It is an integral membrane protein expressed on the surface of endothelial cells. Thrombomodulin acts mechanically by binding thrombin an enzyme involved in blood coagulation to modulate its activity. This binding substantially alters thrombin's substrate specificity turning it into an anticoagulant enzyme that activates protein C instead of a procoagulant enzyme.

Biological function summary

Thrombomodulin regulates blood coagulation and maintains hemostatic balance. It forms a complex with thrombin on endothelial cells facilitating the conversion of protein C to activated protein C (APC). Activated protein C plays a pivotal role in controlling blood clot formation by proteolytically inactivating Factors Va and VIIIa. This function is important for preventing excessive clotting while ensuring proper wound healing processes.

Pathways

Thrombomodulin works chiefly within the anticoagulation pathway. It interacts directly with the thrombin-protein C pathway to achieve the activation of protein C. Additionally it interfaces with other pathways sharing mutual components such as endothelial cell proliferation and inflammation modulation. Related proteins include thrombin and protein C along with protein S which serves as a cofactor for APC's anticoagulant actions.

Associated diseases and disorders

Thrombomodulin dysregulation can lead to thrombosis and vascular inflammation. A deficiency or altered expression of thrombomodulin has been linked to thromboembolic disorders and atherosclerosis. In these conditions improper activation of protein C in the presence of decreased thrombomodulin function can exacerbate clot formation. Monitoring the levels of proteins like thrombin and protein C within these diseases can provide insights into endothelial dysfunction and potential therapeutic approaches.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

13 product images

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

    Immunohistochemical staining of paraffin embedded human lung with purified ab109189 at a working dilution of 1/1000. The secondary antibody used is HRP goat anti-rabbit IgG H&L (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

  • Immunocytochemistry/ Immunofluorescence - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

    Immunofluorescence staining of A431 cells with purified ab109189 at a working dilution of 1/300, counter-stained with DAPI. The secondary antibody was Alexa Fluor® 488 goat anti-rabbit (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077), used at a dilution of 1/1000. Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291, a mouse anti-tubulin antibody (1/1000), was used to stain tubulin along with Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 (Alexa Fluor® 594 goat anti-mouse, 1/1000), shown in the top right hand panel. The cells were fixed in 4% PFA and permeabilized using 0.1% Triton X 100. The negative controls are shown in bottom middle and right hand panels - for negative control 1, purified ab109189 was used at a dilution of 1/500 followed by an Alexa Fluor® 594 goat anti-mouse antibody (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) at a dilution of 1/500. For negative control 2, Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (mouse anti-tubulin) was used at a dilution of 1/500 followed by an Alexa Fluor® 488 goat anti-rabbit antibody (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at a dilution of 1/400.

  • Immunoprecipitation - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail

    Immunoprecipitation - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

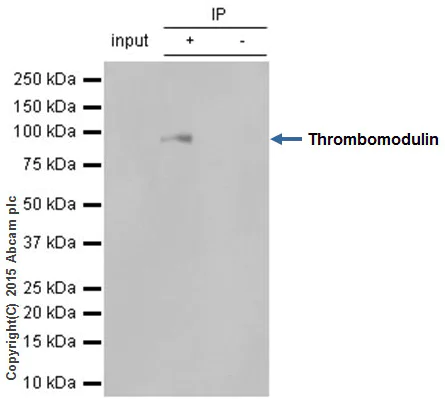

    ab109189 (purified) at 1/90 immunoprecipitating thrombomodulin in 10 μg human placenta whole cell lysate (Lanes 1 and 2, observed at 100 kDa). Lane 3 - PBS. For western blotting, VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/10,000 dilution. Blocking buffer and concentration: 5% NFDM/TBST Dilution buffer and concentration: 5% NFDM/TBST

    All lanes: Immunoprecipitation - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

    Predicted band size: 60 kDa

  • Western blot - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail

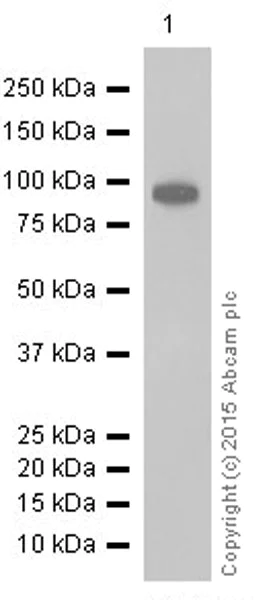

    Western blot - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

    Blocking buffer: 5% NFDM/TBST
    Dilution buffer: 5% NFDM/TBST

    All lanes: Western blot - Anti-Thrombomodulin antibody [EPR4051] (ab109189) at 1/10000 dilution

    All lanes: human placenta lysate at 10 µg

    Secondary

    All lanes: HRP goat anti-rabbit IgG (H+L) at 1/1000 dilution

    Predicted band size: 60 kDa

    Observed band size: 100 kDa

  • Flow Cytometry (Intracellular) - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail

    Flow Cytometry (Intracellular) - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

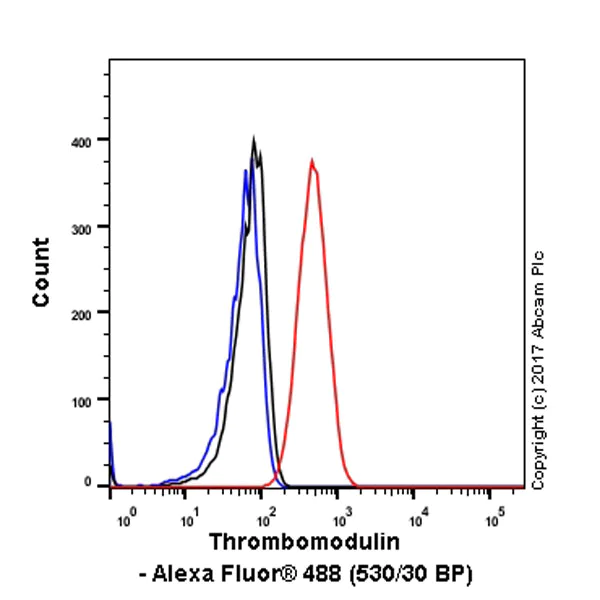

    Intracellular Flow Cytometry analysis of A431 (human epidermoid carcinoma) cells labeling Thrombomodulin with purified ab109189 at 1/150 (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) (1/2000 dilution) was used as the secondary antibody. Rabbit IgG, monoclonal [EPR25A] - Isotype Control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (Blue) were used as the unlabeled control.

  • Immunocytochemistry/ Immunofluorescence - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

    Unpurified ab109189, at 1/100 dilution, staining Thombomodulin in A431 cells by Immunofluorescence.

  • Western blot - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail

    Western blot - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

    All lanes: Western blot - Anti-Thrombomodulin antibody [EPR4051] (ab109189) at 1/1000 dilution

    Lane 1: THP-1 cell lysate at 10 µg

    Lane 2: Human placenta lysate at 10 µg

    Lane 3: Human heart lysate at 10 µg

    Predicted band size: 60 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

    Unpurified ab109189, at 1/100 dilution, staining Thrombomodulin in Human placenta tissue by Immunohistochemistry.

    Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

    Unpurified ab109189, at 1/100 dilution, staining Thrombomodulin in Human squamous cervical carcinoma tissue by Immunohistochemistry.

    Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

    Immunohistochemical analysis of paraffin embedded normal Human spleen tissue using unpurified ab109189 showing +ve staining.

    Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

    Immunohistochemical analysis of paraffin embedded normal Human tonsil tissue using unpurified ab109189 showing +ve staining.

    Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail
    This image is courtesy of an anonymous customer review.

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

    Unpurified ab109189 staining Thrombomodulin in Human artery tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with formaldehyde and blocked with 20% serum for 60 minutes at 21°C; antigen retrieval was by heat mediation in a citrate buffer. Samples were incubated with primary antibody (1/200) for 16 hours at 4°C. A Biotin-conjugated Goatanti-rabbit polyclonal (1/200) was used as the secondary antibody.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thrombomodulin antibody [EPR4051] (ab109189)

    Immunohistochemical analysis of paraffin embedded normal Human lung tissue using unpurified ab109189 showing +ve staining.

    Perform heat mediated antigen retrieval before commencing with IHC staining protocol.
