Anti-Thymidylate Synthase antibody [TYMS/1884]

• ICC

Supplier Data

Immunocytochemistry - Anti-Thymidylate Synthase antibody [TYMS/1884] (AB224649)

Flow Cytometry analysis of PFA-fixed Ramos (human Burkitt's lymphoma cell line) cells labeling Thymidylate Synthase with ab224649 at 2 μg/mL followed by Goat anti-Mouse IgG-CF488 (Green). Membrane is labeled with Phalloidin (Red).

• Flow Cyt

Supplier Data

Flow Cytometry - Anti-Thymidylate Synthase antibody [TYMS/1884] (AB224649)

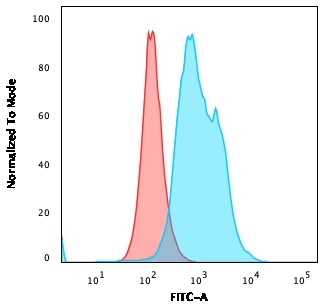

Flow Cytometry analysis of PFA-fixed MOLT-4 (human lymphoblastic leukemia cell line) cells labeling Thymidylate Synthase with ab224649 at 2 μg/10⁶ cells followed by goat anti-Mouse IgG-CF488 (Blue); Isotype Control (Red).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Thymidylate Synthase antibody [TYMS/1884] (AB224649)

Formalin-fixed paraffin-embedded human tonsil tissue stained for Thymidylate Synthase using ab224649 at 2 μg/ml in immunohistochemical analysis.

• Protein Array

Unknown

Protein Array - Anti-Thymidylate Synthase antibody [TYMS/1884] (AB224649)

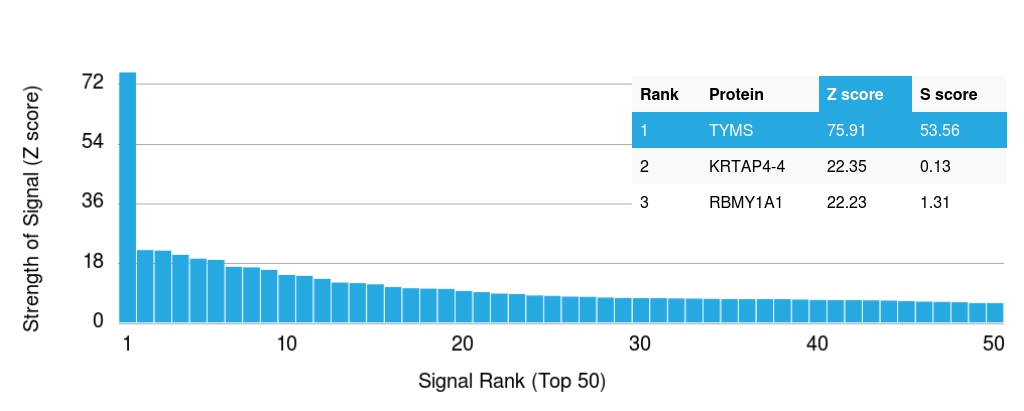

ab224649 was tested in protein array against over 19000 different full-length human proteins.
Z- and S- Score : The Z-score represents the strength of a signal that a monoclonal antibody (MAb) (in combination with a fluorescently-tagged anti-IgG secondary antibody) produces when binding to a particular protein on the HuProtTM array. Z-scores are described in units of standard deviations (SD's) above the mean value of all signals generated on that array. If targets on HuProtTM are arranged in descending order of the Z-score the S-score is the difference (also in units of SD's) between the Z-score. S-score therefore represents the relative target specificity of a MAb to its intended target.
A MAb is specific to its intended target if the MAb has an S-score of at least 2.5. For example if a MAb binds to protein X with a Z-score of 43 and to protein Y with a Z-score of 14 then the S-score for the binding of that MAb to protein X is equal to 29.

• WB

Supplier Data

Western blot - Anti-Thymidylate Synthase antibody [TYMS/1884] (AB224649)

All lanes:

Western blot - Anti-Thymidylate Synthase antibody [TYMS/1884] (ab224649) at 2 µg/mL

All lanes:

HeLa (human epithelial cell line from cervix adenocarcinoma) whole cell lysate

Predicted band size: 36 kDa
