Rabbit Recombinant Monoclonal TIGIT antibody. Suitable for ICC/IF, Flow Cyt and reacts with Human samples.

Be the first to review this product! Submit a review

Images

Immunocytochemistry/ Immunofluorescence - Anti-TIGIT antibody [EPR28146-94] (AB321793), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-TIGIT antibody [EPR28146-94] (AB321793), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-TIGIT antibody [EPR28146-94] (AB321793), expandable thumbnail
  • Flow Cytometry - Anti-TIGIT antibody [EPR28146-94] (AB321793), expandable thumbnail
  • Flow Cytometry - Anti-TIGIT antibody [EPR28146-94] (AB321793), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Abcam Recommends

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
ICC/IFFlow CytWBIHC-P
Human
Tested
Tested
Not recommended
Not recommended

Tested
Tested

Species
Human
Dilution info
1/100
Notes

-

Tested
Tested

Species
Human
Dilution info
1/500
Notes

-

Not recommended
Not recommended

Species
Human
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Human
Dilution info
-
Notes

-

Target data

Function

Inhibitory receptor that plays a role in the modulation of immune responses. Suppresses T-cell activation by promoting the generation of mature immunoregulatory dendritic cells (PubMed:19011627). Upon binding to its ligands PVR/CD155 or NECTIN2/CD112, which are expressed on antigen-presenting cells, sends inhibitory signals to the T-cell or NK cell. Mechanistically, interaction with ligand leads to phosphorylation of the cytoplasmic tail by Src family tyrosine kinases such as FYN or LCK, allowing subsequent binding to adapter GRB2 and SHIP1/INPP5D. In turn, inhibits PI3K and MAPK signaling cascades (PubMed:23154388). In addition, associates with beta-arrestin-2/ARRB2 to recruit SHIP1/INPP5D that suppresses autoubiquitination of TRAF6 and subsequently inhibits NF-kappa-B signaling pathway (PubMed:24817116). Acts also as a receptor for NECTIN4 to inhibit NK cell cytotoxicity (PubMed:32503945).

Alternative names

VSIG9, VSTM3, TIGIT, T-cell immunoreceptor with Ig and ITIM domains, V-set and immunoglobulin domain-containing protein 9, V-set and transmembrane domain-containing protein 3

Rabbit Recombinant Monoclonal TIGIT antibody. Suitable for ICC/IF, Flow Cyt and reacts with Human samples.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR28146-94
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

TIGIT also known as T cell immunoreceptor with Ig and ITIM domains is an immunoglobulin superfamily receptor. It weighs approximately 26 kDa. TIGIT commonly expresses on T cells especially on regulatory T cells (Tregs) and effector memory T cells. It also presents on natural killer (NK) cells. Among its alternate forms some notable ones also include the anti-TIGIT and biotinylated TIGIT antibodies used in experimental research to monitor immune responses.

Biological function summary

TIGIT acts as an inhibitory receptor modulating immune responses. It belongs to the CD28 family and binds to poliovirus receptor (PVR) and nectin-2 on antigen-presenting cells. This interaction inhibits T cell activation and proliferation and increases Treg cell activity maintaining immune homeostasis. TIGIT forms a complex with other inhibitory receptors like PD-1 2B4 and CD96 to further regulate immune functions.

Pathways

The interaction of TIGIT with its ligands significantly affects the immune checkpoint pathway. This involvement regulates T cell and NK cell activity. TIGIT is related to CD226 (DNAM-1) which competes for binding to its ligands influencing cellular signaling pathways. Through these pathways TIGIT signals through the downstream SHP-1 and SHP-2 proteins affecting immune cell signaling and response.

Associated diseases and disorders

TIGIT has implications in cancer and autoimmune diseases. Its inhibitory function can allow tumor progression by dampening effective anti-tumor immunity. In cancer TIGIT’s activity often pairs with PD-1 both contributing to immune checkpoint blockade resistance necessary for tumor evasion. In autoimmune diseases increased TIGIT expression could result in reduced immune cell attack against self tissues showing its potential to modulate treatment strategies.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

8 product images

  • Immunocytochemistry/ Immunofluorescence - Anti-TIGIT antibody [EPR28146-94] (ab321793), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-TIGIT antibody [EPR28146-94] (ab321793)

    Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Tween-20 permeabilized HDLM-2 (human Hodgkin lymphoma cell) cells labelling TIGIT with ab321793 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

    Low expression: Confocal image showing no staining in HDLM-2 cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).

    Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

    Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

    Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

  • Immunocytochemistry/ Immunofluorescence - Anti-TIGIT antibody [EPR28146-94] (ab321793), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-TIGIT antibody [EPR28146-94] (ab321793)

    Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Tween-20 permeabilized No-GFP-CD16.NK-92 (CD16 ectopically expressed natural killer(NK-92®) cell with no GFP tag) cells labelling TIGIT with ab321793 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

    Confocal image showing membranous staining in No-GFP-CD16.NK-92 cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).

    Negative control: PC-3.

    Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

    Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

    Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

  • Immunocytochemistry/ Immunofluorescence - Anti-TIGIT antibody [EPR28146-94] (ab321793), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-TIGIT antibody [EPR28146-94] (ab321793)

    Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Tween-20 permeabilized Human PBMC (human primary peripheral blood mononuclear cell) cells labelling TIGIT with ab321793 at 1/100 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 dilution (Green).

    Confocal image showing cytoplasmic staining in subsets of human PBMCs (shown in green), which is partial co-stain with CD3, the T cell maker. The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

    Anti-human CD3 mouse monoclonal antibody (Alexa Fluor® 647) was used to counterstain tubulin at 1/200 dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

    Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 dilution.

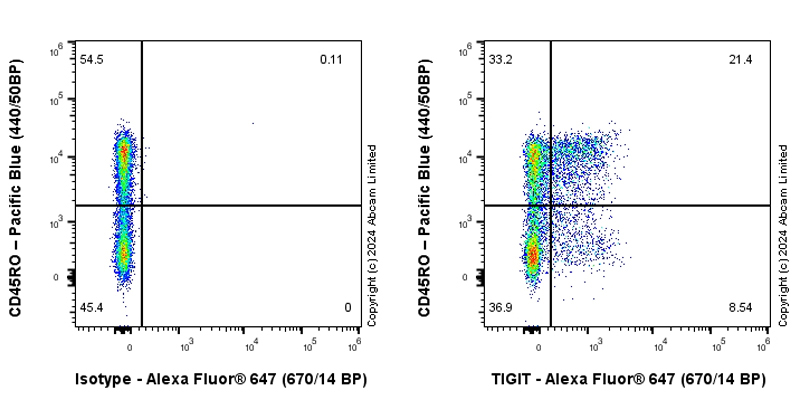

  • Flow Cytometry - Anti-TIGIT antibody [EPR28146-94] (ab321793), expandable thumbnail

    Flow Cytometry - Anti-TIGIT antibody [EPR28146-94] (ab321793)

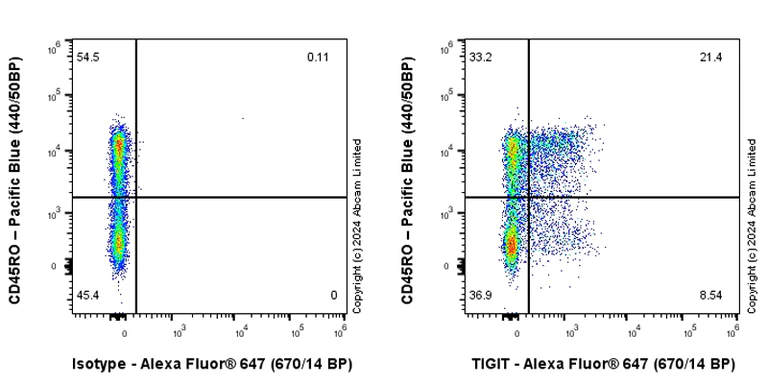

    Flow cytometric analysis of Human PBMC (human peripheral blood mononuclear cell) cells labelling TIGIT with ab321793 at 1/500 dilution (0.1ug) / Right compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

    Goat anti-Rabbit IgG (Alexa Fluor® 647, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 647) preadsorbed ab150083) at 1/5000 dilution was used as the secondary antibody.

    Cells were co-stained with anti human CD45RO conjugated to Pacific Blue.

    Gated on viable CD3+ T Lymphocytes.

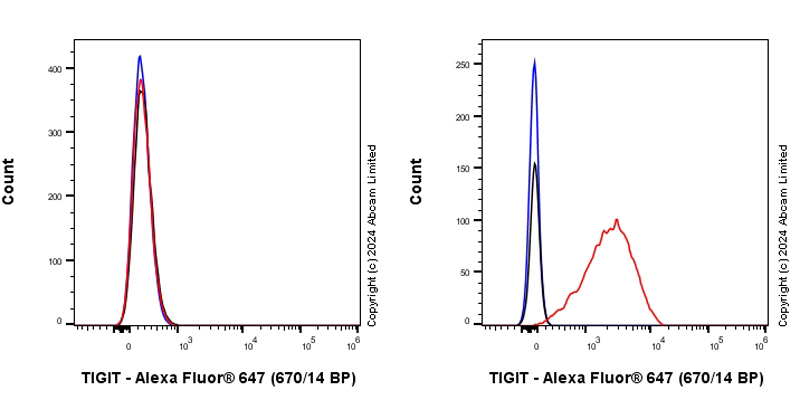

  • Flow Cytometry - Anti-TIGIT antibody [EPR28146-94] (ab321793), expandable thumbnail

    Flow Cytometry - Anti-TIGIT antibody [EPR28146-94] (ab321793)

    Flow cytometric analysis of No-GFP-CD16.NK-92 (CD16 ectopically expressed natural killer(NK-92®) cell with no GFP tag) (right) / PC-3 (human prostate adenocarcinoma epithelial cell) (Left) cells labelling TIGIT with ab321793 at 1/500 dilution (0.1ug) (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

    Goat anti-Rabbit IgG (Alexa Fluor® 647, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 647) preadsorbed ab150083) at 1/5000 dilution was used as the secondary antibody.

    Gated on viable cells.

    Negative control: PC-3.

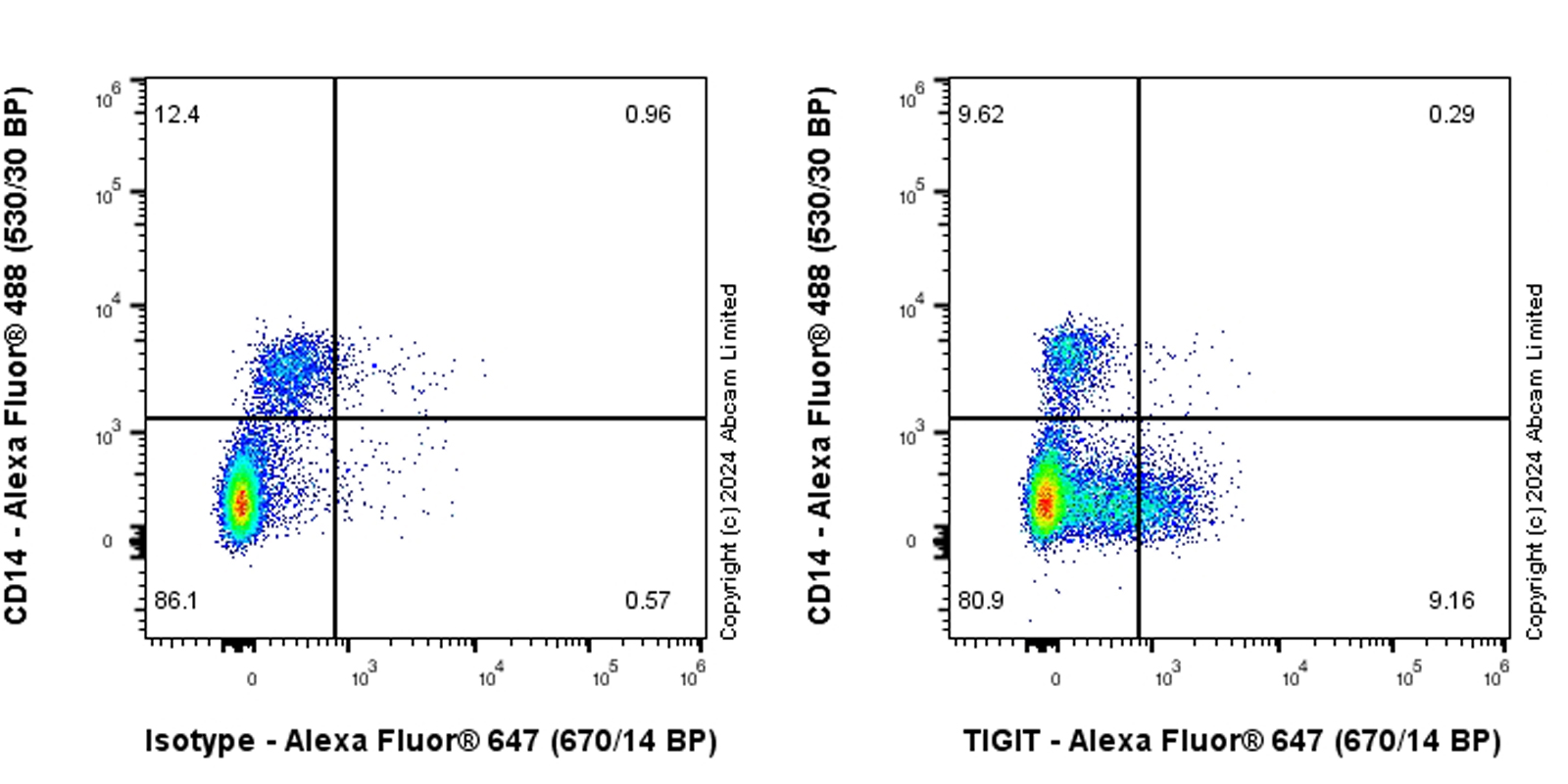

  • Flow Cytometry - Anti-TIGIT antibody [EPR28146-94] (ab321793), expandable thumbnail

    Flow Cytometry - Anti-TIGIT antibody [EPR28146-94] (ab321793)

    Flow cytometric analysis of Human PBMC (human peripheral blood mononuclear cell) cells labelling TIGIT with ab321793 at 1/500 dilution (0.1ug) / Right compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

    Goat anti-Rabbit IgG (Alexa Fluor® 647, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 647) preadsorbed ab150083) at 1/5000 dilution was used as the secondary antibody.

    Cells were co-stained with anti human CD14 conjugated to Alexa Fluor®488.

    Gated on viable cell.

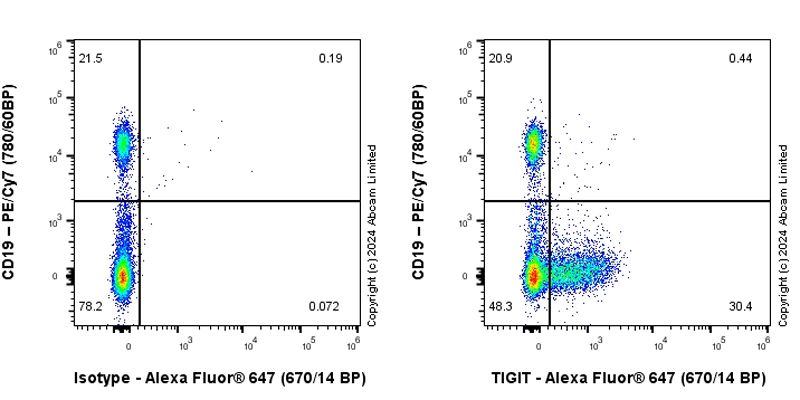

  • Flow Cytometry - Anti-TIGIT antibody [EPR28146-94] (ab321793), expandable thumbnail

    Flow Cytometry - Anti-TIGIT antibody [EPR28146-94] (ab321793)

    Flow cytometric analysis of Human PBMC (human peripheral blood mononuclear cell) cells labelling TIGIT with ab321793 at 1/500 dilution (0.1ug) / Right compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

    Goat anti-Rabbit IgG (Alexa Fluor® 647, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 647) preadsorbed ab150083) at 1/5000 dilution was used as the secondary antibody.

    Cells were co-stained with anti human CD19 conjugated to PE/Cy7 (780/60BP).

    Gated on viable leukomonocyte.

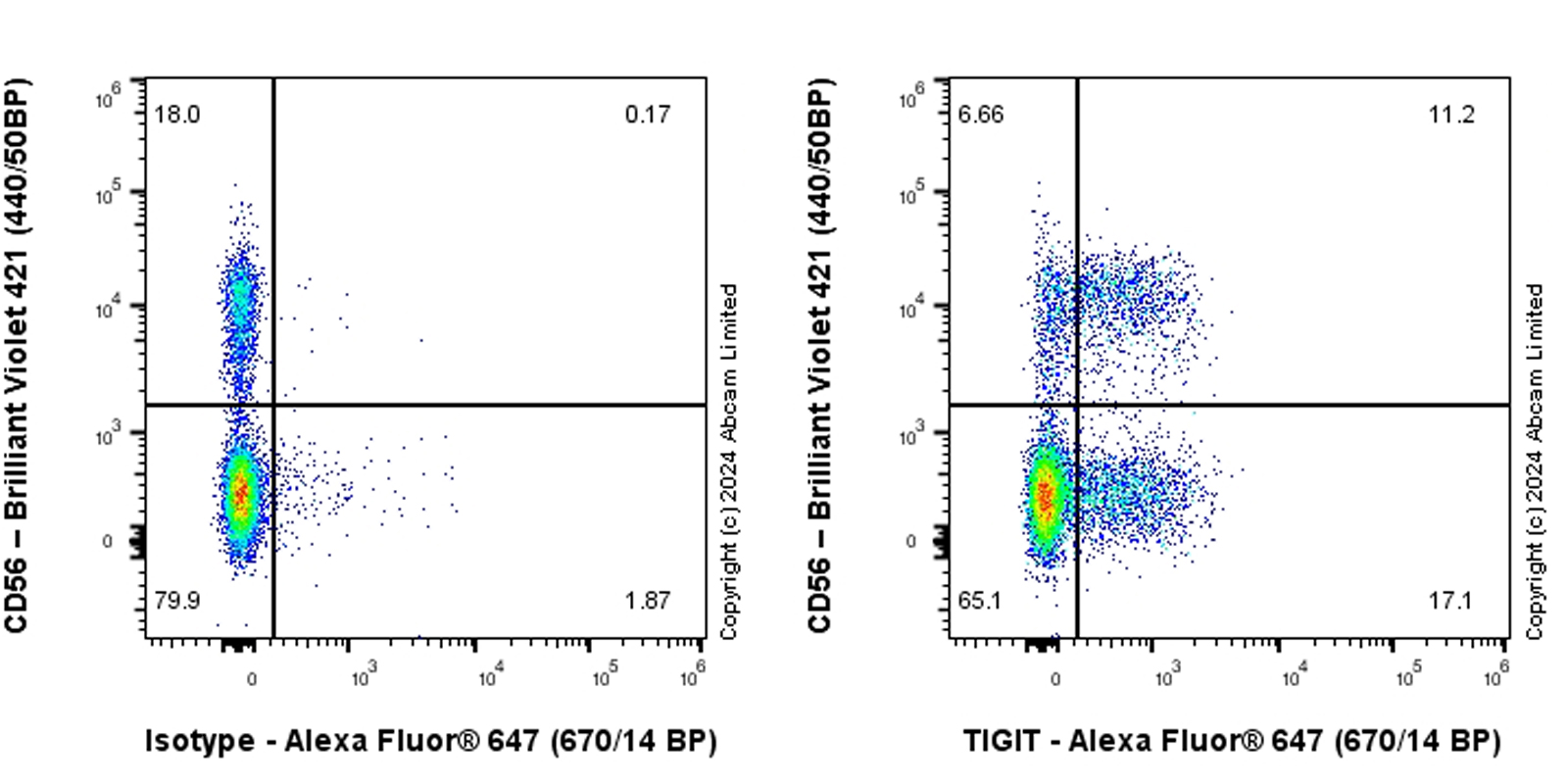

  • Flow Cytometry - Anti-TIGIT antibody [EPR28146-94] (ab321793), expandable thumbnail

    Flow Cytometry - Anti-TIGIT antibody [EPR28146-94] (ab321793)

    Flow cytometric analysis of Human PBMC (human peripheral blood mononuclear cell) cells labelling TIGIT with ab321793 at 1/500 dilution (0.1ug) / Right compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody).

    Goat anti-Rabbit IgG (Alexa Fluor® 647, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 647) preadsorbed ab150083) at 1/5000 dilution was used as the secondary antibody.

    Cells were co-stained with anti human CD56 conjugated to Alexa BV421 (440/50BP).

    Gated on viable Lymphocytes.
