Rabbit Polyclonal TIM 3 antibody. Suitable for WB, ICC/IF and reacts with Pig, Recombinant fragment - Human, Human samples. Immunogen corresponding to Recombinant Fragment Protein within Human HAVCR2 aa 1-250.

Be the first to review this product! Submit a review

Images

Immunocytochemistry/ Immunofluorescence - Anti-TIM 3 antibody (AB233228), expandable thumbnail
  • Western blot - Anti-TIM 3 antibody (AB233228), expandable thumbnail
  • Western blot - Anti-TIM 3 antibody (AB233228), expandable thumbnail

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

pH: 7.4
Preservative: 0.011% Proclin 300
Constituents: 55.77% Glycerol (glycerin, glycerine), 44.219% PBS

Form

Liquid

Clonality

Polyclonal

Immunogen

  • Recombinant Fragment Protein within Human HAVCR2 aa 1-250. The exact immunogen used to generate this antibody is proprietary information. Database link Q8TDQ0

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBICC/IF
Human
Tested
Tested
Pig
Tested
Expected
Recombinant fragment - Human
Tested
Not recommended

Tested
Tested

Species

Pig

Dilution info

0.50000-2.00000 µg/mL

Notes

-

Species

Recombinant fragment - Human

Dilution info

0.50000-2.00000 µg/mL

Notes

-

Species

Human

Dilution info

0.50000-2.00000 µg/mL

Notes

-

Tested
Tested

Species

Human

Dilution info

5.00000-20.00000 µg/mL

Notes

-

Expected
Expected

Species

Pig

Dilution info

Use at an assay dependent concentration.

Notes

-

Not recommended
Not recommended

Species

Recombinant fragment - Human

Dilution info

-

Notes

-

Associated Products

Select an associated product type

7 products for Alternative Product

Target data

Function

Cell surface receptor implicated in modulating innate and adaptive immune responses. Generally accepted to have an inhibiting function. Reports on stimulating functions suggest that the activity may be influenced by the cellular context and/or the respective ligand (PubMed:24825777). Regulates macrophage activation (PubMed:11823861). Inhibits T-helper type 1 lymphocyte (Th1)-mediated auto- and alloimmune responses and promotes immunological tolerance (PubMed:14556005). In CD8+ cells attenuates TCR-induced signaling, specifically by blocking NF-kappaB and NFAT promoter activities resulting in the loss of IL-2 secretion. The function may implicate its association with LCK proposed to impair phosphorylation of TCR subunits, and/or LGALS9-dependent recruitment of PTPRC to the immunological synapse (PubMed:24337741, PubMed:26492563). In contrast, shown to activate TCR-induced signaling in T-cells probably implicating ZAP70, LCP2, LCK and FYN (By similarity). Expressed on Treg cells can inhibit Th17 cell responses (PubMed:24838857). Receptor for LGALS9 (PubMed:16286920, PubMed:24337741). Binding to LGALS9 is believed to result in suppression of T-cell responses; the resulting apoptosis of antigen-specific cells may implicate HAVCR2 phosphorylation and disruption of its association with BAG6. Binding to LGALS9 is proposed to be involved in innate immune response to intracellular pathogens. Expressed on Th1 cells interacts with LGALS9 expressed on Mycobacterium tuberculosis-infected macrophages to stimulate antibactericidal activity including IL-1 beta secretion and to restrict intracellular bacterial growth (By similarity). However, the function as receptor for LGALS9 has been challenged (PubMed:23555261). Also reported to enhance CD8+ T-cell responses to an acute infection such as by Listeria monocytogenes (By similarity). Receptor for phosphatidylserine (PtSer); PtSer-binding is calcium-dependent. May recognize PtSer on apoptotic cells leading to their phagocytosis. Mediates the engulfment of apoptotic cells by dendritic cells. Expressed on T-cells, promotes conjugation but not engulfment of apoptotic cells. Expressed on dendritic cells (DCs) positively regulates innate immune response and in synergy with Toll-like receptors promotes secretion of TNF-alpha. In tumor-imfiltrating DCs suppresses nucleic acid-mediated innate immune repsonse by interaction with HMGB1 and interfering with nucleic acid-sensing and trafficking of nucleid acids to endosomes (By similarity). Expressed on natural killer (NK) cells acts as a coreceptor to enhance IFN-gamma production in response to LGALS9 (PubMed:22323453). In contrast, shown to suppress NK cell-mediated cytotoxicity (PubMed:22383801). Negatively regulates NK cell function in LPS-induced endotoxic shock (By similarity).

Alternative names

Recommended products

Rabbit Polyclonal TIM 3 antibody. Suitable for WB, ICC/IF and reacts with Pig, Recombinant fragment - Human, Human samples. Immunogen corresponding to Recombinant Fragment Protein within Human HAVCR2 aa 1-250.

Key facts

Isotype

IgG

Form

Liquid

Clonality

Polyclonal

Immunogen
  • Recombinant Fragment Protein within Human HAVCR2 aa 1-250. The exact immunogen used to generate this antibody is proprietary information. Database link Q8TDQ0
Purification technique

Affinity purification Immunogen

Concentration
Loading...
Purification notes

ab233228 was purified by antigen-specific affinity chromatography followed by Protein A affinity chromatography.

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

Notes

Abcam is leading the way to address reproducibility in scientific research with our highly validated recombinant monoclonal and recombinant multiclonal antibodies. Search & select one of Abcam's thousands of recombinant alternatives to eliminate batch-variability and unnecessary animal use.

If you do not find a host species to meet your needs, our catalogue and custom Chimeric range provides scientists the specificity of Abcam's RabMAbs in the species backbone of your choice. Remember to also review our range of edited cell lines, proteins and biochemicals relevant to your target that may help you further your research goals.

Abcam antibodies are extensively validated in a wide range of species and applications, so please check the reagent specifications meet your scientific needs before purchasing. If you have any questions or bespoke requirements, simply visit the Contact Us page to send us an inquiry or contact our Support Team ahead of purchase.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

TIM-3 also known as T cell immunoglobulin and mucin-domain containing-3 or HAVCR2 is a protein involved in immune regulation. It possesses an approximate mass of 35 kDa. TIM-3 is expressed on various immune cells including T cells NK cells and dendritic cells especially after activation. The expression level often changes in response to inflammatory conditions suggesting its role in modulating immune responses.

Biological function summary

TIM-3 functions as a checkpoint inhibitor impacting immune cell activity. It is not part of a larger physical complex but it modulates immune responses by interacting with its ligands such as Galectin-9 phosphatidylserine and CEACAM1. TIM-3 involvement in downregulating Th1 cell responses shows its necessary role in maintaining immune homeostasis. The protein also acts in regulating tolerance mechanisms and preventing autoimmunity.

Pathways

TIM-3 participation is seen in the immune checkpoint and T cell exhaustion pathways. TIM-3 signaling results in T cell inhibition affecting the PD-1 pathway as well. It shares a relationship with proteins like LAG-3 and PD-1 which are key to immune inhibitory signaling. These interactions depict TIM-3's role in immune tolerance during chronic infections and malignancies.

Associated diseases and disorders

TIM-3 association with cancer and chronic infections provides insight into therapeutic implications. In cancer TIM-3 contributes to immune evasion often co-expressed with PD-1 leading to T cell exhaustion. In autoimmune diseases TIM-3 modulation may affect disease progression by influencing immune tolerance. Understanding TIM-3's role in these contexts aids in developing targeted therapies such as anti-TIM-3 antibodies to enhance immune responses in cancer while promoting tolerance in autoimmunity.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

3 product images

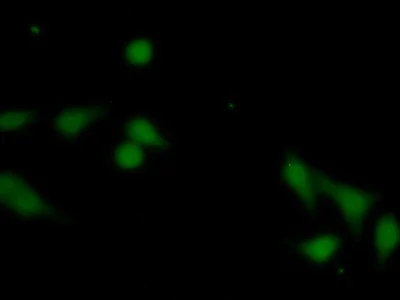

  • Immunocytochemistry/ Immunofluorescence - Anti-TIM 3 antibody (ab233228), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-TIM 3 antibody (ab233228)

    HepG2 (human liver hepatocellular carcinoma cell line) cells stained for TIM 3 (green) using ab233228 at 20 μg/ml in ICC/IF, followed by FITC staining.

  • Western blot - Anti-TIM 3 antibody (ab233228), expandable thumbnail

    Western blot - Anti-TIM 3 antibody (ab233228)

    All lanes: Western blot - Anti-TIM 3 antibody (ab233228) at 2 µg/mL

    All lanes: Recombinant human TIM 3 protein

    Predicted band size: 33 kDa

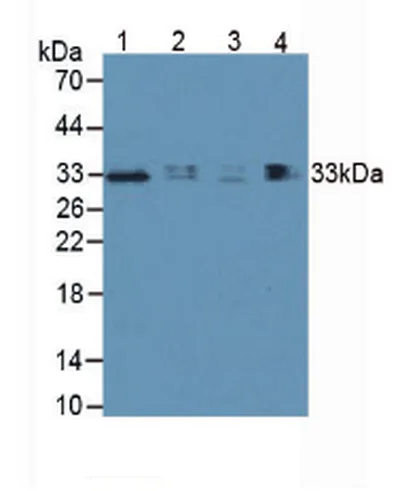

  • Western blot - Anti-TIM 3 antibody (ab233228), expandable thumbnail

    Western blot - Anti-TIM 3 antibody (ab233228)

    All lanes: Western blot - Anti-TIM 3 antibody (ab233228) at 2 µg/mL

    Lane 1: Human lung lysate

    Lane 2: HepG2 (human liver hepatocellular carcinoma cell line) cell lysate

    Lane 3: HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) cell lysate

    Lane 4: Pig lymph node lysate

    Predicted band size: 33 kDa
