Anti-TIM 3 [EPR22241] antibody (ab242080) is a rabbit monoclonal antibody that is provided in a PBS only formulation free from BSA and azide. Formulated to be conjugation-ready. It is used to detect TIM 3 in Western Blot, IP, IHC-P, mIHC. Suitable for Human, Mouse, Rat samples.



- BSA,?sodium azide, and glycerol-free?for consistent conjugation with fluorochromes, enzymes and more


Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (AB242080), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (AB242080), expandable thumbnail
  • Immunoprecipitation - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (AB242080), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (AB242080), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (AB242080), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Constituents: PBS

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IPFlow CytWBICC/IFmIHCIHC-P
Human
Tested
Not recommended
Expected
Not recommended
Tested
Tested
Mouse
Predicted
Not recommended
Expected
Not recommended
Predicted
Predicted
Rat
Predicted
Not recommended
Expected
Not recommended
Predicted
Predicted

Tested
Tested

Species
Human
Dilution info
-
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Predicted
Predicted

Species
Mouse, Rat
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat, Human
Dilution info
-
Notes

-

Expected
Expected

Species
Mouse, Rat, Human
Dilution info
Use at an assay dependent concentration.
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat, Human
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/500
Notes

-

Predicted
Predicted

Species
Mouse, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
-
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Predicted
Predicted

Species
Mouse, Rat
Dilution info
-
Notes

-

Associated Products

Select an associated product type

14 products for Alternative Product

Target data

Function

Cell surface receptor implicated in modulating innate and adaptive immune responses. Generally accepted to have an inhibiting function. Reports on stimulating functions suggest that the activity may be influenced by the cellular context and/or the respective ligand (PubMed:24825777). Regulates macrophage activation (PubMed:11823861). Inhibits T-helper type 1 lymphocyte (Th1)-mediated auto- and alloimmune responses and promotes immunological tolerance (PubMed:14556005). In CD8+ cells attenuates TCR-induced signaling, specifically by blocking NF-kappaB and NFAT promoter activities resulting in the loss of IL-2 secretion. The function may implicate its association with LCK proposed to impair phosphorylation of TCR subunits, and/or LGALS9-dependent recruitment of PTPRC to the immunological synapse (PubMed:24337741, PubMed:26492563). In contrast, shown to activate TCR-induced signaling in T-cells probably implicating ZAP70, LCP2, LCK and FYN (By similarity). Expressed on Treg cells can inhibit Th17 cell responses (PubMed:24838857). Receptor for LGALS9 (PubMed:16286920, PubMed:24337741). Binding to LGALS9 is believed to result in suppression of T-cell responses; the resulting apoptosis of antigen-specific cells may implicate HAVCR2 phosphorylation and disruption of its association with BAG6. Binding to LGALS9 is proposed to be involved in innate immune response to intracellular pathogens. Expressed on Th1 cells interacts with LGALS9 expressed on Mycobacterium tuberculosis-infected macrophages to stimulate antibactericidal activity including IL-1 beta secretion and to restrict intracellular bacterial growth (By similarity). However, the function as receptor for LGALS9 has been challenged (PubMed:23555261). Also reported to enhance CD8+ T-cell responses to an acute infection such as by Listeria monocytogenes (By similarity). Receptor for phosphatidylserine (PtSer); PtSer-binding is calcium-dependent. May recognize PtSer on apoptotic cells leading to their phagocytosis. Mediates the engulfment of apoptotic cells by dendritic cells. Expressed on T-cells, promotes conjugation but not engulfment of apoptotic cells. Expressed on dendritic cells (DCs) positively regulates innate immune response and in synergy with Toll-like receptors promotes secretion of TNF-alpha. In tumor-imfiltrating DCs suppresses nucleic acid-mediated innate immune repsonse by interaction with HMGB1 and interfering with nucleic acid-sensing and trafficking of nucleid acids to endosomes (By similarity). Expressed on natural killer (NK) cells acts as a coreceptor to enhance IFN-gamma production in response to LGALS9 (PubMed:22323453). In contrast, shown to suppress NK cell-mediated cytotoxicity (PubMed:22383801). Negatively regulates NK cell function in LPS-induced endotoxic shock (By similarity).

Alternative names

CD366, TIM3, TIMD3, HAVCR2, Hepatitis A virus cellular receptor 2, HAVcr-2, T-cell immunoglobulin and mucin domain-containing protein 3, T-cell immunoglobulin mucin receptor 3, T-cell membrane protein 3, TIMD-3, TIM-3

Recommended products

Anti-TIM 3 [EPR22241] antibody (ab242080) is a rabbit monoclonal antibody that is provided in a PBS only formulation free from BSA and azide. Formulated to be conjugation-ready. It is used to detect TIM 3 in Western Blot, IP, IHC-P, mIHC. Suitable for Human, Mouse, Rat samples.



- BSA,?sodium azide, and glycerol-free?for consistent conjugation with fluorochromes, enzymes and more

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Carrier free
Yes
Clone number
EPR22241
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze

Notes

ab242080 is the carrier-free version of Anti-TIM 3 antibody [EPR22241] ab241332.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

TIM-3 also known as T cell immunoglobulin and mucin-domain containing-3 or HAVCR2 is a protein involved in immune regulation. It possesses an approximate mass of 35 kDa. TIM-3 is expressed on various immune cells including T cells NK cells and dendritic cells especially after activation. The expression level often changes in response to inflammatory conditions suggesting its role in modulating immune responses.

Biological function summary

TIM-3 functions as a checkpoint inhibitor impacting immune cell activity. It is not part of a larger physical complex but it modulates immune responses by interacting with its ligands such as Galectin-9 phosphatidylserine and CEACAM1. TIM-3 involvement in downregulating Th1 cell responses shows its necessary role in maintaining immune homeostasis. The protein also acts in regulating tolerance mechanisms and preventing autoimmunity.

Pathways

TIM-3 participation is seen in the immune checkpoint and T cell exhaustion pathways. TIM-3 signaling results in T cell inhibition affecting the PD-1 pathway as well. It shares a relationship with proteins like LAG-3 and PD-1 which are key to immune inhibitory signaling. These interactions depict TIM-3's role in immune tolerance during chronic infections and malignancies.

Associated diseases and disorders

TIM-3 association with cancer and chronic infections provides insight into therapeutic implications. In cancer TIM-3 contributes to immune evasion often co-expressed with PD-1 leading to T cell exhaustion. In autoimmune diseases TIM-3 modulation may affect disease progression by influencing immune tolerance. Understanding TIM-3's role in these contexts aids in developing targeted therapies such as anti-TIM-3 antibodies to enhance immune responses in cancer while promoting tolerance in autoimmunity.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

8 product images

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080)

    Immunohistochemical analysis of paraffin-embedded human lung cancer tissue labeling TIM 3 with Anti-TIM 3 antibody [EPR22241] ab241332 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Cytoplasmic and membranous staining on both infiltrated immunocytes and tumor cells of human lung cancer (PMID: 22586058) is observed. Counter stained with hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

    Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0).

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-TIM 3 antibody [EPR22241] ab241332).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080)

    Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling TIM 3 with Anti-TIM 3 antibody [EPR22241] ab241332 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Cytoplasmic and membranous staining on subsets of immune cells of mouse spleen is observed. Counter stained with hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

    Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0).

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-TIM 3 antibody [EPR22241] ab241332).

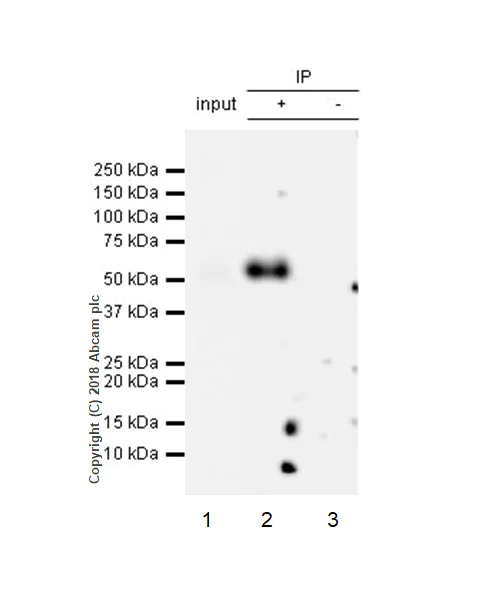

  • Immunoprecipitation - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080), expandable thumbnail

    Immunoprecipitation - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080)

    TIM 3 was immunoprecipitated from 0.35 mg of Daudi (human Burkitt's lymphoma cell line) whole cell lysate with Anti-TIM 3 antibody [EPR22241] ab241332 at 1/30 dilution. Western blot was performed from the immunoprecipitate using Anti-TIM 3 antibody [EPR22241] ab241332 at 1/500 dilution. VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/1000 dilution.

    Lane 1: Daudi lysate 10 μg (Input).
    Lane 2: Anti-TIM 3 antibody [EPR22241] ab241332 IP in Daudi whole cell lysate (+).
    Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of Anti-TIM 3 antibody [EPR22241] ab241332 in Daudi whole cell lysate (-).

    Blocking and dilution buffer and concentration: 5% NFDM/TBST.
    Exposure time: 3 minutes.

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-TIM 3 antibody [EPR22241] ab241332).

    All lanes: Immunoprecipitation - Anti-TIM 3 antibody [EPR22241] (Anti-TIM 3 antibody [EPR22241] ab241332)

    Predicted band size: 33 kDa

    Observed band size: 50 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080)

    Immunohistochemical analysis of paraffin-embedded human liver tissue labeling TIM 3 with Anti-TIM 3 antibody [EPR22241] ab241332 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Cytoplasmic and membranous staining on Kupffer cells of human liver (PMID: 27192565) is observed. Counter stained with hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

    Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0).

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-TIM 3 antibody [EPR22241] ab241332).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080)

    Immunohistochemical analysis of paraffin-embedded rat spleen tissue labeling TIM 3 with Anti-TIM 3 antibody [EPR22241] ab241332 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) ready to use. Cytoplasmic and membranous staining on subsets of immune cells of rat spleen is observed. Counter stained with hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) ready to use.

    Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0).

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-TIM 3 antibody [EPR22241] ab241332).

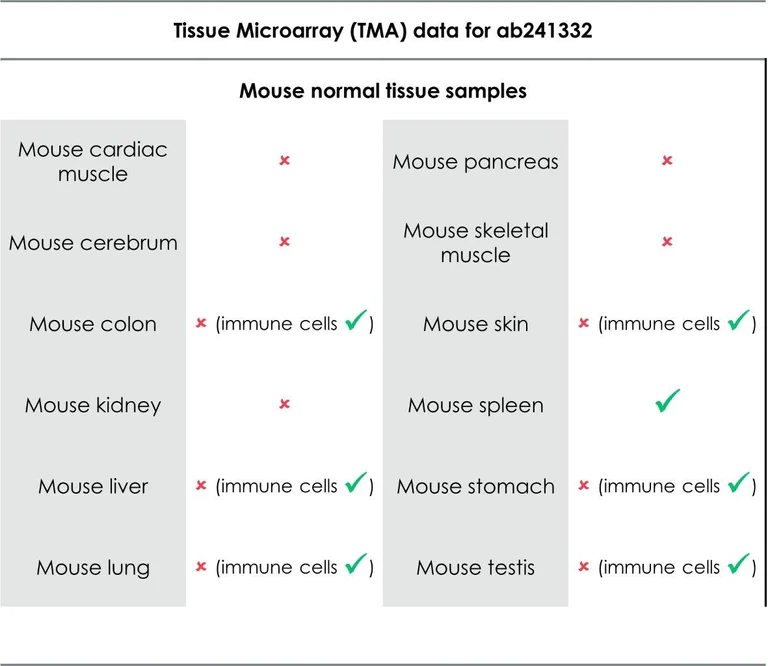

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080)

    Tissue Microarrays stained for "Anti-TIM 3 antibody [EPR22241]" using "Anti-TIM 3 antibody [EPR22241] ab241332"in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. The sections were pre-treated using Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). The sections were incubated with Anti-TIM 3 antibody [EPR22241] ab241332 at +4°C overnight followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer).

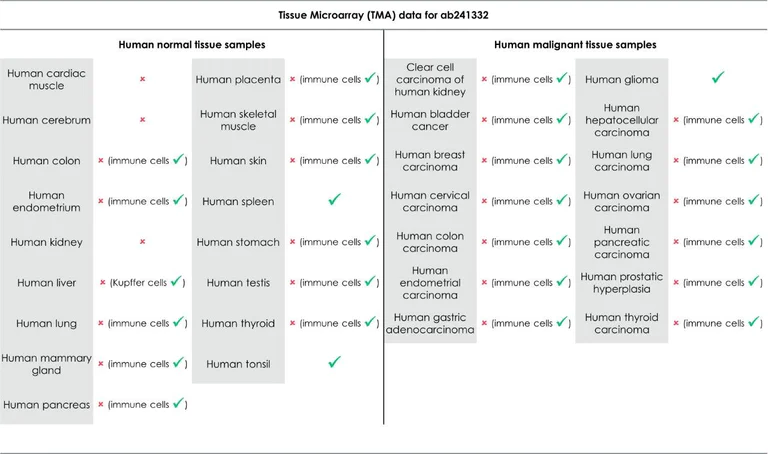

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080)

    Tissue Microarrays stained for "Anti-TIM 3 antibody [EPR22241]" using "Anti-TIM 3 antibody [EPR22241] ab241332"in immunohistochemical analysis. This table provides a detailed overview of positive (tick mark) and negative (cross mark) staining per sample type tested. The sections were pre-treated using Heat mediated antigen retrieval using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). The sections were incubated with Anti-TIM 3 antibody [EPR22241] ab241332 at +4°C overnight followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP polymer).

  • Multiplex immunohistochemistry - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080), expandable thumbnail

    Multiplex immunohistochemistry - Anti-TIM 3 antibody [EPR22241] - BSA and Azide free (ab242080)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human tonsil labelling PD1 with Anti-PD1 antibody [EPR23119-111] ab243644 at 1/500 dilution (1.02 µg/mL) (D), CD8 with Anti-CD8 alpha antibody [SP239] ab178089 at 1/100 dilution (0.83 μg/ml) (C) and TIM 3 with ab242080 at 1/500 dilution (2.09 μg/ml) (B). Opal Polymer HRP Ms + Rb was used as a secondary antibody, and DAPI was used for a nuclear counter stain. Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

    Panel A: merged staining of anti-TIM 3 (green; Opal™690), anti-CD8 (red; Opal™520) and anti-PD1 (gray; Opal™570) on human tonsil.
    Panel B: anti-TIM 3 stained on membrane of a subset of immune cells.
    Panel C: anti-CD8 stained on membrane of a subset of T cells.
    Panel D: anti-PD1 stained on membrane of a subset of lymphocytes.

    The section was incubated in three rounds of staining: in the order of ab242080, Anti-PD1 antibody [EPR23119-111] ab243644 and Anti-CD8 alpha antibody [SP239] ab178089 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

    The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
