AB201453

Anti-TIM44 antibody [EPR16821-26]

4

(1 Review)

|

(1 Publication)

Rabbit Recombinant Monoclonal TIM44 antibody. Suitable for IP, WB, ICC/IF, Flow Cyt (Intra) and reacts with Human, Rat samples. Cited in 1 publication.

View Alternative Names

MIMT44, TIM44, TIMM44, Mitochondrial import inner membrane translocase subunit TIM44

7 Images
Immunocytochemistry/ Immunofluorescence - Anti-TIM44 antibody [EPR16821-26] (AB201453)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-TIM44 antibody [EPR16821-26] (AB201453)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HepG2 (Human liver hepatocellular carcinoma) cells labeling TIM44 with ab201453 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/500 dilution (green). Confocal image showing cytoplasm staining on HepG2 cell line. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).

The negative controls are as follows :
-ve control 1 : ab201453 at 1/500 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/500 dilution.

Flow Cytometry (Intracellular) - Anti-TIM44 antibody [EPR16821-26] (AB201453)
  • Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-TIM44 antibody [EPR16821-26] (AB201453)

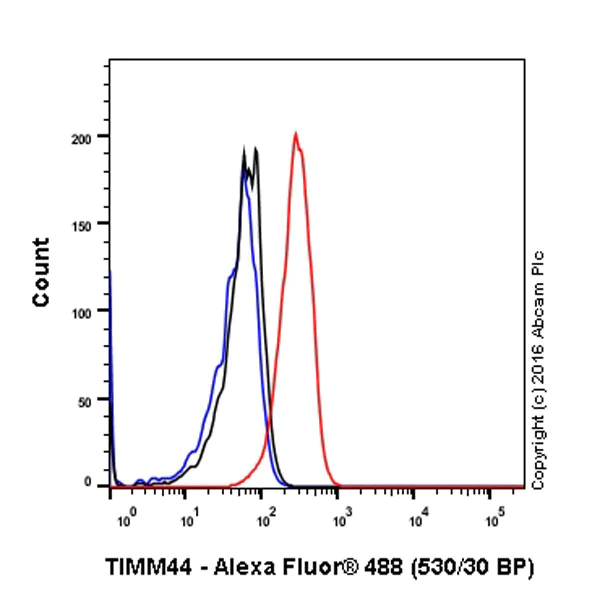

Intracellular Flow Cytometry analysis of HepG2 (human hepatocellular carcinoma) labelling TIM44 with purified ab201453 at 1/500 (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. Alexa Fluor® 488 goat anti-rabbit IgG (1/2000) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG. Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.

Immunocytochemistry/ Immunofluorescence - Anti-TIM44 antibody [EPR16821-26] (AB201453)
  • ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-TIM44 antibody [EPR16821-26] (AB201453)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized K562 (Human chronic myelogenous leukemia cells from bone marrow) cells labeling TIM44 with ab201453 at 1/500 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/500 dilution (green). Confocal image showing cytoplasm staining on K562 cell line. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).

The negative controls are as follows :
-ve control 1 : ab201453 at 1/500 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/500 dilution.

Western blot - Anti-TIM44 antibody [EPR16821-26] (AB201453)
  • WB

Supplier Data

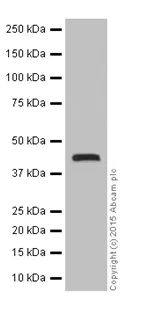

Western blot - Anti-TIM44 antibody [EPR16821-26] (AB201453)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-TIM44 antibody [EPR16821-26] (ab201453) at 1/10000 dilution

All lanes:

Human fetal liver lysate at 10 µg

Secondary

All lanes:

Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1000 dilution

Predicted band size: 51 kDa

Observed band size: 45 kDa

false

Exposure time: 3min

Immunoprecipitation - Anti-TIM44 antibody [EPR16821-26] (AB201453)
  • IP

Supplier Data

Immunoprecipitation - Anti-TIM44 antibody [EPR16821-26] (AB201453)

TIM44 was immunoprecipitated from 1mg of K562 (Human chronic myelogenous leukemia cells from bone marrow) whole cell lysate with ab201453 at 1/120 dilution. Western blot was performed from the immunoprecipitate using ab201453 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/1500 dilution.

Lane 1 : K562 whole cell lysate 10 μg (Input). Lane 2 : ab201453 IP in K562 whole cell lysate. Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab201453 in K562 whole cell lysate.
Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

All lanes:

Immunoprecipitation - Anti-TIM44 antibody [EPR16821-26] (ab201453)

Predicted band size: 51 kDa

false

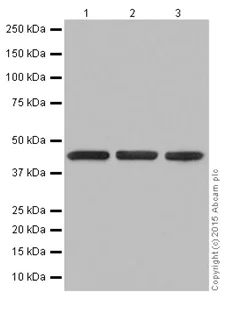

Western blot - Anti-TIM44 antibody [EPR16821-26] (AB201453)
  • WB

Supplier Data

Western blot - Anti-TIM44 antibody [EPR16821-26] (AB201453)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-TIM44 antibody [EPR16821-26] (ab201453) at 1/2000 dilution

Lane 1:

K562 (Human chronic myelogenous leukemia cells from bone marrow) cell lysate at 20 µg

Lane 2:

HepG2 (Human liver hepatocellular carcinoma) cell lysate at 20 µg

Lane 3:

Daudi (Human Burkitt's lymphoma cell line) cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 51 kDa

Observed band size: 45 kDa

false

Exposure time: 3min

Western blot - Anti-TIM44 antibody [EPR16821-26] (AB201453)
  • WB

Supplier Data

Western blot - Anti-TIM44 antibody [EPR16821-26] (AB201453)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-TIM44 antibody [EPR16821-26] (ab201453) at 1/2000 dilution

Lane 1:

C6 (Rat glial tumor cells) cell lysate at 10 µg

Lane 2:

PC-12 (Rat adrenal gland pheochromocytoma) cell lysate at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

Predicted band size: 51 kDa

Observed band size: 45 kDa

false

Exposure time: 3min

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR16821-26

Isotype

IgG

Carrier free

No

Reacts with

Rat, Human

Applications

Flow Cyt (Intra), WB, ICC/IF, IP

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "1/120", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/2000", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/500", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/500", "FlowCytIntra-species-notes": "<p></p>" }, "Rat": { "IP-species-checked": "guaranteed", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/2000", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

TIM44 also known as translocase of inner mitochondrial membrane 44 serves an important role in mitochondrial protein import mechanisms. The protein weighs approximately 44 kDa and localizes in the inner mitochondrial membrane. TIM44 works as an essential part of the mitochondrial inner membrane presequence translocase complex where it assists in guiding proteins into the mitochondrial matrix. Expression of TIM44 is observed mainly in tissues with high energetic demands such as muscle and liver.
Biological function summary

TIM44 functions in conjunction with other components of the TIM23 complex which includes proteins like TIM23 and TIM17. The main role of TIM44 involves connecting the translocase complex to mitochondrial heat shock protein 70 (mtHsp70) facilitating ATP-dependent translocation of polypeptides. This process supports the import of precursor proteins synthesized in the cytosol into the mitochondria ensuring proper mitochondrial function and energy production.

Pathways

TIM44 influences the mitochondrial protein import pathway and the maintenance of mitochondrial function. As part of the protein import machinery it connects closely to the chaperone-mediated folding pathway aided by mtHsp70. The TIM23 complex participates in the translocation of proteins with mitochondrial targeting sequences linking TIM44 to pathways essential for mitochondrial biogenesis and function.

Dysfunction in the TIM44 protein associates with mitochondrial disorders including those impacting oxidative phosphorylation capacity. Mutations or deficiencies in TIM44 have connections to disorders such as mitochondrial myopathy. Relation to other proteins such as mtHsp70 and components of oxidative phosphorylation emphasizes the role of TIM44 in cellular energy homeostasis and highlights its importance in maintaining mitochondrial health.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Essential component of the PAM complex, a complex required for the translocation of transit peptide-containing proteins from the inner membrane into the mitochondrial matrix in an ATP-dependent manner (By similarity). Recruits mitochondrial HSP70 to drive protein translocation into the matrix using ATP as an energy source (By similarity).
See full target information TIMM44
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

The Journal of biological chemistry 300:107958 PubMed39510176

2024

STAG2 promotes naive-primed transition via activating Lin28a transcription in mouse embryonic stem cells.

Applications

Unspecified application

Species

Unspecified reactive species

Bo Chen,Mingkang Jia,Gan Zhao,Yumin Liu,Yihong Song,Mengjie Sun,Wangfei Chi,Xiangyang Wang,Qing Jiang,Guangwei Xin,Chuanmao Zhang
View all publications
