Rabbit Recombinant Monoclonal TIMM17A/TIM17 antibody. Suitable for IP, WB, ICC/IF and reacts with Human, Mouse, Rat samples. Cited in 4 publications.


Images

Western blot - Anti-TIMM17A/TIM17 antibody [EPR16098] (AB192246), expandable thumbnail
  • Western blot - Anti-TIMM17A/TIM17 antibody [EPR16098] (AB192246), expandable thumbnail
  • Immunoprecipitation - Anti-TIMM17A/TIM17 antibody [EPR16098] (AB192246), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-TIMM17A/TIM17 antibody [EPR16098] (AB192246), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IPWBICC/IF
Human
Tested
Tested
Tested
Mouse
Expected
Tested
Expected
Rat
Expected
Tested
Expected

Tested
Tested

Species
Human
Dilution info
1/40
Notes

-

Expected
Expected

Species
Mouse, Rat
Dilution info
Use at an assay dependent concentration.
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/1000
Notes

-

Species
Rat
Dilution info
1/1000
Notes

-

Species
Human
Dilution info
1/1000
Notes

-

Tested
Tested

Species
Human
Dilution info
1/50
Notes

-

Expected
Expected

Species
Mouse, Rat
Dilution info
Use at an assay dependent concentration.
Notes

-

Associated Products

Select an associated product type

2 products for Alternative Product

Target data

Function

Essential component of the TIM23 complex, a complex that mediates the translocation of transit peptide-containing proteins across the mitochondrial inner membrane.

Alternative names

Recommended products

Rabbit Recombinant Monoclonal TIMM17A/TIM17 antibody. Suitable for IP, WB, ICC/IF and reacts with Human, Mouse, Rat samples. Cited in 4 publications.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR16098
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

TIMM17A also known as TIM17A or simply TIM17 is a protein component of the mitochondrial inner membrane translocase complex. It is involved in the import of nuclear-encoded proteins into the mitochondria. With a molecular mass of approximately 19 kDa TIMM17A is primarily expressed in the inner mitochondrial membrane. This protein forms part of the TIM23 complex which mediates the translocation of presequence-containing preproteins into the mitochondrial inner membrane or matrix.

Biological function summary

The TIMM17A protein facilitates the import of essential mitochondrial proteins securing proper mitochondrial function and energy production. TIMM17A as part of the TIM23 translocase complex cooperates closely with other TIM proteins such as TIMM50 and TIMM23 to ensure protein import is efficient and targeted. Its role in maintaining mitochondrial integrity also supports cellular metabolism and the regulation of apoptotic processes which are processes responsible for programmed cell death.

Pathways

The TIMM17A protein plays a significant role in the mitochondrial protein import pathway. It interacts with other key proteins like HSP70 and mtHSP70 which manipulate peptide folding and assist in pulling preproteins through the TIM23 channel. The proper import of these proteins is essential for the oxidative phosphorylation pathway which is important for ATP production. This pathway enables ATP synthesis by transferring electrons through a sequence of electron transport chain complexes located in the mitochondrial inner membrane.

Associated diseases and disorders

Research associates TIMM17A dysfunction with mitochondrial myopathy a disorder characterized by muscle weakness and dysfunction due to impaired mitochondrial performance. Studies also link alterations in TIMM17A to certain neurodegenerative disorders such as Parkinson’s disease where mitochondrial dysfunction plays an important role. The protein's interaction with other import machinery members during these conditions like TIMM44 highlights its importance in maintaining mitochondrial health and function.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

4 product images

  • Western blot - Anti-TIMM17A/TIM17 antibody [EPR16098] (ab192246), expandable thumbnail

    Western blot - Anti-TIMM17A/TIM17 antibody [EPR16098] (ab192246)

    Blocking/Dilution buffer: 5% NFDM /TBST.

    All lanes: Western blot - Anti-TIMM17A/TIM17 antibody [EPR16098] (ab192246) at 1/1000 dilution

    Lane 1: HeLa cell lysate at 20 µg

    Lane 2: K562 cell lysate at 20 µg

    Secondary

    All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

    Predicted band size: 18 kDa

    Observed band size: 17 kDa

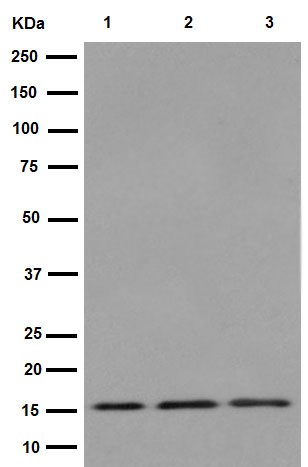

  • Western blot - Anti-TIMM17A/TIM17 antibody [EPR16098] (ab192246), expandable thumbnail

    Western blot - Anti-TIMM17A/TIM17 antibody [EPR16098] (ab192246)

    Blocking/Dilution buffer: 5% NFDM /TBST.

    All lanes: Western blot - Anti-TIMM17A/TIM17 antibody [EPR16098] (ab192246) at 1/1000 dilution

    Lane 1: RAW 264.7 cell lysate at 10 µg

    Lane 2: PC-12 cell lysate at 10 µg

    Lane 3: NIH/3T3 cell lysate at 10 µg

    Secondary

    All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

    Predicted band size: 18 kDa

    Observed band size: 17 kDa

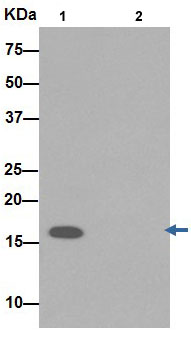

  • Immunoprecipitation - Anti-TIMM17A/TIM17 antibody [EPR16098] (ab192246), expandable thumbnail

    Immunoprecipitation - Anti-TIMM17A/TIM17 antibody [EPR16098] (ab192246)

    Western blot analysis of TIMM17A/TIM17 in HeLa cell lysates immunoprecipitated using ab192246 at 1/40 dilution (Lane 1). Lane 2: PBS instead of HeLa lysate.

    Secondary antibody: Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1500 dilution.

    Blocking/Dilution buffer: 5% NFDM /TBST.

    All lanes: Immunoprecipitation - Anti-TIMM17A/TIM17 antibody [EPR16098] (ab192246)

    Predicted band size: 18 kDa

  • Immunocytochemistry/ Immunofluorescence - Anti-TIMM17A/TIM17 antibody [EPR16098] (ab192246), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-TIMM17A/TIM17 antibody [EPR16098] (ab192246)

    Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% tritonX-100 permeabilized HeLa cells labeling TIMM17A/TIM17 with ab192246 at 1/50 dilution (11.7 μg/ml), followed by Goat anti rabbit IgG (Alexa Fluor® 555) secondary antibody (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 555) ab150078) at 1/500 dilution. Nuclear counter stain Dapi (blue).

    The two negative controls are ab192246 at 1/50 dilution followed by (Goat anti mouse IgG (Alexa Fluor®488) secondary antibody at 1/200 dilution.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
