AB249668

Anti-TIMMDC1/C3orf1 antibody [EPR11808] - BSA and Azide free

RabMAb
Recombinant
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Recombinant Monoclonal TIMMDC1/C3orf1 antibody. Carrier free. Suitable for WB and reacts with Human samples. Cited in 1 publication.

View Alternative Names

C3orf1, UNQ247/PRO284, TIMMDC1, Protein M5-14, Translocase of inner mitochondrial membrane domain-containing protein 1, TIMM domain containing-protein 1

1 Images

Supplier Data

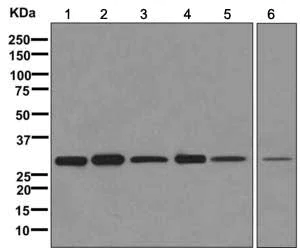

Western blot - Anti-TIMMDC1/C3orf1 antibody [EPR11808] - BSA and Azide free (AB249668)

This data was developed using ab171949, the same antibody clone in a different buffer formulation.

All lanes:

Western blot - Anti-TIMMDC1/C3orf1 antibody [EPR11808] (<a href='/en-us/products/primary-antibodies/timmdc1-c3orf1-antibody-epr11808-ab171949'>ab171949</a>) at 1/1000 dilution

Lane 1:

A375 cell lysate at 10 µg

Lane 2:

THP-1 cell lysate at 10 µg

Lane 3:

Jurkat cell lysate at 10 µg

Lane 4:

A673 cell lysate at 10 µg

Lane 5:

Human fetal heart cell lysate at 10 µg

Lane 6:

Human fetal muscle lysate at 10 µg

Predicted band size: 32 kDa

false

Unconjugated

Anti-TIMMDC1/C3orf1 antibody [EPR11808]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR11808

Isotype

IgG

Carrier free

Yes

Reacts with

Human

Applications

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Mouse": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Rat": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" } } }

style

left-column

Product details

ab249668 is the carrier-free version of ab171949.

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification

Storage buffer

pH: 7.2 - 7.4 Constituents: PBS

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

Do Not Freeze

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

TIMMDC1 also known as C3orf1 is a mitochondrial protein with a mass of approximately 34 kDa. It plays a mechanical role in the assembly of mitochondrial respiratory chain complex I. It becomes integrated into the inner mitochondrial membrane where it acts as an important assembly factor. TIMMDC1 is expressed ubiquitously across various human tissues with relatively higher levels in tissues with high energy demands like the heart and skeletal muscle.

Biological function summary

TIMMDC1 is essential in maintaining cellular energy metabolism. It is a component of the mitochondrial complex I assembly pathway critical for the formation and stabilization of the entire complex I. Complex I is responsible for the initial steps of the electron transport chain important for ATP production via oxidative phosphorylation. TIMMDC1 interacts with other complex I assembly factors contributing to the efficient generation of ATP within mitochondria.

Pathways

TIMMDC1 has a significant impact on the oxidative phosphorylation pathway and is a pivotal part of the mitochondrial respiratory chain. Its activity influences cellular respiration by assisting the functional integrity of complex I which interacts closely with other oxidative phosphorylation participants such as NADH dehydrogenase (ubiquinone) and cytochrome c oxidase. TIMMDC1 plays its role alongside these proteins facilitating the production of energy that cells require for various metabolic processes.

Defects in TIMMDC1 have been linked to mitochondrial complex I deficiency a condition that can result in a spectrum of disorders such as Leigh syndrome and other encephalomyopathies. This protein's malfunction can disrupt normal energy production leading to energy deficits in cells particularly in the nervous system and muscles. Additionally disruptions in the TIMMDC1 protein interaction with other mitochondrial proteins can exacerbate disease phenotypes such as with NDUFAF3 another mitochondrial assembly factor associated with complex I deficiency.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Chaperone protein involved in the assembly of the mitochondrial NADH : ubiquinone oxidoreductase complex (complex I). Participates in constructing the membrane arm of complex I.

See full target information TIMMDC1

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Oxidative medicine and cellular longevity 2021:8379962 PubMed34630853

2021

circ_0023461 Silencing Protects Cardiomyocytes from Hypoxia-Induced Dysfunction through Targeting miR-370-3p/PDE4D Signaling.

Applications

Unspecified application

Species

Unspecified reactive species

Kai Ren,Buying Li,Liqing Jiang,Zhiheng Liu,Fan Wu,Yi Zhang,Jincheng Liu,Weixun Duan

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
