Rabbit Recombinant Monoclonal TIRAP antibody. Suitable for WB and reacts with Human samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-TIRAP antibody [EPR27962-49] (AB319144), expandable thumbnail
  • Western blot - Anti-TIRAP antibody [EPR27962-49] (AB319144), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBIHC-PICC/IF
Human
Tested
Not recommended
Not recommended
Mouse
Not recommended
Not recommended
Not recommended
Rat
Not recommended
Not recommended
Not recommended

Tested
Tested

Species
Human
Dilution info
1/1000
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Human, Mouse, Rat
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Human, Mouse, Rat
Dilution info
-
Notes

-

Target data

Function

Adapter involved in TLR2, TLR4 and RAGE signaling pathways in the innate immune response. Acts via IRAK2 and TRAF-6, leading to the activation of NF-kappa-B, MAPK1, MAPK3 and JNK, and resulting in cytokine secretion and the inflammatory response. Positively regulates the production of TNF-alpha (TNF) and interleukin-6 (IL6).

Alternative names

Recommended products

Rabbit Recombinant Monoclonal TIRAP antibody. Suitable for WB and reacts with Human samples.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR27962-49
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

TIRAP also known as Mal is an adapter protein integral to the Toll-like receptor (TLR) signaling pathway. It has a molecular mass of approximately 24 kDa. TIRAP resides mostly in the cytoplasm and gets recruited to the plasma membrane where it assists in signal transduction. It plays a significant role in bridging TLRs such as TLR2 and TLR4 with downstream signaling elements like MyD88. This protein mediates the recruitment of other signaling proteins after TLR activation therefore facilitating the innate immune response.

Biological function summary

TIRAP is part of the innate immune system and contributes to the immune response against pathogens. It forms part of a signaling complex that leads to the activation of NF-kB and MAP kinase pathways resulting in the production of inflammatory cytokines. The protein works by directly interacting with phosphatidylinositol 45-bisphosphate at the plasma membrane through its phosphoinositide-binding motif. This interaction ensures that TIRAP is correctly positioned to relay signals for immune activation.

Pathways

TIRAP functions in the MyD88-dependent signaling pathway which is significant for initiating inflammatory responses. TIRAP and MyD88 work in tandem to propagate signals from activated TLRs. This relationship not only aids in inflammation but also in the differentiation of immune cells. TIRAP is also related to other proteins like IRAK1 in these pathways which further transduces signals leading to downstream activation of transcription factors relevant for immune responses.

Associated diseases and disorders

TIRAP plays a part in conditions like systemic lupus erythematosus and septic shock. Mutations in the TIRAP gene can alter the signaling cascade leading to aberrant immune responses associated with these diseases. In this context TIRAP interacts with TLR4 and any dysfunction in the interaction may contribute to the excessive inflammation seen in septic shock. Understanding TIRAP's role in these diseases provides insight into targeted therapeutic strategies.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Western blot - Anti-TIRAP antibody [EPR27962-49] (ab319144), expandable thumbnail

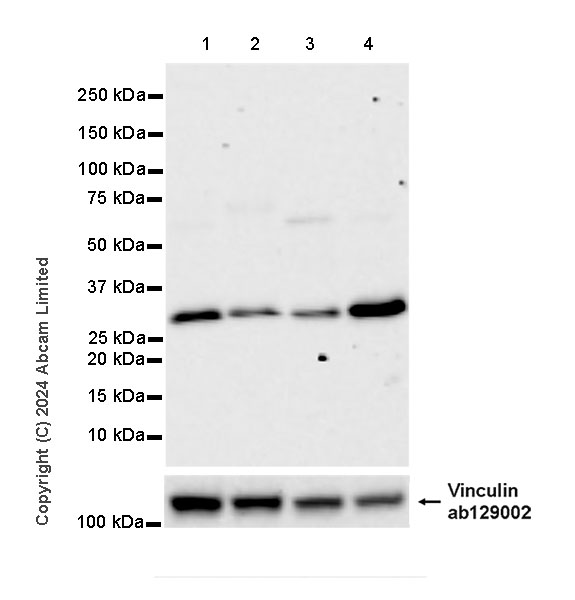

    Western blot - Anti-TIRAP antibody [EPR27962-49] (ab319144)

    TIRAP Western blot staining using rabbit Anti-TIRAP antibody

    Blocking and diluting buffer and concentration: 5% NFDM/TBST.

    The expression of TIRAP is upregulated in response to PMA treatment (PMID: 35612375).

    The identity of the higher MW band at approximately 60 kDa (in lane 3) is unknown.

    In Western blot, Anti-Vinculin antibody [EPR8185] (Anti-Vinculin antibody [EPR8185] - Loading Control ab129002) staining at 1/10000 dilution.

    All lanes: Western blot - Anti-TIRAP antibody [EPR27962-49] (ab319144) at 1/1000 dilution

    Lane 1: HeLa (human cervical adenocarcinoma epithelial cell) transfected with scrambled siRNA control whole cell lysate at 20 µg

    Lane 2: HeLa transfected with siRNA specifically targeting TIRAP whole cell lysate at 20 µg

    Lane 3: Untreated THP-1 (human monocytic leukemia monocyte) whole cell lysate at 20 µg

    Lane 4: THP-1 treated with 100ng/ml Phorbol-12-myristate-13-acetate (PMA) for 72 hours whole cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Observed band size: 30 kDa, 124 kDa

    Exposure time: 81s

  • Western blot - Anti-TIRAP antibody [EPR27962-49] (ab319144), expandable thumbnail

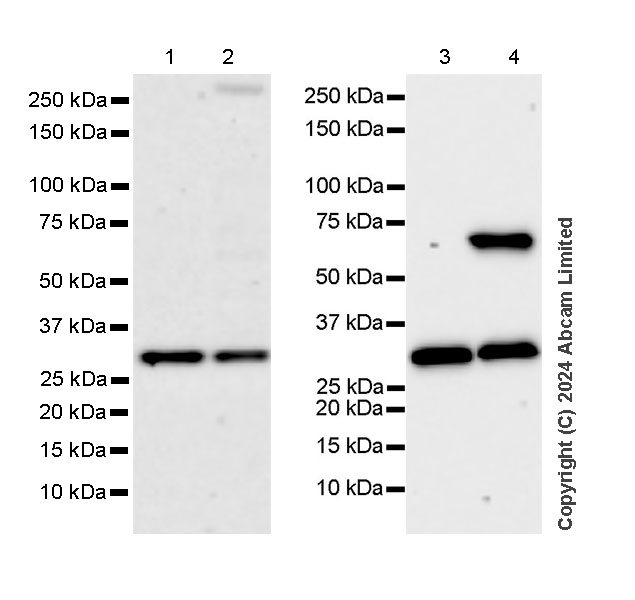

    Western blot - Anti-TIRAP antibody [EPR27962-49] (ab319144)

    Blocking and diluting buffer and concentration: 5% NFDM/TBST.

    Lanes 1-2 are applied with Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 and lanes 3-4 are applied with Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000.

    The identity of the higher MW band at approximately 60 kDa (in lane 4) is unknown.

    Exposure time: Lanes 1-2: 180 seconds; Lane 3-4 : 37 seconds

    All lanes: Western blot - Anti-TIRAP antibody [EPR27962-49] (ab319144) at 1/1000 dilution

    Lane 1: HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate at 20 µg

    Lane 2: 293T (human embryonic kidney epithelial cell) whole cell lysate at 20 µg

    Lane 3: Human spleen tissue lysate at 20 µg

    Lane 4: Human Midbrain tissue lysate at 20 µg

    Secondary

    Lanes 1 - 2: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Lanes 3 - 4: Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

    Observed band size: 30 kDa

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
