AB232933

Anti-TLR9 antibody [EPR21735] - BSA and Azide free

RabMAb
KO Validated
Recombinant
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Knockout Tested Rabbit Recombinant Monoclonal TLR9 antibody. Carrier free. Suitable for IP, WB and reacts with Human samples.

View Alternative Names

CD289, UNQ5798/PRO19605, TLR9, Toll-like receptor 9

2 Images

Supplier Data

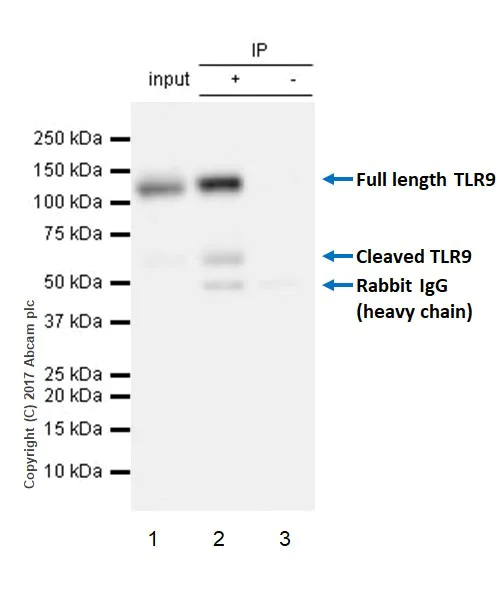

Immunoprecipitation - Anti-TLR9 antibody [EPR21735] - BSA and Azide free (AB232933)

TLR9 was immunoprecipitated from 0.35 mg of Raji (human Burkitt's lymphoma cell line) whole cell lysate with ab211012 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab211012 at 1/500 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/1000 dilution.

Lane 1 : Raji whole cell lysate 10 μg (Input).

Lane 2 : ab211012 IP in Raji whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab211012 in Raji whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 10 seconds.

The cleaved TLR9 (60 kDa) observed is consistent with the literature (PMID : 24582318).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211012).

All lanes:

Immunoprecipitation - Anti-TLR9 antibody [EPR21735] (<a href='/en-us/products/primary-antibodies/tlr9-antibody-epr21735-ab211012'>ab211012</a>)

Predicted band size: 115 kDa

Observed band size: 120 kDa,60 kDa

false

Supplier Data

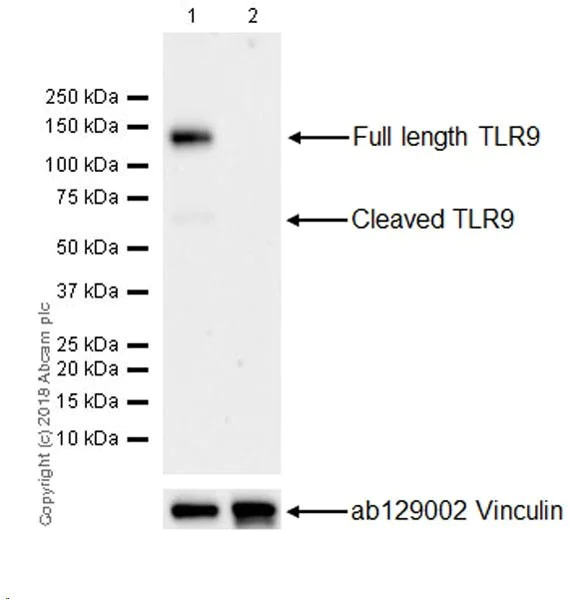

Western blot - Anti-TLR9 antibody [EPR21735] - BSA and Azide free (AB232933)

Blocking/Dilution buffer : 5% NFDM/TBST.

The cleaved TLR9 (60 kDa) observed is consistent with the literature (PMID : 24582318).

Untreated THP1s have undetectable TLR9, as described in the literature (PMID : 20375564).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab211012).

All lanes:

Western blot - Anti-TLR9 antibody [EPR21735] (<a href='/en-us/products/primary-antibodies/tlr9-antibody-epr21735-ab211012'>ab211012</a>) at 1/1000 dilution

Lane 1:

Raji (human Burkitt's lymphoma cell line) whole cell lysate at 10 µg

Lane 2:

THP-1 (human monocytic leukemia cell line) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 115 kDa

Observed band size: 120 kDa,60 kDa

true

Exposure time: 3min

Unconjugated

Anti-TLR9 antibody [EPR21735]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR21735

Isotype

IgG

Carrier free

Yes

Reacts with

Human

Applications

WB, IP

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>" } } }

style

left-column

Product details

ab232933 is the carrier-free version of ab211012.

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Constituents: PBS

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

Do Not Freeze

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

TLR9 also known as Toll-like receptor 9 is a protein that detects unmethylated CpG motifs which are common in bacterial and viral DNA. This protein weighs about 116 kDa. It mainly expresses in plasmacytoid dendritic cells B cells and in epithelial cells of various tissues. TLR9 locates in the endoplasmic reticulum and translocates to endolysosomes upon activation which is essential for its detection function.

Biological function summary

TLR9 recognizes and binds to microbial DNA triggering an immune response. It is part of the Toll-like receptor family which plays an important role in the innate immune system. TLR9 engages in the formation of complexes with other molecules such as MyD88 an adaptor protein to propagate downstream signaling. This leads to the activation of transcription factors that stimulate cytokine production promoting inflammation and defense against infections.

Pathways

TLR9 participates significantly in the NF-kB activation pathway and the type I interferon signaling cascade. During these processes TLR9 interacts with proteins like IRAK4 and TRAF6. In the NF-kB pathway TLR9's role in the early immune response is coordinated with other Toll-like receptors to detect pathogen-related patterns and initiate adaptive immunity. Its influence on type I interferon signaling facilitates antiviral defense mechanisms.

TLR9's malfunction or altered expression associates with systemic lupus erythematosus (SLE) and cancer. In SLE overactivation of TLR9 leads to autoantibody production which worsens the disease. This can involve the protein BAFF which supports B cell proliferation. In cancer TLR9 can influence tumor growth and the tumor microenvironment affecting disease progression. Its modulation is being researched for therapeutic interventions in these conditions.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Key component of innate and adaptive immunity (PubMed : 14716310). TLRs (Toll-like receptors) control host immune response against pathogens through recognition of molecular patterns specific to microorganisms (PubMed : 14716310). TLR9 is a nucleotide-sensing TLR which is activated by unmethylated cytidine-phosphate-guanosine (CpG) dinucleotides (PubMed : 14716310). Acts via MYD88 and TRAF6, leading to NF-kappa-B activation, cytokine secretion and the inflammatory response (PubMed : 11564765, PubMed : 17932028). Also acts via ADCY7, leading to cyclic di-AMP (c-di-AMP) synthesis and activation of the NLRP3 inflammasome (By similarity). Plays a role in defense against systemic mouse cytomegalovirus infection (By similarity). Controls lymphocyte response to Helicobacter infection (By similarity). Upon CpG stimulation, induces B-cell proliferation, activation, survival and antibody production (PubMed : 23857366).

See full target information TLR9

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
