Anti-TMS1/ASC antibody [RM1049] (ab309497)

Anti-TMS1/ASC antibody [RM1049] (ab309497) is a rabbit recombinant multiclonal antibody that is used to detect TMS1/ASC in Western Blot, Flow Cytometry (Intra), Flow Cytometry, IP, IHC-P, ICC/IF. Suitable for Human, Mouse, Rat samples.

- Specificity confirmed with TMS1/ASC knockout cell line validation

Be the first to review this product! Submit a review

Images

Western blot - Anti-TMS1/ASC antibody [RM1049] (AB309497), expandable thumbnail

Publications

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Multiclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	WB	IHC-P	ICC/IF	Flow Cyt (Intra)	IP
Human	Tested	Tested	Tested	Tested	Tested
Mouse	Tested	Tested	Tested	Tested	Tested
Rat	Tested	Tested	Expected	Expected	Expected

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/1000	Notes -
Species Mouse	Dilution info 1/1000	Notes -
Species Rat	Dilution info 1/1000	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/1000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Mouse	Dilution info 1/1000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/1000	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/500	Notes -
Species Mouse	Dilution info 1/500	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/500	Notes -
Species Mouse	Dilution info 1/500	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/30	Notes -
Species Mouse	Dilution info 1/30	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Target data

See full target information PYCARD

Function

Functions as a key mediator in apoptosis and inflammation (PubMed:11103777, PubMed:12646168, PubMed:15030775, PubMed:17349957, PubMed:17599095, PubMed:19158675, PubMed:19158676, PubMed:19234215, PubMed:19494289, PubMed:21487011, PubMed:24630722, PubMed:25847972, PubMed:30674671, PubMed:34678144, PubMed:36050480). Promotes caspase-mediated apoptosis involving predominantly caspase-8 and also caspase-9 in a probable cell type-specific manner (PubMed:11103777, PubMed:12646168). Involved in activation of the mitochondrial apoptotic pathway, promotes caspase-8-dependent proteolytic maturation of BID independently of FADD in certain cell types and also mediates mitochondrial translocation of BAX and activates BAX-dependent apoptosis coupled to activation of caspase-9, -2 and -3 (PubMed:14730312, PubMed:16964285). Involved in innate immune response by acting as an integral adapter in the assembly of various inflammasomes (NLRP1, NLRP2, NLRP3, NLRP6, AIM2 and probably IFI16) which recruit and activate caspase-1 leading to processing and secretion of pro-inflammatory cytokines (PubMed:15030775, PubMed:16982856, PubMed:17349957, PubMed:17599095, PubMed:19158675, PubMed:19158676, PubMed:19234215, PubMed:21487011, PubMed:23530044, PubMed:24630722, PubMed:25847972, PubMed:29440442, PubMed:30674671, PubMed:33980849, PubMed:34678144, PubMed:34706239). Caspase-1-dependent inflammation leads to macrophage pyroptosis, a form of cell death (PubMed:24630722). The function as activating adapter in different types of inflammasomes is mediated by the pyrin and CARD domains and their homotypic interactions (PubMed:14499617, PubMed:19234215, PubMed:24630722). Clustered PYCARD nucleates the formation of caspase-1 filaments through the interaction of their respective CARD domains, acting as a platform for of caspase-1 polymerization (PubMed:24630722). In the NLRP1 and NLRC4 inflammasomes seems not be required but facilitates the processing of procaspase-1 (PubMed:17349957). In cooperation with NOD2 involved in an inflammasome activated by bacterial muramyl dipeptide leading to caspase-1 activation (PubMed:16964285). May be involved in RIGI-triggered pro-inflammatory responses and inflammasome activation (PubMed:19915568). In collaboration with AIM2 which detects cytosolic double-stranded DNA may also be involved in a caspase-1-independent cell death that involves caspase-8 (PubMed:19158675, PubMed:19158676). In adaptive immunity may be involved in maturation of dendritic cells to stimulate T-cell immunity and in cytoskeletal rearrangements coupled to chemotaxis and antigen uptake may be involved in post-transcriptional regulation of the guanine nucleotide exchange factor DOCK2; the latter function is proposed to involve the nuclear form (PubMed:22732093). Also involved in transcriptional activation of cytokines and chemokines independent of the inflammasome; this function may involve AP-1, NF-kappa-B, MAPK and caspase-8 signaling pathways (PubMed:12486103, PubMed:16585594). For regulation of NF-kappa-B activating and inhibiting functions have been reported (PubMed:12486103). Modulates NF-kappa-B induction at the level of the IKK complex by inhibiting kinase activity of CHUK and IKBK (PubMed:12486103, PubMed:16585594). Proposed to compete with RIPK2 for association with CASP1 thereby down-regulating CASP1-mediated RIPK2-dependent NF-kappa-B activation and activating interleukin-1 beta processing (PubMed:16585594). Modulates host resistance to DNA virus infection, probably by inducing the cleavage of and inactivating CGAS in presence of cytoplasmic double-stranded DNA (PubMed:28314590). Isoform 2. May have a regulating effect on the function as inflammasome adapter. Isoform 3. Seems to inhibit inflammasome-mediated maturation of interleukin-1 beta.

Alternative names

ASC, CARD5, TMS1, PYCARD, Apoptosis-associated speck-like protein containing a CARD, hASC, Caspase recruitment domain-containing protein 5, PYD and CARD domain-containing protein, Target of methylation-induced silencing 1

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Multiclonal
Immunogens: The exact immunogen used to generate this antibody is proprietary information.
Clone number: RM1049
Purification technique: Affinity purification Protein A
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

What is this antibody validated in?

Anti-TMS1/ASC antibody [RM1049] (ab309497) is a rabbit recombinant recombinant multiclonal antibody and is validated for use in Western Blot (WB), Flow Cytometry (Intra), Flow Cytometry (Flow Cyt), Immunoprecipitation (IP), Immunohistochemistry (IHC-P), Immunocytochemistry/immunofluorescence (ICC/IF) in Human, Mouse, Rat samples.

Trial sizes available!

Test your antibody or perform pre-screening before committing to a larger quantity. Sold in 10µl. Discover our selection of trial-size antibodies.

Specificity confirmed

The specificity of Anti-TMS1/ASC antibody [RM1049] (ab309497) has been confirmed by Western blot testing in PYCARD Knockout HAP1 cell line.

Other related products

We have a range of other formats of antibody clone [RM1049] also available for your convenience:
ab309497, Carrier free - ab309498

What are recombinant multiclonals?
Recombinant multiclonals are a mixture of recombinant antibodies co-expressed from a library of heavy and light chains. They offer several advantages including:

- The sensitivity of polyclonal antibodies by recognising multiple epitopes
- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

View our range of recombinant multiclonal antibodies.

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

20 product images

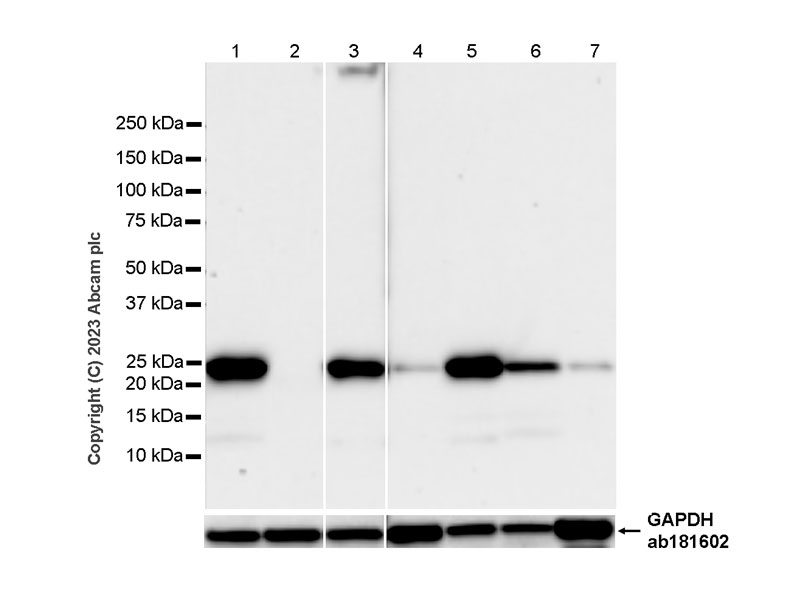

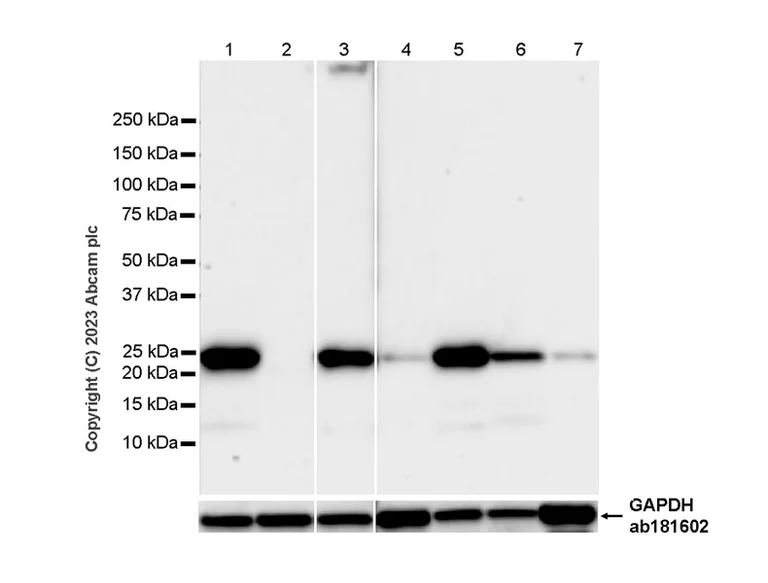

Western blot - Anti-TMS1/ASC antibody [RM1049] (ab309497)
TMS1/ASC Western blot staining using rabbit Anti-TMS1/ASC antibody
Blocking and diluting buffer and concentration: 5% NFDM/TBST
Negative control: RAW 264.7 (PMID:28766178).
Low expression tissue: skeletal muscle (PMID:32659370)

TMS1/ASC has four isoforms. 24-kDa ASC, 17-kDa ASC-b and 12-kDa ASC-c are observed. The molecular weight observed is consistent with what has been described in the literature (PMID:20482797).

In Western blot, anti-GAPDH antibody (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/200000 dilution.
Exposure time: 26 seconds
All lanes: Western blot - Anti-TMS1/ASC antibody [RM1049] (ab309497) at 1/1000 dilution
Lane 1: J774A.1 (mouse reticum cell sarcoma monocyte/macrophage ) whole cell lysate 20 at 20 µg
Lane 2: RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg
Lane 3: Mouse spleen tissue lysate at 20 µg
Lane 4: Mouse skeletal muscle at 20 µg
Lane 5: Rat spleen tissue lysate at 20 µg
Lane 6: Rat colon tissue lysate at 20 µg
Lane 7: Rat skeletal muscle at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Observed band size: 12 kDa, 17 kDa, 24 kDa
Exposure time: 26s

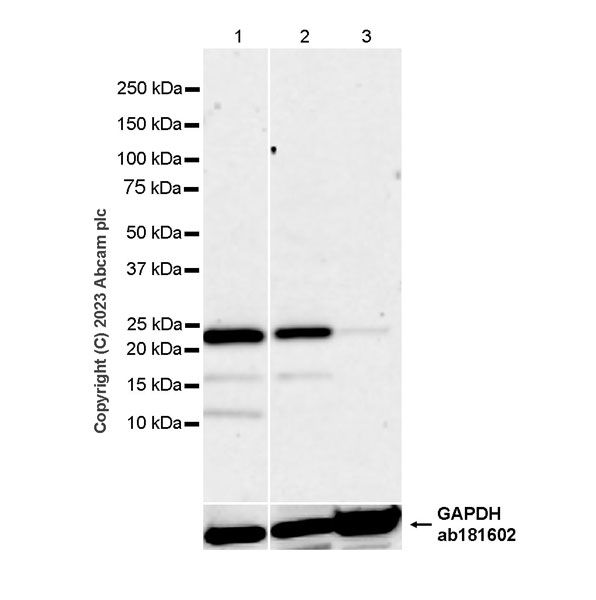

Western blot - Anti-TMS1/ASC antibody [RM1049] (ab309497)
TMS1/ASC Western blot staining using rabbit Anti-TMS1/ASC antibody
Blocking and diluting buffer and concentration: 5% NFDM/TBST
Low expression tissue: skeletal muscle (PMID:32659370).

TMS1/ASC has four isoforms. 24-kDa ASC, 17-kDa ASC-b and 12-kDa ASC-c are observed. The molecular weight observed is consistent with what has been described in the literature (PMID:20482797).

In Western blot, anti-GAPDH antibody (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/200000 dilution.
Exposure time: 125 seconds
All lanes: Western blot - Anti-TMS1/ASC antibody [RM1049] (ab309497) at 1/1000 dilution
Lane 1: Human spleen tissue lysate at 20 µg
Lane 2: Human colon tissue lysate at 20 µg
Lane 3: Human skeletal muscle tissue lysate at 20 µg
Secondary
All lanes: Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution
Observed band size: 12 kDa, 17 kDa, 24 kDa
Exposure time: 125s

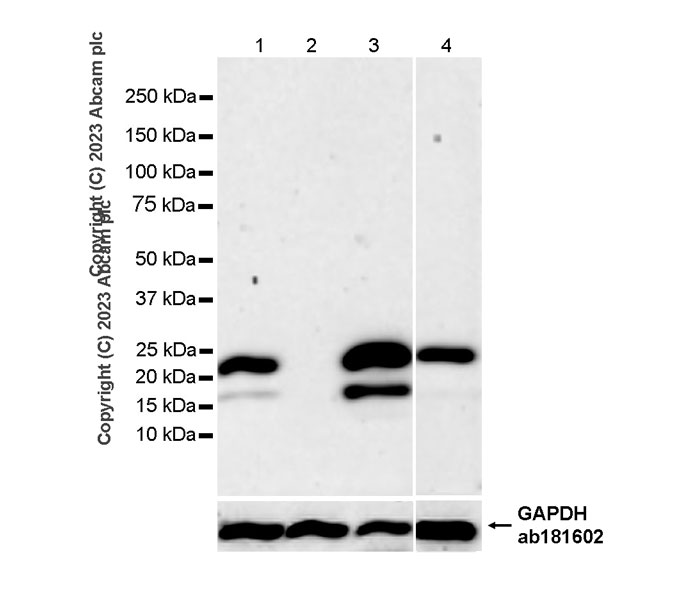

Western blot - Anti-TMS1/ASC antibody [RM1049] (ab309497)
TMS1/ASC Western blot staining using rabbit Anti-TMS1/ASC antibody
Blocking and diluting buffer and concentration: 5% NFDM/TBST
Low expression: HeLa (PMID: 10567338).

TMS1/ASC has four isoforms. 24-kDa ASC, 17-kDa ASC-b and 12-kDa ASC-c are observed. The molecular weight observed is consistent with what has been described in the literature (PMID:20482797).

In Western blot, anti-GAPDH antibody (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/200000 dilution.
Exposure time: 125 seconds
All lanes: Western blot - Anti-TMS1/ASC antibody [RM1049] (ab309497) at 1/1000 dilution
Lane 1: Parental HAP1 whole cell lysate at 20 µg
Lane 2: TMS1/ASC knockout HAP1 whole cell lysate at 20 µg
Lane 3: THP-1 (human monocytic leukemia monocyte) whole cell lysate at 20 µg
Lane 4: HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Observed band size: 12 kDa, 17 kDa, 24 kDa
Exposure time: 125s

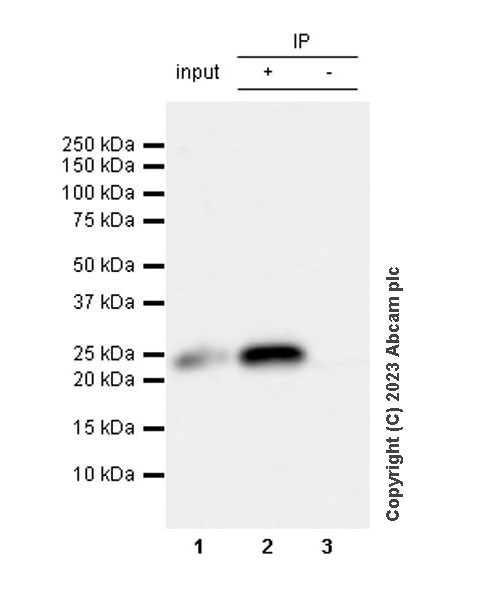

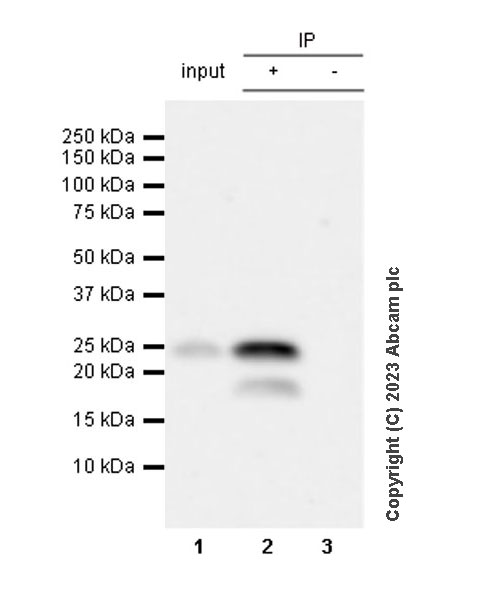

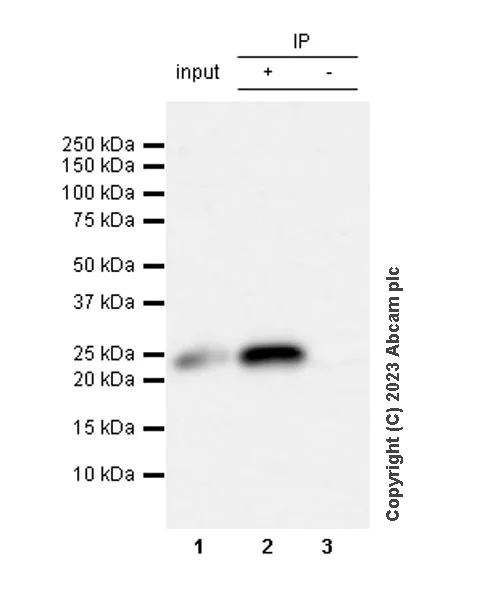

Immunoprecipitation - Anti-TMS1/ASC antibody [RM1049] (ab309497)
TMS1/ASC was immunoprecipitated from 0.35 mg THP-1 (human monocytic leukemia monocyte) whole cell lysate with ab309497 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab309497 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: THP-1 (human monocytic leukemia monocyte) whole cell lysate
Lane 2: ab309497 IP in THP-1 (human monocytic leukemia monocyte) whole cell lysate
Lane 3:Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab309497 in THP-1 whole cell lysate
Blocking and dilution buffer and concentration: 5% NFDM/TBST.
Exposure time: 10 seconds
TMS1/ASC has four isoforms. 24-kDa ASC and 17-kDa ASC-b are observed after immunoprecipitation. The molecular weight observed is consistent with what has been described in the literature (PMID:20482797).
All lanes: Immunoprecipitation - Anti-TMS1/ASC antibody [RM1049] (ab309497) at 1/30 dilution
All lanes: THP-1 (human monocytic leukemia monocyte) whole cell lysate
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution
Exposure time: 10s
Immunoprecipitation - Anti-TMS1/ASC antibody [RM1049] (ab309497)
TMS1/ASC was immunoprecipitated from 0.35 mg J774A.1 (mouse reticulum cell sarcoma monocyte/macrophage ) whole cell lysate with ab309497 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab309497 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
Lane 1: J774A.1 (mouse reticulum cell sarcoma monocyte/macrophage ) whole cell lysate
Lane 2: ab309497 IP in J774A.1 (mouse reticulum cell sarcoma monocyte/macrophage ) whole cell lysate
Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab309497 in J774A.1 whole cell lysate
Blocking and dilution buffer and concentration: 5% NFDM/TBST.
Exposure time: 10 seconds
All lanes: Immunoprecipitation - Anti-TMS1/ASC antibody [RM1049] (ab309497) at 1/30 dilution
All lanes: J774A.1 (mouse reticulum cell sarcoma monocyte/macrophage ) whole cell lysate
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution
Exposure time: 10s

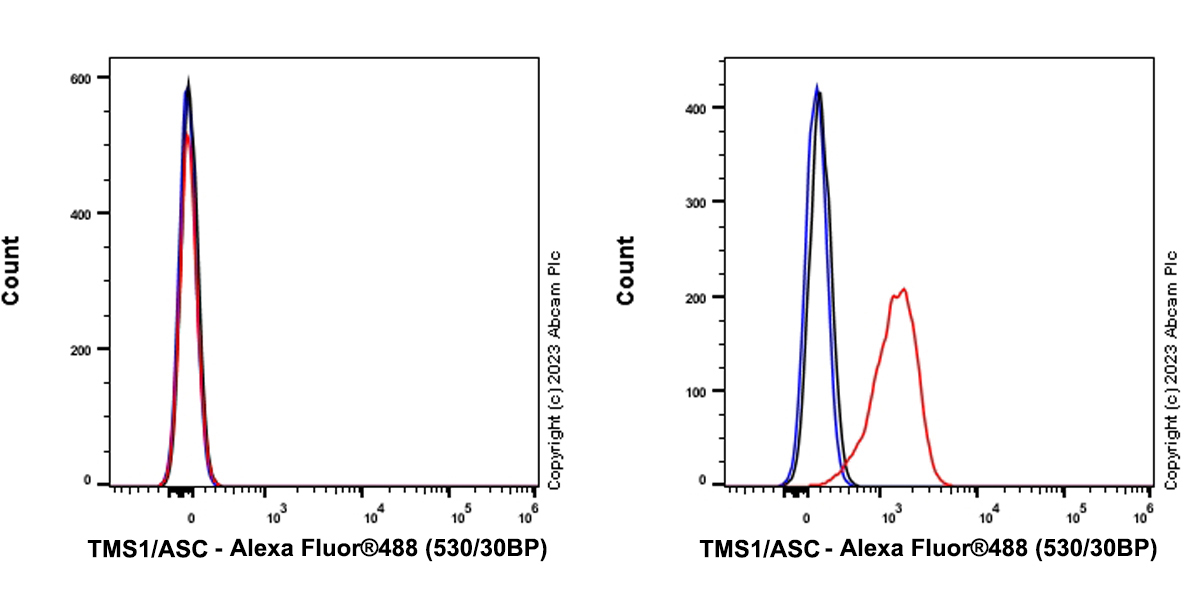

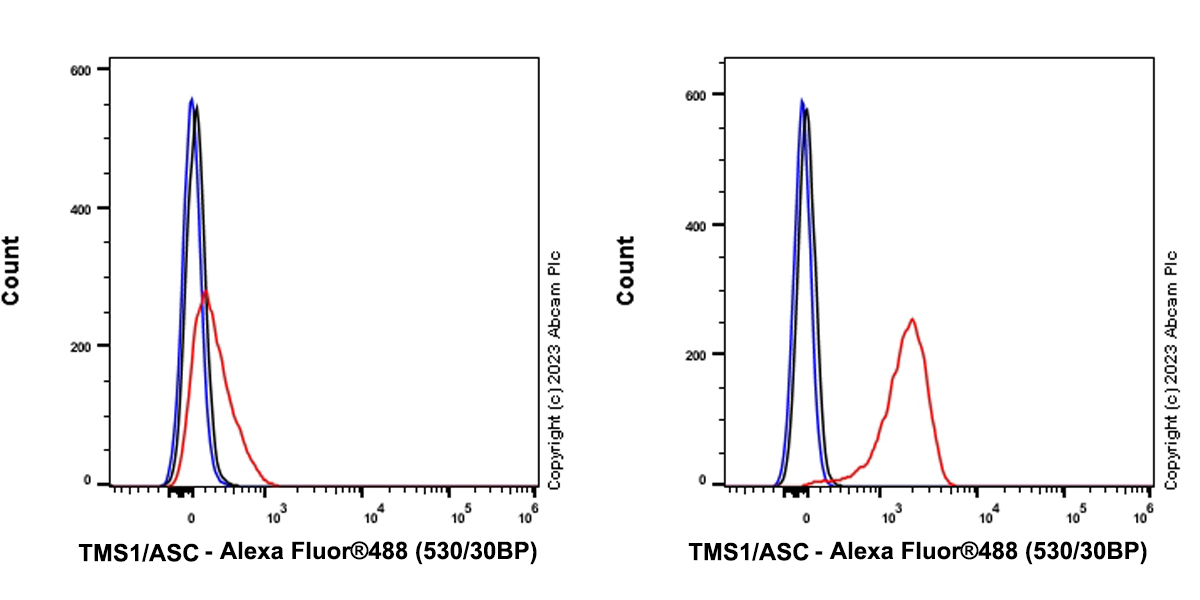

Flow Cytometry (Intracellular) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Hela (human cervical adenocarcinoma epithelial cell, Left) / THP-1 (human monocytic leukemia monocyte, Right) cells labelling TMS1/ASC with ab309497 at 1/5000 dilution (0.01 ug)/Red (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody. Negative control: Hela (PMID: 10567338).
Flow Cytometry (Intracellular) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage, Left) / J774A.1(mouse reticulum cell sarcoma monocyte/macrophage, Right) cells labelling TMS1/ASC with ab309497 at 1/500 dilution (0.1 ug)/Red (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody. Negative control: RAW 264.7 (PMID: 28766178)
Immunocytochemistry/ Immunofluorescence - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized J774A.1 (mouse reticulum cell sarcoma monocyte/macrophage) cells labelling TMS1/ASC with ab309497 at 1/1000 (0.498 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2ug/ml dilution (Green). Confocal image showing nuclear and cytoplasmic staining in J774A.1 cell line. Negative control: RAW 264.7 (PMID: 28766178?Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). is observed. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2ug/ml dilution.
Immunocytochemistry/ Immunofluorescence - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized THP-1 (human monocytic leukemia monocyte) cells labelling TMS1/ASC with ab309497 at 1/500 (0.996 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2ug/ml dilution (Green). Confocal image showing nuclear and cytoplasmic staining in THP-1 cell line. Negative control: Hela (PMID: 10567338).Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). is observed. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2ug/ml dilution.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunohistochemical analysis of paraffin-embedded Rat skeletal muscle tissue labeling TMS1/ASC with ab309497 at 1/1000 (0.498 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Low expression tissue: No staining on rat skeletal muscle.The section was incubated with ab309497 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunohistochemical analysis of paraffin-embedded Rat colon tissue labeling TMS1/ASC with ab309497 at 1/1000 (0.498 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on rat colon.The section was incubated with ab309497 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

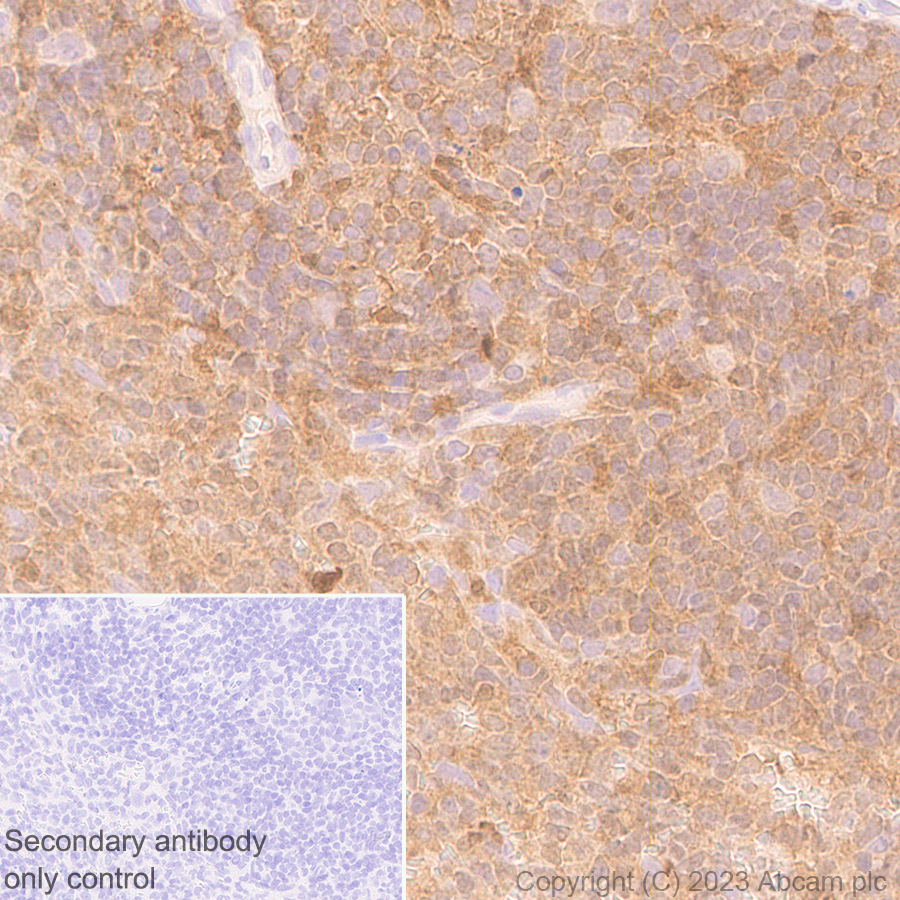

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunohistochemical analysis of paraffin-embedded Rat spleen tissue labeling TMS1/ASC with ab309497 at 1/1000 (0.498 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on rat spleen.The section was incubated with ab309497 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunohistochemical analysis of paraffin-embedded Mouse skeletal muscl tissue labeling TMS1/ASC with ab309497 at 1/1000 (0.498 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Low expression tissue: No staining on mouse skeletal muscle (PMID: 32659370).The section was incubated with ab309497 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunohistochemical analysis of paraffin-embedded Mouse head and neck tissue labeling TMS1/ASC with ab309497 at 1/1000 (0.498 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse head and neck squamous cell cancer.The section was incubated with ab309497 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunohistochemical analysis of paraffin-embedded Mouse colon tissue labeling TMS1/ASC with ab309497 at 1/1000 (0.498 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse colon.The section was incubated with ab309497 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

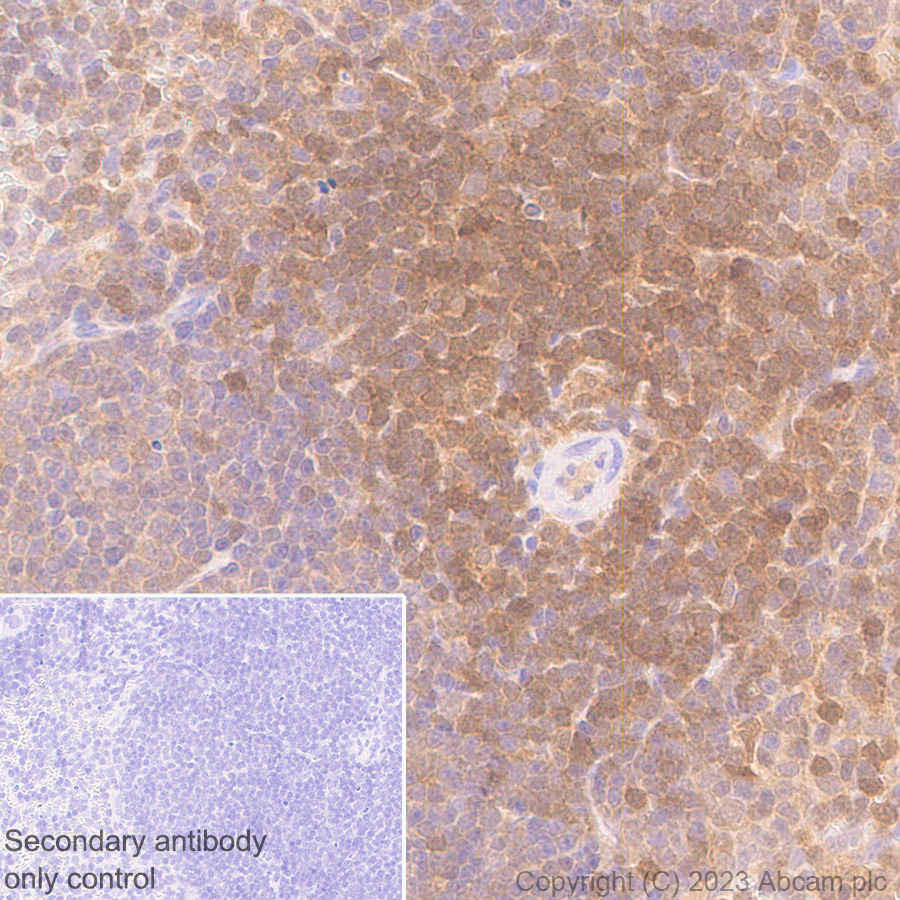

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labeling TMS1/ASC with ab309497 at 1/1000 (0.498 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse spleen.The section was incubated with ab309497 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

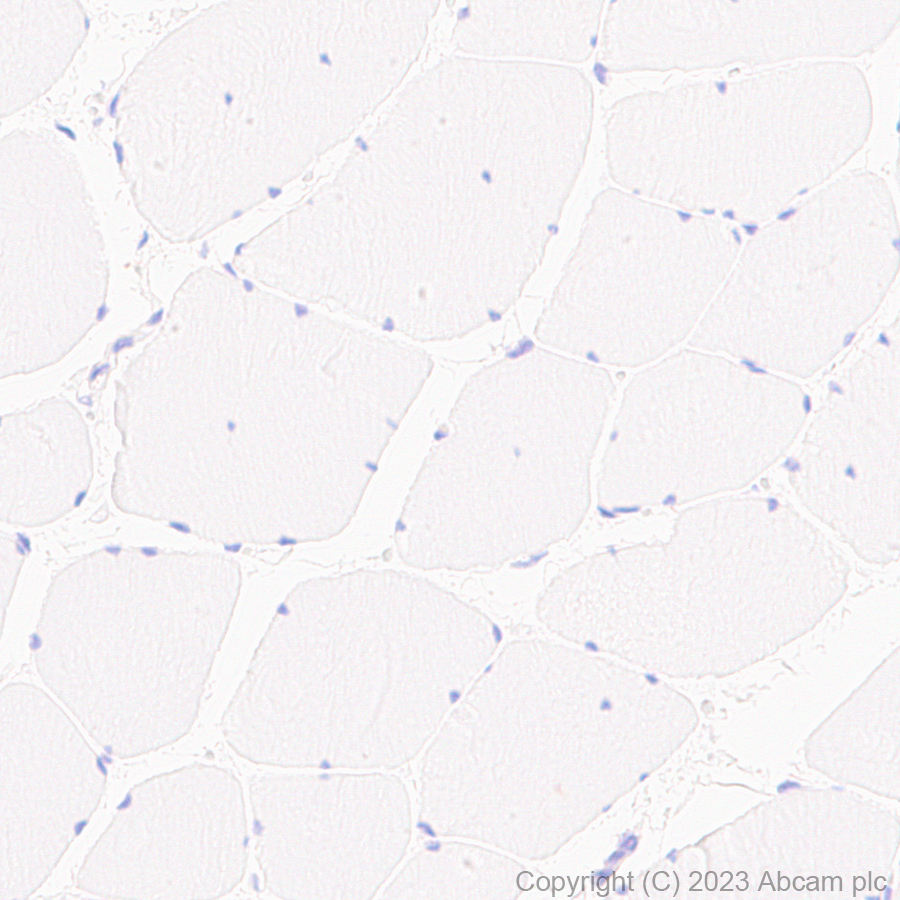

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunohistochemical analysis of paraffin-embedded Human skeletal muscl tissue labeling TMS1/ASC with ab309497 at 1/1000 (0.498 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Low expression tissue: No staining on human skeletal muscle.The section was incubated with ab309497 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

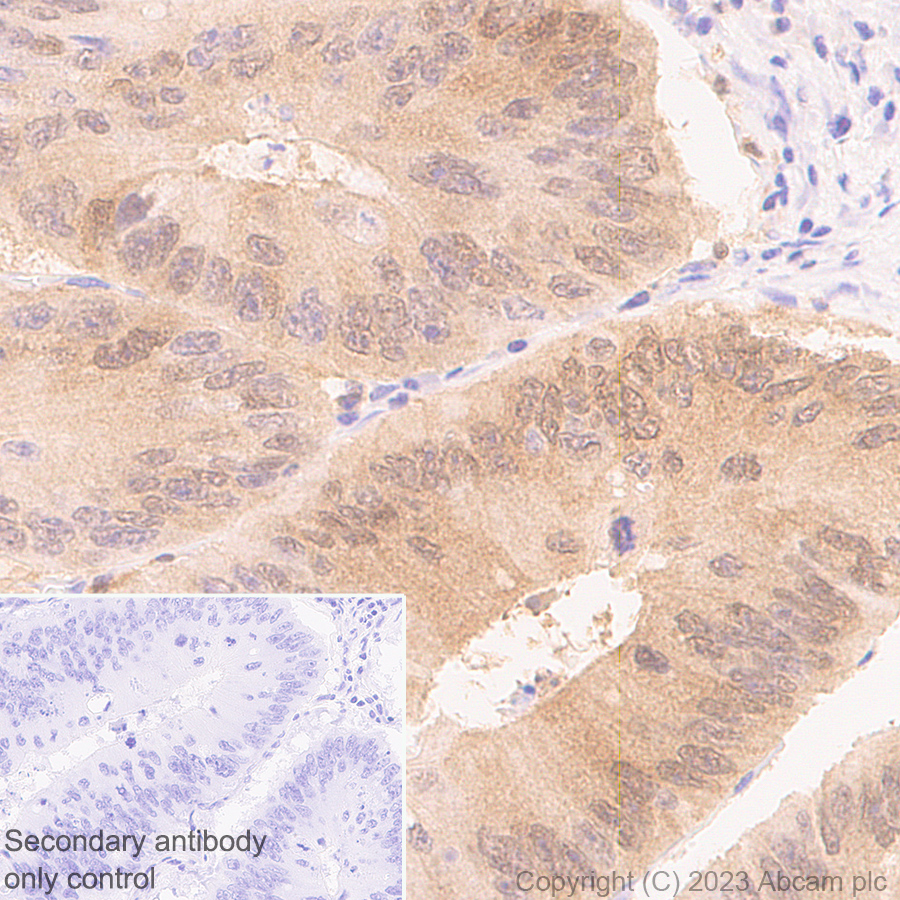

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunohistochemical analysis of paraffin-embedded Human colon cancer tissue labeling TMS1/ASC with ab309497 at 1/1000 (0.498 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on human colon cancer.The section was incubated with ab309497 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunohistochemical analysis of paraffin-embedded Human colon tissue labeling TMS1/ASC with ab309497 at 1/1000 (0.498 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on human colon.The section was incubated with ab309497 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TMS1/ASC antibody [RM1049] (ab309497)
Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling TMS1/ASC with ab309497 at 1/1000 (0.498 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on human tonsil.The section was incubated with ab309497 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
