AB314495

Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free

Be the first to review this product! Submit a review

|

(0 Publication)

Rabbit Recombinant Monoclonal TNFRSF14/HVEM antibody. Carrier free. Suitable for WB, IHC-P and reacts with Human, Transfected cell line samples.

View Alternative Names

CD270, HVEA, HVEM, UNQ329/PRO509, TNFRSF14, Tumor necrosis factor receptor superfamily member 14, Herpes virus entry mediator A, Tumor necrosis factor receptor-like 2, Herpesvirus entry mediator A, HveA, TR2

7 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)

This data was developed using ab314494, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded (A) HEK-293T (human embryonic kidney epithelial cell) transfected with a TNFRSF14 expression vector containing a Myc-his tag cell pellet; (B) HEK-293T transfected with an empty vector containing a Myc-his tag cell pellet. tissue labeling TNFRSF14/HVEM with ab314494 at 1/1000 (0.525 ug/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on (A) HEK-293T transfected with a TNFRSF14 expression vector containing a Myc-his tag cell pellet; no staining on (B) HEK-293T transfected with an empty vector containing a Myc-his tag cell pellet. The section was incubated with ab314494 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)

This data was developed using ab314494, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded human cerebrum tissue labeling TNFRSF14/HVEM with ab314494 at 1/1000 (0.525 ug/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Negative control : No staining on human cerebrum (PMID : 30987862). The section was incubated with ab314494 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)

This data was developed using ab314494, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded human tonsil tissue labeling TNFRSF14/HVEM with ab314494 at 1/1000 (0.525 ug/ml) followed by a ready to use rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on human tonsil (PMID : 30918139). The section was incubated with ab314494 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)

This data was developed using ab314494, the same antibody clone in a different buffer formulation. Immunohistochemical analysis of paraffin-embedded Human prostatic hyperplasia tissue labeling TNFRSF14/HVEM with ab314494 at 1/1000 (0.525 ug/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on human prostatic hyperplasia. The section was incubated with ab314494 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

Western blot - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)
  • WB

Supplier Data

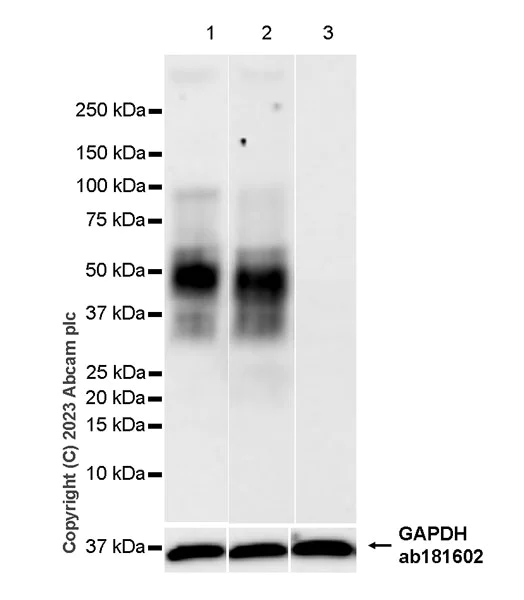

Western blot - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)

This data was developed using ab314494, the same antibody clone in a different buffer formulation. Blocking and diluting buffer and concentration : 5% NFDM/TBST Low expression : cerebellum. In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution. Exposure time : Lane 1 : 37 seconds, lanes 2-3 : 59 seconds.

All lanes:

Western blot - Anti-TNFRSF14/HVEM antibody [EPR28154-164] (<a href='/en-us/products/primary-antibodies/tnfrsf14-hvem-antibody-epr28154-164-ab314494'>ab314494</a>) at 1/1000 dilution

Lane 1:

Human tonsil tissue lysate at 50 µg

Lane 2:

Human thymus tissue lysate at 50 µg

Lane 3:

Human cerebellum tissue lysate at 50 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Observed band size: 30 kDa,50 kDa

false

Western blot - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)
  • WB

Supplier Data

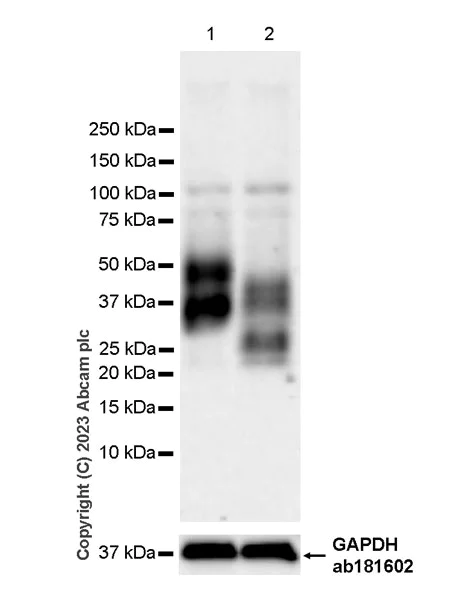

Western blot - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)

This data was developed using ab314494, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

TNFRSF14/HVEM is a glycoprotein of approximately 30 kDa and 50 kDa and detected as a 20 kDa and 40 kDa band after treated with Protein Deglycosylation MIX II.

In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-TNFRSF14/HVEM antibody [EPR28154-164] (<a href='/en-us/products/primary-antibodies/tnfrsf14-hvem-antibody-epr28154-164-ab314494'>ab314494</a>) at 1/1000 dilution

Lane 1:

Untreated SK-MEL-28 (human malignant melanoma) whole cell lysate at 50 µg

Lane 2:

SK-MEL-28 treated with Protein Deglycosylation Mix II at 50 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 20 kDa,30 kDa,40 kDa,50 kDa

false

Exposure time: 92s

Western blot - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)
  • WB

Supplier Data

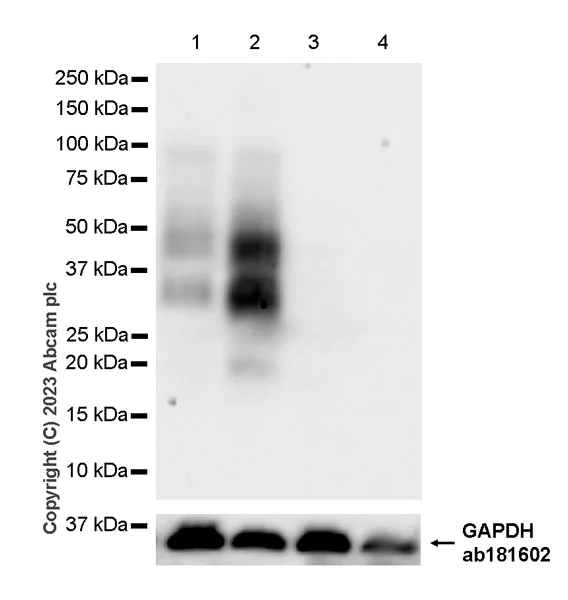

Western blot - Anti-TNFRSF14/HVEM antibody [EPR28154-164] - BSA and Azide free (AB314495)

This data was developed using ab314494, the same antibody clone in a different buffer formulation. Blocking and diluting buffer and concentration : 5% NFDM/TBST Low expression : NCI-H1975 (PMID : 30429008), A549 (PMID : 30429008). In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-TNFRSF14/HVEM antibody [EPR28154-164] (<a href='/en-us/products/primary-antibodies/tnfrsf14-hvem-antibody-epr28154-164-ab314494'>ab314494</a>) at 1/1000 dilution

Lane 1:

HDLM-2 (human Hodgkin lymphoma) whole cell lysate at 50 µg

Lane 2:

SK-MEL-28 (human malignant melanoma) whole cell lysate at 50 µg

Lane 3:

NCI-H1975 (human adenocarcinoma lu epithelial cell) whole cell lysate at 50 µg

Lane 4:

A549 (human lu carcinoma epithelial cell) whole cell lysate at 50 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Observed band size: 30 kDa,50 kDa

false

Exposure time: 37s

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR28154-164

Isotype

IgG

Carrier free

Yes

Reacts with

Human

Applications

WB, IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>" }, "Mouse": { "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "" }, "Rat": { "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "" }, "Transfected cell line": { "WB-species-checked": "notRecommended", "WB-species-dilution-info": "", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "" } } }
style
left-column

Product details

ab314495 is the carrier-free version of ab314494.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
style
left-column
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Receptor for four distinct ligands : The TNF superfamily members TNFSF14/LIGHT and homotrimeric LTA/lymphotoxin-alpha and the immunoglobulin superfamily members BTLA and CD160, altogether defining a complex stimulatory and inhibitory signaling network (PubMed : 10754304, PubMed : 18193050, PubMed : 23761635, PubMed : 9462508). Signals via the TRAF2-TRAF3 E3 ligase pathway to promote immune cell survival and differentiation (PubMed : 19915044, PubMed : 9153189, PubMed : 9162022). Participates in bidirectional cell-cell contact signaling between antigen presenting cells and lymphocytes. In response to ligation of TNFSF14/LIGHT, delivers costimulatory signals to T cells, promoting cell proliferation and effector functions (PubMed : 10754304). Interacts with CD160 on NK cells, enhancing IFNG production and anti-tumor immune response (PubMed : 23761635). In the context of bacterial infection, acts as a signaling receptor on epithelial cells for CD160 from intraepithelial lymphocytes, triggering the production of antimicrobial proteins and pro-inflammatory cytokines (By similarity). Upon binding to CD160 on activated CD4+ T cells, down-regulates CD28 costimulatory signaling, restricting memory and alloantigen-specific immune response (PubMed : 18193050). May interact in cis (on the same cell) or in trans (on other cells) with BTLA (By similarity) (PubMed : 19915044). In cis interactions, appears to play an immune regulatory role inhibiting in trans interactions in naive T cells to maintain a resting state. In trans interactions, can predominate during adaptive immune response to provide survival signals to effector T cells (By similarity) (PubMed : 19915044).. (Microbial infection) Acts as a receptor for Herpes simplex virus 1/HHV-1.. (Microbial infection) Acts as a receptor for Herpes simplex virus 2/HHV-2.
