Anti-TNNI3K antibody

• WB

Lab

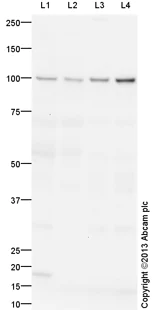

Western blot - Anti-TNNI3K antibody (AB136954)

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 5% Bovine Serum Albumin before being incubated with ab136954 overnight at 4°C. Antibody binding was detected using an anti-rabbit antibody conjugated to HRP, and visualised using ECL development solution.

All lanes:

Western blot - Anti-TNNI3K antibody (ab136954) at 1 µg/mL

Lane 1:

Human heart tissue lysate - total protein (<a href='/en-us/products/unavailable/human-heart-tissue-lysate-total-protein-ab29431'>ab29431</a>) at 10 µg

Lane 2:

Heart (Human) Whole Cell Lysate - fetal normal tissue at 10 µg

Lane 3:

Heart (Mouse) Tissue Lysate at 10 µg

Lane 4:

Heart (Rat) Tissue Lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/10000 dilution

Predicted band size: 93 kDa

Observed band size: 100 kDa

true

Exposure time: 3min
