Rabbit Recombinant Monoclonal TopBP1 phospho S1138 antibody. Carrier free. Suitable for WB, Dot and reacts with Transfected cell lysate - Human, Human, Synthetic peptide - Human samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] - BSA and Azide free (AB316747), expandable thumbnail
  • Western blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] - BSA and Azide free (AB316747), expandable thumbnail
  • Dot Blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] - BSA and Azide free (AB316747), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Constituents: 100% PBS

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBDotIHC-PICC/IFIPFlow Cyt (Intra)
Human
Tested
Expected
Not recommended
Not recommended
Not recommended
Not recommended
Mouse
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Rat
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Synthetic peptide - Human
Not recommended
Tested
Not recommended
Not recommended
Not recommended
Not recommended
Transfected cell lysate - Human
Tested
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended

Tested
Tested

Species
Transfected cell lysate - Human, Human
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat, Synthetic peptide - Human
Dilution info
-
Notes

-

Tested
Tested

Species
Synthetic peptide - Human
Dilution info
-
Notes

-

Expected
Expected

Species
Human
Dilution info
Use at an assay dependent concentration.
Notes

-

Not recommended
Not recommended

Species
Transfected cell lysate - Human, Mouse, Rat
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Human, Mouse, Rat, Transfected cell lysate - Human, Synthetic peptide - Human
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Human, Transfected cell lysate - Human, Mouse, Rat, Synthetic peptide - Human
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Human, Transfected cell lysate - Human, Mouse, Rat, Synthetic peptide - Human
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Human, Transfected cell lysate - Human, Mouse, Rat, Synthetic peptide - Human
Dilution info
-
Notes

-

Target data

Function

Scaffold protein that acts as a key protein-protein adapter in DNA replication and DNA repair (PubMed:10498869, PubMed:11395493, PubMed:11714696, PubMed:17575048, PubMed:20545769, PubMed:21777809, PubMed:26811421, PubMed:30898438, PubMed:31135337, PubMed:33592542, PubMed:35597237, PubMed:37674080). Composed of multiple BRCT domains, which specifically recognize and bind phosphorylated proteins, bringing proteins together into functional combinations (PubMed:17575048, PubMed:20545769, PubMed:21777809, PubMed:26811421, PubMed:30898438, PubMed:31135337, PubMed:35597237, PubMed:37674080). Required for DNA replication initiation but not for the formation of pre-replicative complexes or the elongation stages (By similarity). Necessary for the loading of replication factors onto chromatin, including GMNC, CDC45, DNA polymerases and components of the GINS complex (By similarity). Plays a central role in DNA repair by bridging proteins and promoting recruitment of proteins to DNA damage sites (PubMed:30898438, PubMed:35597237, PubMed:37674080). Involved in double-strand break (DSB) repair via homologous recombination in S-phase by promoting the exchange between the DNA replication factor A (RPA) complex and RAD51 (PubMed:26811421, PubMed:35597237). Mechanistically, TOPBP1 is recruited to DNA damage sites in S-phase via interaction with phosphorylated HTATSF1, and promotes the loading of RAD51, thereby facilitating RAD51 nucleofilaments formation and RPA displacement, followed by homologous recombination (PubMed:35597237). Involved in microhomology-mediated end-joining (MMEJ) DNA repair by promoting recruitment of polymerase theta (POLQ) to DNA damage sites during mitosis (PubMed:37674080). MMEJ is an alternative non-homologous end-joining (NHEJ) machinery that takes place during mitosis to repair DSBs in DNA that originate in S-phase (PubMed:37674080). Recognizes and binds POLQ phosphorylated by PLK1, enabling its recruitment to DSBs for subsequent repair (PubMed:37674080). Involved in G1 DNA damage checkpoint by acting as a molecular adapter that couples TP53BP1 and the 9-1-1 complex (PubMed:31135337). In response to DNA damage, triggers the recruitment of checkpoint signaling proteins on chromatin, which activate the CHEK1 signaling pathway and block S-phase progression (PubMed:16530042, PubMed:21777809). Acts as an activator of the kinase activity of ATR (PubMed:16530042, PubMed:21777809). Also required for chromosomal stability when DSBs occur during mitosis by forming filamentous assemblies that bridge MDC1 and tether broken chromosomes during mitosis (PubMed:30898438). Together with CIP2A, plays an essential role in the response to genome instability generated by the presence of acentric chromosome fragments derived from shattered chromosomes within micronuclei (PubMed:35121901, PubMed:35842428, PubMed:37165191, PubMed:37316668). Micronuclei, which are frequently found in cancer cells, consist of chromatin surrounded by their own nuclear membrane: following breakdown of the micronuclear envelope, a process associated with chromothripsis, the CIP2A-TOPBP1 complex tethers chromosome fragments during mitosis to ensure clustered segregation of the fragments to a single daughter cell nucleus, facilitating re-ligation with limited chromosome scattering and loss (PubMed:37165191, PubMed:37316668). Recruits the SWI/SNF chromatin remodeling complex to E2F1-responsive promoters, thereby down-regulating E2F1 activity and inhibiting E2F1-dependent apoptosis during G1/S transition and after DNA damage (PubMed:12697828, PubMed:15075294).

Alternative names

Recommended products

Rabbit Recombinant Monoclonal TopBP1 phospho S1138 antibody. Carrier free. Suitable for WB, Dot and reacts with Transfected cell lysate - Human, Human, Synthetic peptide - Human samples.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Carrier free
Yes
Clone number
EPR27056-2
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C

Notes

ab316747 is the carrirer-free version of Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] ab316746.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

TopBP1 also known as Topoisomerase II Binding Protein 1 is an important regulator in DNA replication and repair processes. This protein has an approximate mass of 180 kDa. It is expressed in various tissues with significant levels in rapidly dividing cells. TopBP1 functions mechanically by interacting with components of the DNA damage response machinery. It binds to double-strand breaks and activates ATR (Ataxia Telangiectasia and Rad3-related protein) signaling which is essential for maintaining genome stability under stress conditions.

Biological function summary

The activities of TopBP1 involve coordination of replication checkpoints and safeguarding the integrity of the replication fork. TopBP1 operates as part of a larger protein complex that senses DNA damage and initiates repair processes. It facilitates the recruitment of other repair proteins to sites of damage ensuring that replication proceeds only when the DNA is adequately repaired. It functions closely with proteins like RAD9 RAD1 and HUS1 which sense DNA damage and engage repair pathways.

Pathways

TopBP1 plays an important role in the DNA damage response and cell cycle regulation pathways. The protein is primarily involved in the ATR-Chk1 pathway and plays a significant role in the replication stress response. Within these pathways TopBP1 associates with proteins like ATR and Chk1 to coordinate cell cycle arrest and DNA repair linking replication and repair functions to maintain cell stability. It also interacts with the MRN complex (MRE11 RAD50 and NBS1) which is critical for responding to double-strand breaks.

Associated diseases and disorders

The malfunction of TopBP1 has implications for cancer development and progression. Deficiencies or mutations in TopBP1 may result in impaired DNA repair leading to genome instability a condition frequently observed in cancerous cells. TopBP1 interacts with other tumor suppressors such as p53 to regulate cell cycle checkpoints and prevent the accumulation of mutations. Aberrations in TopBP1 function can also contribute to the pathology of developmental disorders as its interactions with proteins involved in genome maintenance are important for normal cellular function.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

3 product images

  • Western blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] - BSA and Azide free (ab316747), expandable thumbnail

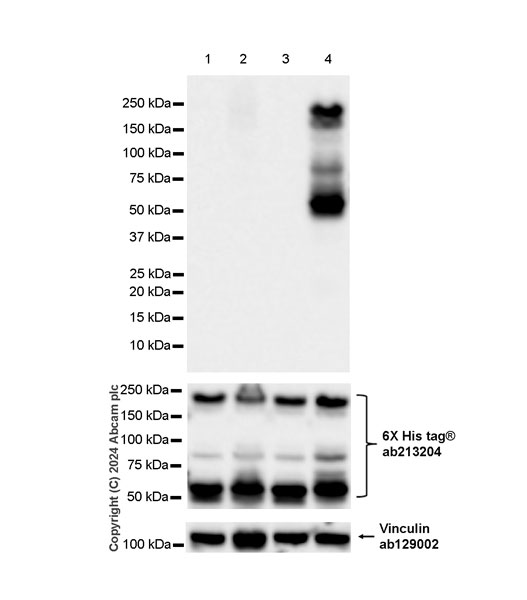

    Western blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] - BSA and Azide free (ab316747)

    This data was developed using Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] ab316746, the same antibody clone in a different buffer formulation.

    Lysates were freshly made and used for Western blotting immediately to minimize protein degradation.

    In Western blot, Anti-Vinculin antibody [EPR8185] (Anti-Vinculin antibody [EPR8185] ab129002) staining at 1/10000 dilution.

    In Western blot, Anti-6X His tag antibody [EPR20547]-CHIP Grade (Anti-6X His tag® antibody [EPR20547] - ChIP Grade ab213204) staining at 1/5000 dilution.

    All lanes: Western blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] (Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] ab316746) at 1/1000 dilution

    Lane 1: Untreated 293T cells transfected with a human TOPBP1 (S1138A) expression vector containing a His-tag, whole cell lysate at 20 µg with 5% NFDM/TBST

    Lane 2: 293T cells transfected with a human TOPBP1 (S1138A) expression vector containing a His-tag, treated with 100nM Calyculin A for 30 min whole cell lysate at 20 µg with 5% NFDM/TBST

    Lane 3: Untreated 293T cells transfected with a human wild-type TOPBP1 expression vector containing a His-tag, whole cell lysate at 20 µg with 5% NFDM/TBST

    Lane 4: 293T cells transfected with a human wild-type TOPBP1 expression vector containing a His-tag, treated with 100nM Calyculin A for 30 min whole cell lysate at 20 µg with 5% NFDM/TBST

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Observed band size: 55 kDa, 75 kDa, 170 kDa, 124 kDa, 50 kDa

    Exposure time: 10s

  • Western blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] - BSA and Azide free (ab316747), expandable thumbnail

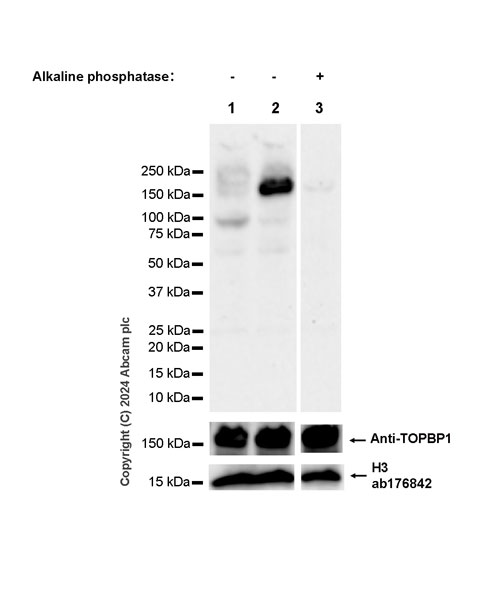

    Western blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] - BSA and Azide free (ab316747)

    This data was developed using Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] ab316746, the same antibody clone in a different buffer formulation.

    The expression of TOPBP1 S1138 is upregulated in response to hydroxyurea treatment (PMID: 17446169).

    Lysates were freshly made and used for Western blotting immediately to minimize protein degradation.

    In Western blot, Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade ab176842) staining at 1/100000 dilution.

    In Western blot, Anti-TOPBP1 antibody staining at 1/1000 dilution.

    All lanes: Western blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] (Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] ab316746) at 1/1000 dilution

    Lane 1: Untreated U-2 OS (human bone osteosarcoma epithelial cell) whole cell lysate (untreated membrane) at 30 µg with 5% NFDM/TBST

    Lane 2: U-2 OS treated with 2mM hydroxyurea for 24h whole cell lysate (untreated membrane) at 30 µg with 5% NFDM/TBST

    Lane 3: U-2 OS treated with 2mM hydroxyurea for 24h whole cell lysate (alkaline phosphatase treated membrane) at 30 µg with 5% NFDM/TBST

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Observed band size: 170 kDa, 15 kDa

    Exposure time: 92s

  • Dot Blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] - BSA and Azide free (ab316747), expandable thumbnail

    Dot Blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] - BSA and Azide free (ab316747)

    This data was developed using Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] ab316746, the same antibody clone in a different buffer formulation.

    Dot blot analysis of TopBP1 (phospho S1138) using Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] ab316746 at 1:1000 (0.53 ug/ml) followed by a Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1:100,000 dilution.

    All lanes: Dot Blot - Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] (Anti-TopBP1 (phospho S1138) antibody [EPR27056-2] ab316746) at 1/1000 dilution

    Lane 1: TopBP1 (Phospho S1138) peptide a with 5% NFDM/TBST

    Lane 2: TopBP1 (Phospho S1138) peptide b with 5% NFDM/TBST

    Lane 3: TopBP1 non-phospho peptide with 5% NFDM/TBST

    Secondary

    All lanes: Dot Blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Exposure time: 180s

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
