Rabbit Recombinant Monoclonal TOX antibody. Suitable for IHC-P, WB and reacts with Transfected cell line - Human, Human, Mouse samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-TOX antibody [EPR28108-10] (AB322259), expandable thumbnail
  • Western blot - Anti-TOX antibody [EPR28108-10] (AB322259), expandable thumbnail
  • Western blot - Anti-TOX antibody [EPR28108-10] (AB322259), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (AB322259), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (AB322259), expandable thumbnail

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PWB
Human
Tested
Tested
Mouse
Tested
Tested
Transfected cell line - Human
Tested
Not recommended

Tested
Tested

Species

Transfected cell line - Human

Dilution info

1/2000

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species

Human

Dilution info

1/500

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species

Mouse

Dilution info

1/500

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species

Human

Dilution info

1/1000

Notes

-

Species

Mouse

Dilution info

1/1000

Notes

-

Not recommended
Not recommended

Species

Transfected cell line - Human

Dilution info

-

Notes

-

Target data

Function

Transcriptional regulator with a major role in neural stem cell commitment and corticogenesis as well as in lymphoid cell development and lymphoid tissue organogenesis (By similarity). Binds to GC-rich DNA sequences in the proximity of transcription start sites and may alter chromatin structure, modifying access of transcription factors to DNA. During cortical development, controls the neural stem cell pool by inhibiting the switch from proliferative to differentiating progenitors. Beyond progenitor cells, promotes neurite outgrowth in newborn neurons migrating to reach the cortical plate. May activate or repress critical genes for neural stem cell fate such as SOX2, EOMES and ROBO2 (By similarity). Plays an essential role in the development of lymphoid tissue-inducer (LTi) cells, a subset necessary for the formation of secondary lymphoid organs: peripheral lymph nodes and Peyer's patches. Acts as a developmental checkpoint and regulates thymocyte positive selection toward T cell lineage commitment. Required for the development of various T cell subsets, including CD4-positive helper T cells, CD8-positive cytotoxic T cells, regulatory T cells and CD1D-dependent natural killer T (NKT) cells. Required for the differentiation of common lymphoid progenitors (CMP) to innate lymphoid cells (ILC) (By similarity). May regulate the NOTCH-mediated gene program, promoting differentiation of the ILC lineage. Required at the progenitor phase of NK cell development in the bone marrow to specify NK cell lineage commitment (PubMed:21126536) (By similarity). Upon chronic antigen stimulation, diverts T cell development by promoting the generation of exhaustive T cells, while suppressing effector and memory T cell programming. May regulate the expression of genes encoding inhibitory receptors such as PDCD1 and induce the exhaustion program, to prevent the overstimulation of T cells and activation-induced cell death (By similarity).

Targets

Tox

Alternative names

Thymocyte selection-associated high mobility group box protein TOX, Thymus high mobility group box protein TOX, KIAA0808, TOX

Rabbit Recombinant Monoclonal TOX antibody. Suitable for IHC-P, WB and reacts with Transfected cell line - Human, Human, Mouse samples.

Alternative names

Thymocyte selection-associated high mobility group box protein TOX, Thymus high mobility group box protein TOX, KIAA0808, TOX

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

EPR28108-10

Purification technique

Affinity purification Protein A

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

11 product images

  • Western blot - Anti-TOX antibody [EPR28108-10] (ab322259), expandable thumbnail

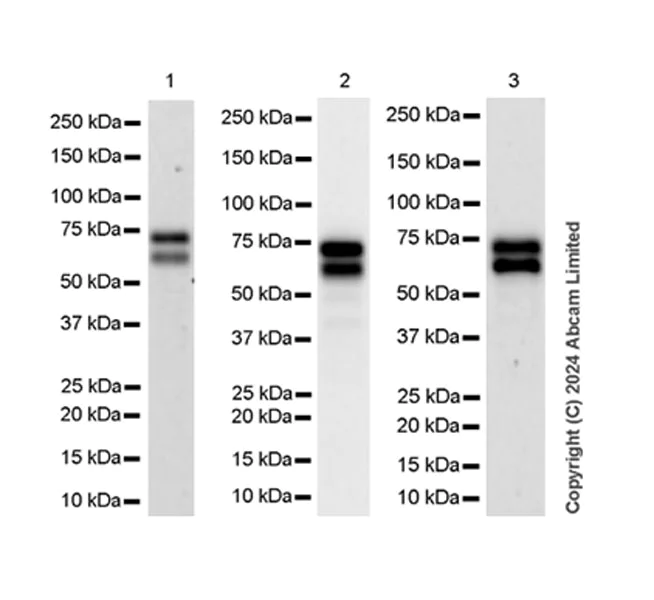

    Western blot - Anti-TOX antibody [EPR28108-10] (ab322259)

    Blocking and diluting buffer and concentration: 5% NFDM/TBST.

    To minimize protein degradation, cells/tissues were lysed immediately after harvest and then applied to a gel and transfer membrane for Western blotting as soon as possible.

    Exposure time: Lane 1: 180 seconds; Lane 2: 37 seconds; Lane 3: 125 seconds.

    All lanes: Western blot - Anti-TOX antibody [EPR28108-10] (ab322259) at 1/1000 dilution

    Lane 1: Neuro-2a (mouse neuroblastoma neuroblast) whole cell lysate at 20 µg

    Lane 2: Raji (human burkitt's lymphoma b lymphocyte) whole cell lysate at 20 µg

    Lane 3: Mouse testis tissue lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Observed band size: 57 kDa, 63 kDa

  • Western blot - Anti-TOX antibody [EPR28108-10] (ab322259), expandable thumbnail

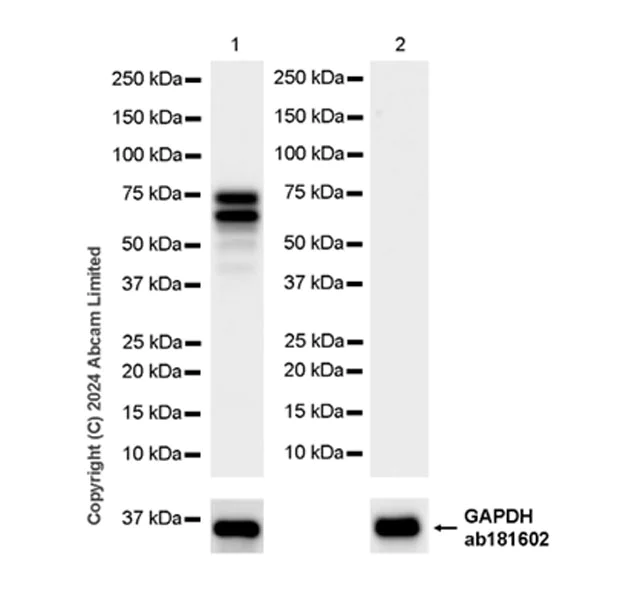

    Western blot - Anti-TOX antibody [EPR28108-10] (ab322259)

    Blocking and diluting buffer and concentration: 5% NFDM/TBST.

    Low expression: skeletal muscle.

    To minimize protein degradation, tissues were lysed immediately after harvest and then applied to a gel and transfer membrane for Western blotting as soon as possible.

    In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.

    All lanes: Western blot - Anti-TOX antibody [EPR28108-10] (ab322259) at 1/1000 dilution

    Lane 1: Mouse thymus tissue lysate at 20 µg

    Lane 2: Mouse skeletal muscle tissue lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Observed band size: 57 kDa, 63 kDa, 36 kDa

    Exposure time: 6s

  • Western blot - Anti-TOX antibody [EPR28108-10] (ab322259), expandable thumbnail

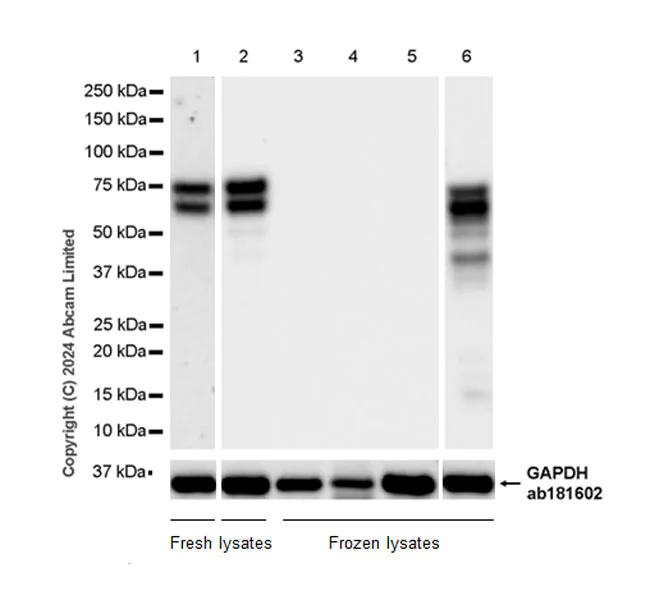

    Western blot - Anti-TOX antibody [EPR28108-10] (ab322259)

    Blocking and diluting buffer and concentration: 5% NFDM/TBST.

    Low expression: Daudi (PMID:32106280), AsPC-1, A549.

    To minimize protein degradation, cells were lysed immediately after harvest and then applied to a gel and transfer membrane for Western blotting as soon as possible.

    In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/200000 dilution.

    Exposure time: Lane 1: 180 seconds; Lanes 2-5: 15 seconds; Lane 6: 48 seconds.

    All lanes: Western blot - Anti-TOX antibody [EPR28108-10] (ab322259) at 1/1000 dilution

    Lane 1: KARPAS-299 (human t cell lymphoma cell) whole cell lysate at 20 µg

    Lanes 2 and 6: NCI-H69 (human lung small cell carcinoma cell line) whole cell lysate at 20 µg

    Lane 3: AsPC-1 (human Pancreas epithelial cell) whole cell lysate at 20 µg

    Lane 4: A549 (human lung carcinoma epithelial cell) whole cell lysate at 20 µg

    Lane 5: Daudi (human burkitt's lymphoma lymphoblast) whole cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Observed band size: 57 kDa, 63 kDa, 36 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259)

    Immunohistochemical analysis of paraffin-embedded Mouse skeletal muscle tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Negative control: no staining on mouse skeletal muscle. The section was incubated with ab322259 for 30 mins at room temperature.

    The immunostaining was performed on a Leica Biosystems BOND® RX instrument

    Counterstained with Hematoxylin.

    Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259)

    Immunohistochemical analysis of paraffin-embedded Human skeletal muscle tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Negative control: no staining on human skeletal muscle. The section was incubated with ab322259 for 30 mins at room temperature.

    The immunostaining was performed on a Leica Biosystems BOND® RX instrument

    Counterstained with Hematoxylin.

    Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259)

    Immunohistochemical analysis of paraffin-embedded (A) HEK-293T (human epithelial cell line from embryonic kidney) transfected with a TOX expression vector containing a GFP tag. (B) HEK-293T transfected with a TOX2 expression vector containing a GFP tag. (C) HEK-293T transfected with a TOX3 expression vector containing a GFP tag. (D) HEK-293T transfected with a TOX4 expression vector containing a GFP tag. (E) HEK-293T transfected with empty vector containing a Myc-His tag. tissue labeling TOX with ab322259 at 1/2000 (0.251 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Positive staining on (A) HEK-293T (human epithelial cell line from embryonic kidney) transfected with a TOX expression vector containing a GFP tag, no staining on (B) HEK-293T transfected with a TOX2 expression vector containing a GFP tag, (C) HEK-293T transfected with a TOX3 expression vector containing a GFP tag, (D) HEK-293T transfected with a TOX4 expression vector containing a GFP tag and (E) HEK-293T transfected with empty vector containing a Myc-His tag.

    The section was incubated with ab322259 for 30 mins at room temperature.

    The immunostaining was performed on a Leica Biosystems BOND® RX instrument

    Counterstained with Hematoxylin.

    Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259)

    Immunohistochemical analysis of paraffin-embedded Human spleen tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Nuclear staining on human spleen (PMID: 32106280). The section was incubated with ab322259 for 30 mins at room temperature.

    The immunostaining was performed on a Leica Biosystems BOND® RX instrument

    Counterstained with Hematoxylin.

    Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259)

    Immunohistochemical analysis of paraffin-embedded Human thymus tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Nuclear staining on human thymus (PMID: 32106280). The section was incubated with ab322259 for 30 mins at room temperature.

    The immunostaining was performed on a Leica Biosystems BOND® RX instrument

    Counterstained with Hematoxylin.

    Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259)

    Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Nuclear staining on human tonsil (PMID: 32106280). The section was incubated with ab322259 for 30 mins at room temperature.

    The immunostaining was performed on a Leica Biosystems BOND® RX instrument

    Counterstained with Hematoxylin.

    Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259)

    Immunohistochemical analysis of paraffin-embedded Mouse kidney tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Positive staining on mouse kidney. The section was incubated with ab322259 for 30 mins at room temperature.

    The immunostaining was performed on a Leica Biosystems BOND® RX instrument

    Counterstained with Hematoxylin.

    Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] (ab322259)

    Immunohistochemical analysis of paraffin-embedded Mouse pancreas tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Positive staining on mouse pancreas (PMID: 32106280). The section was incubated with ab322259 for 30 mins at room temperature.

    The immunostaining was performed on a Leica Biosystems BOND® RX instrument

    Counterstained with Hematoxylin.

    Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
