Anti-TOX antibody [EPR28108-10] - BSA and Azide free
- RabMAb
- Recombinant
- BOND RX™ Validated
- What is this?
Be the first to review this product! Submit a review
|
(0 Publication)
Rabbit Recombinant Monoclonal TOX antibody. Carrier free. Suitable for Flow Cyt (Intra), ICC/IF, IHC-P, WB and reacts with Human, Mouse, Rat, Transfected cell line - Human samples.
View Alternative Names
KIAA0808, TOX, Thymocyte selection-associated high mobility group box protein TOX, Thymus high mobility group box protein TOX
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Human skeletal muscle tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Negative control : no staining on human skeletal muscle. The section was incubated with ab322259 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
- Flow Cyt (Intra)
Lab

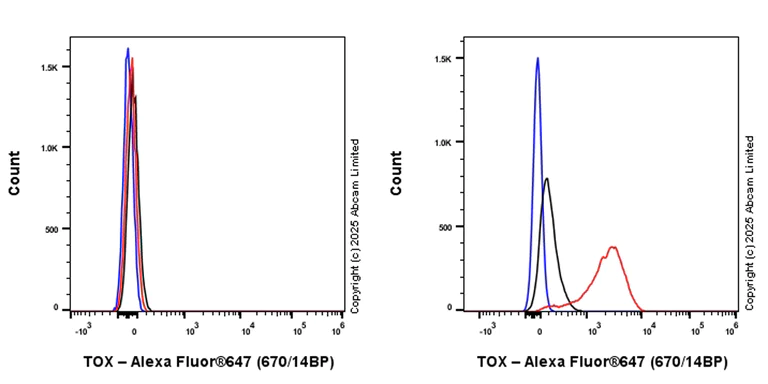

Flow Cytometry (Intracellular) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Daudi (human Burkitt's lymphoma lymphoblast, Left) / Raji (human Burkitt's lymphoma B lymphocyte, Right) cells labelling TOX with ab322259 at 1/500 compared with a Rabbit monoclonal IgG (ab172730) / Black isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat anti-Rabbit IgG (Alexa Fluor® 647, ab150083) at 1/5000 was used as the secondary antibody.
Negative control : Daudi.
- Flow Cyt (Intra)
Lab
Flow Cytometry (Intracellular) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.

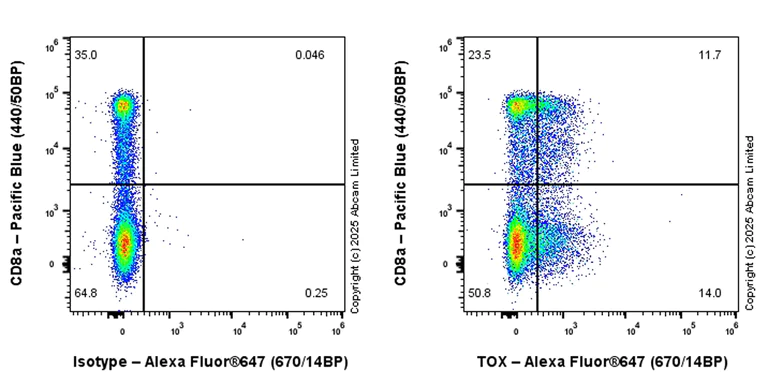

Flow cytometric analysis of 2% paraformaldehyde fixed 0.1% Tween-20 permeabilized Human PBMC (human peripheral blood mononuclear cell) cells labelling TOX with ab322259 at 1/500 compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control.
Goat anti-Rabbit IgG (Alexa Fluor® 647, ab150083) at 1/5000 was used as the secondary antibody.
Cells were stained with anti-CD8a conjugated to Pacific Blue. Then fixed with 2% PFA for 10 min followed by intracellularly staining with rabbit IgG or our antibody.
- Flow Cyt (Intra)
Lab
Flow Cytometry (Intracellular) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.

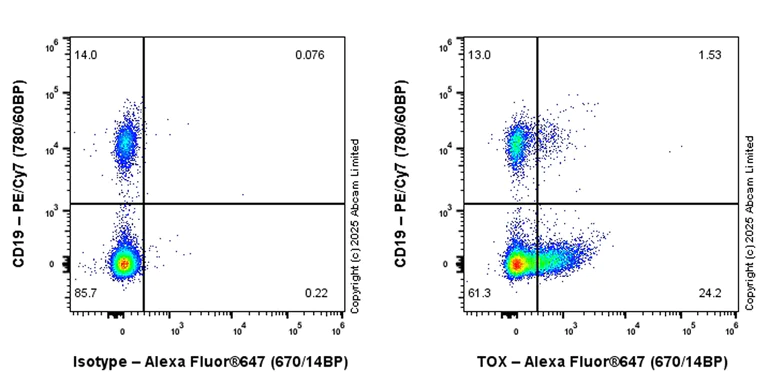

Flow cytometric analysis of 2% paraformaldehyde fixed 0.1% Tween-20 permeabilized Human PBMC (human peripheral blood mononuclear cell) cells labelling TOX with ab322259 at 1/500 compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control.
Goat anti-Rabbit IgG (Alexa Fluor® 647, ab150083) at 1/5000 was used as the secondary antibody.
Cells were stained with anti-CD19 conjugated to PE/Cy7. Then fixed with 2% PFA for 10 min followed by intracellularly staining with rabbit IgG or our antibody.
- ICC/IF
Lab
Immunocytochemistry/ Immunofluorescence - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Raji (human Burkitt's lymphoma B lymphocyte) cells labelling TOX with ab322259 at 1/50 dilution.
Confocal image showing cytoplasmic staining in Raji cell line (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Negative control : Daudi.
Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).
Anti-alpha Tubulin mouse monoclonal antibody (ab7291) was used to counterstain tubulin at 1/1000 dilution (Magenta).
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded (A) HEK-293T (human epithelial cell line from embryonic kidney) transfected with a TOX expression vector containing a Myc-His tag, (B) HEK-293T transfected with a TOX2 expression vector containing a Myc-His tag, (C) HEK-293T transfected with a TOX3 expression vector containing a Myc-His tag, (D) HEK-293T transfected with a TOX4 expression vector containing a Myc-His tag and (E) HEK-293T transfected with empty vector containing a Myc-His tag labeling TOX with ab322259 at 1/2000 (0.251 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining on Positive staining on (A) HEK-293T (human epithelial cell line from embryonic kidney) transfected with a TOX expression vector containing a Myc-His tag, no staining on (B) HEK-293T transfected with a TOX2 expression vector containing a Myc-His tag, (C) HEK-293T transfected with a TOX3 expression vector containing a Myc-His tag, (D) HEK-293T transfected with a TOX4 expression vector containing a Myc-His tag and (E) HEK-293T transfected with empty vector containing a Myc-His tag.
The section was incubated with ab322259 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Human spleen tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Nuclear staining on human spleen (PMID : 32106280). The section was incubated with ab322259 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Human thymus tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Nuclear staining on human thymus (PMID : 32106280). The section was incubated with ab322259 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Human tonsil tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Nuclear staining on human tonsil (PMID : 32106280). The section was incubated with ab322259 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
- Flow Cyt (Intra)
Lab

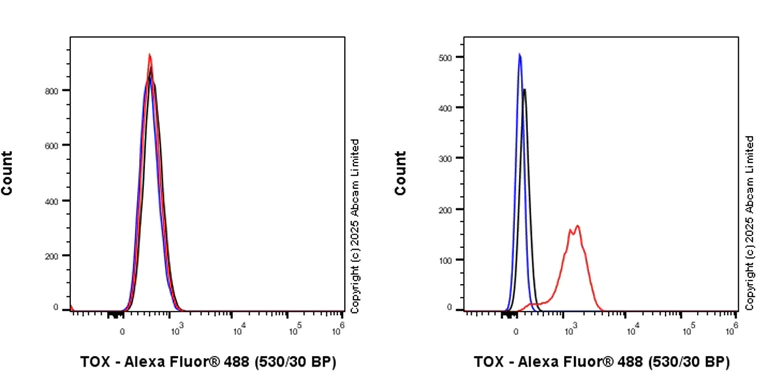

Flow Cytometry (Intracellular) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized B16-F10 (mouse skin melanoma cell, Left) / EL4 (mouse lymphoma T lymphocyte, Right) cells labelling TOX with ab322259 at 1/5000 compared with a Rabbit monoclonal IgG (ab172730) / Black isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 was used as the secondary antibody.
Low expression : B16-F10.
- Flow Cyt (Intra)
Lab
Flow Cytometry (Intracellular) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)

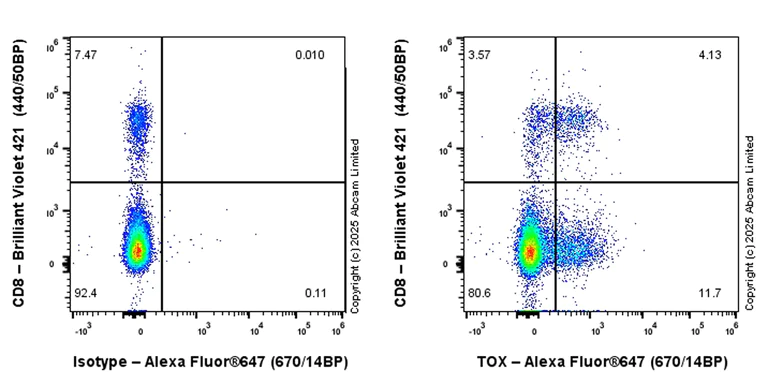

This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 2% paraformaldehyde fixed 0.1% Tween-20 permeabilized Mouse PBMCs (mouse primary peripheral blood mononuclear cells) cells labelling TOX with ab322259 at 1/500 compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control.
Goat anti-Rabbit IgG (Alexa Fluor® 647, ab150083) at 1/5000 was used as the secondary antibody.
Cells were stained with anti-CD8 conjugated to Brilliant Violet 421. Then fixed with 2% PFA for 10 min followed by intracellularly staining with rabbit IgG or our antibody.
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Mouse pancreas tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining on mouse pancreas (PMID : 32106280). The section was incubated with ab322259 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Mouse skeletal muscle tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Negative control : no staining on mouse skeletal muscle. The section was incubated with ab322259 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
- Flow Cyt (Intra)
Lab
Flow Cytometry (Intracellular) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)

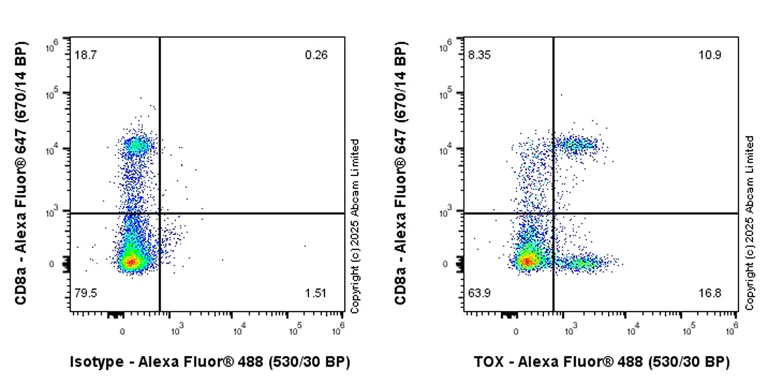

This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 2% paraformaldehyde fixed 0.1% Tween-20 permeabilized Rat PBMC (Rat peripheral blood mononuclear cell) cells labelling TOX with ab322259 at 1/50 compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control.
Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 was used as the secondary antibody.
Cells were stained with anti-CD8a conjugated to Alexa Fluor®647. Fixed with 2% PFA for 10 min followed by intracellularly staining with rabbit IgG or our antibody.
- Flow Cyt (Intra)
Lab

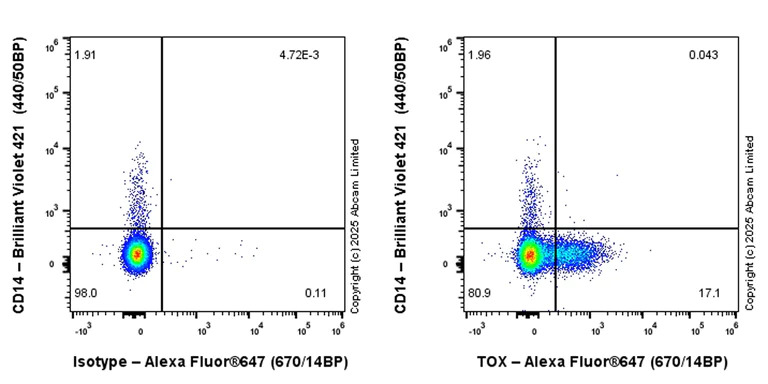

Flow Cytometry (Intracellular) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Flow cytometric analysis of 2% paraformaldehyde fixed 0.1% Tween-20 permeabilized Mouse PBMCs (mouse primary peripheral blood mononuclear cells) cells labelling TOX with ab322259 at 1/500 compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control and an unlabelled control.
Goat anti-Rabbit IgG (Alexa Fluor® 647, ab150083) at 1/5000 was used as the secondary antibody.
Cells were stained with anti-CD14 conjugated to Brilliant Violet 421. Then fixed with 2% PFA for 10 min followed by intracellularly staining with rabbit IgG or our antibody.
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Mouse kidney tissue labeling TOX with ab322259 at 1/500 (1.004 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Positive staining on mouse kidney. The section was incubated with ab322259 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument
Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
- Flow Cyt (Intra)
Lab
Flow Cytometry (Intracellular) - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.

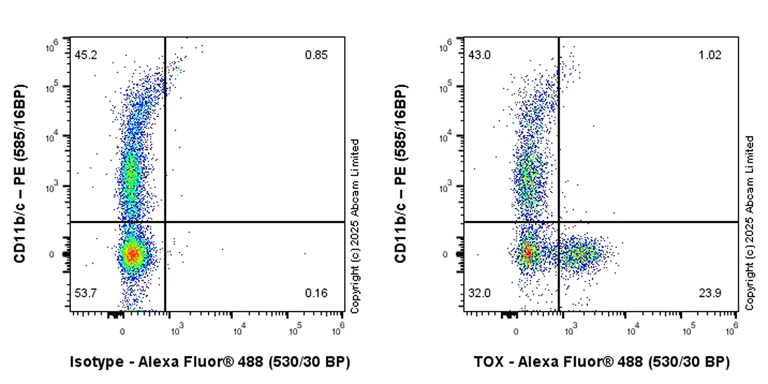

Flow cytometric analysis of 2% paraformaldehyde fixed 0.1% Tween-20 permeabilized Rat PBMC (Rat peripheral blood mononuclear cell) cells labelling TOX with ab322259 at 1/50 compared with a Rabbit monoclonal IgG (ab172730) / Left isotype control.
Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 was used as the secondary antibody.
Cells were stained with anti-CD11b/c conjugated to PE. Then fixed with 2% PFA for 10 min followed by intracellularly staining with rabbit IgG or our antibody.
- WB
Supplier Data

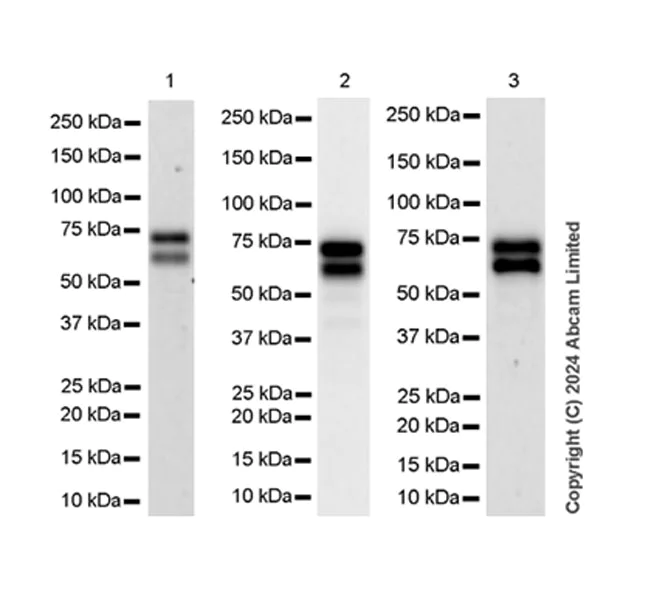

Western blot - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration : 5% NFDM/TBST.
To minimize protein degradation, cells/tissues were lysed immediately after harvest and then applied to a gel and transfer membrane for Western blotting as soon as possible.
Exposure time : Lane 1 : 180 seconds; Lane 2 : 37 seconds; Lane 3 : 125 seconds.
All lanes:
Western blot - Anti-TOX antibody [EPR28108-10] (<a href='/en-us/products/primary-antibodies/tox-antibody-epr28108-10-ab322259'>ab322259</a>) at 1/1000 dilution
Lane 1:
Neuro-2a (mouse neuroblastoma neuroblast) whole cell lysate at 20 µg
Lane 2:
Raji (human burkitt's lymphoma b lymphocyte) whole cell lysate at 20 µg
Lane 3:
Mouse testis tissue lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution
Observed band size: 57 kDa,63 kDa
false
- WB
Supplier Data

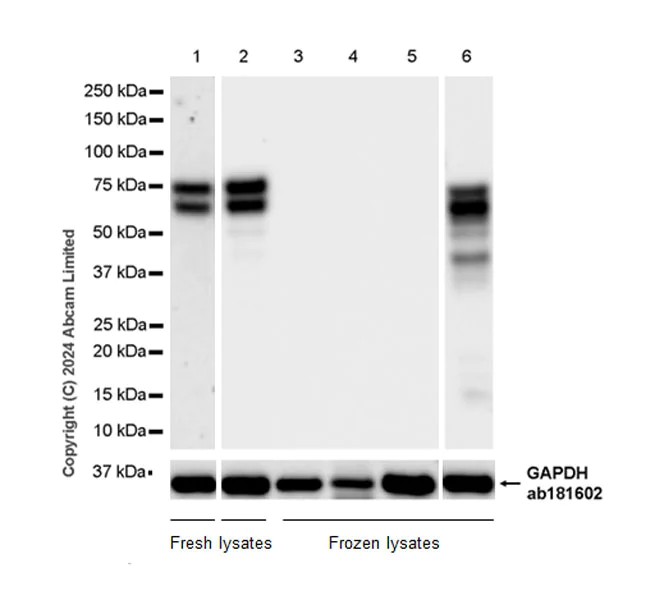

Western blot - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration : 5% NFDM/TBST.
Low expression : Daudi (PMID : 32106280), AsPC-1, A549.
To minimize protein degradation, cells were lysed immediately after harvest and then applied to a gel and transfer membrane for Western blotting as soon as possible.
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.
Exposure time : Lane 1 : 180 seconds; Lanes 2-5 : 15 seconds; Lane 6 : 48 seconds.
All lanes:
Western blot - Anti-TOX antibody [EPR28108-10] (<a href='/en-us/products/primary-antibodies/tox-antibody-epr28108-10-ab322259'>ab322259</a>) at 1/1000 dilution
Lane 1:
KARPAS-299 (human t cell lymphoma cell) whole cell lysate at 20 µg
Lanes 2 and 6:
NCI-H69 (human lung small cell carcinoma cell line) whole cell lysate at 20 µg
Lane 3:
AsPC-1 (human Pancreas epithelial cell) whole cell lysate at 20 µg
Lane 4:
A549 (human lung carcinoma epithelial cell) whole cell lysate at 20 µg
Lane 5:
Daudi (human burkitt's lymphoma lymphoblast) whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution
Observed band size: 57 kDa,63 kDa,36 kDa
false
- WB
Supplier Data

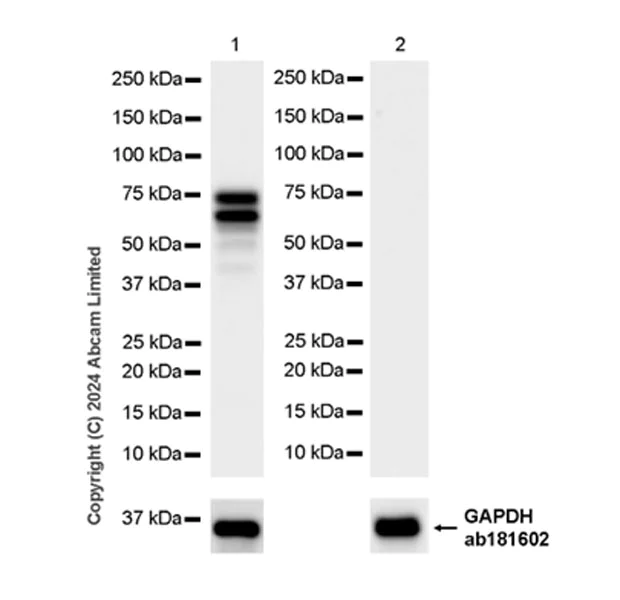

Western blot - Anti-TOX antibody [EPR28108-10] - BSA and Azide free (AB324784)
This data was developed using ab322259, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration : 5% NFDM/TBST.
Low expression : skeletal muscle.
To minimize protein degradation, tissues were lysed immediately after harvest and then applied to a gel and transfer membrane for Western blotting as soon as possible.
In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.
All lanes:
Western blot - Anti-TOX antibody [EPR28108-10] (<a href='/en-us/products/primary-antibodies/tox-antibody-epr28108-10-ab322259'>ab322259</a>) at 1/1000 dilution
Lane 1:
Mouse thymus tissue lysate at 20 µg
Lane 2:
Mouse skeletal muscle tissue lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution
Observed band size: 57 kDa,63 kDa,36 kDa
false
Exposure time: 6s
Reactivity data
Product details
ab324784 is the carrier-free version of ab322259.
Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.
Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.
Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.
Properties and storage information
Form
Purification technique
Storage buffer
Shipped at conditions
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Product protocols
- Visit the General protocols
- Visit the Troubleshooting
Target data
Additional targets
Product promise
Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
For licensing inquiries, please contact partnerships@abcam.com
