Anti-TPX2 antibody [EPR23180-4] - BSA and Azide free

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-TPX2 antibody [EPR23180-4] - BSA and Azide free (AB270612)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa cells labeling TPX2 with ab252945 at 1/100 dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) antibody at 1/1000 dilution (Green). Confocal image showing positive staining in HeLa cells. ab195889 Anti-alpha Tubulin antibody (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 dilution (Red). The nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252945).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-TPX2 antibody [EPR23180-4] - BSA and Azide free (AB270612)

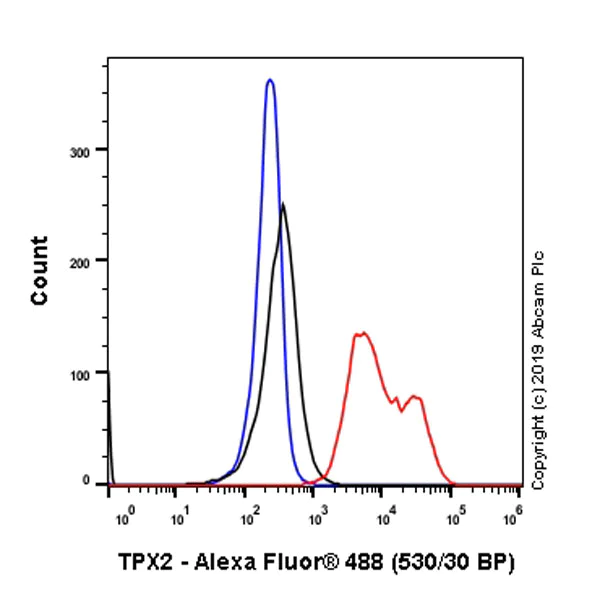

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized Raji (Human Burkitt's lymphoma B lymphocyte) cells labeling TPX2 with ab252945 at 1/500 (Red) compared with a Rabbit monoclonal IgG (ab172730) / Black isotype control and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^®488, ab150077) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252945).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-TPX2 antibody [EPR23180-4] - BSA and Azide free (AB270612)

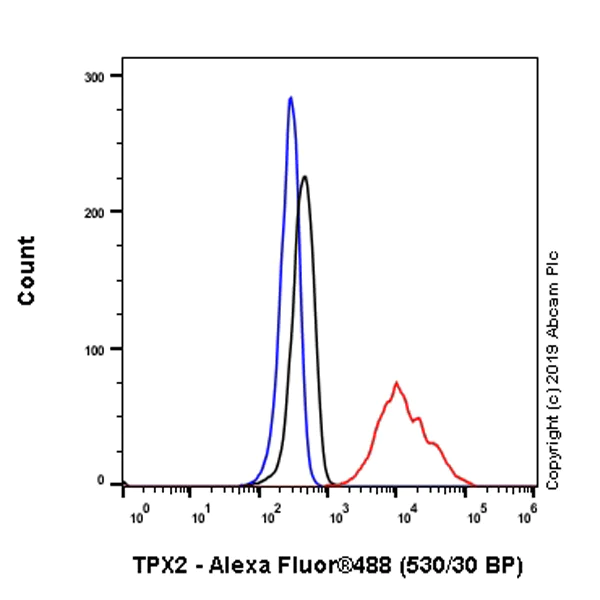

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling TPX2 with ab252945 at 1/500 (Red) compared with a Rabbit monoclonal IgG (ab172730) / Black isotype control and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^®488, ab150077) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252945).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TPX2 antibody [EPR23180-4] - BSA and Azide free (AB270612)

Immunohistochemical analysis of paraffin-embedded human lung cancer tissue labeling TPX2 with ab252945 at 1/4000 followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Positive staining in proliferative cells of human lung cancer tissue is observed (PMID : 23634259, 16489064). The section was incubated with ab252945 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252945).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TPX2 antibody [EPR23180-4] - BSA and Azide free (AB270612)

Immunohistochemical analysis of paraffin-embedded human colon cancer tissue labeling TPX2 with ab252945 at 1/4000 followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Positive staining in proliferative cells of human colon cancer is observed(PMID : 23634259, 22207630). The section was incubated with ab252945 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252945).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TPX2 antibody [EPR23180-4] - BSA and Azide free (AB270612)

Immunohistochemical analysis of paraffin-embedded human breast cancer tissue labeling TPX2 with ab252945 at 1/4000 followed by a ready to use Goat Anti-Rabbit IgG H&L (HRP). Positive staining in proliferative cells of human breast cancer is observed (PMID : 31494045). The section was incubated with ab252945 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Goat Anti-Rabbit IgG H&L (HRP).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252945).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-TPX2 antibody [EPR23180-4] - BSA and Azide free (AB270612)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HEK-293 cells labeling TPX2 with ab252945 at 1/100 dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) antibody at 1/1000 dilution (Green). Confocal image showing positive staining in HEK-293 cells. ab195889 Anti-alpha Tubulin antibody (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 dilution (Red). The nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252945).

• IP

Unknown

Immunoprecipitation - Anti-TPX2 antibody [EPR23180-4] - BSA and Azide free (AB270612)

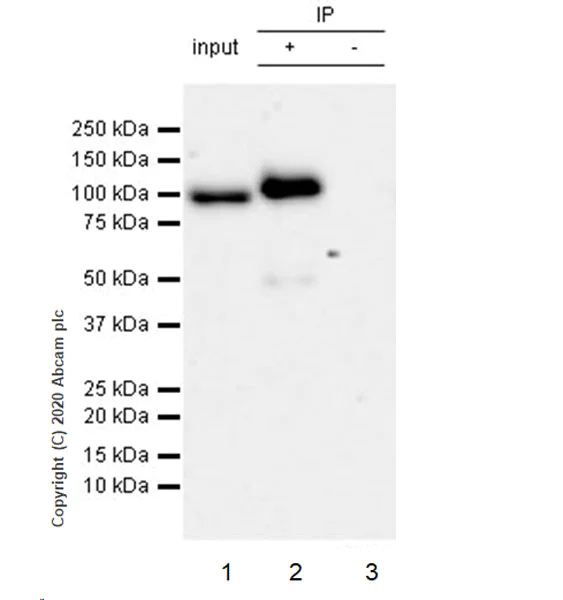

TPX2 was immunoprecipitated from 0.35 mg Raji (human Burkitt's lymphoma B lymphocyte) whole cell lysate with ab252945 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab252945 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.

Lane 1 : Raji whole cell lysate 10 μg.

Lane 2 : ab252945 IP in Raji whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab252945 in Raji whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 41 secs.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab252945).

All lanes:

Immunoprecipitation - Anti-TPX2 antibody [EPR23180-4] (<a href='/en-us/products/primary-antibodies/tpx2-antibody-epr23180-4-ab252945'>ab252945</a>)

Predicted band size: 47 kDa,86 kDa

Observed band size: 100 kDa
