Anti-Transportin 1/MIP antibody [D45]

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Transportin 1/MIP antibody [D45] (AB10303)

IHC image of ab10303 staining in human pancreas formalin fixed paraffin embedded tissue section, performed on a Leica Bond^TM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab10303, 1µg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• Flow Cyt

Unknown

Flow Cytometry - Anti-Transportin 1/MIP antibody [D45] (AB10303)

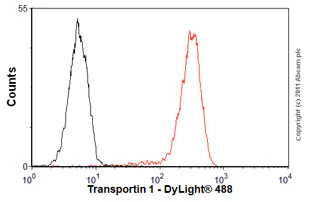

Overlay histogram showing HeLa cells stained with ab10303 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab10303, 1μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (ab91353, 2μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Transportin 1/MIP antibody [D45] (AB10303)

ICC/IF image of ab10303 stained HeLa cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab10303, 5µg/ml) overnight at +4°C. The secondary antibody (green) was Alexa Fluor® 488 goat anti-mouse IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.

• ICC/IF

AbReview29073****

Immunocytochemistry/ Immunofluorescence - Anti-Transportin 1/MIP antibody [D45] (AB10303)

ab10303 staining cultured P0 mouse neurons by ICC/IF. The cultured neurons were fixed with 4% formaldehyde for 5 minutes and blocked with 10% donkey serum in 0.1% PBS-0.3% Triton X for 30 minutes at 24°C. The cultured neurons were then stained with ab10303 at 1/1000 in 0.3% TritonX with 0.1x PBS and 10% donkey serum for 4h at 24°C. An Alexa Fluro 568 donkey anti-mouse polyclonal antibody at 1/1000 was used as the secondary antibody. Hoechst was used to stain the cell nuclei (blue) at a concentration of 1.43μM

This image is courtesy of an Abreview submitted by Ruma Raha-Chowdhury

• WB

Unknown

Western blot - Anti-Transportin 1/MIP antibody [D45] (AB10303)

All lanes:

Western blot - Anti-Transportin 1/MIP antibody [D45] (ab10303) at 5 µg/mL

Lane 1:

HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg

Lane 2:

SW480 (Human colon adenocarcinoma cell line) Whole Cell Lysate at 10 µg

Secondary

All lanes:

Goat polyclonal to Mouse IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilution

Predicted band size: 102 kDa

Observed band size: 107 kDa,25 kDa
