Anti-TRIM32 antibody [EPR29683-521] - BSA and Azide free

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-TRIM32 antibody [EPR29683-521] - BSA and Azide free (AB325948)

This data was developed using ab322979, the same antibody clone in a different buffer formulation.

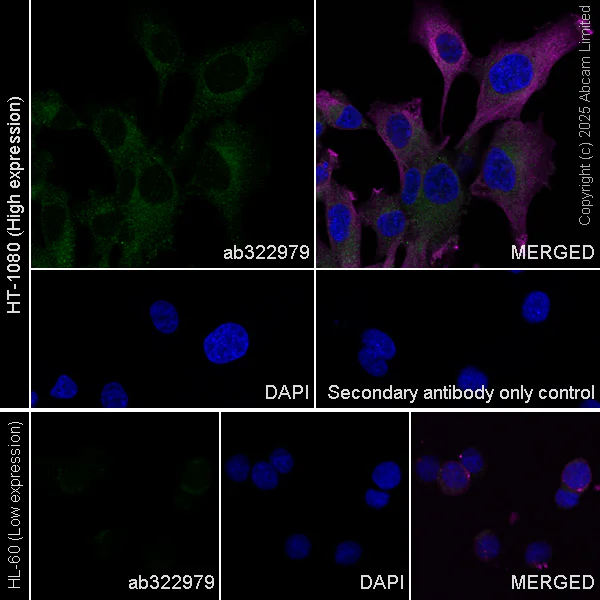

Immunofluorescent analysis of 4% Paraformaldehyde-fixed 0.1% TritonX-100 permeabilized HT-1080 (human fibrosarcoma epithelial cell) cells labelling TRIM32 with ab322979 at 1/50 (9.82 ug/ml) dilution followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2ug/ml dilution (Green).

Confocal image showing cytoplasmic staining in HT-1080 cells and weak cytoplasmic staining in HL-60 cells (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Image was taken with a confocal microscope (Leica-Microsystems TCS SP8).

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2ug/ml dilution.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TRIM32 antibody [EPR29683-521] - BSA and Azide free (AB325948)

This data was developed using ab322979, the same antibody clone in a different buffer formulation.

Immunohistochemical analysis of paraffin-embedded Mouse glioblastoma tissue labeling TRIM32 with ab322979 at 1/500 (0.982 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining in mouse glioblastoma.
The section was incubated with ab322979 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TRIM32 antibody [EPR29683-521] - BSA and Azide free (AB325948)

This data was developed using ab322979, the same antibody clone in a different buffer formulation.

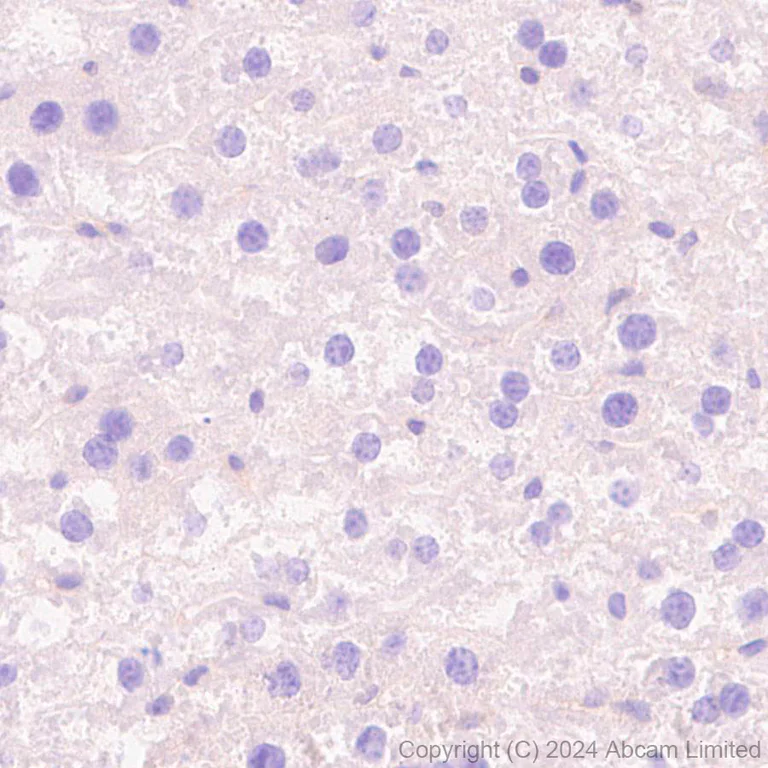

Immunohistochemical analysis of paraffin-embedded Mouse liver tissue labeling TRIM32 with ab322979 at 1/500 (0.982 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Low expression tissue : No staining in mouse liver (PMID : 14578165).
The section was incubated with ab322979 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TRIM32 antibody [EPR29683-521] - BSA and Azide free (AB325948)

This data was developed using ab322979, the same antibody clone in a different buffer formulation.

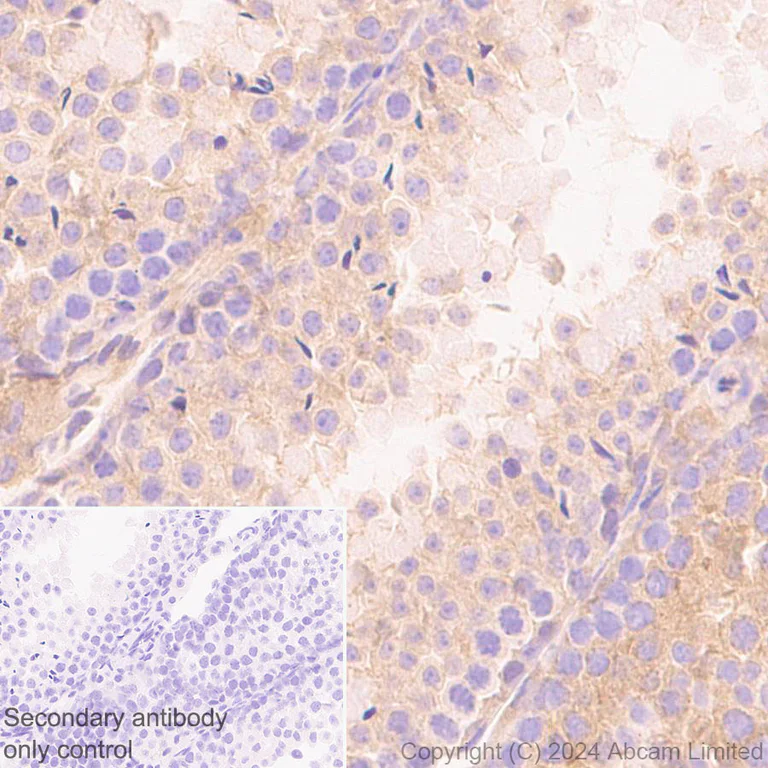

Immunohistochemical analysis of paraffin-embedded Mouse testis tissue labeling TRIM32 with ab322979 at 1/500 (0.982 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining in mouse testis.
The section was incubated with ab322979 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TRIM32 antibody [EPR29683-521] - BSA and Azide free (AB325948)

This data was developed using ab322979, the same antibody clone in a different buffer formulation.

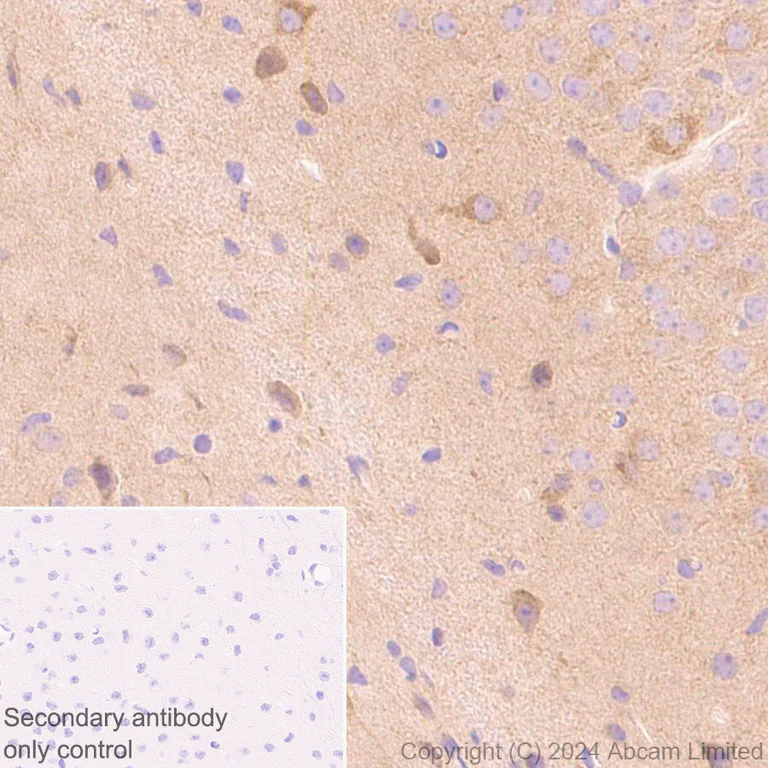

Immunohistochemical analysis of paraffin-embedded Mouse cerebrum tissue labeling TRIM32 with ab322979 at 1/500 (0.982 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining in mouse cerebrum.
The section was incubated with ab322979 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-TRIM32 antibody [EPR29683-521] - BSA and Azide free (AB325948)

This data was developed using ab322979, the same antibody clone in a different buffer formulation.

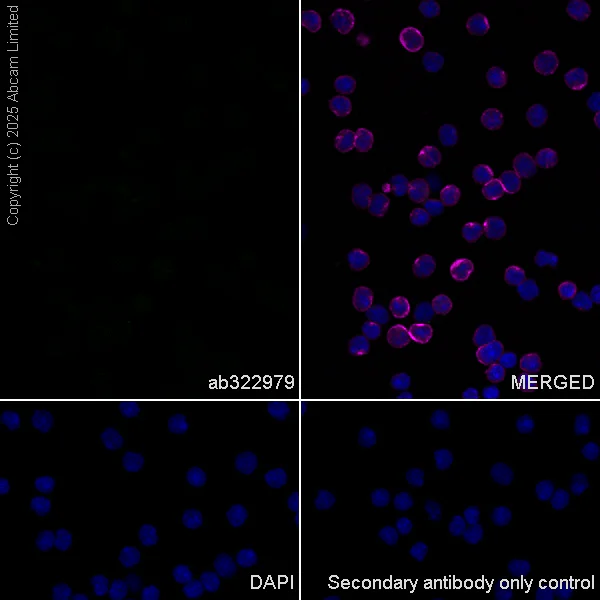

Immunofluorescent analysis of 4% Paraformaldehyde-fixed 0.1% TritonX-100 permeabilized Mouse splenocyte cells labelling TRIM32 with ab322979 at 1/50 (9.82 ug/ml) dilution followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2ug/ml dilution (Green).

Confocal image showing no staining in mouse splenocytes (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue). Low expression cells : Mouse spleen cell (PMID : 19349376). Image was taken with a confocal microscope (Leica-Microsystems TCS SP8).

ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2ug/ml dilution.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-TRIM32 antibody [EPR29683-521] - BSA and Azide free (AB325948)

This data was developed using ab322979, the same antibody clone in a different buffer formulation.

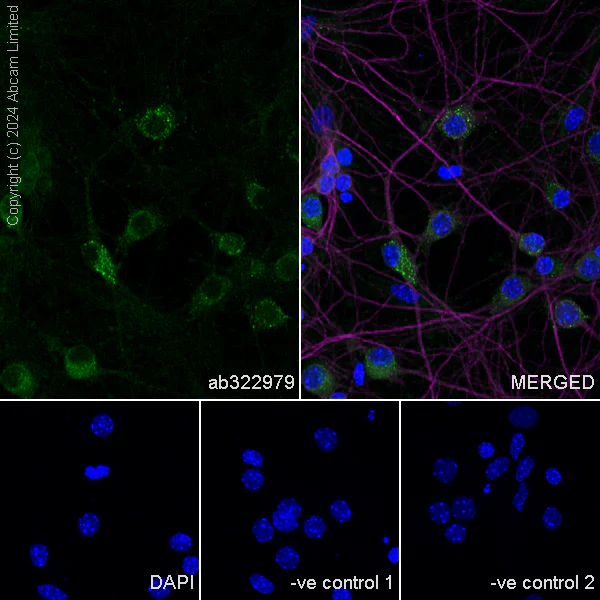

Immunofluorescent analysis of 4% Paraformaldehyde-fixed 0.1% TritonX-100 permeabilized mouse primary neuron cells labelling TRIM32 with ab322979 at 1/50 (10.14 ug/ml) dilution followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2ug/ml dilution (Green).

Confocal image showing cytoplasmic staining in mouse primary neuron (shown in green). The counterstain was observed in magenta. Nuclear DNA was labelled with DAPI (shown in blue).
Confocal scanning Z step was set as 0.3 µm followed by image processing with maximum Z projection.
Image was taken with a confocal microscope (Leica-Microsystems TCS SP8).

ab11267 Anti-MAP2 mouse monoclonal antibody was used to counterstain tubulin at 1/500 4ug/ml dilution followed by ab150120 Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) at 1/1000 2ug/ml dilution (Magenta). The Nuclear counterstain was DAPI (Blue).

-ve control 1 : ab322979 at a 1/50 dilution followed by ab150120 at a 1/1000 dilution.

-ve control 2 : ab11267 at a 1/500 dilution followed by ab150081 at a 1/1000 dilution.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TRIM32 antibody [EPR29683-521] - BSA and Azide free (AB325948)

This data was developed using ab322979, the same antibody clone in a different buffer formulation.

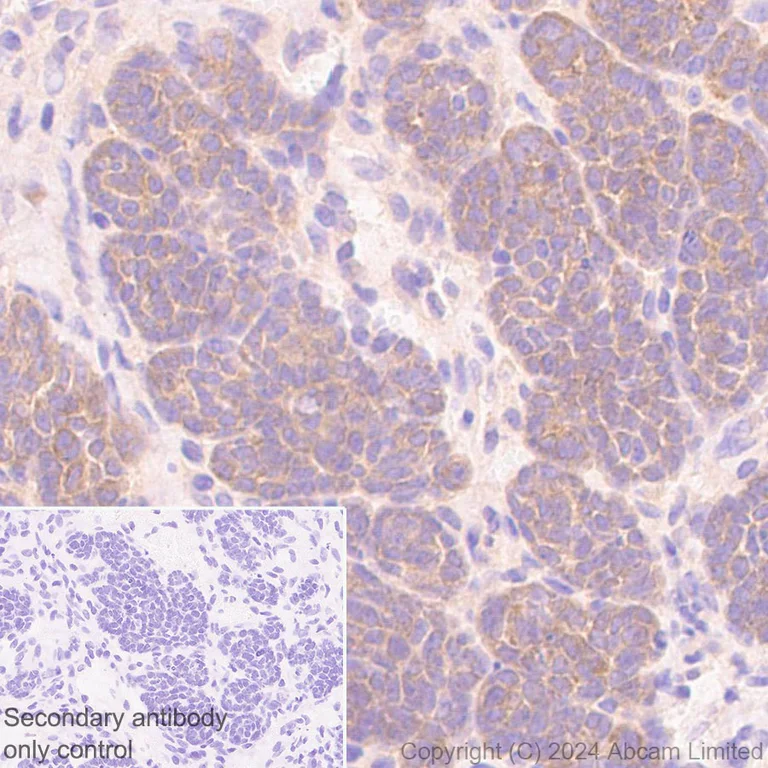

Immunohistochemical analysis of paraffin-embedded Mouse squamous cell carcinoma tissue labeling TRIM32 with ab322979 at 1/500 (0.982 ug/ml) dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Positive staining in mouse squamous cell carcinoma.
The section was incubated with ab322979 for 30 mins at room temperature.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument

Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0 Epitope Retrieval Solution2) for 20 mins

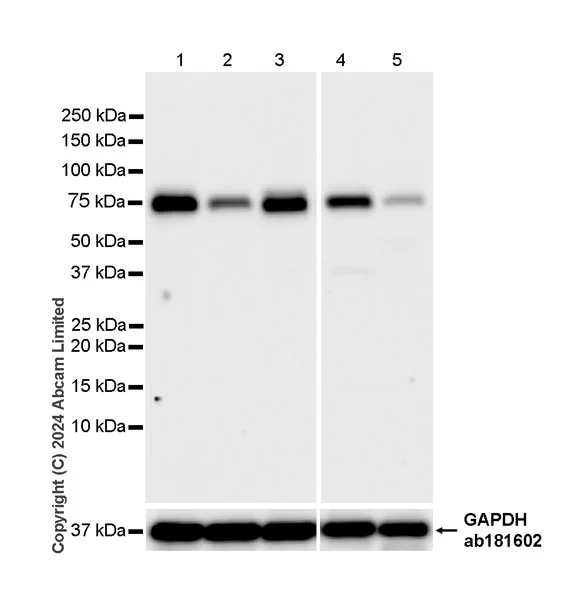

• WB

Supplier Data

Western blot - Anti-TRIM32 antibody [EPR29683-521] - BSA and Azide free (AB325948)

This data was developed using ab322979, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : HL-60

In Western blot Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-TRIM32 antibody [EPR29683-521] (<a href='/en-us/products/primary-antibodies/trim32-antibody-epr29683-521-ab322979'>ab322979</a>) at 1/1000 dilution

Lane 1:

HeLa (human cervical adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

U-118 MG (human brain glioblastoma cell) whole cell lysate at 20 µg

Lane 3:

HT-1080 (human fibrosarcoma epithelial cell) whole cell lysate at 20 µg

Lane 4:

RD (human muscle mtinucleated spindle-shaped cell) whole cell lysate at 20 µg

Lane 5:

HL-60 (human acute promyelocytic leukemia promyeloblast) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 72 kDa,36 kDa

false

Exposure time: 48s

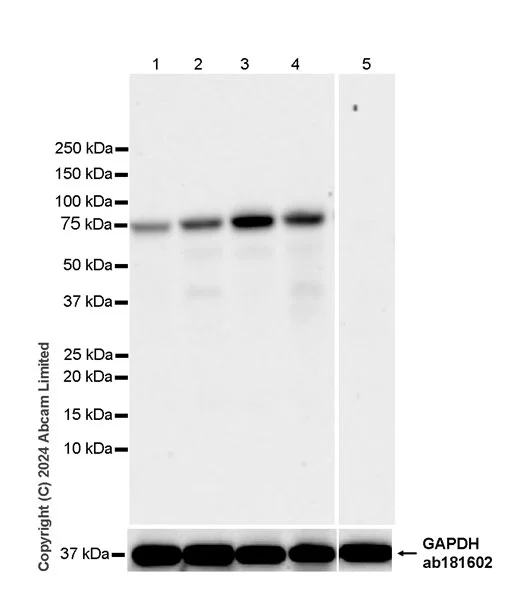

• WB

Supplier Data

Western blot - Anti-TRIM32 antibody [EPR29683-521] - BSA and Azide free (AB325948)

This data was developed using ab322979, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

In Western blot Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

All lanes:

Western blot - Anti-TRIM32 antibody [EPR29683-521] (<a href='/en-us/products/primary-antibodies/trim32-antibody-epr29683-521-ab322979'>ab322979</a>) at 1/1000 dilution

Lane 1:

NIH/3T3 (mouse embryonic fibroblast) transfected with scrambled siRNA control whole cell lysate at 20 µg

Lane 2:

NIH/3T3 transfected with siRNA specifically targeting TRIM32 whole cell lysate at 20 µg

Lane 3:

A20 (mouse reticum sarcoma B lymphocyte) whole cell lysate at 20 µg

Lane 4:

Neuro-2a (mouse neuroblastoma neuroblast) whole cell lysate at 20 µg

Lane 5:

4T1 (mouse mammary gland carcinoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 72 kDa,36 kDa

false

Exposure time: 37s

• WB

Supplier Data

Western blot - Anti-TRIM32 antibody [EPR29683-521] - BSA and Azide free (AB325948)

This data was developed using ab322979, the same antibody clone in a different buffer formulation.

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Low expression : spleen skeletal muscle liver(PMID : 19349376)

In Western blot Anti-GAPDH antibody [EPR16891] - Loading Control (ab181602) staining at 1/200000 dilution.

Exposure time : Lane1-3 : 10 seconds lane4-5 : 26seconds

All lanes:

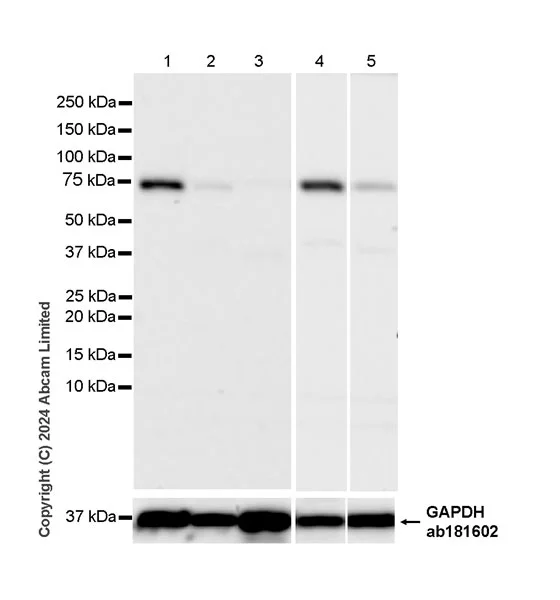

Western blot - Anti-TRIM32 antibody [EPR29683-521] (<a href='/en-us/products/primary-antibodies/trim32-antibody-epr29683-521-ab322979'>ab322979</a>) at 1/1000 dilution

Lane 1:

Mouse brain tissue lysate at 20 µg

Lane 2:

Mouse spleen tissue lysate at 20 µg

Lane 3:

Mouse skeletal muscle tissue lysate at 20 µg

Lane 4:

Mouse testis tissue lysate at 20 µg

Lane 5:

Mouse liver tissue lysate

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 72 kDa,36 kDa

false
